Build a 40 Meter Vertical Antenna
The quarter-wave vertical is one of the most widely built HF antennas in amateur radio — and for good reason. A 40m vertical requires no support structure higher than its own 33-foot element, occupies a small horizontal footprint, delivers a low-angle radiation pattern well-suited for DX work, and performs predictably when paired with a proper radial system. This guide covers everything needed to plan, build, mount, and tune a 40m quarter-wave vertical from first principles — including the radial system that determines whether the antenna excels or merely works.
Quarter-Wave Vertical Fundamentals
A quarter-wave vertical is one half of a dipole — the missing half is provided by a ground plane (radial system) that mirrors the element electrically. The element length is one quarter of the wavelength at the target frequency, and the feedpoint sits between the element base and the ground plane:
The constant 234 (rather than 246 used for half-wave dipoles) accounts for the end effect and velocity factor of real wire — the effective electrical length is slightly shorter than a pure quarter-wavelength in free space. For aluminum tubing the constant is 233–234; for copper wire it is 234–236 depending on wire gauge.
Why the Radial System Matters More Than the Element
The most important — and most misunderstood — part of a quarter-wave vertical is the ground return system. Without an adequate ground return, the vertical's radiation resistance is swamped by ground loss resistance and efficiency collapses. The element itself is only half the story:
- Perfect ground (theoretical): feedpoint impedance ~36 Ω, zero ground loss, maximum efficiency — unachievable in practice.
- 4 radials on ground surface: ~20 Ω of ground resistance added; efficiency around 50% (−3 dB). Workable but not good.
- 16 radials on ground surface: ground loss drops to ~5 Ω; efficiency around 85% (−0.7 dB). Good performance.
- 32+ radials on or buried in ground: ground loss approaches 1–2 Ω; efficiency approaches 95%+ (−0.2 dB). Excellent — target for a serious installation.
- 4 elevated radials at λ/4 height: surprisingly effective — equivalent to 16–32 on-ground radials when radials are at least λ/4 above ground. Best alternative when burying radials is impractical.
The practical rule: more radials always help, up to about 120. The first 8 produce the largest improvement; adding from 8 to 32 is meaningful; beyond 32 the gains are real but smaller.
Full radial system build guide →Radiation Pattern — Why Verticals Excel for DX
A quarter-wave vertical over a good ground plane has a radiation pattern that makes it ideal for long-distance (DX) communication compared to a horizontal dipole at moderate heights:
In practice, a well-built 40m vertical with a good radial system consistently outperforms a 40m dipole at modest heights for DX contacts. The vertical is omnidirectional in azimuth — an advantage (no rotator needed) and a limitation (cannot null interference from one direction).
Element Construction Options
Three practical approaches to building the 33-foot vertical element, each with different trade-offs:
- Aluminum tubing (telescoping): the standard for a permanent installation. Lightweight, rigid, durable, low-resistance. Use 6061-T6 alloy for corrosion resistance. Typical taper: 1.25-inch OD lower section stepping down to 1.0-inch OD middle and 0.75-inch OD for the top 10 feet. Self-supporting at 33 feet in moderate wind. Best long-term choice.
- Fiberglass fishing pole with wire: a 10-meter (33-foot) telescoping fishing pole costs $30–50 and makes an excellent support. Run #18 or #14 AWG copper wire along the outside. Portable, quickly deployed, and easy to store — ideal for field day, POTA, SOTA, and temporary fixed installations.
- Copper wire on a rope or cord: the simplest possible vertical — a wire hanging from a tree branch or mast, pulled taut with a weight or peg at the bottom. Requires an existing support at least 34 feet tall. Functional and easy to build; the wire sways in wind and shifts resonance slightly but remains fully operational.
| Target frequency | Band segment | Element length (ft) | Element length (m) | Notes |
|---|---|---|---|---|
| 7.000 MHz | CW bottom | 33.43 ft | 10.19 m | Cut here for CW-only operation |
| 7.025 MHz | CW | 33.30 ft | 10.15 m | CW segment center |
| 7.074 MHz | FT8 / digital | 33.07 ft | 10.08 m | FT8 and FT4 calling frequency |
| 7.150 MHz | Phone center (recommended) | 32.73 ft | 9.98 m | Best compromise — full band usable with internal ATU |
| 7.200 MHz | Phone | 32.50 ft | 9.91 m | Cut here for phone-only operation |
| 7.250 MHz | Phone / US edge | 32.28 ft | 9.84 m | Upper limit of US 40m phone allocation |
| 7.300 MHz | Band top | 32.05 ft | 9.77 m | Upper band edge — not recommended as center point |
Vertical 40m Calculator
Materials for a ground-mounted 40m quarter-wave vertical with 16-radial ground plane

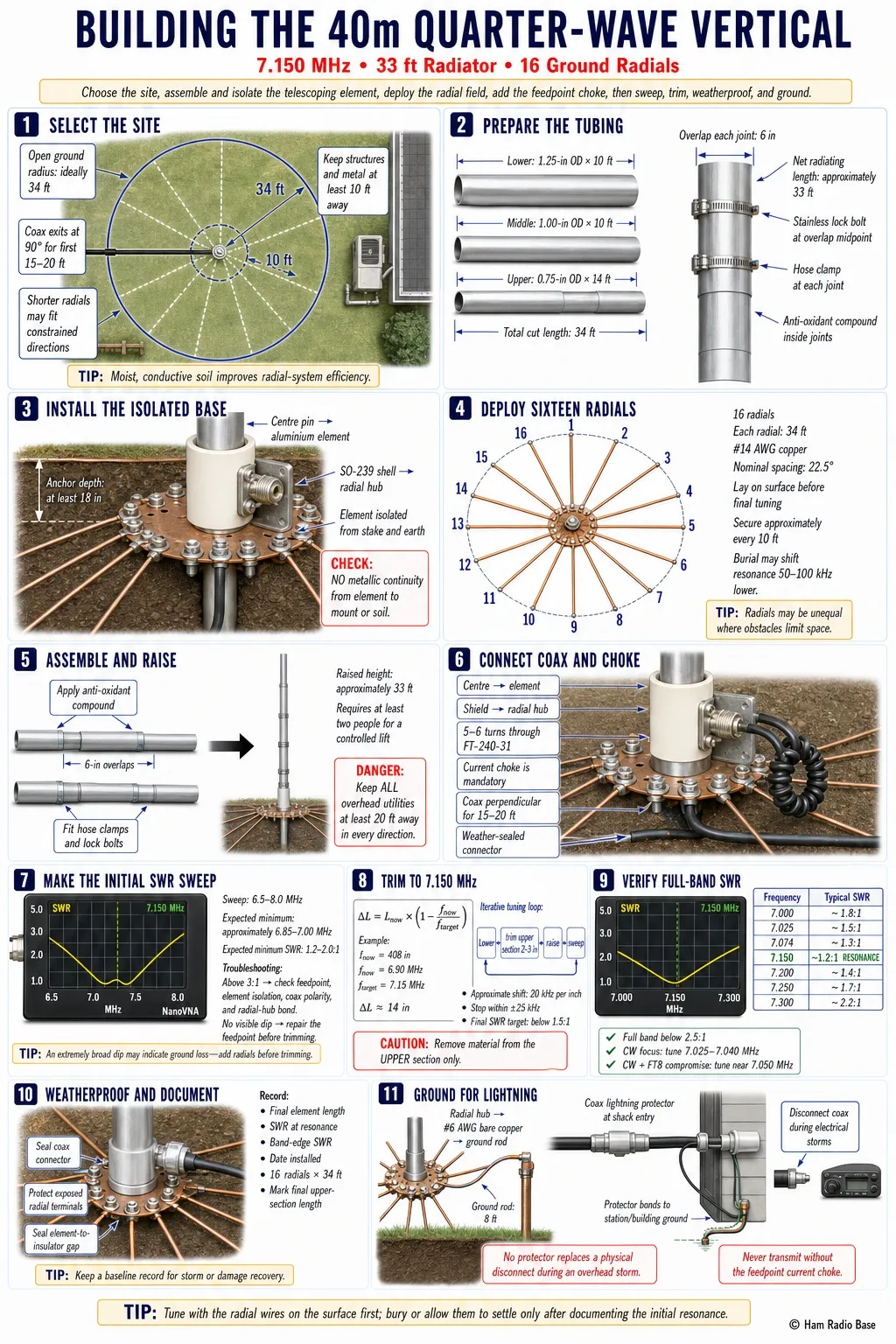

Building the 40m Quarter-Wave Vertical
This guide builds a ground-mounted aluminum tubing vertical with a 16-radial on-ground system. The same element design applies to a fishing-pole or wire-on-rope construction — adapt or skip the aluminum tubing steps as needed for your build approach.
Select the Installation Site
The 40m vertical is most sensitive to what is beneath and around it — the site selection determines radial system quality more than any other factor. Choose a site with:
- Maximum open ground around the base: radials need to run outward in all directions. A site with 34 feet of unobstructed ground in all directions is ideal. If some directions are blocked by a fence or building, run shorter radials in those directions and longer radials in the open ones.
- Low-resistance soil when possible: moist, clay-rich soil has lower resistance than dry sandy soil. Coastal and lake-side locations often have excellent ground conductivity. Arid regions with dry sandy soil benefit most from an extensive buried radial system.
- Distance from structures: keep the element base at least 10 feet from buildings, metal fences, and overhead power lines. Metal structures within a few feet of the element detune it and create safety hazards at transmitter power.
- Coax routing: the coax runs along the ground from the feedpoint to the shack entry. Plan a route that leaves the element base at 90° — running the coax parallel to the element for the first several feet couples RF onto the coax shield and requires a heavier current choke to suppress.
Cut and Prepare the Aluminum Tubing Sections
Cut the three aluminum tubing sections to length using a hacksaw or tubing cutter. A tubing cutter produces a cleaner cut with no aluminum chips — preferred if available. After cutting, deburr all cut ends inside and out with a round file or deburring tool — sharp aluminum burrs cut hands and prevent sections from telescoping smoothly.
Drill a 3/16-inch hole through both walls of the tubing at each joint overlap midpoint — this allows a stainless steel bolt to lock the sections and prevents the joint from slowly rotating and loosening in wind. The bolt is a backup to the hose clamps, not a replacement for them.
Build or Install the Base Mount and Feedpoint Assembly
The base mount supports the element mechanically and provides the feedpoint connection. A commercial ground spike mount (DX Engineering, Hustler, or equivalent) is the most reliable option — it provides a stable ground stake, an insulated element base, and a feedpoint connection point. Homebrew alternatives:
- PVC pipe sleeve in concrete: set a 4-inch diameter PVC pipe vertically in a concrete footing at least 18 inches deep. The lower aluminum section slides into the PVC sleeve. Attach the feedpoint SO-239 to a stainless steel U-bolt clamped to the aluminum at the base of the sleeve.
- Fence post anchor: a galvanized steel fence post anchor driven 18 inches into the ground, with the aluminum element inserted into the top. The anchor provides mechanical support; a ring terminal and stainless bolt at the aluminum base provide the electrical connection point.
Mount the SO-239 feedpoint connector at the element base — either directly to a bracket clamped on the aluminum or to the base mount insulator. The SO-239 center pin connects to the aluminum element (hot side); the SO-239 shell connects to the radial system hub (ground return).
Install the Radial Hub and Run 16 Radials
The radial system is the ground return for the vertical. Install a copper radial plate or bus bar at the base of the element. A commercial radial plate (DX Engineering makes a popular one) has multiple terminal holes for radial wires, a central bolt for the coax shield connection, and mounting holes for the ground stake. A homebrew alternative: a 3-inch × 3-inch copper flashing square with holes drilled for each radial ring terminal and a central bolt.
Cut 16 radial wires of #14 AWG copper at 34 feet each — slightly longer than the element. Crimp a ring terminal on one end of each radial. Connect all 16 ring terminals to the radial hub and tighten securely. Space the 16 radials evenly at 22.5° intervals (360° ÷ 16 = 22.5°). If space is limited in some directions, adjust spacing — the radials do not need to be perfectly uniform to work well.
Lay the radials on the ground surface at this stage — do not bury them yet. Measure resonance with the radials on the surface first. Burying them causes a modest shift in resonance (typically 50–100 kHz lower) that you will correct after initial tuning.
Assemble and Raise the Element
Assemble the three tubing sections on the ground before raising. Apply Noalox at each joint. Slide each section into the one below, overlapping by 6 inches. Install hose clamps at each joint and tighten firmly — not so tight that the clamp cuts into the aluminum wall. Install the lock bolt through both walls at each joint overlap midpoint.
Raising a 33-foot aluminum element requires at least two people. One method: lay the assembled element on the ground with the base near the mount. One person holds the top section; a second person lifts the middle and walks it toward the base while the first person walks the top section upright. The element pivots up from the base end. A gin pole (a short pipe extending the base mount) makes raising easier and prevents the element from slipping off the mount.
Connect the Feedpoint and Install the Current Choke
With the element raised and the base secured, connect the coax feedline:
- PL-259 or N-connector end of coax plugs into the SO-239 at the feedpoint
- Verify coax center pin connects to the element (hot) and coax shield connects to the radial hub (ground) — not reversed
- Install the current choke immediately at the feedpoint — wind 5–6 turns of the coax through an FT-240-31 toroid and secure with a UV-resistant cable tie to the base mount
Route the coax away from the element base at 90° along the ground. Use UV-resistant cable ties to secure the coax to ground staples every 10 feet so it lies flat. After the first 15–20 feet the coax can turn toward the shack entry in any direction.
Weatherproof the SO-239 / PL-259 connection with self-amalgamating tape — wrap starting below the connector, spiraling up over the connection and back down. Two full layers are adequate. Self-amalgamating tape bonds to itself and creates a fully waterproof seal; standard electrical tape is not a substitute for outdoor feedpoint use.
Initial SWR Measurement Before Trimming
Connect the NanoVNA at the shack end of the coax. Sweep 6.5–8.0 MHz and locate the SWR minimum. Record the frequency of minimum SWR, the SWR value at minimum, and the SWR at 7.150 MHz.
Trim the Element to Resonance
Trim the upper section of the element to raise the resonant frequency to the target. Calculate the amount to trim:
Lower the element, trim the upper section, re-raise, and re-measure. Repeat until the SWR minimum is at or within ±25 kHz of the target frequency. The final SWR at the target frequency should be below 1.5:1 — most well-built 40m verticals with 16+ radials achieve 1.2–1.4:1 at resonance.
Verify Full Band Coverage
Once resonance is confirmed at the target frequency, sweep the entire 40m band (7.000–7.300 MHz) and record SWR at multiple points. A properly tuned 40m vertical covers most of the band with acceptable SWR:
Weatherproof All Connections and Document
Once resonance is confirmed, weatherproof the feedpoint and all connections. Apply self-amalgamating tape over the SO-239/PL-259 joint and over any exposed ring terminal connections at the radial hub. Apply a bead of clear RTV silicone sealant around the base of the element where it enters the mount, covering any gap between the aluminum and the mount insulator.
Photograph and document: element length after trimming, SWR at resonance, SWR at band edges, date of installation, number of radials, and radial lengths. After a lightning event or physical damage, knowing the original tuned length allows fast reconstruction without re-tuning from scratch. Mark the final trimmed length with a permanent marker on the upper tubing section for quick reference.
Lightning Protection and Grounding
A 33-foot vertical element is a substantial lightning attractor. Proper grounding significantly reduces the probability of station damage:
- Ground rod at the base: drive an 8-foot copper-clad ground rod into the earth adjacent to the element base. Connect the radial hub to the ground rod with #6 AWG bare copper wire. This provides a low-impedance DC path to earth — direct lightning current goes to ground rather than through the coax.
- Coax lightning protector: install a Polyphaser, ICE, or equivalent gas-tube coax protector at the point where the coax enters the building. These devices clamp the coax center conductor to the shield at high voltages, diverting surge energy to the building ground before it reaches the radio.
- Disconnect during storms: when not operating during an electrical storm, disconnect the coax at the radio and move the connector away from the equipment. No surge protector substitutes for a physical disconnect when a storm is overhead.
When to Use Elevated Radials
Ground-mounted on-surface radials are the standard approach, but not always possible. Elevated radials are the best alternative when:
- The installation site is paved (concrete, asphalt, gravel) and laying radials on the surface is impractical
- The property footprint is too small to run 34-foot radials in multiple directions
- HOA restrictions prevent visible radials on the lawn surface
- The antenna must be mounted on a rooftop, deck, or elevated platform
The surprising result from NEC modeling: just 4 elevated radials at λ/4 height above ground perform nearly as well as 16–32 on-ground radials in terms of antenna efficiency. The requirement: radials must be at least λ/4 high (approximately 33 feet for 40m) and must be resonant (approximately 32–34 feet long). At 10 feet above ground — a typical deck or fence height — elevated radials do not achieve the same efficiency gain as λ/4 height, but they still outperform too-few on-ground radials significantly.
Building an Elevated Radial System
For a rooftop or elevated platform installation at 10–30 feet above ground:
- Radial count: use a minimum of 4 radials; 8 is better. The radials must be horizontal and extend outward from the element base in the horizontal plane.
- Radial length: cut each radial to λ/4 — same formula as the element: 234 / f(MHz) = 32.7 ft for 7.150 MHz. The radials are resonant at the same frequency as the element.
- Radial wire: #18 or #16 AWG insulated wire works well for elevated radials — lighter than bare copper, weatherproof, and sags less over spans than heavier wire.
- Radial support: run each radial along a nylon cord tied between support points — fence, railing, or standoff insulators. The wire must be insulated from any metallic support structures.
- Resonance adjustment: with elevated radials, the element length formula is more accurate than with on-ground radials (no ground detuning effect). Cut to the calculated length and expect resonance within 50 kHz of target before trimming.
| Symptom | Most likely cause | Diagnosis | Fix |
|---|---|---|---|
| No SWR dip visible across 6–8 MHz | Feedpoint connection fault or reversed coax polarity | Measure DC resistance from coax center to shield at radio end — should be open circuit with element disconnected | Check SO-239 connections; verify center pin goes to element, shield to radials; check for coax short |
| SWR below 1.5:1 but very broad — 1 MHz wide | High ground resistance — too few radials | Broad SWR curve indicates high radiation resistance from ground loss | Add more radials — minimum 16; aim for 32 for best performance |
| SWR dip at correct frequency but minimum is 3:1 or higher | Feedpoint impedance mismatch or element shorting to mount | Check element base for contact with mount or earth; check radial hub continuity to coax shield | Re-insulate element base; verify radial hub isolated from earth; check all connections |
| Resonance drifts day to day or with weather | Loose joint in tubing sections | Manually flex each joint — listen for movement; re-measure SWR after each section is tightened | Tighten all hose clamps; apply Noalox at each joint; install lock bolt through overlap |
| RF in shack — bites from mic or key contacts | No current choke at feedpoint | Touch a neon screwdriver to the radio chassis during transmit — glow confirms RF on chassis ground | Install FT-240-31 current choke at feedpoint — 5–6 turns of coax through the core |
| SWR good on meter but signal reports consistently poor | Inadequate radial system reducing efficiency | Compare WSPR spots vs nearby operators on same band with similar power | Add radials — first 8 have largest effect; continue to 32 for significant improvement |
| SWR increases after rain | Water ingress at feedpoint connector | Wipe feedpoint dry and re-measure — if SWR improves, water ingress is confirmed | Remove, dry, and re-weatherproof feedpoint with self-amalgamating tape and RTV sealant |
| Element leans or sways excessively in wind | Insufficient base mount depth or loose joints | Check mount stake depth; check each tubing joint for mechanical play | Extend ground stake; add guy wires at mid-element; tighten all joints |
How many radials do I actually need to make the antenna work?
The antenna works with any number of radials — even one radial produces a functional vertical. The question is how efficiently it works. With 2–4 radials the efficiency is substantially degraded (ground loss of 15–25 Ω added to feedpoint resistance, costing 3–5 dB of output). With 8 radials you recover most of that loss. With 16 radials the antenna is performing at 80–85% of its theoretical maximum. With 32 radials it approaches 90–95%. The biggest improvements come from adding the first 8 radials — each one added to a sparse system produces a larger gain than adding the 30th or 40th radial to an already good system. Install at minimum 8 and operate — but continue adding more whenever possible.
Can I use this vertical on bands other than 40m without a tuner?
A 40m quarter-wave vertical is electrically a 3/4-wave on 15m (three times the fundamental frequency) and shows a natural resonance near 21.0–21.4 MHz — typically SWR below 2:1 on 15m for a direct 50 Ω coax feed without a tuner. On 20m and 10m the SWR is typically higher (3:1 to 8:1) and a tuner is required. On 80m the antenna is roughly λ/8 — very low radiation resistance and very high reactance — a tuner with a good matching range handles it but efficiency is reduced. Most operators use the 40m vertical primarily on 40m and 15m as direct-feed bands, and rely on the tuner for 20m, 10m, and 80m casual use.
Do I need to bury the radials or can they lie on the surface?
On-surface radials work well — NEC modeling and practical measurements show very similar performance between radials lying on the ground surface and radials buried 2–4 inches deep. The ground itself provides the ground-return function; the radials improve that ground return by providing a low-resistance path from the feedpoint outward. Buried radials are slightly better in very dry soil where the surface layer is high-resistance dust. On-surface radials are easier to install and easier to extend later. In lawn applications, on-surface radials bury themselves within one growing season. Start with on-surface radials and bury them at your convenience — or leave them on the surface permanently.
How does a 40m vertical compare to a 40m dipole for DX?
For DX, the 40m vertical with a good radial system has a consistent advantage over a 40m dipole at heights below λ/2 (below about 65 feet). At typical suburban dipole heights, the dipole's main lobe is at 35–45° elevation — good for regional contacts but too high for long-path DX that requires takeoff angles below 20°. The vertical's low-angle lobe (15–20°) is far better matched to trans-oceanic paths. In practice, a vertical with 32 radials outperforms a 40-foot dipole for DX by 3–6 dB — roughly equivalent to doubling or quadrupling transmitter power. For regional contacts and NVIS coverage, the low dipole reverses the advantage significantly.
Can I build a 40m vertical from a fishing pole and wire?
Yes — this is an excellent approach for portable or temporary installations, and many operators use it as a permanent fixed antenna as well. A 10-meter (33-foot) fiberglass telescoping fishing pole costs $30–50 from import suppliers and makes a lightweight, nearly invisible vertical support. Tape or tie-wrap #18 AWG stranded copper wire along the outside of the pole from base to tip. Connect the wire at the base to the feedpoint SO-239. The radial system is identical to an aluminum tubing version. The fishing pole vertical is lighter, stores compactly, and deploys in 10 minutes — ideal for field day, SOTA, POTA, and travel operation. Trade-off: a 33-foot fishing pole flexes considerably in wind and needs guying with thin nylon cord from the midpoint and near the tip.
What is the best coax for a ground-mounted 40m vertical?
For runs up to 50 feet, RG-8X is a good balance of low loss and manageable size. For runs of 50–150 feet, LMR-400 is the better choice — at 7 MHz, LMR-400 loses approximately 0.14 dB per 100 feet versus RG-8X at 0.33 dB per 100 feet. The difference is measurable: a 100-foot run of RG-8X costs about 0.33 dB; LMR-400 for the same run costs about 0.14 dB. The extra cost of LMR-400 is worth it for a permanent installation where the coax will be in place for years. Avoid RG-58 for runs over 30 feet at 40m — its higher loss makes it a significant performance degrader at this frequency.
