Voltage vs Current Balun — Which One Do You Need
"Balun" covers two electrically different devices that look similar from the outside but solve different problems — a voltage balun enforces equal voltage at its output, while a current balun enforces equal current, and only the current type reliably stops common-mode current from turning your coax into part of the antenna. Confusing the two is the single most common reason a "balun installed" antenna still has RF-in-the-shack or erratic SWR. This guide covers what each actually does, when a voltage balun is still fine, and how to identify which one you have.
What a voltage balun actually does
A voltage balun is essentially a transformer (often a simple tapped autotransformer, the classic W2AU-style commercial design) that forces its two output terminals to sit at equal-and-opposite voltage relative to some reference. That's a useful property for a perfectly symmetric, perfectly balanced load — but it says nothing about what current flows on the outside of the coax shield feeding it. If the antenna is even slightly asymmetric (which nearly all real installations are, due to unequal leg lengths, sloped wires, or nearby conductive objects), a voltage balun does nothing to stop common-mode current from developing.
What a current balun actually does
A current balun is built as a common-mode choke — a winding on a high-permeability ferrite core that presents high impedance specifically to current flowing the same direction on the whole outer conductor (common-mode current), while leaving the wanted differential-mode signal untouched. This directly attacks the actual problem (unwanted shield current) rather than assuming the load is perfectly balanced. See the 1:1 Current Balun / Choke guide for the full mechanism.
Why voltage baluns are still sold and used
They're simpler and cheaper to manufacture (fewer turns, no dedicated choke section), and they work adequately on antennas that really are close to symmetric and well clear of nearby conductors — a center-fed dipole in open space with equal leg lengths, fed straight down with no dogleg, is close enough to the ideal case that a voltage balun's shortcomings may not be very noticeable. The problems show up on asymmetric feeds (any OCFD/Windom design), installations with unequal leg routing, or antennas near a house, gutter, or metal roof.
- Reasonable case for voltage balun: symmetric center-fed dipole, clear of nearby conductors, no persistent RF-in-shack complaints.
- Current balun strongly preferred: any off-center feed, any antenna near buildings/metal structures, any installation with documented RF-in-shack symptoms.
The symptom pattern that gives away a voltage balun
An antenna that tunes to a reasonable SWR but still causes RF feedback (audio in the mic, keyboard/computer glitches, "RF bite" touching the rig), shows SWR that shifts noticeably when you touch or reroute the coax, or exhibits a distorted/unpredictable radiation pattern compared to modeling — despite a balun already being "installed" — is the classic fingerprint of a voltage balun doing its voltage-transformer job while leaving common-mode current completely unaddressed.
| Aspect | Voltage Balun | Current Balun |
|---|---|---|
| Underlying principle | Autotransformer forcing equal-and-opposite output voltage | Ferrite choke winding forcing equal-and-opposite output current |
| Common-mode rejection | Poor to none — not its function | Strong — this is its primary function |
| Sensitivity to antenna imbalance | High — performance degrades on asymmetric feeds | Low — keeps working even on imbalanced antennas |
| Typical construction | Simple tapped transformer winding, fewer turns | Ferrite/iron powder core wound as a choke, sometimes with tapped ratio |
| Best applications | Symmetric center-fed dipole, clear installation, no RF-in-shack history | Essentially all other cases; the safe default for new builds |
| Typical symptom when misapplied | RF in the shack, SWR shifts when touching coax, despite "balun installed" | N/A — this is the type that avoids those symptoms when correctly built |
What you need to identify which type you already have

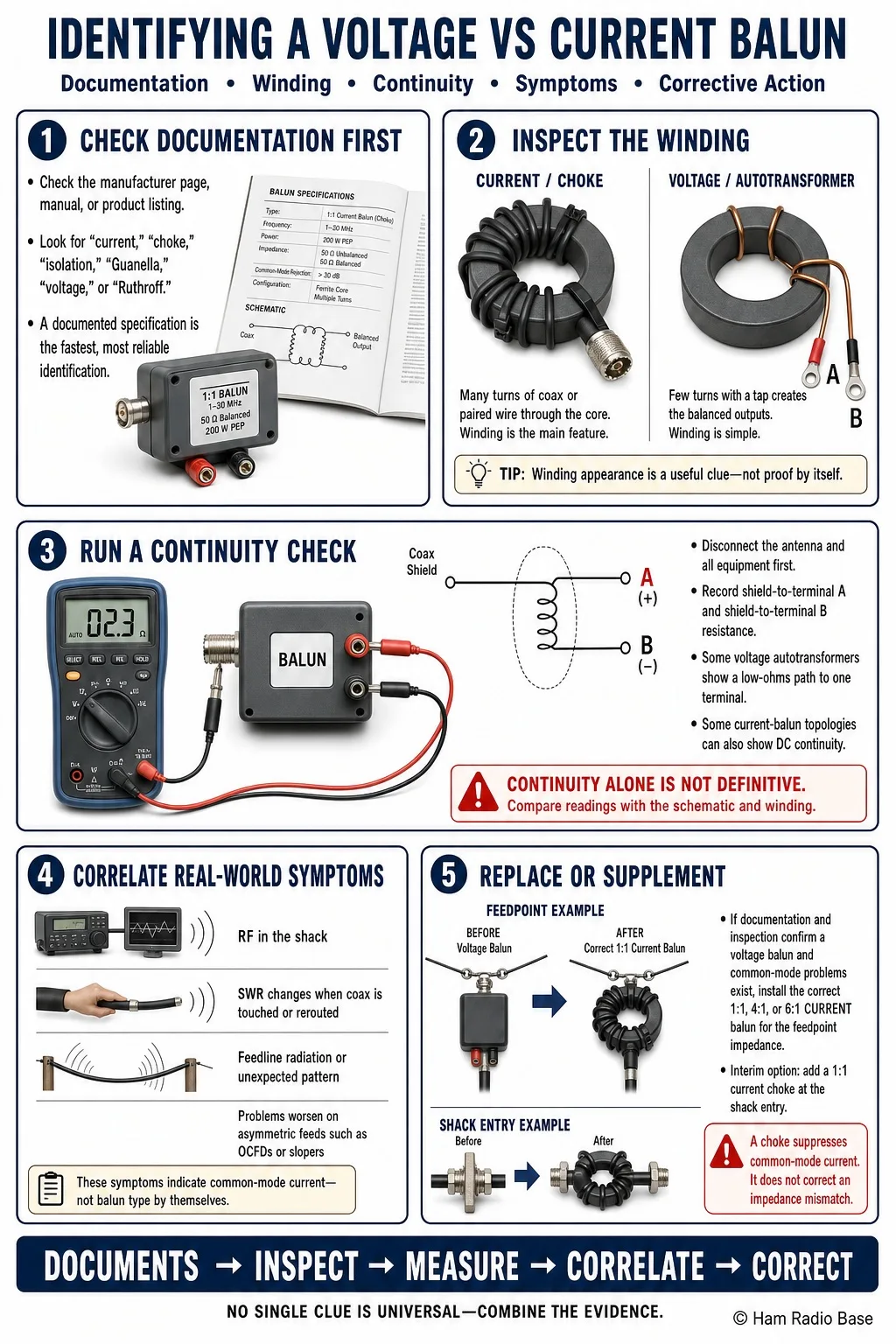

Side by side: a simple tapped-winding voltage balun (left) and a ferrite-core current choke balun (right).
Figuring Out Which Type You Have
Work through this sequence if you're not sure whether an existing balun is voltage or current type — most of it takes under 15 minutes.
Check the documentation or listing first
If the balun is a commercial unit, check the manufacturer's product page or manual — reputable manufacturers do state whether a unit is a voltage or current (choke) balun, since it's a meaningful spec, not marketing fluff. This is the fastest path and skips the rest of the steps if the information is available.
Open the enclosure and look at the winding
A current balun built as a ferrite choke has an obvious toroid or rod core with multiple turns of coax or wire wound through it — the winding is clearly the dominant visible feature. A voltage balun autotransformer typically has a much simpler winding (often just a few turns of wire on a smaller core, or no core at all in very old designs), without the "wound choke" appearance.
Run the shield-to-terminal continuity check
With the antenna disconnected, use a multimeter to check DC resistance from the coax shield/ground terminal to each of the two balanced (antenna-side) terminals. Many voltage balun (autotransformer) designs show a low-resistance, near-zero-ohm path from the shield to one of the two balanced terminals, since the winding directly ties that terminal to the shield reference. A well-built current balun more often shows high resistance (or no continuity at all at DC) from the shield to either balanced terminal, since the coax shield only connects through the choke winding's inductive path, not a direct low-resistance tap.
Correlate with real-world symptoms
If you've had persistent RF-in-the-shack complaints, SWR that shifts when you touch or reroute the coax, or a measured pattern that doesn't match modeling predictions, on an antenna that otherwise measures a reasonable SWR — treat that as supporting evidence for a voltage-type balun already in place, especially on an asymmetric feed like an OCFD or sloping dipole.
Replace or supplement if you've confirmed a voltage balun
If your investigation points to a voltage-type balun and you're seeing common-mode symptoms, the direct fix is replacing it with the appropriate current balun for your feedpoint impedance (see the 1:1, 4:1, or 6:1 guides). If replacing isn't practical right away, adding a separate 1:1 current choke at the shack entry is a reasonable interim measure — it won't fix an impedance mismatch, but it does address the common-mode current specifically.
| Symptom | Most likely cause | Diagnosis | Fix |
|---|---|---|---|
| RF in the shack despite a balun already installed and good SWR | Installed balun is a voltage type, not addressing common-mode current | Run the shield-to-terminal continuity check and compare against documentation if available | Replace with the correct ratio current balun, or add a separate 1:1 current choke at the shack entry as an interim fix |
| SWR shifts noticeably when the coax is touched or rerouted | Common-mode current flowing on the shield because the existing balun isn't a current type | This is the classic diagnostic symptom for common-mode current, independent of balun labeling | Add or replace with a current balun at the feedpoint; verify with a NanoVNA common-mode impedance measurement |
| Can't tell which type an unlabeled commercial balun is | No documentation available and visual inspection is inconclusive | Run the shield-to-terminal continuity check; treat a low-resistance path to one terminal as a strong (not absolute) indicator of a voltage-type design | If still uncertain and symptoms are present, the safer and usually cheaper fix is simply building or buying a known current balun rather than continuing to troubleshoot an unlabeled unit |
| Voltage balun works fine with no symptoms on a symmetric dipole | Not actually a problem — a genuinely symmetric, well-clear installation may not expose a voltage balun's weaknesses | Confirm the antenna truly is symmetric (equal leg lengths, balanced routing, clear of nearby conductors) and no RF-in-shack history exists | No fix needed; still worth upgrading to a current balun at the next opportunity as cheap insurance against future changes to the installation |
Is a voltage balun ever the "better" choice?
Not for common-mode performance, which is the main reason to install a balun at all on a real-world antenna. Voltage baluns persist mainly for cost and simplicity reasons on older or budget commercial products, not because they perform better at anything a modern builder needs.
Can a balun be both a voltage type AND provide some impedance transformation?
Yes — the voltage/current distinction is about HOW common-mode current is handled, not whether impedance transformation happens. Both voltage and current baluns can be built with a 1:1, 4:1, or other ratio; the classic W2AU-style commercial "4:1 balun" is a voltage-type 4:1 transformer, which is exactly why it's a poor fit for an OCFD despite having the "right" ratio.
Why do commercial voltage baluns still get sold as antenna accessories?
They're cheaper to manufacture, and on a genuinely symmetric, well-clear dipole installation the difference may not be obvious to the average buyer. Once an installation deviates from ideal symmetry — which is most real installations — the current balun's advantage becomes noticeable.
I have RF-in-the-shack but my balun is confirmed current-type — now what?
A correctly built current balun should resolve most common-mode issues, so persistent symptoms with a confirmed current-type unit point elsewhere: insufficient turns/impedance for the core in use (see the turns calculators on the 1:1/4:1/6:1 pages), a second common-mode path bypassing the balun entirely (e.g., a nearby ground wire or rotator cable), or a shack-entry choke also being needed in addition to the feedpoint balun.
Does the voltage/current distinction apply to ununs too?
Ununs (unun = "unbalanced to unbalanced," used for end-fed antennas) don't have the same balanced-vs-common-mode distinction in the same way, since both sides are already unbalanced by definition — but a well-designed unun still benefits from choke-type construction on the core to suppress common-mode current on the feedline, for the same underlying reason.
