1:1 Current Balun / Choke
A 1:1 current balun doesn't transform impedance at all — its only job is to stop RF from flowing on the outside of your coax shield, where it causes RF-in-the-shack, erratic SWR readings, and distorted radiation patterns. It's the single most common missing component on homebrew dipoles, verticals, and multiband wire antennas. This guide covers how it actually works, how to size the core and turns for your bands, and how to build and verify one with a NanoVNA.
What common-mode current actually is
Coax carries two currents: the differential (wanted) current flowing down the center conductor and back on the inside of the shield, and common-mode current, which flows on the OUTSIDE of the shield. Common-mode current shows up whenever an antenna is even slightly unbalanced with respect to the coax connection — which is nearly always the case for a dipole, since the coax shield naturally becomes a third, uncontrolled "leg" of the antenna once it leaves the balanced feedpoint.
That outside-of-the-shield current turns your feedline into part of the antenna. It radiates from the coax (distorting your pattern and detuning the antenna based on how the coax happens to be routed), it couples RF energy back into the shack (RF in the mic, RF biting you at the rig, computer/USB interference), and it makes SWR readings unstable and dependent on how you route or touch the feedline.
How a 1:1 current choke fixes it
Winding the coax through or around a ferrite core creates a series inductor that exists ONLY for common-mode current — the differential signal inside the coax doesn't see it, because the center conductor and shield current are equal and opposite and their fields cancel inside the winding. Common-mode current, by contrast, flows the same direction on the entire outer surface of the coax at every turn, so the core presents real impedance to it. High enough impedance in series with that unwanted path chokes it down to a negligible level without touching your actual signal at all.
Current balun vs. voltage balun — this matters here
A "1:1 balun" sold or built as a voltage balun is a completely different device that does NOT reliably suppress common-mode current — it just enforces equal voltage at its two output terminals, which is not the same thing as blocking shield current. For this page (and for the vast majority of ham antenna applications), "1:1 balun" means a current-type choke balun. See the Voltage vs. Current Balun guide for the full comparison if you're unsure which type you have.
Where to put it
A 1:1 choke works at the antenna feedpoint (stopping common-mode current before it starts down the coax), at the point where coax enters the shack (stopping whatever common-mode current made it that far), or both. Feedpoint placement is the more effective single location for most wire antennas; shack-entry placement is a good second line of defense and is often added even when a feedpoint choke is already in place, especially on multi-band antennas where feedpoint impedance varies a lot band to band.
| Core | Turns | Approx. Inductance | Impedance at 3.5 MHz | Impedance at 14 MHz |
|---|---|---|---|---|
| FT-240-43 | 5 | 27 µH | ~590 Ω | ~2360 Ω |
| FT-140-43 | 7 | ~24 µH | ~525 Ω | ~2100 Ω |
| FT-82-43 | 10 | ~22 µH | ~485 Ω | ~1940 Ω |
| FT-240-31 | 4 | ~29 µH | ~635 Ω | ~2540 Ω |
1:1 Choke Turns Calculator
Materials for a feedpoint or shack-entry choke

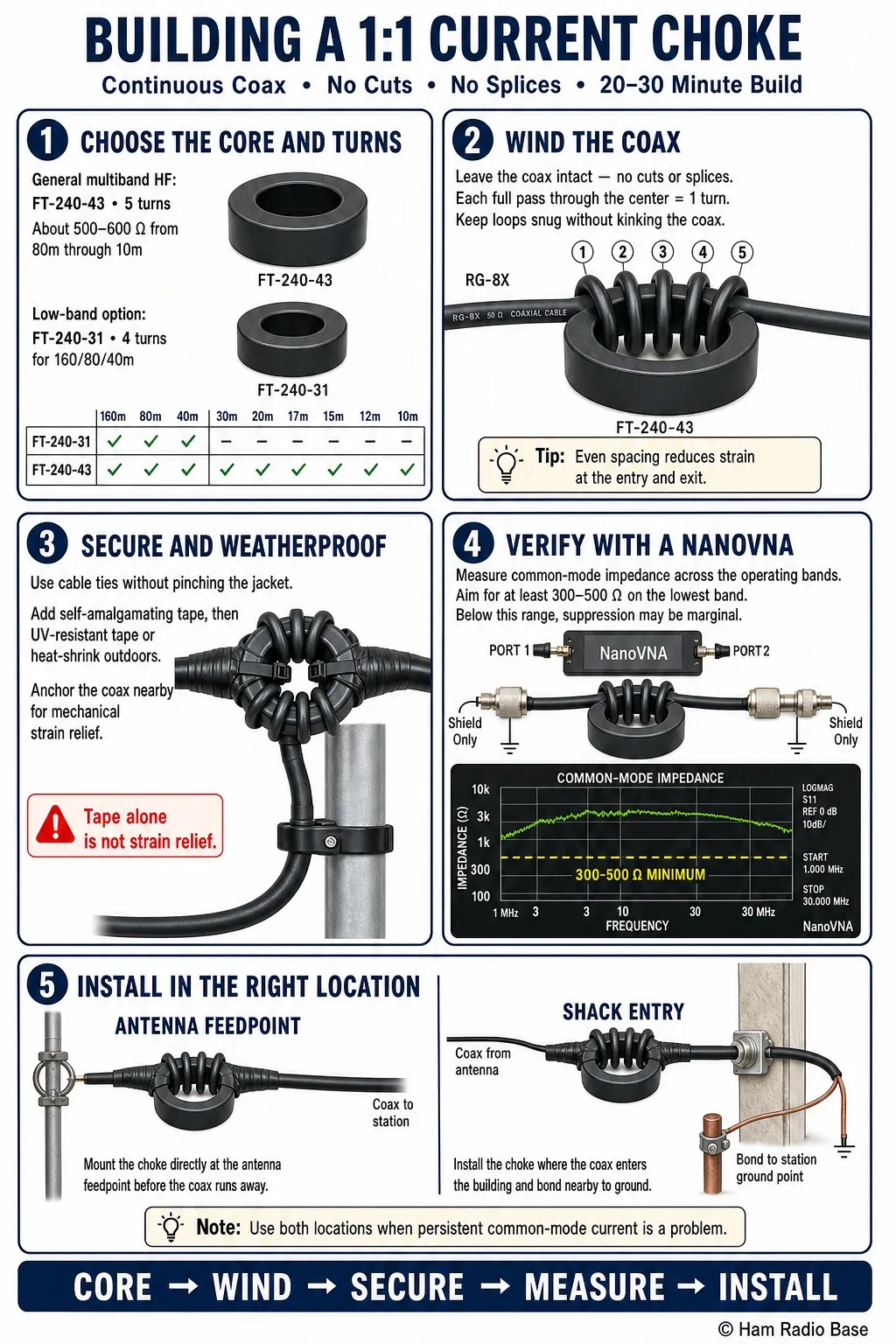

A 5-turn 1:1 current choke on an FT-240-43 core — coax passes through the center five times, with no cuts or splices in the shield or center conductor.
Building a 1:1 Current Choke
This is a simple build with no splicing — the coax itself becomes the winding. Budget 20–30 minutes including testing.
Choose your core and turns count
For general multiband HF use, start with an FT-240-43 core and 5 turns — this gives roughly 500-600Ω of choking impedance from 80m through 10m, adequate for most installations. Use the calculator above if you're using a different core or want to target a specific band edge. For a single-band or low-band-only antenna, an FT-240-31 core at 4 turns gives higher impedance on 160/80/40m specifically.
Wind the coax through the core
Leaving the coax intact (no cuts, no splices), pass a loop of it through the center of the toroid, repeating until you've completed the target turn count — each full pass through the center counts as one turn. Keep the loops snug against the core without kinking the coax; RG-8X and similar coax has a minimum bend radius, and forcing tight loops on a small core can damage the dielectric or shield over time.
Secure the winding
Use cable ties through the core's center opening (careful not to over-tighten and pinch the coax jacket) or wrap the assembled choke with self-amalgamating tape to hold the turns in place. For an outdoor feedpoint installation, follow with a layer of UV-resistant tape or heat-shrink, and plan strain relief so the coax weight doesn't pull on the winding.
Verify common-mode impedance with a NanoVNA
Measure the choke's common-mode impedance (a common test method: form the coax into a loop through the core, connect the NanoVNA between the shield at each end, or use a dedicated common-mode current probe/jig if you have one) across your intended operating bands. Confirm impedance stays above roughly 300-500Ω on your lowest band — below that, common-mode suppression becomes marginal and RF-in-the-shack symptoms may persist.
Install at the feedpoint or shack entry
At a wire antenna feedpoint, mount the choke directly at the feedpoint connector, before the coax runs away from the antenna. At a shack entry, mount it where the coax first enters the building, ideally bonded near your station ground point. Both locations can be used together on antennas prone to persistent common-mode issues.
| Symptom | Most likely cause | Diagnosis | Fix |
|---|---|---|---|
| RF in the shack persists after adding the choke | Too few turns for the core/mix, or the choke was built as a voltage-type rather than current-type balun | Measure common-mode impedance with a NanoVNA; confirm the winding is simply coax looped through the core, not a tapped/transformer winding | Add turns or move up to a larger/higher-mu core (FT-240-43 or FT-240-31); rebuild as a straightforward choke winding if it was accidentally built as a voltage balun |
| SWR changes noticeably when you touch or move the coax | Insufficient common-mode suppression — the coax shield is still acting as part of the antenna | This is the classic common-mode symptom; verify choke impedance is above 300-500Ω at the affected frequency | Increase turns, add a second choke at the opposite end of the feedline (feedpoint plus shack entry), or switch to a higher-permeability core mix |
| Core feels warm or hot after moderate transmit periods | Core undersized for the actual common-mode current present, often from a poor antenna match driving high common-mode levels | Check overall antenna SWR and confirm the antenna itself is reasonably resonant — a choke is not a substitute for a working match | Improve the antenna match first; if the choke is still warm at a reasonable SWR, step up to a larger core (FT-240 size) or stack two cores |
| Coax shows cracking or wear at the core entry/exit points | Bend radius too tight for the coax type at that core size | Inspect the coax jacket where it enters and exits the toroid winding for stress marks or cracking | Rebuild with a larger-ID core, fewer turns spread more evenly, or a more flexible coax type (e.g., RG-8X instead of RG-213 on a small core) |
How many turns do I actually need?
For general HF multiband use on an FT-240-43 core, 5 turns is the standard starting point and gives 500Ω+ of choking impedance from 80m through 10m. Use the calculator above to target a specific frequency and impedance if you're using a different core or focusing on a specific band.
Do I need this even if my antenna already has a balun?
If your antenna's balun is a voltage-type balun (common on inexpensive commercial dipole kits), yes — voltage baluns do not reliably suppress common-mode current, so an additional 1:1 current choke is still worth adding at the feedpoint or shack entry. If your antenna already has a proper current-type choke balun (like the 4:1 current baluns used on OCFDs), an additional 1:1 choke at the shack entry is still a reasonable belt-and-suspenders addition, especially on multiband antennas.
Where is the single best place to put it?
At the antenna feedpoint, for most wire antennas — this stops common-mode current before it has any chance to flow down the feedline at all. A shack-entry choke is a good second layer but is treating the symptom (current already on the line) rather than the cause.
Can I use this on a balanced (ladder-line-fed) antenna?
Not directly at the balanced feedpoint — a coax-wound current choke is specifically for the point where you transition to unbalanced coax (e.g., at the bottom of a ladder-line run, right before the coax to your tuner). Ladder line itself doesn't carry common-mode current the same way coax does, so the choke belongs at the coax connection point, not on the ladder line itself.
Is there such a thing as too much choking impedance?
Not really, for common-mode suppression itself — more turns keep helping until you run into practical limits (winding space on the core, or self-resonance effects at the high end of your frequency range). The main real-world limit is physical: a core only has so much window area, and there are diminishing returns once you're already well above 500-1000Ω.
