Build a Flag Receive Antenna

The Flag is a small rectangular terminated loop — the third design in this site's family of compact low-band receive antennas alongside the EWE and Pennant. Its rectangular shape (rather than the Pennant's triangle or the EWE's open "U") is simply a different practical geometry solving the same problem: a directional pattern that helps you hear weak DX by rejecting noise and interference, with essentially no gain of its own. This guide covers the complete build from loop dimensions through the feedpoint transformer, termination resistor, and TX/RX switching.

Receive onlyNever key a transmitter into this antenna
15-20 dBTypical front-to-back ratio
~20 ft tallTypical loop height
160m/80m/40mBands this design targets

A Rectangular Closed Loop

The Flag is a closed rectangular wire loop, typically taller than it is wide, supported by two vertical poles at the corners on one side (or one pole plus a rope-supported far side). Two adjacent corners on one vertical edge serve as the feedpoint and termination points, with the loop closed by the wire running around the remaining three sides.

Typical Flag footprint (small loop, not frequency-scaled the way a resonant antenna is): Height: 18-22 ft Width: 10-14 ft Same physical size works across 160m, 80m, and 40m -- only the termination resistor changes.

Feedpoint and Termination on One Vertical Edge

Unlike the Pennant's two bottom corners, the Flag's feedpoint and termination points sit at the top and bottom of the same vertical edge (or occasionally both at the bottom, depending on the specific variant built) — the loop's rectangular geometry changes exactly where these connections land, but the underlying principle (a closed loop with one impedance-matched feed corner and one resistively-terminated corner) is the same family of design as the Pennant.

The Termination Resistor — Found Empirically

As with the EWE and Pennant on this site, the termination resistor value is the most important variable and depends on your specific loop dimensions and local ground conditions — always treat published starting values as an experimentation starting point.

Termination resistor -- starting point for experimentation: Typical range: 700-900 ohms, non-inductive Optimise by ear/S-meter against a known back-direction station, then replace the variable test resistor with a fixed value once found.

Why This Isn't a Transmit Antenna

Exactly as with the EWE and Pennant, the termination resistor and feedpoint transformer are sized for receive-only signal levels, and the thin wire used isn't rated for transmit power. A TX/RX changeover relay that disconnects the Flag from the receiver during transmit is mandatory, protecting both this antenna and your receiver's front end.

Band Loop height Loop width Starting termination resistor
160m20-22 ft12-14 ft~850 Ω starting point
80m18-20 ft10-12 ft~750 Ω starting point
40m16-18 ft8-10 ft~700 Ω starting point

Flag Antenna Starting-Point Calculator

Materials for a complete Flag build

📡#22-18 AWG insulated stranded wireReceive only — thin wire is fine, no transmit power to handle
🎣One or two fiberglass/non-conductive support polesSized to the loop height from the dimensions table
🪢Support rope for the far side of the loop if using a single poleKeeps the rectangle's far corners at the correct height
🔌Feedpoint transformer — 9:1 unun on FT-140-43 or FT-240-43 toroidSteps the low loop impedance up to 50 ohms
🔥Non-inductive termination resistor, variable for initial testingReplace with a fixed value once optimised for your site
Ground rod at the termination pointA solid ground connection here matters as much as the resistor value
🔌TX/RX antenna changeover relayDisconnects the Flag from the receiver during transmit — mandatory
🏗️Weatherproof enclosure for the transformer and relayAt the feedpoint corner
🔌RG-58 or RG-8X coax to the shackStandard receive-line coax is entirely adequate
🛠️Soldering iron, rosin core solder, self-amalgamating tapeFor all connections and weatherproofing

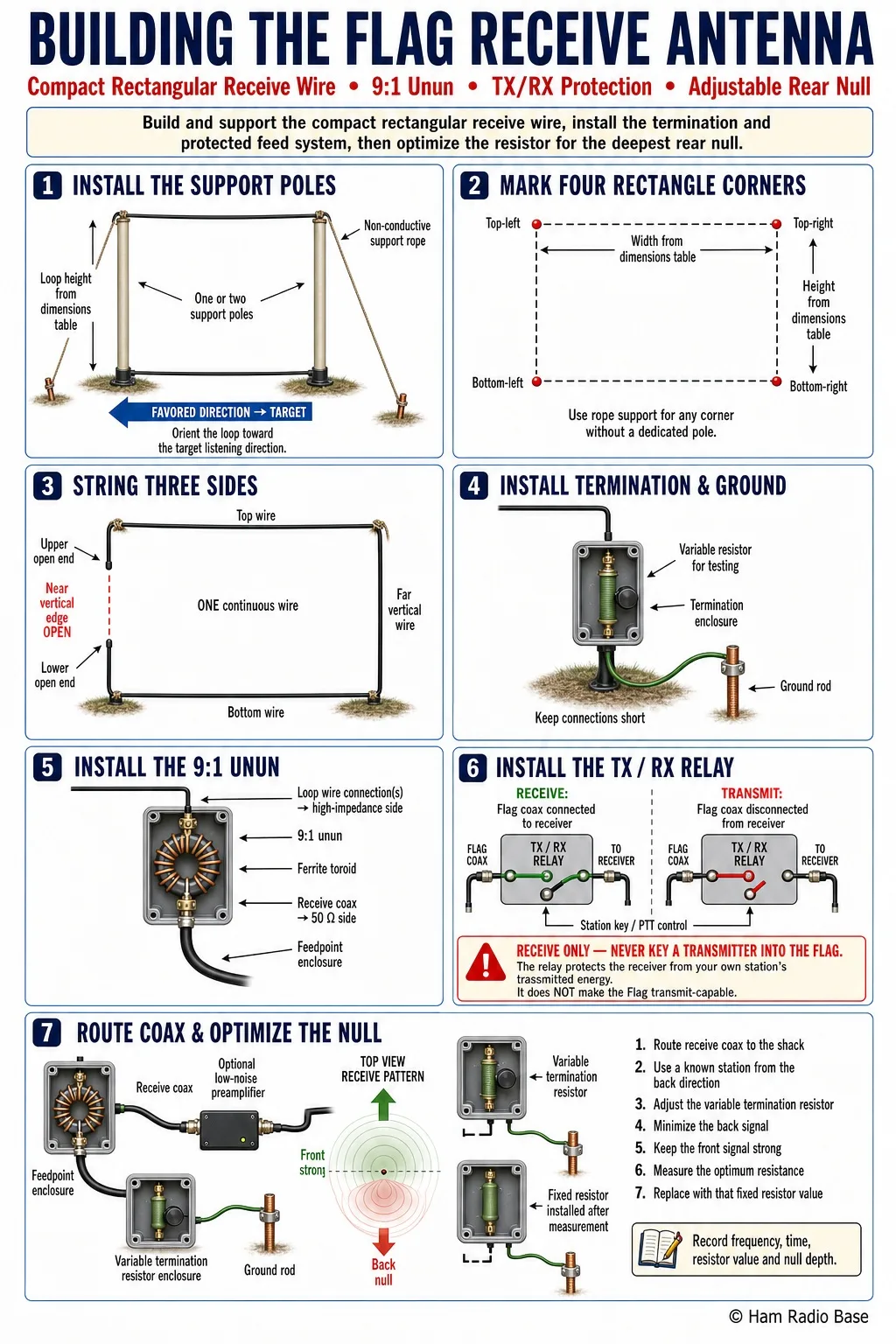

Finished Flag receive antenna showing a rectangular wire loop supported by vertical poles, with the feedpoint transformer and termination resistor at the near vertical edge

Building the Flag Receive Antenna

A compact rectangular loop build — most of the effort is in termination resistor optimization, same as this site's other small receive antennas.

1

Install the Support Poles

Set up one or two support poles at the loop height from the dimensions table, oriented so the antenna's favored direction points toward your target listening direction.

2

Mark the Rectangle Corners

Mark all four corners of the rectangular loop at the height and width from the dimensions table, using rope supports for any corners without a dedicated pole.

3

Run the Rectangular Loop Wire

Run a continuous wire around three sides of the rectangle, leaving the near vertical edge open at top and bottom for the feedpoint and termination connections.

4

Install the Termination Resistor and Ground

At one open end of the near vertical edge, connect a variable resistor (for initial testing) between the wire end and a ground rod driven at that location.

5

Install the Feedpoint Transformer

At the other open end of the near vertical edge, wind and install the 9:1 unun on the ferrite toroid, connecting the loop wire ends to the transformer's high-impedance side and the coax to the 50Ω side.

6

Install the TX/RX Relay

Wire the relay so it disconnects the Flag's coax from the receiver whenever your station keys up.

Critical: Never key a transmitter into this antenna directly. The relay protects against your own transmitter's power reaching the Flag via the switching system — it does not make this antenna transmit-capable.
7

Route Coax and Optimize the Termination Resistor

Run the receive coax to your shack, ideally through a low-noise preamplifier. Using a known station in the "back" direction, adjust the variable termination resistor for the setting that best minimizes back-direction signal while keeping the front strong, then replace it with a fixed resistor of that value.

Symptom Most likely cause Diagnosis Fix
No directional effect — sounds omnidirectionalTermination resistor missing, wrong value, or poor ground connectionCheck the resistor value and ground rod connectionVerify and correct the ground connection; re-optimize the resistor value
Very weak signals in all directionsFeedpoint transformer wiring reversed, or normal expected low outputCheck transformer winding sense against the reference diagramCorrect transformer wiring if reversed; otherwise add a low-noise preamp, which is normal for this antenna class
Front-to-back ratio worse than expectedTermination resistor not optimized for your specific siteRe-run the optimization procedure using a known back-direction stationAdjust the resistor value for your site's ground conditions
Loop shape distorted or saggingInsufficient support height or tension on one or more cornersSight the loop shape against the intended rectangleRe-tension or raise the affected support
Antenna damaged after operatingTransmitter power reached the Flag, likely a relay faultCheck relay operation and switching timing relative to transmit keyingRepair or replace the relay; verify switching happens before RF is applied

Can I transmit through this antenna if I keep the power low?

No. This is a receive-only design — the termination resistor, feedpoint transformer, and thin wire are not built to handle transmit power, and the antenna provides no meaningful radiated signal in return. Always switch to a separate transmit antenna before keying up.

How is a Flag different from a Pennant?

Both are closed-loop terminated receive antennas from the same design family — the Pennant uses a triangular loop with feedpoint and termination at the two bottom corners, while the Flag uses a rectangular loop with feed and termination on one vertical edge. Performance is broadly comparable; the choice often comes down to which shape fits your available supports better.

How is a Flag different from an EWE?

The Flag closes the loop into a full rectangle, while the EWE is an open "U" shape between two posts. The closed loop generally gives comparable or slightly better front-to-back performance for a similar footprint.

Why is my received signal so much weaker than my transmit antenna?

Completely normal — the Flag has essentially no gain, often meaningfully negative in dBi terms. Its value is the directional pattern that reduces unwanted noise, not signal strength. Pair it with a low-noise preamp if needed.

Can I build multiple Flags for different directions?

Yes, switching between two or more Flags aimed at different headings from a control box at the operating position is a common approach, the same as with the EWE and Pennant.

Do I need a preamp with this antenna?

Most operators find a low-noise preamp genuinely useful given how little signal this small loop captures compared to a full-size transmit antenna.
