Build a Multi-Band Trap Vertical Antenna
A trap vertical covers multiple HF bands from a single feedpoint and a single element — no band switching, no tuner required for covered bands, and no separate antennas for each frequency. Parallel LC traps inserted at calculated points along the element act as high-impedance insulators on their resonant band, electrically shortening the element on higher bands while passing RF through to the full element length on lower bands. This guide builds a four-band trap vertical covering 10m, 15m, 20m, and 40m using two traps — one for 10m/20m isolation and one for 15m/40m isolation — from a single 33-foot element.
What a Trap Does
A trap is a parallel LC resonant circuit — an inductor and capacitor wired in parallel — inserted in series with the antenna element. At the trap's resonant frequency, the parallel LC circuit presents very high impedance (theoretically infinite for a lossless trap), which electrically isolates the element above the trap from the element below it. Below the trap's resonant frequency, the trap looks inductive and loads the lower section of the element:
The 4-Band Trap Vertical — How It Works Band by Band
This build uses two traps: a 10m trap (28.3 MHz) placed at ~8.3 ft from the base, and a 15m trap (21.2 MHz) placed at ~11.1 ft from the base. The element continues above the 15m trap to the full 33 ft required for 40m. Here is what the antenna sees on each band:
- 10m (28.3 MHz): the 10m trap presents high impedance — element length is the section below the 10m trap (~8.3 ft = λ/4 at 28.3 MHz). The 15m trap and everything above it are invisible to the 10m signal. Direct 50 Ω feed.
- 15m (21.2 MHz): the 10m trap looks capacitive at 21 MHz and loads the section below it, slightly shortening its electrical length. The 15m trap presents high impedance. The effective radiating element is from the base to the 15m trap (~11.1 ft), loaded by the 10m trap. Element section trimmed to resonance on 15m.
- 20m (14.15 MHz): both traps look inductive at 14 MHz and load the sections below them. The effective radiating element runs from base to approximately 16.5 ft of effective electrical length — both traps contribute inductive loading that extends the electrical length of the physical element below them. Trimmed to resonance on 20m.
- 40m (7.15 MHz): both traps look inductive at 7 MHz, loading the full element. The full physical element (33 ft) plus the inductive loading of both traps creates an electrical length equivalent to a quarter-wave at 7.15 MHz. Trimmed to resonance on 40m by adjusting total element length.
Trap Q and Efficiency
Every trap introduces some loss — the trap coil has resistance that dissipates a portion of the RF power passing through it on lower bands. Trap Q determines how much is lost:
A well-built trap vertical with Q ≥ 150 traps loses less than 0.5 dB to trap inefficiency on 40m — a negligible penalty for four-band operation from a single element and feedpoint. Poor traps (Q below 50) can cost 2–3 dB, which is meaningful and worth avoiding.
Trap Vertical vs Fan Dipole vs Separate Antennas
The trap vertical is one of three practical approaches to multi-band HF coverage from a single location. Understanding the trade-offs helps set expectations:
- Trap vertical (this guide): single feedpoint, no switching or tuner for covered bands, compact vertical footprint, good DX performance from low radiation angle. Traps add complexity and slight efficiency loss. Band coverage is fixed by trap design.
- Fan dipole: multiple dipoles sharing a feedpoint — simpler than traps (no coils or capacitors), more efficient (no trap losses), but requires horizontal space for multiple wire legs and a horizontal support structure. Better for fixed stations with adequate space.
- Separate antennas with coax switch: maximum efficiency — each antenna is optimized for its band with no compromise. Requires separate feedlines, a coax switch, and multiple installation locations. Best performance but most hardware and space.
- Trap vertical best fits: installations where vertical polarization is preferred, space for a horizontal multi-wire antenna is unavailable, and a single coax run to the shack is strongly preferred. The classic suburban compromise antenna — four bands from one 33-foot pole.
| Section | From base | Physical length | Function on each band | Notes |
|---|---|---|---|---|
| Section A (base to 10m trap) | 0 ft | ~8.3 ft | λ/4 radiator on 10m; part of 15m, 20m, 40m radiator | Cut to 9 ft initially — trim to 10m resonance |
| 10m trap | ~8.3 ft | 3–4 inches | High-Z stop on 10m; inductive loading on 15/20/40m | Resonant at 28.3–28.5 MHz; L ≈ 1.0 µH, C ≈ 31 pF |
| Section B (10m trap to 15m trap) | ~8.5 ft | ~2.8 ft | Part of 15m, 20m, 40m radiator; not used on 10m | Cut to 3.5 ft initially — adjust during 15m tuning |
| 15m trap | ~11.1 ft | 3–4 inches | High-Z stop on 15m; inductive loading on 20m, 40m | Resonant at 21.0–21.2 MHz; L ≈ 2.0 µH, C ≈ 28 pF |
| Section C (15m trap to tip) | ~11.5 ft | ~21.5 ft | Part of 20m and 40m radiator; not used on 10m or 15m | Cut to 23 ft initially — adjust during 20m/40m tuning |
| Total element height | — | ~33 ft | Full element active on 40m | Final height set during 40m tuning |
Exact trap inductance/capacitance values are specific to your chosen commercial traps or homebrew design -- this table shows typical relative section lengths only. Consult your trap manufacturer's data or model the specific trap values in 4NEC2 before cutting tubing.
| Band Combination | Typical Section Proportions | Notes |
|---|---|---|
| 40m/20m | Inner (40m) section ~50% of full 40m half-wave arm; outer (20m) extension makes up the remainder | Most common two-band trap combination |
| 40m/20m/10m | Inner ~50%, middle ~25%, outer ~25% of respective full-size arm lengths | Traps add electrical length -- physical sections are shorter than the simple 468/f figure |
| 80m/40m/20m/15m/10m | Proportion shrinks per added trap; each additional trap adds loss and narrows bandwidth on the outer bands | Typical 5-band commercial vertical/dipole layout |
| Trap | Target frequency | Inductance (L) | Capacitance (C) | Form diameter | Wire gauge | Turns (approx) | Target Q |
|---|---|---|---|---|---|---|---|
| 10m trap | 28.3–28.5 MHz | 1.0 µH | 31–32 pF | 1.5 inch OD PVC | #18 AWG enameled | ~14 turns | ≥150 |
| 15m trap | 21.0–21.2 MHz | 2.0 µH | 28–29 pF | 1.5 inch OD PVC | #18 AWG enameled | ~20 turns | ≥150 |
Materials for a 10/15/20/40m trap vertical with 16-radial ground plane

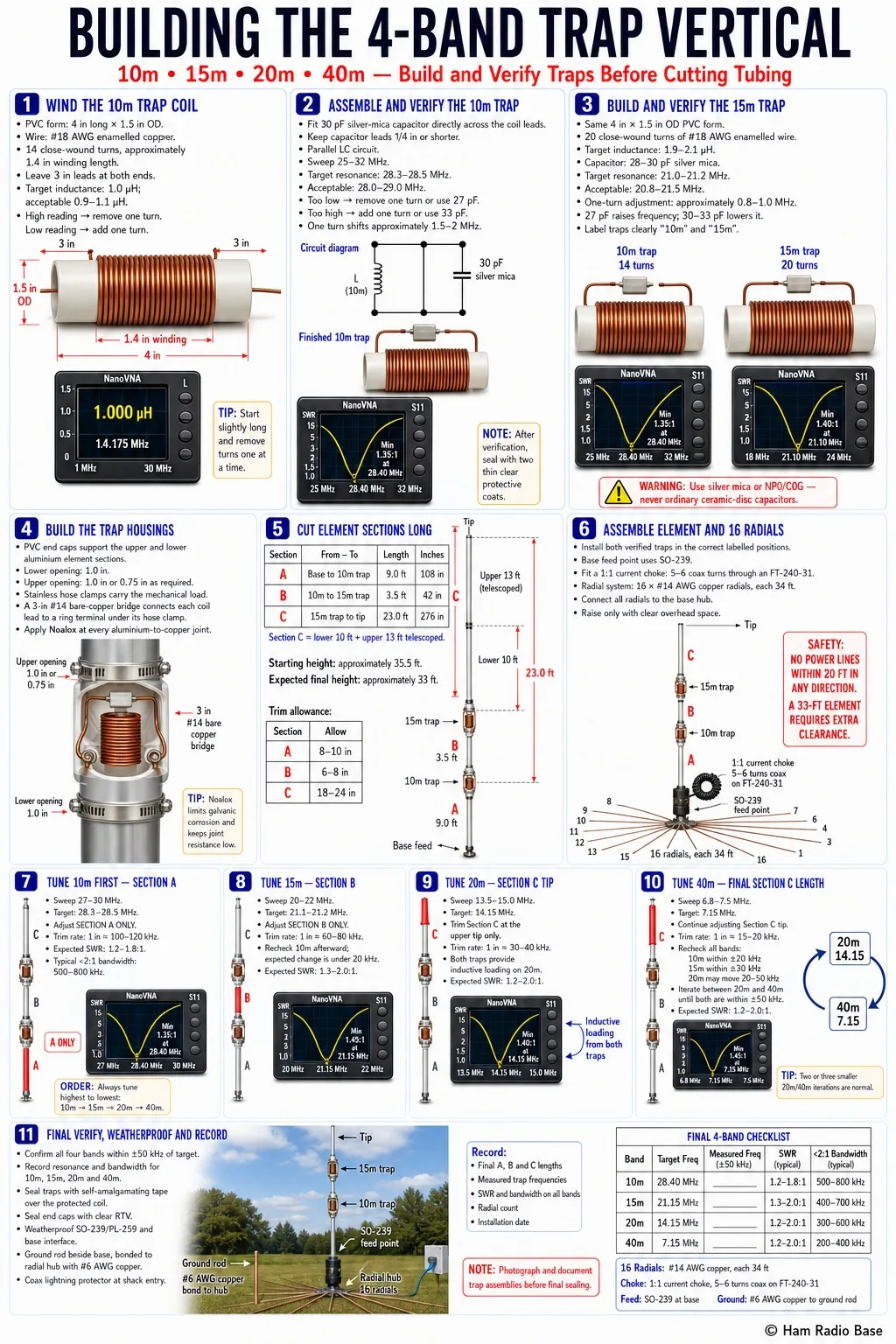

Building the 4-Band Trap Vertical
Build and verify the traps completely before cutting any element tubing. The trap resonant frequency determines the final element section lengths — measure first, cut second. Tuning proceeds from the highest band (10m) downward to the lowest (40m).
Wind the 10m Trap Coil
Cut a 4-inch length of 1.5-inch OD PVC pipe for the 10m trap form. Drill two 3/16-inch holes 0.5 inches from each end for the coil wire leads. Wind 14 turns of #18 AWG enameled copper wire close-wound in a single layer. Secure the start and end turns with a drop of cyanoacrylate (super glue) or a small wrap of self-amalgamating tape. Leave 3 inches of wire extending from each end hole as connection leads — strip the enamel from the last inch of each lead with fine sandpaper.
Assemble and Verify the 10m Trap
Solder a 30 pF silver mica capacitor across the two coil leads — one capacitor lead to each coil wire end. Use silver solder for the lowest-resistance joint. Trim the capacitor leads to 1/4 inch before soldering to minimize stray inductance. The completed trap is a parallel LC circuit: the coil and capacitor in parallel.
Measure the trap resonant frequency with the NanoVNA. Connect the trap across the NanoVNA port 1 and port 2 in parallel (or use the shunt impedance measurement method). Sweep 25–32 MHz and look for the impedance peak — the frequency of maximum impedance is the trap resonant frequency.
Once the resonant frequency is confirmed, coat the entire trap assembly with two thin coats of clear lacquer (spray can). Allow to dry fully between coats. The lacquer weatherproofs the capacitor leads and coil wire and prevents moisture from detuning the trap over time.
Wind, Assemble, and Verify the 15m Trap
Repeat the process for the 15m trap on a second 4-inch length of 1.5-inch PVC. Wind 20 turns of #18 AWG enameled wire close-wound. Measure inductance — target 1.9–2.1 µH. Solder a 28–30 pF silver mica capacitor across the leads. Verify resonant frequency with the NanoVNA.
Coat with two coats of clear lacquer once resonance is confirmed. Label both traps (10m and 15m) before setting them aside — they look similar and must not be swapped during assembly.
Build the Trap Housings and Element Connection Hardware
Each trap must be mechanically supported between the element sections it separates and must make reliable electrical connections to the element sections on each side. The most practical approach for a homebrew trap vertical is a PVC end-cap method:
- Drill a hole in each end cap of the PVC coil form sized to fit the element tubing — 1.0-inch hole for the lower element connection and 1.0-inch or 0.75-inch for the upper element connection depending on which section the trap falls on
- The element tubing slides through the end caps, with the trap coil spanning the gap between the upper and lower element sections
- A stainless steel hose clamp on each element section, positioned just below/above the end cap, bears the mechanical load and prevents the element from sliding through
- A short wire bridge (3 inches of #14 AWG bare copper) soldered from the coil lead to a ring terminal clamped under the hose clamp on each element section provides the electrical connection from the element to the trap coil end
Cut Element Sections to Starting Lengths
Cut the aluminum tubing sections to the starting lengths from the table — slightly longer than the calculated final lengths to allow trimming. Deburr all cut ends inside and out.
Assemble the Full Antenna and Install the Radial System
Assemble the complete element with traps installed at the correct positions. Install the base mount and feedpoint SO-239. Install the 16-radial ground plane following the same procedure as the single-band vertical guides — 16 radials of #14 AWG copper at 34 feet each, connected to the radial hub at the base. Install the current choke (FT-240-31, 5–6 turns of coax) at the feedpoint.
Raise the element. The assembled trap vertical is heavier and more mechanically complex than a single-band element — two people are strongly recommended for raising. The traps add weight at mid-element, which shifts the center of gravity upward and makes the element less stable during raising. Use a temporary guy rope from the element tip during the raising process.
Tune 10m First — Trim Section A
Connect the NanoVNA at the shack end of the coax. Sweep 27–30 MHz. The 10m resonance should appear near 28.0–28.8 MHz depending on section A length. Trim section A (the element section below the 10m trap) to bring 10m resonance to the target frequency.
Tune 15m — Trim Section B
With 10m confirmed, sweep 20–22 MHz for the 15m resonance. Trim section B (between the 10m and 15m traps) to bring 15m resonance to 21.1–21.2 MHz.
Tune 20m — Trim Section C (Upper Portion)
Sweep 13.5–15 MHz for the 20m resonance. Trim the upper portion of section C (the top of the element above the 15m trap) to bring 20m resonance to 14.15 MHz.
Tune 40m — Trim Section C (Remaining Length)
Sweep 6.8–7.5 MHz for the 40m resonance. Trim section C further until 40m resonance reaches 7.15 MHz. This is the final tuning step and may require the most trimming — the 40m resonance is the most sensitive to the total element length.
Final Verification, Weatherproofing, and Documentation
Once all four bands are confirmed within ±50 kHz of target, do a full sweep of all four bands and record the SWR minimum and bandwidth for each. Weatherproof all trap assemblies with an additional wrap of self-amalgamating tape over the lacquered coil and capacitor. Seal the PVC end caps to the coil form with a bead of clear RTV silicone — this prevents water from entering the trap housing and bridging the capacitor leads.
Weatherproof the feedpoint SO-239/PL-259 connection with self-amalgamating tape. Apply RTV at the base mount/element interface. Install a ground rod adjacent to the base and connect to the radial hub with #6 AWG copper. Install a coax lightning protector at the shack entry.
Document: all four resonant frequencies, SWR at each, final section lengths A, B, and C, trap resonant frequencies as measured, date of installation, and radial count. Photograph the trap assemblies and base enclosure before final weatherproofing.
| Symptom | Most likely cause | Diagnosis | Fix |
|---|---|---|---|
| No resonance visible on any band | Feedpoint connection fault or trap wired incorrectly | Check DC continuity from feedpoint center to element tip through both traps | Verify all element-to-trap connections; check feedpoint SO-239 wiring |
| 10m resonance correct but 15m resonance missing | 15m trap not resonating correctly — too high or too low Q | Remove 15m trap and measure resonance separately with NanoVNA | Adjust 15m trap turns or capacitor value to correct resonance; re-install |
| SWR good on 10m and 15m but high on 20m and 40m | Both traps too lossy — presenting too much resistance on lower bands | Measure trap Q: Q = XL/R at resonant frequency | Rewind both traps on larger form (2-inch) with heavier wire (#16 AWG) to raise Q |
| Resonance drifts with temperature — especially 10m and 15m | Ceramic disc capacitors used instead of silver mica or NPO | Measure resonance in cold morning vs hot afternoon — large shift confirms thermal drift | Replace capacitors with silver mica or NPO/C0G ceramic types |
| SWR changes after rain or humidity | Moisture penetrating trap housing and bridging capacitor leads | Dry the traps with a heat gun and re-measure — improvement confirms moisture ingress | Re-seal trap housings with RTV; add additional lacquer coats to trap assembly |
| Good SWR on all bands but 40m signal weak vs 40m-only vertical | Normal — trap loading reduces efficiency slightly on 40m | Compare WSPR SNR with known 40m vertical — expect 0.5–1.5 dB lower with traps | No fix needed — this is the expected trade-off of multi-band operation from one element |
| 20m and 40m resonances interact — tuning one shifts the other | Normal interaction through the 15m trap — iterate tuning | Normal behavior — each trim of Section C affects both 20m and 40m | Iterate: tune 20m, then 40m, then small 20m re-trim if needed. Converges in 2–3 passes. |
How much performance do I lose by using traps instead of a single-band vertical?
With well-built traps (Q ≥ 150), the performance penalty on any covered band is less than 1 dB compared to a single-band vertical of the same physical height. On 10m and 15m, the loss is negligible — only the lower element section is active and neither trap is in the RF current path. On 20m and 40m, both traps are in the current path as inductive loads — a high-Q trap contributes less than 0.3 dB of additional loss each. The total penalty on 40m with two good traps is typically 0.3–0.6 dB — equivalent to the noise floor variation of the band from minute to minute. In practice, a well-built trap vertical on 40m is indistinguishable from a single-band vertical to the operators you contact.
Can I add an 80m band to a 4-band trap vertical?
Yes, by adding a third trap (for 40m, resonant at 7.15 MHz) and extending the element below it to ~66 ft total. In practice this is rarely done for a fixed vertical because the element becomes very tall (66 ft) and requires significant loading to work on 80m from that height — or a base loading coil and matching network in addition to the traps. A more practical approach for 5-band coverage (80m through 10m) is to operate the 4-band trap vertical on 80m through the radio's ATU, accepting a high SWR on 80m, with the ATU providing the matching. The antenna is approximately λ/8 on 80m — not efficient but functional for casual 80m operating.
Why do I need to tune from the highest band to the lowest?
Because each element section affects the resonance of all bands below it but has minimal effect on bands above it. Section A (below the 10m trap) determines 10m resonance almost exclusively. Trimming section A shifts 10m resonance by a large amount but shifts 15m, 20m, and 40m only slightly. Section C (above the 15m trap) affects 20m and 40m strongly but does not affect 10m or 15m at all. By tuning 10m first and locking in section A, then tuning 15m with section B, the later adjustments to sections C do not undo the earlier 10m and 15m work — each band's tuning is effectively independent of the ones above it.
Can I buy commercial traps instead of winding my own?
Yes — Barker & Williamson, Unadilla, and several other suppliers make commercial trap assemblies for amateur HF trap verticals. Commercial traps are tested, weatherproofed, and rated for power. The trade-off is cost — a pair of commercial traps typically costs $40–80, which is significantly more than the $8–12 in materials for homebrew traps. Commercial traps are a good option if you are not comfortable with coil winding and NanoVNA trap characterization, or if you want a proven component for a first build. Homebrew traps are straightforward to build and allow exact resonant frequency targeting — worthwhile if you have a NanoVNA and are comfortable with the coil winding procedure.
Does the radial system need to be different for a trap vertical vs a single-band vertical?
No — the radial system requirements are identical. The radials provide the RF ground return for whichever band is in use, and the same rules apply: more radials are always better, λ/4 length is optimal for each band, and the first 16 radials produce the most improvement. For a 4-band trap vertical covering 10m through 40m, cut all radials to the 40m length (34 ft) — they serve double duty as full-length 40m radials and as somewhat-longer-than-λ/4 radials on 15m, 20m, and 10m. Longer-than-λ/4 radials on higher bands do not cause problems and contribute normally to the ground return.
How do I know if my traps have failed?
Three symptoms indicate trap failure: SWR suddenly changes on one or more bands without any physical change to the element (capacitor failure — open or short); resonant frequency of one band shifts dramatically (trap resonance changed, usually from capacitor drift or moisture ingress); or the antenna no longer shows a resonance on one of the higher bands but works normally on lower bands (the trap for that band has failed open — it is no longer providing the high-impedance stop needed). To confirm trap failure, lower the element and measure each trap's resonant frequency with the NanoVNA. A healthy trap resonates at its design frequency within ±2%; a failed trap shows a dramatically different frequency or no resonance at all.
