Build a Trap Dipole Antenna
A trap dipole covers multiple HF bands from a single wire and single feedline using resonant LC traps that electronically shorten the antenna on higher bands. Unlike a fan dipole that spreads multiple wire pairs, the trap dipole uses one straight wire per side — making it mechanically simpler to support and visually less complex. This guide builds a 3-band trap dipole covering 80m, 40m, and 20m — the three most used HF bands for domestic and DX contacts — including complete trap winding instructions, capacitor selection, wire lengths, and weatherproofing.
The LC Trap — Principle of Operation
An antenna trap is a parallel LC circuit — an inductor (coil) and capacitor connected in parallel — inserted at a specific point along the antenna wire. The critical behavior of a parallel LC circuit is that at its resonant frequency it presents a very high impedance — essentially an open circuit. At other frequencies it presents a lower impedance.
When an antenna trap resonates at a specific frequency:
- At the trap's resonant frequency: high impedance → acts as an open circuit → only the wire between the feedpoint and the trap is active. The antenna element terminates at the trap on that band.
- Below the trap's resonant frequency: lower impedance → current passes through the trap and continues into the outer wire section. The trap adds a small amount of inductive loading that slightly shortens the required outer section length.
- Above the trap's resonant frequency: the trap is capacitive → also allows current to pass, though this region is less commonly used in simple trap designs
Trap Losses and Efficiency
Traps are not lossless. Every practical inductor and capacitor has some resistance — the Q (quality factor) of the trap determines how much power is wasted as heat in the trap components versus radiated as RF. The loss introduced by a trap is real but manageable with good construction:
- High-Q trap (Q=200+): trap loss ≈ 0.3–0.5 dB per trap per pass — essentially inaudible in operation
- Medium-Q trap (Q=100–200): trap loss ≈ 0.5–1.0 dB per trap — small but measurable
- Low-Q trap (Q<100): trap loss ≈ 1–3 dB per trap — clearly audible; poor construction or wet/corroded trap
Trap Q is determined by the wire gauge used for the coil winding and the quality of the capacitor. On 80m, current passes through both the 20m trap and the 40m trap — the losses add. Using large-diameter wire (#14 AWG or larger) for the coil and good-quality capacitors keeps total trap loss below 1 dB on 80m, which is acceptable for most operators. Trap weatherproofing is critical — moisture in a trap capacitor dramatically reduces Q and increases loss.
Multiband antenna comparison →Trap Resonant Frequency Selection
Each trap must resonate at or slightly above the upper edge of the band it serves as the "stop" for. For a 3-band dipole covering 80m, 40m, and 20m:
The trap resonant frequency must be verified with the NanoVNA after winding — the formula gives a starting point but the actual resonance depends on the physical dimensions of the coil, wire gauge, and capacitor value. Build traps to verified resonance, not to calculated dimensions alone.
Trap Coil and Capacitor Values
Trap design involves choosing an inductance and capacitance that resonate at the target frequency. There is a range of valid combinations — higher inductance needs less capacitance and vice versa. Practical constraints favor moderate inductance values:
A fixed capacitor of 50–56 pF (silver mica, 500V+ rating) combined with the calculated coil gives a good starting point. The coil turns are adjusted slightly during the NanoVNA resonance check to hit the exact target frequency.
Coil Winding — Form and Wire
The trap coil must be wound on a non-conductive, UV-resistant, weatherproof former. The most common materials:
- PVC pipe (schedule 40): 1.5" OD for 40m traps, 1" OD for 20m traps. Widely available, inexpensive, easy to work with. UV degrades PVC over several years — paint or wrap with UV-resistant tape after assembly.
- CPVC pipe: slightly smaller OD than PVC for the same nominal size. More temperature stable than PVC. Otherwise similar properties.
- Polycarbonate rod or tube: excellent UV resistance, high temperature stability, better electrical properties than PVC. More expensive but a better long-term choice.
- PVC coil forms from commercial trap kits: Amidon, Palomar, and other suppliers sell pre-formed coil formers with end caps for trap construction — the most convenient option for builders who want a clean professional result.
Wire for the coil: #14 AWG enameled (magnet wire) for good Q. Heavier gauge (larger diameter) gives higher Q because resistance per turn is lower. Use the largest wire gauge that fits the available winding space without crowding.
Capacitor Selection
The capacitor in a trap must have low loss (high Q) and adequate voltage rating. The voltage across a trap capacitor during operation is not trivial — particularly at higher power levels:
Capacitor requirements:
- Silver mica capacitors: best choice — very high Q, stable value, 500V to 1000V ratings available. NPO ceramic is a good alternative.
- Voltage rating: use capacitors rated for at least 2× the calculated voltage — 1000V minimum for 100W operation, 500V minimum for QRP
- Value tolerance: use 5% or better tolerance — a 10% capacitor can shift trap resonance 50+ kHz from the target
- Avoid: electrolytic, tantalum, general-purpose ceramic (Z5U, Y5V) — all have too much loss for trap use
- Multiple caps in parallel: combining two or three caps to reach the target value is acceptable and allows using standard values from stock
| Section | Description | Calculated length | Cut to (with 3% extra) | Notes |
|---|---|---|---|---|
| Inner (20m) | Feedpoint to 20m trap, each side | 16.3 ft | 16.8 ft | Slightly shorter than a standalone dipole due to trap loading |
| Middle (40m) | 20m trap to 40m trap, each side | 15.5 ft | 16.0 ft | This section shortens the 40m leg — trap adds electrical length |
| Outer (80m) | 40m trap to wire end, each side | 28.8 ft | 29.7 ft | Longest section; most affected by trap loading from both traps |
| 20m trap | At 16.3 ft from feedpoint | Resonate at 14.200–14.350 MHz | Verify with NanoVNA | ~2.5 µH + 50 pF silver mica |
| 40m trap | At 31.8 ft from feedpoint | Resonate at 7.150–7.300 MHz | Verify with NanoVNA | ~10 µH + 50 pF silver mica |
| Total span | Tip to tip (both sides) | ~121 ft (37 m) | — | Shorter than full 80m dipole (125 ft) due to trap loading |
Trap Dipole Calculator
All wire sections are approximate starting points — final lengths require iterative tuning after installation. The trap loading effect on wire lengths is real but varies with the specific trap Q, the coil former diameter, and installation height. Cut long and trim.
Complete materials for the build including trap components

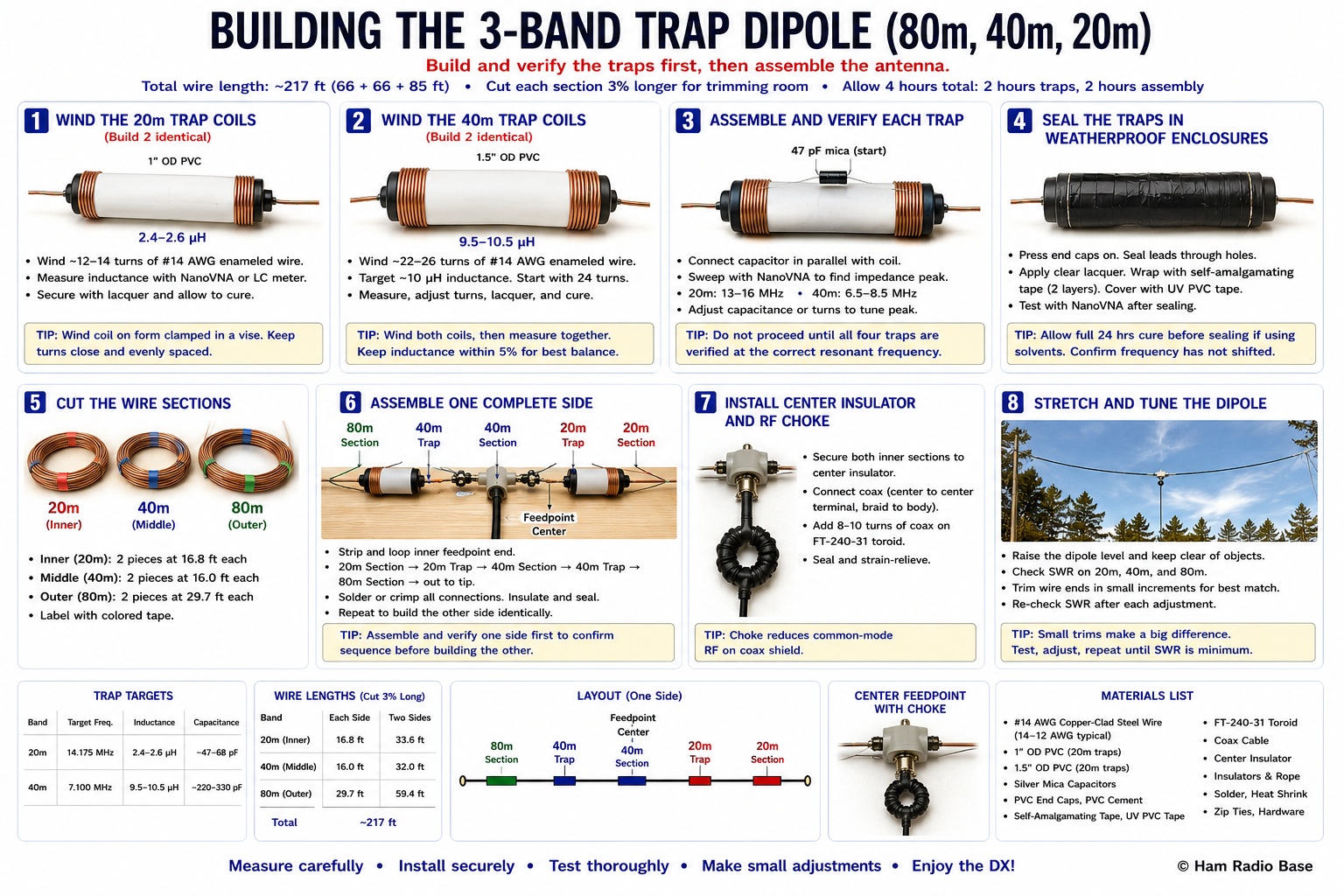

Building the 3-Band Trap Dipole (80m, 40m, 20m)
Build and verify the traps first, then assemble the antenna. Allow 4 hours total — 2 hours for trap construction and verification, 2 hours for antenna assembly and tuning.
Wind the 20m Trap Coils (Build 2 identical)
Cut two 6-inch sections of 1" OD PVC pipe. For each coil: wind #14 AWG enameled wire closely spaced (touching turns) around the PVC pipe. Target approximately 12–14 turns to get near 2.5 µH inductance. Leave 4-inch wire leads at each end for connections. Use the NanoVNA inductance mode or an LC meter to measure the wound inductance — adjust turns until the inductance reads 2.4–2.6 µH.
Secure the winding with a thin layer of epoxy or clear lacquer applied with a brush while the wire is still on the form. Allow to cure before proceeding. The lacquer locks the turns in place and prevents moisture from wicking between coil turns.
Wind the 40m Trap Coils (Build 2 identical)
Cut two 6-inch sections of 1.5" OD PVC pipe. Wind #14 AWG enameled wire with close-wound turns to achieve approximately 10 µH inductance. A 1.5" PVC form needs approximately 22–26 turns to reach 10 µH — start with 24 turns and measure. Adjust by adding or removing turns until the inductance reads 9.5–10.5 µH. Apply lacquer and allow to cure.
Assemble and Verify Each Trap
For each trap, connect the capacitor in parallel with the coil — one capacitor lead to each coil wire end. Start with 47 pF silver mica. Connect the NanoVNA in parallel with the completed LC circuit and sweep through the target frequency range:
- For the 20m trap: sweep 13–16 MHz — look for the sharp impedance peak (parallel resonance)
- For the 40m trap: sweep 6.5–8.5 MHz — look for the sharp impedance peak
If resonance is too high (above target): increase capacitance by adding another cap in parallel. Each 5 pF added lowers resonance by approximately 60 kHz on the 20m trap and 25 kHz on the 40m trap. If resonance is too low: use a slightly lower capacitance value or remove a turn from the coil.
Seal the Traps in Weatherproof Enclosures
Moisture is the primary long-term failure mode for antenna traps. Wet coil windings lose Q; moisture on capacitor leads causes arcing at power; corrosion on connections adds resistance. Thorough weatherproofing is not optional — it is the difference between a trap that lasts 10+ years and one that needs rebuilding in 2 years.
Sealing method: press PVC end caps onto both ends of each coil form, leaving the wire leads exiting through small holes drilled in the end caps. Apply PVC cement to secure the end caps. Spray or brush the exterior of the assembled trap with clear UV-resistant lacquer. When dry, wrap the entire trap with two layers of self-amalgamating tape from one end to the other. Apply UV-protection PVC tape over the top layer.
Cut the Wire Sections
Cut the six wire sections (three per side) using the table values as starting points — cut each section 3% longer than the table value for trimming room:
- Inner (20m) sections: 2 pieces at 16.8 ft each
- Middle (40m) sections: 2 pieces at 16.0 ft each
- Outer (80m) sections: 2 pieces at 29.7 ft each
Label each section with colored tape: red for inner, blue for middle, green for outer. The color coding becomes important during assembly when six similar-looking wire pieces must be connected in the correct order.
Assemble One Complete Side
Assemble one side of the dipole from feedpoint to tip before starting the other side — this allows you to verify the sequence is correct before duplicating it. Working outward from the feedpoint:
- Strip and loop the inner wire feedpoint end — this connects to the dipole center
- At the far end of the inner wire, connect the 20m trap wire leads with solder and mechanical crimp. Both trap leads connect to the inner wire end (parallel connection)
- The middle wire connects from the 20m trap outer leads to the 40m trap — both trap leads connect to the middle wire ends
- The outer wire connects from the 40m trap outer leads to the egg insulator at the wire tip
Assemble the Second Side and Feedpoint
Repeat the assembly for the second side, then connect both inner wire ends to the dipole center feedpoint. Wind the 1:1 current choke (8 turns of coax through FT-240-31) and connect the coax to the feedpoint. Connect the coax center conductor to one side and braid to the other — confirm no short between sides with an ohmmeter before proceeding.
The completed antenna should have: inner wire → 20m trap → middle wire → 40m trap → outer wire → end insulator, on both sides, connected at the feedpoint center with the current choke between the feedpoint and the coax run.
Raise the Antenna
The trap dipole is heavier than a simple wire dipole — four traps add substantial weight at mid-span positions. Support considerations:
- The center support must handle the feedpoint weight plus the downward pull of both sides — use a heavy-duty center insulator rated for the combined load
- The traps add weight and wind resistance — the outer wire sections may sag more than you expect. This is normal and has minimal effect on performance
- For an inverted-V, the traps at mid-span create natural articulation points — the middle and outer sections droop below the inner sections. This is cosmetically unusual but electrically fine
- Raise the center support first, then pull both outer wire tips to their end anchors simultaneously to avoid imbalanced loading on the center support during raising
Initial SWR Sweep — All Three Bands
Connect the NanoVNA at the radio end of the coax. Sweep each band in order from highest to lowest frequency:
- 20m first (13.5–15.0 MHz): look for the SWR dip near 14.200 MHz. The inner section is the active antenna on 20m — only this section's length determines 20m resonance.
- 40m second (6.8–7.5 MHz): look for the 40m dip. The inner + middle sections plus the loading effect of the 40m trap determine 40m resonance.
- 80m last (3.3–4.1 MHz): look for the 80m dip. All three sections plus both traps are active on 80m.
Expected initial resonances before any trimming:
- 20m: approximately 14.0–14.15 MHz (slightly low — inner sections cut long)
- 40m: approximately 7.0–7.1 MHz (slightly low)
- 80m: approximately 3.65–3.75 MHz (may be close if trap loading was accounted for)
Tune 20m First — Trim the Inner Sections
On 20m, only the inner sections determine resonance. Trim both inner sections equally until 20m resonance reaches 14.200 MHz. On 20m, each 1 inch trimmed from both inner sections (0.5 inch per section) raises resonance approximately 10–15 kHz.
After 20m tuning is confirmed, verify that 40m and 80m dips are still present. Trimming the inner sections slightly shifts the 40m and 80m resonances upward — this is expected and is corrected in subsequent steps.
Tune 40m — Trim the Middle Sections
On 40m, the inner sections plus middle sections plus the trap loading determine resonance. After 20m is tuned, the 40m resonance may have shifted slightly from where it started. Trim both middle sections equally to bring 40m resonance to 7.150 MHz.
After 40m tuning, verify 20m is still at target (should be unchanged) and note the 80m resonant frequency for the next step.
Tune 80m — Trim the Outer Sections
On 80m, all sections are active. Trim both outer sections equally to move 80m resonance to the target frequency (3.750 MHz for the best all-around compromise).
After 80m tuning, do a final verification sweep of all three bands. If any band has drifted from the target, re-trim that section's wire. One or two additional iterations are typically needed for all three bands to settle simultaneously at their targets.
Weatherproof All Connections and Document
Apply self-amalgamating tape to the feedpoint assembly and to each trap wire connection where the antenna wire meets the trap leads. Each trap connection should be individually weatherproofed — wrap each junction point with self-amalgamating tape, then PVC tape over the top. Pay particular attention to the connection where the enameled coil wire meets the CCS antenna wire — this dissimilar metal junction is particularly vulnerable to corrosion.
Record the final trimmed length of each of the six wire sections, the resonant frequency and SWR on all three bands, the trap resonant frequencies as measured, and the apex height. Photograph the complete antenna, the feedpoint, and each trap. Store with station records. Plan to inspect and re-tape all trap connections annually — moisture ingress into trap capacitors is the most common trap failure mode and the inspection catches it before it causes significant Q degradation.
Annual Trap Inspection
Trap dipoles require more maintenance than simple wire dipoles — the traps must be inspected annually to catch moisture ingress and connection corrosion before they degrade antenna performance significantly. Annual inspection procedure:
- Lower the antenna or access each trap from a ladder
- Inspect the outer weatherproofing tape — look for cracks, bubbling, or separation
- If the tape shows damage, peel it back and inspect the inner self-amalgamating layer
- Check the wire-to-trap-lead connections for green patina (copper oxidation) or white powder (aluminum oxidation)
- With the antenna lowered, use the NanoVNA to verify each trap still resonates at the original design frequency — more than 100 kHz shift indicates moisture or corrosion
- Re-tape any connections showing wear; disassemble and rebuild any trap showing resonance shift
Troubleshooting SWR Problems
- Good SWR on 20m but not 40m or 80m: 40m or 80m trap not passing current — check the trap lead connections on the affected band. A broken solder connection at a trap is the most common mid-life failure.
- SWR good when dry, high when wet: moisture entering the capacitor — the trap needs to be disassembled and the capacitor replaced, then re-sealed more thoroughly.
- SWR minimum drifts with temperature: normal small effect — temperature changes affect the coil dimensions and therefore inductance. A drift of 20–30 kHz between summer and winter is normal.
- SWR suddenly much worse on all bands: check the feedpoint current choke and coax connections — an open solder joint at the feedpoint affects all bands simultaneously, unlike a trap problem that affects only lower bands.
- One band SWR good, others poor: suspect a trap problem on the band just above the "good" band. The 20m trap affects 40m and 80m; the 40m trap affects 80m but not 20m.
How much power can a homebrew trap dipole handle?
A trap dipole with silver mica capacitors rated 1000V and #14 AWG coil wire handles 100W continuously with good margin. The limiting factor is usually the capacitor voltage rating — at 100W into a well-matched system, the trap capacitor voltage is approximately 1500–2000V. With 1000V capacitors, this is tight — 500V capacitors will arc and fail at 100W. For 1500W operation, use vacuum variable capacitors or high-voltage doorknob capacitors rated at 5kV+. Commercial trap dipoles from manufacturers like Hustler and Cushcraft use purpose-built trap coils and are rated for full legal power.
Why is my 80m resonance drifting after I tune it?
80m resonance on a trap dipole is affected by ground moisture more than the upper bands. If tuning in dry conditions and testing in wet conditions, the resonance will shift lower by 50–150 kHz. This is normal behavior caused by the wet ground's dielectric loading on the long outer sections that are close to the ground on an inverted-V. Tune after moderate rainfall to represent typical operating conditions. A remote ATU at the feedpoint handles seasonal drift automatically without manual re-tuning.
How do I know if my trap is working correctly?
Three tests: First, check SWR on the trap's band — good SWR confirms the trap is presenting high impedance at that frequency. Second, verify SWR on a band below the trap — if the outer sections contribute correctly on lower bands, the trap is also passing current correctly below resonance. Third, use the NanoVNA to check the trap's resonant frequency directly — disconnect the trap from the antenna wire, connect the NanoVNA across the trap terminals, and sweep to find the impedance peak. A healthy trap shows a sharp, well-defined peak at the design frequency. A degraded trap shows a lower, broader peak shifted from the design frequency.
Can I use coax-wound traps instead of coil-and-capacitor traps?
Yes — coaxial cable traps use a specific length of coax wound into a coil, where the coax itself forms both the inductance (the coil shape) and the capacitance (the coax's distributed capacitance). Coax traps are somewhat easier to build and are inherently weatherproof but have lower Q than wound-coil traps with discrete capacitors. The lower Q means slightly higher loss on each band. For casual operation the difference is small. For operators who want maximum efficiency and are willing to put in the extra work of winding separate coils with discrete capacitors, the coil-and-capacitor trap is better. Many commercial trap dipoles use coax traps for their construction simplicity and reliability.
Is a trap dipole a good first antenna build?
It is a moderate difficulty build — more complex than a simple dipole but well within reach for any operator comfortable with basic soldering. The main challenges are winding the coils to the correct inductance, getting the capacitor value right, and careful weatherproofing. A beginner who has already built a simple dipole and used a NanoVNA for tuning is ready to tackle a trap dipole. A first-time builder would be better served starting with a simple 20m or 40m dipole to learn the fundamental skills before adding the trap complexity. That said, the trap dipole's multi-band coverage makes it a highly rewarding build for operators who want to work 80m, 40m, and 20m from one installation.
What is the SWR bandwidth on each band with a trap dipole?
A well-built trap dipole typically shows SWR below 2:1 across the full 20m band (14.0–14.35 MHz) and the full 40m band (7.0–7.3 MHz). On 80m, the bandwidth is narrower — approximately 200 kHz below 2:1, similar to a simple 80m dipole. The traps slightly reduce the SWR bandwidth compared to a full-size single-band dipole on each covered band, but the reduction is typically less than 20% and is acceptable for all operating modes. Using a tuner for the extreme band edges on 80m is the usual solution when operating across the full band.
