HF Mobile Screwdriver Antenna
A screwdriver antenna is a motorized, continuously-variable loading coil built into a mobile HF whip, letting you re-tune from 75m to 6m with a rocker switch on the dash instead of stepping outside to swap coils or slide taps. Commercial motor units run $200-400 before mount and whip; this build walks through assembling the mechanical and electrical pieces around a roller-inductor coil unit and getting it bonded, mounted, and tuned on your vehicle. It's the standard choice for hams who want serious multi-band HF capability from a daily-driver vehicle without a permanent trunk lip full of separate band-specific whips, and it rewards careful grounding work as much as antenna theory — most screwdriver installs that perform poorly are suffering from bonding problems, not coil problems.
Physical length vs. electrical length, mobile-style
A full-size quarter-wave vertical on 75m would be over 60 feet tall — obviously not something you mount on a vehicle. A screwdriver antenna accepts a fixed, short physical height and makes up the difference with a loading coil sized in real time to whatever band you're on, rather than a coil sized for just one band.
75m (3.9 MHz): 234 / 3.9 = 60 ft vs. ~7-9 ft of actual mounted height here
A motorized roller inductor instead of fixed taps
Instead of clipping a lead to a fixed turn count, a screwdriver coil uses a small DC gearmotor to slide a roller contact continuously along a solenoid winding, changing inductance smoothly rather than in discrete steps. That's what lets you retune from the driver's seat, but it also means there's no universal turns table — every install's band-to-position settings depend on your specific mount, vehicle, and whip, and get established once during initial tune-up, then logged for repeatable quick QSY.
Why vehicle bonding matters as much as the coil
A mobile antenna radiates against the vehicle body acting as a counterpoise, and any break in that metallic path — paint under the mount, a plastic bumper, an isolated trunk lid — adds loss resistance the coil can't fix. Bonding straps across body panels, the mount, and the frame keep that return path solidly metallic instead of running through high-resistance paint or hinges.
- Mount point: scrape to bare metal under the mount before installing, every time.
- Body panels: bond trunk lids, hoods, and doors near the mount if they're not solidly grounded through their hinges alone.
- Frame/body: on body-on-frame vehicles, bond body to frame near the mount location.
What a capacitance hat actually buys you
Adding a capacitance hat — a disc or set of radial rods at the very top of the whip — increases the current at the top of the antenna, which effectively lets you use less loading inductance for the same resonant frequency. Less inductance in the coil means less coil-resistance loss, so a hatted screwdriver antenna is measurably more efficient and slightly wider-bandwidth than the same coil and whip without one, especially on the lower bands where the coil is doing the most work.
| Section | Length (inches) | Length (mm) | Notes |
|---|---|---|---|
| Mount stud | 4 in | 102 mm | 3/8-24 threaded stud on a heavy-duty ball or hitch mount |
| Motorized coil unit | 14-16 in | 356-406 mm | Roller-inductor housing, typical range across common off-the-shelf and homebrew units |
| Whip above coil | 36-60 in | 914-1524 mm | Fixed fiberglass-over-stainless or telescoping, model-dependent |
| Capacitance hat diameter | 6-10 in | 152-254 mm | Adjustable spoke or disc style, mounted at the whip tip |
| Overall mounted height | 84-108 in | 2134-2743 mm | Typical total from mount to hat, model- and mount-dependent |
HF Mobile Screwdriver Antenna Dimension Calculator
Materials for HF Mobile Screwdriver Antenna

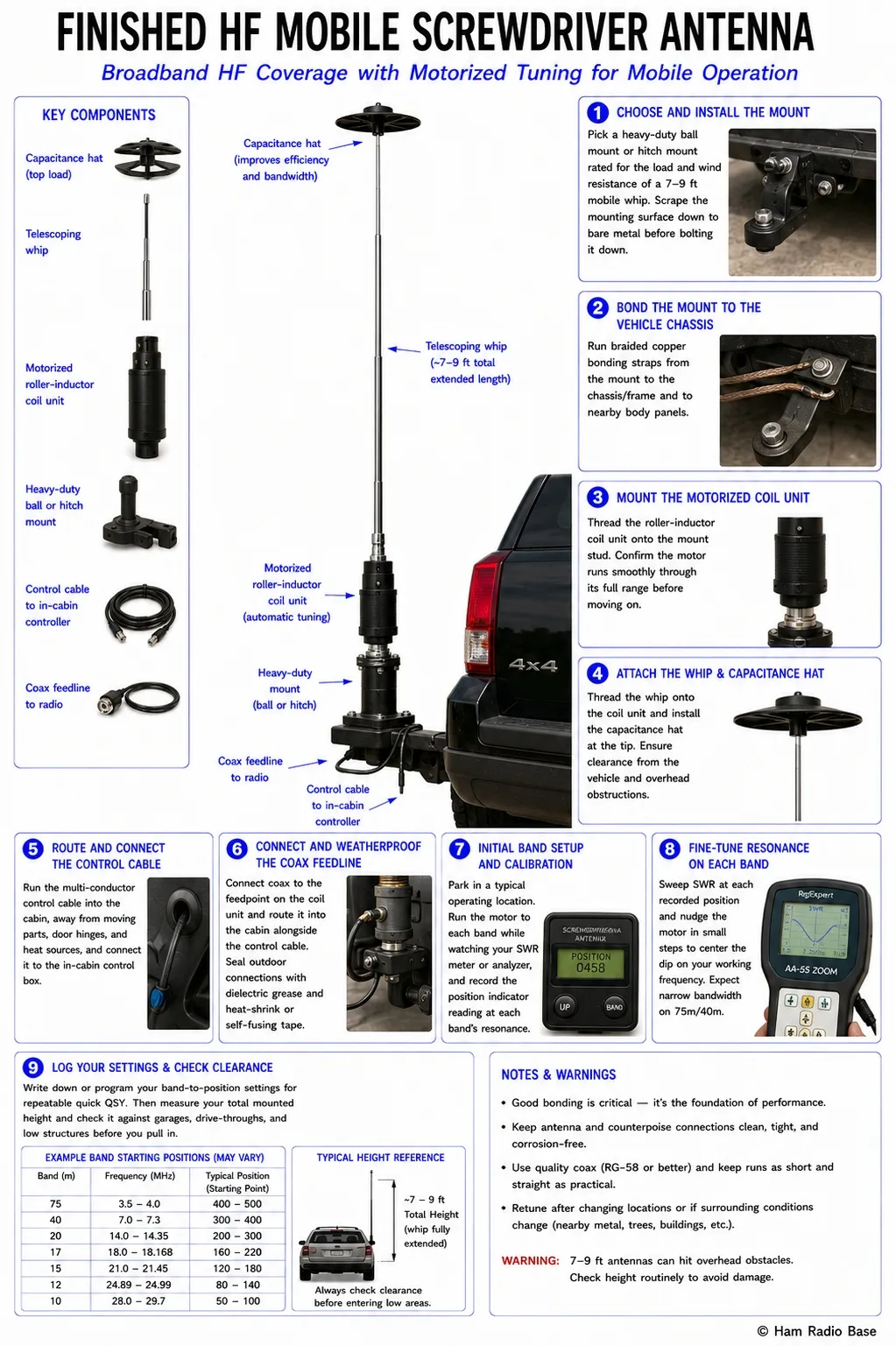

Building the HF Mobile Screwdriver Antenna
This build is as much automotive grounding work as it is antenna building. Treat the bonding steps with the same care as the coil and whip assembly — they're just as responsible for your final performance.
Choose and install the mount
Pick a heavy-duty ball mount or trunk-lip/hitch mount rated for the load and wind resistance of a 7-9 ft mobile whip. Scrape the mounting surface down to bare metal before bolting it down.
Bond the mount to the vehicle chassis
Run braided copper bonding straps from the mount to the nearest solid chassis or frame ground point, and to any body panels near the mount that aren't already solidly grounded through their hinges.
Mount the motorized coil unit
Thread the roller-inductor coil unit onto the mount stud. Confirm the motor runs smoothly through its full range before moving on — a sticky or binding roller is much easier to service now than after the whip and hat are on.
Attach the whip and capacitance hat
Thread the whip section onto the coil unit and install the capacitance hat at the tip. Make sure the hat's spokes or disc are clear of the vehicle body and any overhead obstructions at your typical parking height.
Route and connect the control cable
Run the multi-conductor control cable from the coil unit into the cabin, away from moving parts, door hinges, and heat sources, and connect it to the in-cabin control box.
Connect and weatherproof the coax feedline
Connect your coax to the coil unit's feedpoint and route it into the cabin alongside the control cable. Seal outdoor connections with dielectric grease and heat-shrink or self-fusing tape.
Initial band setup and calibration
With the vehicle parked in a typical operating location, run the motor to each band of interest while watching your SWR meter or analyzer, and record the position indicator reading at each band's resonance point.
Fine-tune resonance on each band
Sweep SWR at each recorded position and nudge the motor in small steps to center the dip on your working frequency. Expect the lower bands to need noticeably finer adjustment than the higher ones.
Log your settings and check physical clearance
Write down or program your band-to-position settings for repeatable quick QSY. Then measure your total mounted height and make a habit of checking it against garages, drive-throughs, and low structures before you pull in.
| Symptom | Most likely cause | Diagnosis | Fix |
|---|---|---|---|
| High SWR on every band | Poor vehicle bonding or ground path | Check for paint, corrosion, or plastic breaking the metallic path from mount to body | Scrape to bare metal at the mount and add bonding straps at key panels |
| Can't reach resonance on 75m/40m even at full coil travel | Insufficient inductance range, short whip, or no capacitance hat | Confirm the roller is at the end of its travel and the hat is installed | Add or upsize the capacitance hat, or use a coil unit with more range for the lowest bands you need |
| SWR looks different depending on where you park | Nearby vehicles, structures, or ground conditions | Compare sweeps in your typical operating spots vs. open ground | This is expected proximity effect; tune in your usual operating environment |
| Motor doesn't move, or moves erratically | Control cable wiring fault or dirty roller contact | Check continuity and voltage at the motor leads; inspect the roller contact surface | Repair wiring, clean the roller contact, or replace a worn brush |
| Resonance drifts over the course of a trip | Vibration loosening the mount, hat, or a bonding strap connection | Recheck all mechanical connections after a highway drive | Re-torque hardware and add lock washers or thread locker where appropriate |
| Position indicator no longer matches actual resonance | Roller slippage or mechanical backlash | Re-run the calibration sweep from step 7 | Recalibrate your logged band positions; address mechanical slop if it recurs often |
Do I need a capacitance hat?
Not strictly, but it noticeably improves efficiency and bandwidth on the lower bands by letting the coil carry less inductance for the same resonant frequency. Most serious screwdriver installs run one.
Why do I need bonding straps if the antenna already screws into a metal mount?
Paint, corrosion, hinges, and plastic body components can all break the metallic continuity your antenna needs as a ground plane, even when the mount itself is bolted to metal. Bonding straps guarantee a low-resistance path regardless of what's between the mount and the rest of the body.
Can I operate while driving?
Many operators do on higher bands where retuning is infrequent, but treat any mid-drive band change as a distraction to manage like any other in-cabin control, and never prioritize the antenna over the road.
What should I watch out for with a 7-9 ft mounted height?
Garages, carports, drive-throughs, and parking structures are the most common casualties of forgetting the whip is up there. Get in the habit of checking clearance before you pull into anything you wouldn't normally think twice about.
Why is my SWR different depending on where I'm parked?
Nearby vehicles, buildings, and terrain all interact with a mobile antenna's ground-plane system. It's normal for the resonance to shift slightly between locations — tune in the environment you'll actually be operating from.
Can this cover 75m/80m well?
It will get you on the air there, but expect the largest efficiency penalty and narrowest bandwidth of any band this design covers — a fixed physical height that's a small fraction of a 75m wavelength is a tough ask for any mobile antenna, screwdriver or not.
