64:1 Unun — and When to Choose It Over 49:1
Most end-fed half-wave antennas land close enough to 2450Ω that a 49:1 unun is the right choice, but some builds — longer wires, certain multiband EFHW lengths, and installations where measurement shows a consistently higher feedpoint impedance — present closer to 3200Ω. A 64:1 unun (50Ω × 64 = 3200Ω) is built for that case. This guide covers when 64:1 is the better choice, the winding method, a turns calculator, and full troubleshooting.
Why some end-fed wires run higher than 2450Ω
The textbook ~2450Ω end-fed half-wave figure assumes a clean, single half-wavelength radiator in reasonably favorable surroundings. Real installations shift that figure: wire routed close to ground or metal structures, multiband EFHW wires cut for combinations that are not a clean single half-wave on every intended band, and especially longer wires (roughly 1.5 wavelengths or more on the lowest intended band) commonly measure closer to 3000-4000Ω at the feedpoint. A 64:1 transform (targeting ~3200Ω) sits in the middle of that higher range, where a 49:1 unun would leave a larger residual mismatch.
How the winding creates the 64:1 ratio
Like the 49:1 unun, a 64:1 unun is normally wound as two separate windings on the same core — a short primary and a longer secondary — connected as an autotransformer with the coax shield and counterpoise tied to the primary-secondary junction. Impedance scales with the square of the turns ratio, so an 8:1 turns ratio produces the 1:64 impedance ratio.
49:1 vs. 64:1 — how to actually decide
Do not guess — measure. Build or borrow a 49:1 unun (or use a NanoVNA with the antenna wire directly, accounting for the transform mentally) and check the measured feedpoint impedance near your operating frequency. If it consistently reads closer to 3000-3600Ω than 2200-2800Ω, a 64:1 unun will typically show a lower baseline SWR before tuner correction than a 49:1 would on the same wire. For a single-band, standard-length EFHW with nothing unusual about the installation, 49:1 remains the better default; reach for 64:1 specifically when measurement — not guesswork — shows the higher impedance.
- Standard single-band EFHW, typical install: 49:1 is the right default.
- Multiband EFHW cut for a non-standard length combination: measure first; 64:1 is common on these.
- Long wire (roughly 1.5λ or more) end-fed: 64:1 is frequently the better match.
- Wire routed very close to ground, metal roofing, or gutters: measured impedance often runs high; check before assuming 49:1.
Sizing for power
Sizing follows the same logic as the 49:1 unun — the primary winding carries comparatively high RF voltage at a high-impedance feedpoint even at modest transmitter power, so err toward the same core margin; see the Core Selection Guide for the flux density math. FT-240-43 is the standard choice at any power level above QRP.
| Parameter | 49:1 Unun | 64:1 Unun | Notes |
|---|---|---|---|
| Target feedpoint impedance | ~2450Ω | ~3200Ω | 50Ω × ratio |
| Turns ratio (secondary:primary) | 7:1 | 8:1 | Impedance ratio = (turns ratio)² |
| Best-fit antenna type | Standard single half-wave EFHW | Long wire / multiband EFHW with measured high-Z feedpoint | Measure before choosing when unsure |
| Typical secondary turns (FT-240-43, 3t primary) | 21 | 24 | Same primary turn count, ratio sets secondary |
| Availability | Very common, most kit EFHW antennas | Less common, mostly homebrew or specialty kits | 49:1 is the safer default without measurement data |
64:1 Unun Turns Calculator
Materials for a two-winding 64:1 unun

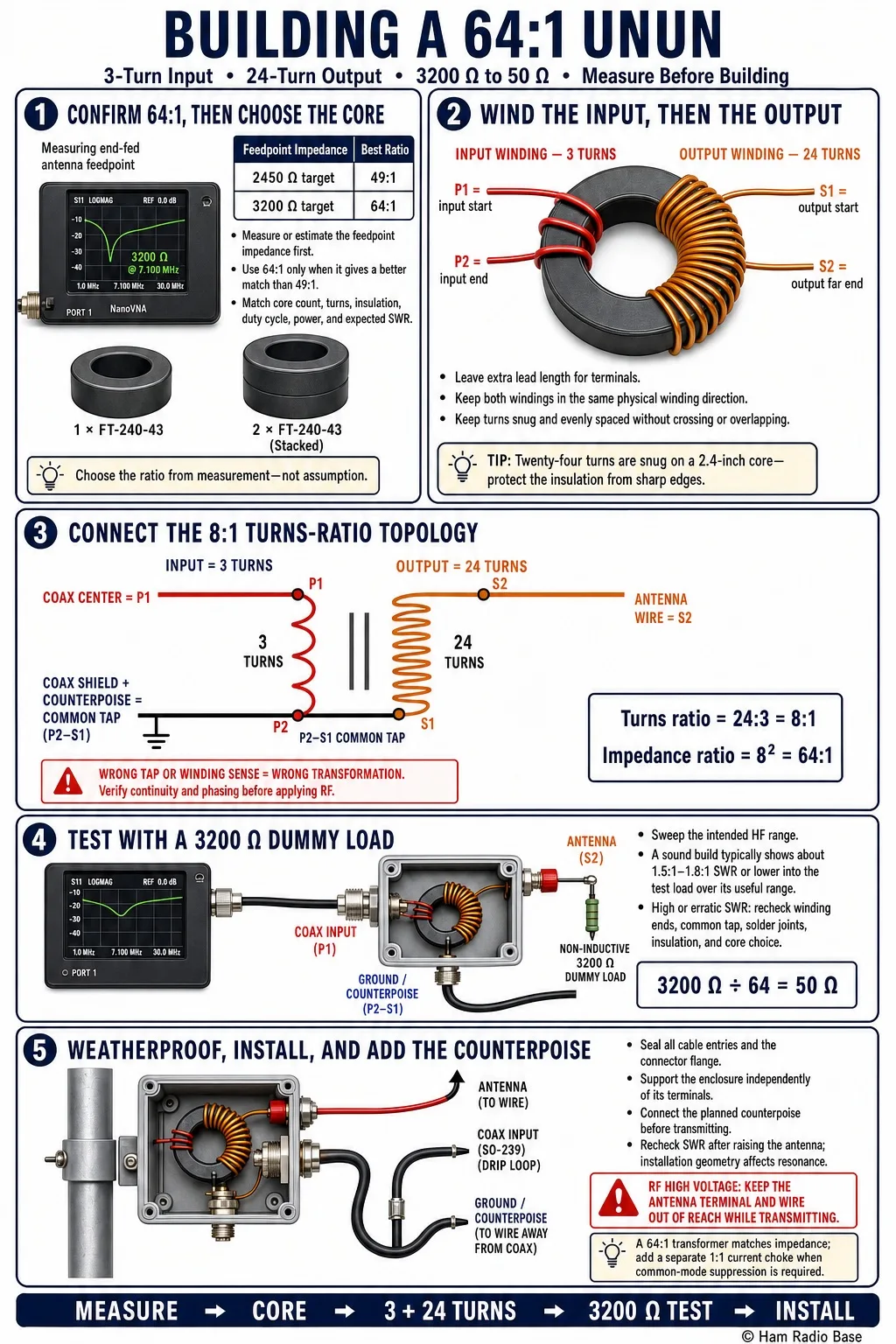

A 64:1 unun wound with a 3-turn primary and 24-turn secondary on a single FT-240-43 core, mounted in a weatherproof enclosure.
Building a 64:1 Unun
Budget 1-2 hours including enclosure assembly and testing. Confirm with measurement that 64:1 is actually the better fit before committing to the build — see the comparison guidance above.
Confirm 64:1 is the right choice, then choose turns
Measure or estimate your antenna's feedpoint impedance first — a 64:1 build is wasted effort if a 49:1 would have matched just as well. Once confirmed, match core and turns to your power level using the reference table or the calculator above.
Wind the primary, then the secondary
Wind the primary turns first, spacing them evenly around roughly half the core's circumference. Wind the secondary turns over the remaining circumference in the same rotational direction, leaving a small gap between the two windings' ends where they will be joined.
Connect the autotransformer topology
Join the primary's end to the secondary's start — this junction is the common tap. Coax center conductor connects to the primary's start. Coax shield connects to the tap junction, and the counterpoise terminal also connects to this same tap junction. The antenna wire connects to the secondary's far end.
Test with a dummy load before installing
Connect a non-inductive resistor across the antenna and ground terminals matching the design target (3200Ω is standard for testing a 64:1 unun) and sweep SWR at the coax input with a NanoVNA. A correctly wound unun shows SWR under about 1.5:1 to 1.8:1 into that load.
Weatherproof, install, and connect the counterpoise
Mount the tested unun in its enclosure with sealed cable entries and a drip loop below the connector. Connect the antenna wire and route it up and away at as steep an angle as the site allows. Connect a counterpoise to the ground terminal — see the Counterpoise Design guide — before transmitting.
| Symptom | Most likely cause | Diagnosis | Fix |
|---|---|---|---|
| SWR is worse with the 64:1 unun than it was with a 49:1 on the same wire | Feedpoint impedance was actually closer to 2450Ω, and 64:1 overshoots the transform | Test the unun alone with a 3200Ω dummy resistor; if that passes but field SWR is worse than the 49:1 was, the antenna's real impedance was the issue, not the unun's construction | Switch back to a 49:1 unun for this specific wire and installation |
| SWR is high on all bands even into a matched dummy load | Winding topology error | Test the unun alone with a 3200Ω dummy resistor across the antenna/ground terminals; a correctly wound unun shows SWR under 1.8:1 into that load | Re-check winding connections against the topology described above; re-wind if the winding sense or junction is wrong |
| SWR looks fine but RF-in-the-shack symptoms persist | Counterpoise missing or too short | Clip on a known-good choke temporarily at the shack entry; if symptoms disappear, common-mode current on the shield was the cause | Add or lengthen the counterpoise per the Counterpoise Design guide, and add a permanent 1:1 current choke at the shack entry |
| Core runs hot or cracks under power | Core undersized for actual power and the high RF voltage a high-Z feedpoint produces at the winding | Recalculate flux density per the Core Selection Guide using the actual RF voltage at the unun, not just rated transmitter power | Step up to a larger core or add a second stacked core — high-Z feedpoints push more voltage across the primary winding than a standard 49:1/2450Ω design |
| Turns are too tight to fit cleanly on the core | 24 secondary turns is a lot of wire for a single-layer winding on a 2.4-inch core, especially with thicker wire | Check wire gauge against available winding window; count turns as you go rather than estimating spacing by eye | Switch to thinner-gauge secondary wire, or step up to a larger core (or stack two) to gain more winding window |
How do I know if I need 64:1 instead of 49:1?
Measure, don't guess. If the measured feedpoint impedance on your intended bands consistently reads closer to 3000-3600Ω than 2200-2800Ω, 64:1 will typically outperform 49:1. Without measurement data, 49:1 remains the safer default for a standard single-band EFHW.
Can I just use a 49:1 unun and let the tuner handle the difference?
Often, yes — a tuner can absorb a moderate residual mismatch either way. The case for building a dedicated 64:1 unun is strongest when you are running tuner-less on that antenna, or when the mismatch with 49:1 is large enough that even the tuner struggles or SWR at the unun itself gets high enough to stress the core.
Is a 64:1 unun harder to build than a 49:1?
Only slightly — the extra secondary turns (24 vs. 21 on a typical FT-240-43 build) take a bit more winding care to fit cleanly, but the topology, connections, and testing procedure are otherwise identical.
Do I still need a counterpoise with a 64:1 unun?
Yes. Like the 49:1 and 9:1 ununs, the 64:1 is a single tapped autotransformer winding, not an isolated balun — the coax shield and counterpoise still need a defined return path regardless of the transform ratio.
Why isn't 64:1 the default if it's closer to some real-world measurements?
Because most standard-length, well-installed EFHW antennas do measure closer to the 49:1 unun's ~2450Ω target — 64:1 is the better fit for a specific subset of installations (longer wires, non-standard multiband lengths, unusually low or metal-heavy mounting), not a general upgrade over 49:1.
