Build a 10 Meter Vertical Antenna

The 10m quarter-wave vertical is one of the easiest DX antennas on this site to build — at just over 8 feet tall it fits on nearly any rooftop, deck, or small lot, yet delivers a low-angle radiation pattern well suited to the worldwide F2-layer and sporadic-E openings that make 10m so exciting. This guide covers the complete build from element sizing through radial installation, feedpoint assembly, and final tuning for 28 MHz operation.

8.24 ftElement length (28.400 MHz)
~35–50 ΩFeedpoint impedance (with radials)
~14°Low-angle takeoff for DX
~$50Typical build cost

Quarter-Wave Vertical Fundamentals at 28 MHz

The 10m quarter-wave vertical operates on exactly the same principle as the 20m and 40m verticals on this site — one half of a dipole, with the ground plane providing the missing half electrically. The higher frequency at 28 MHz means an even shorter, lighter element than the already-compact 20m version:

Quarter-wave element length: Length (ft) = 234 / f(MHz) At 28.400 MHz (10m compromise — recommended): 234 / 28.400 = 8.24 ft (2.51 m) At 28.000 MHz (10m CW/band bottom): 234 / 28.000 = 8.36 ft (2.55 m) At 28.074 MHz (FT8 calling frequency): 234 / 28.074 = 8.34 ft (2.54 m) At 29.700 MHz (10m band top): 234 / 29.700 = 7.88 ft (2.40 m) Starting length recommendation: Cut to 8.75 ft (2.67 m) — trim to resonance. Extra length costs nothing; too-short needs splicing.

A single 9-foot length of aluminum tubing handles the entire element with no telescoping needed — one of the simplest builds in this vertical family.

10m vs 20m Vertical — Key Differences

Building a 10m vertical differs from the 20m version in a few important ways operators should understand before starting:

  • Element is about half the length: 8.24 ft vs 16.5 ft — even easier to support than the already-compact 20m build. A single section of 0.75-inch aluminum tubing is plenty.
  • Radials are correspondingly shorter: 10m radials are ~8.24 ft each — a full 16-radial system uses roughly half the copper of the 20m version.
  • Much wider band in percentage terms: 10m spans 28.000–29.700 MHz, 1.7 MHz wide — around 6% of center frequency, noticeably wider than 20m's 2.5%. A vertical cut for 28.400 MHz shows more SWR rise toward 29.700 MHz than the 20m antenna shows across its own band.
  • Solar-cycle-dependent performance: unlike 20m, which is reliably open somewhere on Earth nearly every day, 10m's usefulness varies dramatically with the solar cycle — spectacular during solar maximum, quieter (though never fully dead thanks to sporadic-E) during solar minimum.
  • Excellent rooftop and portable candidate: the tiny size makes 10m one of the easiest HF verticals to mount virtually anywhere.

Radiation Pattern and DX Performance

10m propagation swings between two very different characters depending on solar activity, and the vertical's low angle pays off in both:

10m vertical radiation pattern (good ground): Maximum radiation: ~14–18° elevation angle (low-angle — optimal for F2 and sporadic-E DX) Null: straight up (90°) 10m dipole at 20 ft (~0.55λ height at 28.4 MHz): Maximum radiation: ~25-30° elevation angle (already a fairly low angle given the short wavelength) DX comparison — 28.4 MHz: Vertical vs low dipole (under 15 ft): vertical wins several dB Vertical vs dipole at 20+ ft: closer contest — 10m dipoles benefit disproportionately from height due to the short wavelength

Because 10m's wavelength is so short, even a modest-height dipole already achieves a reasonably low radiation angle — the vertical's advantage over a dipole is less dramatic here than on 40m, but still meaningful for stations without much support height available.

Element Construction Options

Three practical approaches, all straightforward at this size:

  • Single aluminum tubing section: a single 9-foot length of 0.75-inch OD 6061-T6 aluminum tubing handles the 8.24-foot element with no telescoping required.
  • Stainless steel CB-style whip: a longer CB or ham-specific stainless whip (8–9 ft) works directly, trimmed to length.
  • Fishing pole with wire: a 3-meter (10-foot) fiberglass fishing pole with #18 AWG copper wire taped along the outside is extremely lightweight and portable — ideal for POTA/SOTA activations where 10m's DX potential per pound carried is hard to beat.
Target frequency Band segment Element length (ft) Element length (m) Notes
28.000 MHzCW bottom8.36 ft2.55 mCut here for CW-only operation
28.074 MHzFT8 / digital8.34 ft2.54 mFT8 and FT4 calling frequency
28.400 MHzCompromise (recommended)8.24 ft2.51 mBest all-around compromise across CW and phone
28.500 MHzPhone segment begins8.21 ft2.50 mStart of the wide General phone allocation
28.900 MHzPhone / DX8.10 ft2.47 mGood alternate cut if phone is your priority
29.600 MHzFM simplex7.91 ft2.41 mNear the FM/repeater sub-band
29.700 MHzBand top7.88 ft2.40 mUpper band edge — not recommended as center point

Vertical 10m Calculator

Materials for a ground-mounted 10m quarter-wave vertical with 16-radial ground plane

📏0.75-inch OD 6061-T6 aluminum tubing, 9 ftSingle section — no telescoping needed for the 8.24 ft element
🏗️Antenna base mount / ground spikeDX Engineering, Hustler, or homebrew PVC sleeve in concrete
🔩SO-239 chassis connector (feedpoint)Mounts at element base for coax connection
🌀RG-8X coax, length to reach radioLMR-400 preferred for runs over 75 ft
📡#14 AWG bare copper wire, 150 ftFor 16 radials at ~8.5 ft each
🔘Copper radial plate or bus bar, 1 pieceCentral hub connecting all radials and coax shield
🔩Stainless steel ring terminals, 20 piecesFor radial wire connections at hub
🔮FT-240-31 toroid for current chokeAt feedpoint — prevents coax shield from radiating
📡NanoVNAFor resonance measurement and full-band SWR sweep
🪛Soldering iron, rosin core solder, self-amalgamating tapeFor feedpoint connections and weatherproofing
🔧Hacksaw or tubing cutter, fileFor cutting aluminum tubing to final trimmed length
🔩Noalox anti-oxidant compoundFor element base connection to feedpoint bracket

What the NanoVNA Will Show

The 10m vertical feedpoint behaves the same as its lower-band siblings, with one band-specific wrinkle worth noting:

Expected feedpoint impedance vs radial system: Perfect ground (theoretical): ~36 Ω 4 on-ground radials: ~55 Ω 8 on-ground radials: ~46 Ω 16 on-ground radials: ~41 Ω 4 elevated radials (λ/4 = 8.24 ft high): ~35 Ω SWR on 50Ω coax: 36 Ω → ~1.4:1 (acceptable, direct feed) 41 Ω → ~1.2:1 (very good) 10m-specific note: The 10m band is 1.7 MHz wide — proportionally much wider than 20m. A vertical tuned to 28.400 MHz will show a rising SWR curve toward 29.700 MHz that is more pronounced than the equivalent curve on 20m.

Rooftop and Portable Installation Considerations

The compact 10m vertical is an excellent candidate for rooftop or portable installations:

  • Use elevated radials: on a roof or deck, 4 elevated radials at λ/4 length (8.24 ft) perform almost as well as a full on-ground system.
  • Height benefit: because the wavelength is so short, even a modest rooftop or upper-floor mounting height represents a large fraction of a wavelength, meaningfully lowering the takeoff angle.
  • Metal roof interaction: keep the element base at least 2–3 feet above a metal roof surface to avoid detuning.
  • Wind load: a 9-foot 0.75-inch aluminum element is very light — a simple deck rail mount or rooftop tripod with light guying handles it easily.

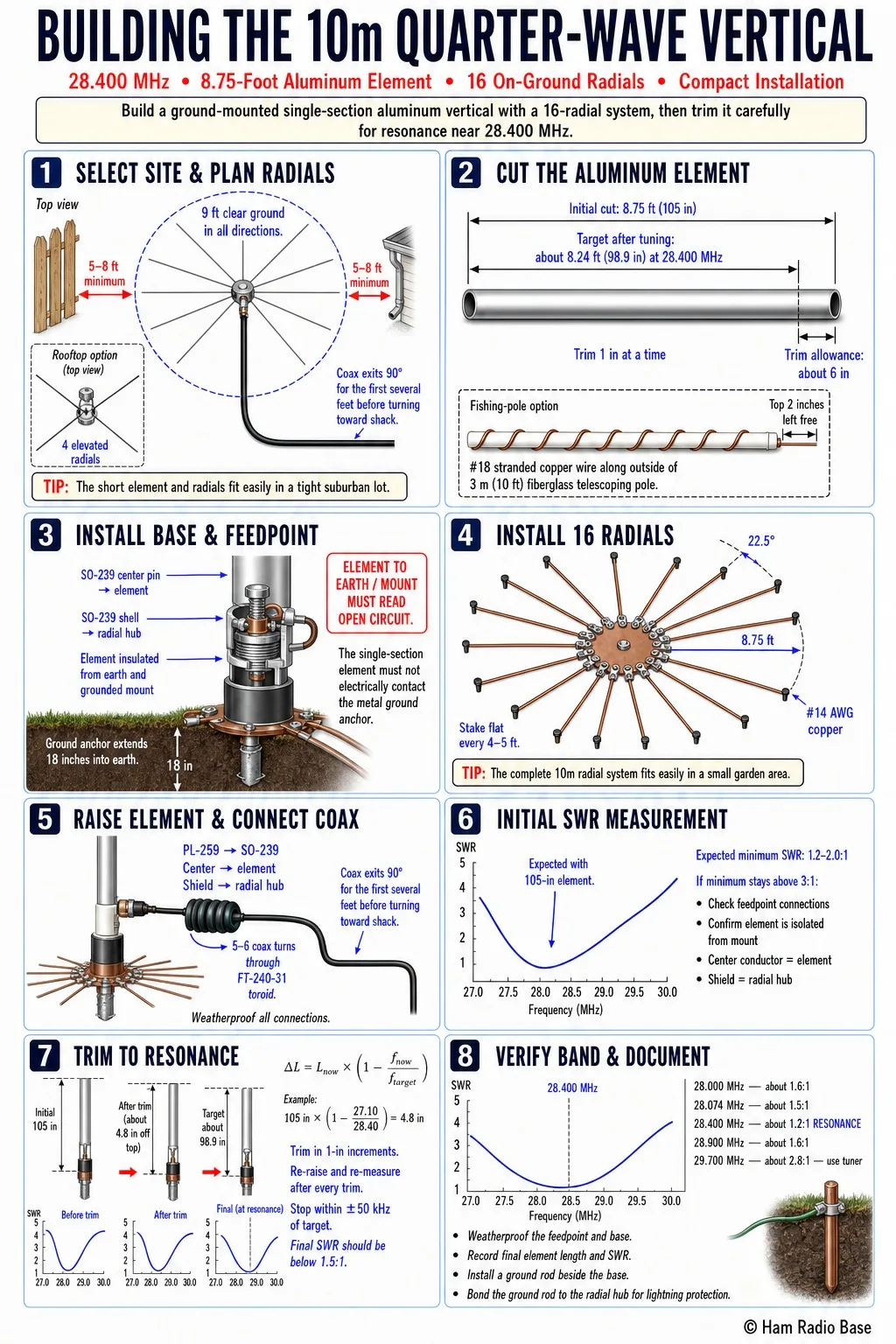

Finished 10m quarter-wave vertical antenna — aluminum tubing element on a base mount with 16 ground radials and SO-239 feedpoint connector

Building the 10m Quarter-Wave Vertical

This guide builds a ground-mounted single-section aluminum tubing vertical with a 16-radial on-ground system. Notes for fishing-pole and elevated installations are included at relevant steps.

1

Select the Site and Plan Radial Layout

Choose a site with at least 9 feet of clear ground in all directions from the element base. Key site criteria:

  • Clear of metal structures within 5–8 feet: metal fences, gutters, or downspouts within this range cause measurable detuning.
  • Coax exit at 90°: route the coax perpendicular to the element for the first several feet before turning toward the shack.
  • Rooftop option: the 10m vertical is small enough to mount on a roof tripod or chimney mount with 4 elevated radials if a ground installation isn't possible.
Tip: Given how short the element and radials are, this is one of the easiest verticals on the whole site to fit into a tight suburban lot.
2

Cut the Aluminum Tubing Element

Cut the 0.75-inch OD aluminum tubing to 8.75 feet (105 inches) — longer than needed to allow trimming to exact resonance. Use a tubing cutter for a clean square cut; deburr both ends.

Initial cut: 8.75 ft (105 inches) Target after trimming: ~8.24 ft (98.9 inches) at 28.400 MHz Trim allowance: ~6 inches (room to work) Trim rate on 10m aluminum tubing: ~1 inch trimmed = ~90-100 kHz shift upward (approximately — varies with tube diameter) Trim conservatively in 1-inch increments. Re-measure after every trim.
Fishing pole build: Tape #18 AWG stranded copper wire along the outside of a 3-meter (10-foot) fiberglass telescoping pole, leaving the top 2 inches of wire free of the pole tip to reduce capacitive end loading.
3

Install the Base Mount and Feedpoint Assembly

Install the base mount at the chosen site. The 10m element is light enough that a simple mount suffices — a fence post anchor driven 18 inches into the ground with a PVC or nylon coupling at the top handles a 9-foot 0.75-inch aluminum element with ease.

Mount the SO-239 feedpoint connector at the element base with the center pin connecting to the element and the shell connecting to the radial hub.

Insulate the element base from earth: Verify the element is electrically isolated from the ground and any grounded mount hardware — check with a multimeter for an open circuit.
4

Install the Radial Hub and Run 16 Radials

Install a copper radial plate at the base of the element, connected to the SO-239 shell. Cut 16 radial wires of #14 AWG copper at 8.75 feet each. Crimp a ring terminal on one end of each and bolt all 16 to the radial hub. Space evenly at 22.5° intervals and stake flat to the ground every 4–5 feet.

Tip: The short 10m radials fit easily even in a small suburban garden bed — one of the simplest radial systems on this site to complete in full.
5

Raise the Element and Connect Coax

A 9-foot single-section aluminum element is light enough for one person to raise alone — slide it into the base mount sleeve and secure it. Connect the coax: center pin to element, shield to radial hub. Install the current choke at the feedpoint — 5–6 turns of coax through an FT-240-31 toroid.

Weatherproof the SO-239/PL-259 connection with self-amalgamating tape.

6

Initial SWR Measurement

Connect the NanoVNA at the shack end of the coax. Sweep 27.0–30.0 MHz and locate the SWR minimum.

Expected initial readings (8.75 ft element): SWR minimum location: ~27.0 – 27.3 MHz (element cut long — resonance is below target) SWR at minimum: 1.2 – 2.0:1 If SWR minimum is ABOVE 3:1 anywhere: → Check feedpoint connections → Verify element is NOT contacting the mount → Confirm coax polarity (center = element) → Check radial hub connection to coax shield
7

Trim to Resonance

Lower the element and trim from the top end to raise the resonant frequency to the target:

Trim calculation: ΔL = L_now × (1 − f_now / f_target) Example: f_now = 27.10 MHz f_target = 28.40 MHz L_now = 105 inches (8.75 ft) ΔL = 105 × (1 − 27.10/28.40) = 105 × 0.0458 = 4.8 inches Trim in 1-inch increments. Re-raise and re-measure after every trim.

Repeat until the SWR minimum falls at or within ±50 kHz of the target. Final SWR at resonance should be below 1.5:1.

8

Verify Full Band SWR and Document

Typical 10m vertical SWR sweep results (tuned to 28.400 MHz, 16 on-ground radials): 28.000 MHz: ~1.6:1 28.074 MHz: ~1.5:1 28.400 MHz: ~1.2:1 ← resonance 28.900 MHz: ~1.6:1 29.700 MHz: ~2.8:1 (use a tuner this far from center)

Weatherproof all connections with self-amalgamating tape and RTV sealant at the base. Install a ground rod adjacent to the element base and bond it to the radial hub for lightning protection.

4 Elevated Radials for Rooftop Installation

The 10m vertical is one of the most practical HF verticals for rooftop installation. The short element (8.24 ft) and short radials fit on a typical residential rooftop with a simple tripod mount:

  • Radial length: 8.24 ft each — same as the element. Cut 4 radials of #16 AWG insulated wire at 8.5 ft each.
  • Radial orientation: run the 4 radials outward from the base in four cardinal directions.
  • Height above roof surface: keep the element base and radials at least 2 feet above the roof surface.
  • Performance: 4 elevated radials on a rooftop perform excellently given the added height benefit at this short wavelength.

Portable 10m Vertical — Field Deployment

The 10m quarter-wave vertical is popular for POTA and SOTA activations thanks to its small size and DX potential:

  • Element: a 3-meter fiberglass telescoping fishing pole with #18 AWG wire taped along the outside.
  • Radials: 4 × 8.5 ft lengths of thin wire on a small storage card.
  • Feedpoint enclosure: a small weatherproof project box with an SO-239 and current choke.
  • Performance: during a good F2 or sporadic-E opening, a QRP 10m vertical routinely works stations across continents.
Symptom Most likely cause Diagnosis Fix
No SWR dip visible across 27–30 MHzFeedpoint connection fault or coax polarity reversedCheck DC resistance from coax center to shield — should be open circuitVerify center pin to element, shield to radial hub; check connectors for shorts
SWR minimum is broad or unusually highToo few radials — high ground resistanceCount and check radial connections at the hubAdd radials toward 16; verify each has a clean connection at the hub
Resonance shifts between morning and afternoonLoose element base joint or nearby structure thermal expansionCheck element mount tightnessTighten base mount; move away from nearby metal if present
SWR correct but strong RFI on receiveNo current choke — coax radiatingKey up at low power and check for RF on the coax outer near the radioInstall FT-240-31 current choke at feedpoint, 5-6 turns
Resonance too high after trimmingElement trimmed too shortMeasure element length against targetSplice a short extension onto the tip using a sleeve coupler; re-trim
Good SWR but nothing heard during a known F2/sporadic-E openingAntenna too low, or opening didn't reach your locationCheck DX cluster spots and beacon reportsNot necessarily a fault — confirm the opening's actual geographic reach before troubleshooting further

Can I use a 10m vertical on other bands without a tuner?

Not usefully — unlike the 20m vertical, which has a convenient harmonic relationship with 10m, a 10m-cut vertical doesn't line up with any other ham band's fundamental. Treat this as a dedicated single-band antenna.

How many radials do I need for the 10m vertical?

The same rule applies as on other bands — more is better, with the biggest gains in the first 8. Because 10m radials are so short, a full 16-radial system is inexpensive and easy to fit even in a small yard.

Is a 10m vertical better than a 10m dipole for DX?

At low support heights (under 15 feet), yes, clearly. Because 10m's wavelength is short, even a modest-height dipole (20+ feet) already achieves a fairly low radiation angle, making the contest closer than it would be on 40m or 80m.

Can I mount a 10m vertical on my roof?

Yes — a rooftop 10m vertical with 4 elevated radials is an excellent, easy installation given the antenna's small size and light weight.

Does this antenna work during solar minimum?

Yes, though less dramatically than during solar maximum. Summer sporadic-E openings occur independent of the solar cycle and still deliver strong regional contacts even when F2 propagation is largely absent.

What coax length works best for a 10m vertical?

With a properly installed current choke, coax length is not electrically critical. RG-8X is adequate for typical runs; use LMR-400 for runs over 75 feet to minimize loss.
