Build a 6 Meter Vertical Antenna
The 6m quarter-wave vertical is the smallest antenna in this vertical family — at under 5 feet tall, it fits on a balcony rail, a small mast, or even a large tripod indoors. 6m is famously called "the magic band" for its unpredictable, exciting propagation: mostly quiet like a VHF band, but capable of sudden sporadic-E and F2 openings that deliver genuine long-distance DX with almost no warning. This guide covers the complete build from element sizing through radial installation, feedpoint assembly, and final tuning for 50 MHz operation.
Quarter-Wave Vertical Fundamentals at 50 MHz
The 6m quarter-wave vertical follows exactly the same principle as its 10m, 20m, and 40m siblings — one half of a dipole, with the ground plane providing the missing half electrically. At 50 MHz the element shrinks to just under 5 feet, making this the easiest vertical on this site to build, mount, and transport:
A single 5-foot length of aluminum tubing, a stainless steel CB whip, or even a length of heavy copper wire on a short mast all work well as the element. There is no meaningful mechanical challenge at this size — the entire build is dominated by the radial system and feedpoint, not the element.
6m vs 10m Vertical — Key Differences
Building a 6m vertical differs from the 10m version in a few important ways operators should understand before starting:
- Element is nearly half the length: 4.67 ft vs 8.24 ft — this is genuinely a tabletop-scale antenna. A stainless whip or a short aluminum rod handles it with no telescoping needed.
- Radials are correspondingly short: 6m radials are ~4.67 ft each — a full 16-radial system uses less than 75 feet of wire total, a fraction of what any HF vertical needs.
- Much wider band in percentage terms: 6m spans 50–54 MHz, a full 4 MHz — about 8% of center frequency, wider even than 10m in relative terms. A vertical cut for 50.125 MHz will show rising SWR well before 54 MHz; most 6m operators concentrate their design frequency near the bottom of the band where the SSB and FT8 activity is heaviest.
- Extremely sensitive to nearby objects: at 50 MHz, the near-field is small in absolute terms (a few feet), so metal gutters, railings, or roof flashing within 2–3 feet cause significant detuning — pay close attention to mounting location.
- Best rooftop, balcony, or portable candidate on the whole site: nothing else in this vertical family is this easy to mount in a small space.
Radiation Pattern and "Magic Band" DX Performance
6m earns its nickname because its propagation is genuinely unpredictable compared to the rest of HF — mostly quiet, occasionally spectacular. The vertical's low radiation angle pays off dramatically during openings:
For chasing sporadic-E and rare F2 openings, the vertical's low angle is a genuine asset. For routine local and regional tropo contacts, a horizontal Yagi or dipole at height often performs better due to gain and polarization matching with other stations — many serious 6m operators keep both a vertical for DX openings and a horizontal beam for local work.
Element Construction Options
Three practical approaches, all trivially easy at this size:
- Stainless steel CB whip: a standard 4–5 foot stainless CB antenna whip, cut or used as-is, makes an excellent rigid 6m vertical element. Widely available and inexpensive.
- Single aluminum tubing section: a 5-foot length of 0.5-inch OD aluminum tubing handles the element with no telescoping required — the simplest possible rigid construction.
- Wire on a short fiberglass pole: a 6-foot fiberglass pole or mast section with #18 AWG copper wire taped along the outside is extremely lightweight and portable — ideal for VHF contest rovers and portable operators who want a compact DX-capable vertical.
| Target frequency | Band segment | Element length (ft) | Element length (m) | Notes |
|---|---|---|---|---|
| 50.000 MHz | Band bottom / CW | 4.68 ft | 1.43 m | Cut here for CW-only operation |
| 50.100 MHz | CW / beacon | 4.67 ft | 1.42 m | DX calling frequency and beacons |
| 50.125 MHz | SSB calling (recommended) | 4.67 ft | 1.42 m | Best all-around compromise for SSB DX |
| 50.313 MHz | FT8 / digital | 4.65 ft | 1.42 m | FT8 calling frequency |
| 51.000 MHz | Upper 6m | 4.59 ft | 1.40 m | Used for local FM and repeaters in this range |
| 52.000 MHz | Upper 6m | 4.50 ft | 1.37 m | Expect a tuner needed at this distance from design center |
| 54.000 MHz | Band top | 4.33 ft | 1.32 m | Upper band edge — not recommended as center point |
Vertical 6m Calculator
Materials for a ground-mounted 6m quarter-wave vertical with 16-radial ground plane
What the NanoVNA Will Show
The 6m vertical feedpoint behaves the same way as its HF siblings, just measured at a higher frequency:
Rooftop, Balcony, and Portable Installation Considerations
The tiny 6m vertical is the easiest antenna on this site to mount in a constrained space:
- Use elevated radials: on a balcony, roof, or portable mast where on-ground radials are impossible, 4 elevated radials at λ/4 length (4.67 ft) perform nearly as well as 16 on-ground radials.
- Height benefit: mounting even a few feet higher (a rooftop or upper balcony) noticeably improves takeoff angle at this frequency given the antenna's small absolute size relative to typical installation heights.
- Metal surface interaction: keep the element base at least 1–2 feet from metal railings, roof flashing, or gutters — at 50 MHz even modest metal proximity detunes this small antenna more than it would a larger HF vertical.
- Wind load: a 5-foot, half-inch aluminum element is trivially light — a simple clamp mount or a mag-mount base on a metal surface handles it without any special bracing.

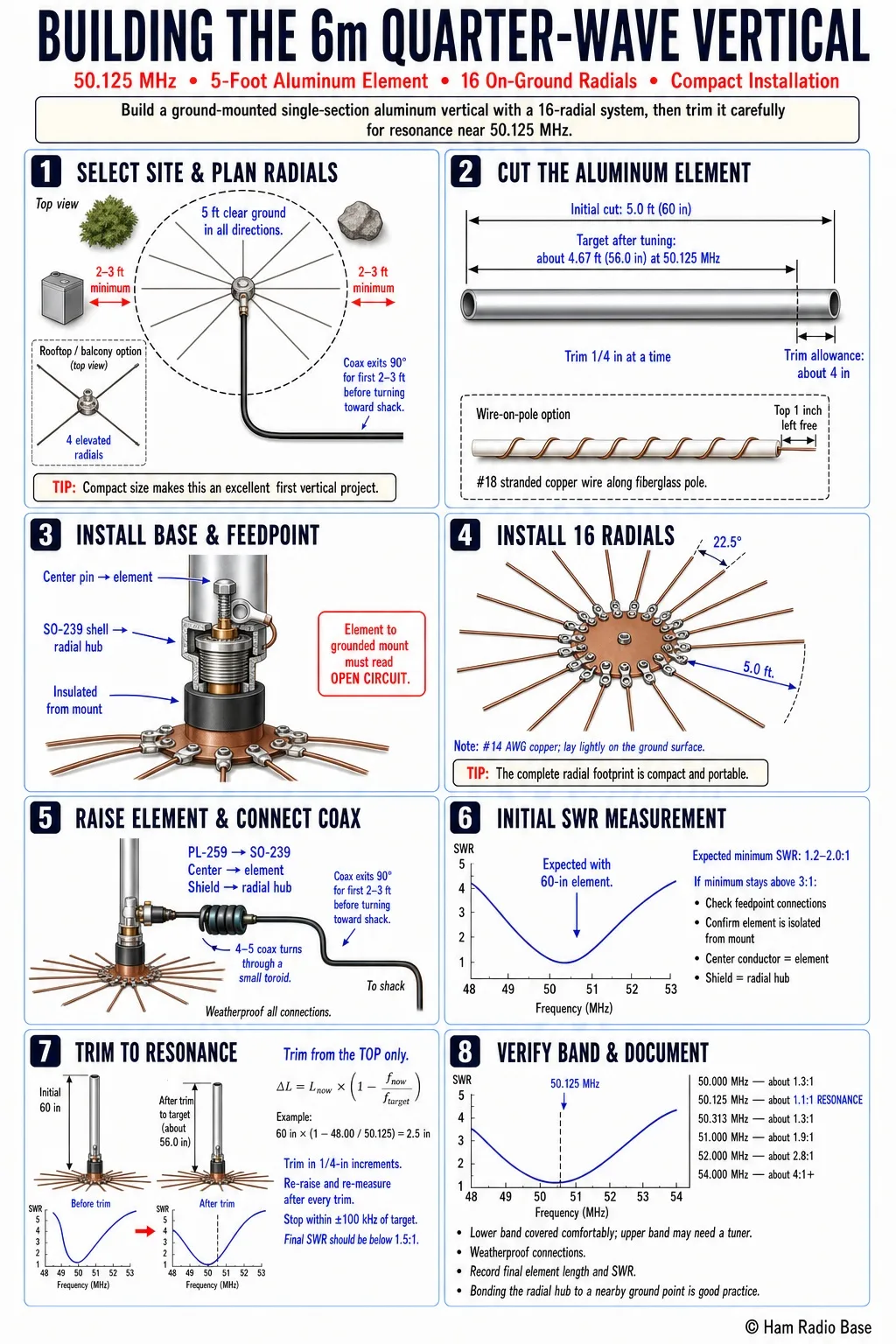

Building the 6m Quarter-Wave Vertical
This guide builds a ground-mounted single-section aluminum element with a 16-radial on-ground system. Notes for whip and portable installations are included at relevant steps.
Select the Site and Plan Radial Layout
Choose a site with at least 5 feet of clear ground in all directions from the element base — trivially easy to find even on the smallest lot, balcony, or rooftop. Key site criteria:
- Clear of metal structures within 2–3 feet: at 50 MHz the reactive near-field is small in absolute size, but nearby metal still causes measurable detuning at close range.
- Coax exit at 90°: route the coax so it leaves the feedpoint perpendicular to the element for the first 2–3 feet before turning toward the shack.
- Rooftop or balcony option: the 6m vertical is small enough to mount almost anywhere elevated, using 4 elevated radials in place of an on-ground system.
Cut the Aluminum Tubing Element
Cut the 0.5-inch OD aluminum tubing to 5.0 feet (60 inches) — slightly longer than needed to allow trimming to exact resonance. Use a tubing cutter for a clean square cut; deburr both ends with a small file. If using a stainless CB whip instead, most come pre-cut close to this length already.
Install the Base Mount and Feedpoint Assembly
Install a small base mount at the chosen site — given the light weight of this antenna, almost any small mast clamp, tripod base, or even a mag mount on a metal surface (with elevated radials) handles it easily.
Mount the SO-239 feedpoint connector at the element base. Drill a small hole through the aluminum element near the bottom for a stainless bolt and ring terminal — this is the center-conductor connection point. The SO-239 shell connects to the radial hub directly below.
Install the Radial Hub and Run 16 Radials
Install a small copper radial plate or bus bar at the base of the element, directly connected to the SO-239 shell. Cut 16 radial wires of #14 AWG copper at 5.0 feet each. Crimp a ring terminal on one end of each radial and bolt all 16 to the radial hub. Space evenly at 22.5° intervals.
Lay the radials on the ground surface (or across a balcony floor, rooftop, or similar surface) and secure them lightly. The tiny radial footprint fits in almost any installation.
Raise the Element and Connect Coax
A 5-foot half-inch aluminum element is light enough for one person to install without assistance — slide the element into the base mount sleeve and secure it. Connect the coax: PL-259 to SO-239 at the feedpoint, center pin to element, shield to radial hub. Install a small current choke immediately at the feedpoint — 4–5 turns of coax through a small toroid works well at 50 MHz.
Weatherproof the SO-239/PL-259 connection with self-amalgamating tape.
Initial SWR Measurement
Connect the NanoVNA at the shack end of the coax. Sweep 48–53 MHz and locate the SWR minimum.
Trim to Resonance
Lower the element and trim from the top end to raise the resonant frequency to the target. Calculate the trim amount:
Repeat until the SWR minimum falls at or within ±100 kHz of the target. Final SWR at resonance should be below 1.5:1. Mark the final trimmed length on the element.
Verify SWR Across the Band and Document
Weatherproof all connections with self-amalgamating tape. Photograph and document the final element length and SWR at resonance. Given the small size and low power typical of 6m operation, formal lightning grounding is less critical than on a tall HF vertical, but bonding the radial hub to a nearby ground point is still good practice.
4 Elevated Radials for Rooftop or Balcony Installation
The 6m vertical is the single easiest HF-adjacent vertical on this site to install somewhere elevated. The tiny element (4.67 ft) and tiny radials (4.67 ft) make the complete antenna fit on a balcony rail, small rooftop mount, or apartment patio:
- Radial length: 4.67 ft each — same as the element. Cut 4 radials of #16 AWG insulated wire at 5 ft each and trim to resonance after installation.
- Radial orientation: run the 4 radials outward from the element base horizontally in four directions, supported by whatever structure is available.
- Height above surface: keep the element base and radials at least 1–2 feet above any metal roofing or railing surface.
- Performance: 4 elevated radials perform close to a full 16-radial on-ground system at this frequency, making the elevated installation an entirely legitimate permanent choice, not just a compromise.
Portable 6m Vertical — Contest Rover and Field Use
The 6m quarter-wave vertical is a favorite for VHF contest rovers and grid-square chasers who need a compact, quick-deploy DX antenna:
- Element: a stainless CB whip or a short fiberglass pole with wire, mountable on a vehicle mag-mount or a lightweight tripod.
- Radials: 4 × 5 ft lengths of thin wire, deployable in under a minute.
- Feedpoint enclosure: a small weatherproof project box with an SO-239, a small choke, and terminals for the 4 radials.
- Performance: during a sporadic-E opening, a modest-power 6m vertical routinely works stations 500–1400 miles away — genuinely exciting performance from such a small antenna.
| Symptom | Most likely cause | Diagnosis | Fix |
|---|---|---|---|
| No SWR dip visible across 48–53 MHz | Feedpoint connection fault or coax polarity reversed | Check DC resistance from coax center to shield — should be open circuit | Verify center pin to element, shield to radial hub; check for coax short at connectors |
| SWR minimum very broad or unclear | Too few radials, or a nearby metal object detuning the antenna | Check radial count and check for nearby metal within 2-3 feet | Add radials to 16; relocate away from railings, gutters, or roof flashing |
| Resonance shifts noticeably with weather or handling | Loose base connection or element flexing in the mount | Check mount tightness and feedpoint connections | Tighten mount hardware; re-solder any loose feedpoint connections |
| SWR correct but noisy or weak receive | No current choke — coax acting as part of the radiator | Key up at low power and check for RF on the outside of the coax near the radio | Install a small ferrite choke — 4-5 turns of coax through a toroid at the feedpoint |
| Resonance too high after trimming | Element trimmed too short | Measure element length against the target | Splice a short wire extension onto the element tip; re-trim to resonance |
| Good SWR but nothing heard even during known openings | Antenna orientation issue is not applicable (vertical is omnidirectional) — check band activity instead | Check a 6m propagation cluster or beacon reports for confirmed openings | Not a fault — 6m is genuinely quiet much of the time; monitor for confirmed openings before assuming a problem |
Why is 6m called "the magic band"?
6m sits at the boundary between HF-like skywave propagation and VHF-like line-of-sight/tropo propagation. Most of the time it behaves like a quiet VHF band, but sporadic-E and occasional F2 openings can suddenly open it for genuine long-distance DX with little warning — a mix that has fascinated operators for decades.
How many radials do I need for the 6m vertical?
The same rule applies as on HF — more is better, with the biggest gains in the first 8 radials. Because 6m radials are under 5 feet each, installing a full 16-radial system costs almost nothing in wire or space. 4 elevated radials are also a fully legitimate permanent option at this frequency.
Is a vertical or a horizontal antenna better on 6m?
It depends on your goal. A vertical's low radiation angle favors sporadic-E and F2 DX openings. A horizontal Yagi or dipole at height often performs better for local and regional tropo contacts, partly due to gain and partly because most local 6m activity uses horizontal polarization. Many serious 6m operators keep both.
Can I mount this on my car or use it as a rover antenna?
Yes — a stainless CB whip on a mag mount with 4 elevated radials makes an excellent portable or rover 6m vertical, popular for VHF contests and grid-square chasing.
Why does the antenna need a tuner near the top of the band?
6m is 4 MHz wide (50–54 MHz) — a large percentage of its center frequency compared to most HF bands. A vertical cut for the SSB calling area near 50.125 MHz will show meaningfully higher SWR by 52–54 MHz; a tuner or a separate antenna cut for that segment handles the difference.
