Build a ZS6BKW Antenna
The ZS6BKW (developed by Brian Austin ZS6BKW) is a carefully optimized multi-band doublet antenna that achieves SWR below 2:1 on five amateur bands — 40m, 20m, 17m, 12m, and 10m — without a tuner, using a specific-length ladder line matching section between the doublet wire and the coax feedline. Unlike the G5RV it was designed to improve upon, the ZS6BKW's matching section dimensions were chosen through rigorous analysis to minimize SWR on the maximum number of bands. The result is a true multi-band antenna with one wire, one feedline, and outstanding performance on the primary HF bands.
The Doublet Plus Matching Section Concept
The ZS6BKW is a center-fed doublet — two equal wire legs fed at the center through a specific-length section of balanced transmission line (ladder line). The ladder line matching section transforms the doublet's variable feedpoint impedance to a value close to 50Ω at five amateur band frequencies, allowing direct coax connection with low SWR on those bands.
The magic of the ZS6BKW is in the specific combination of doublet length and matching section length, which Brian Austin chose through careful analysis using transmission line mathematics. The combination creates a fortunate coincidence: at five amateur band frequencies, the impedance transformation through the matching section produces a feedpoint impedance close to 50Ω simultaneously. At other frequencies, the impedance presented to the coax is high and a tuner is required.
ZS6BKW vs G5RV — Why the ZS6BKW is Better
The original G5RV (Loren Varney G5RV, 1946) uses 102 feet of doublet wire and 34 feet of 300Ω twin-lead. It was designed to present near-50Ω on 20m, which it does. On other bands, SWR ranges from acceptable to very high — most G5RV operators need a tuner on all but one or two bands.
Brian Austin ZS6BKW analyzed the G5RV mathematically and found that a different combination of doublet length and matching section length produced low SWR on significantly more bands. The ZS6BKW dimensions he derived provide SWR below 2:1 on five bands without any tuner:
Why the Matching Section Length Is Non-Negotiable
The most common ZS6BKW installation mistake is altering the matching section length because the calculated length is inconvenient for a particular installation. The matching section length is the result of precise transmission line calculations — it is not a rough estimate or a starting point for adjustment. Changing it by even a few feet shifts the impedance presented to the coax and can move the low-SWR points completely out of the amateur bands.
- Shorter matching section: impedance transformation changes → some bands shift out of the low-SWR region → those bands now need a tuner
- Longer matching section: same problem in the other direction
- If the calculated length doesn't fit the installation: choose a different antenna (all-band doublet with tuner, OCFD, etc.) rather than modifying the ZS6BKW
- The only valid substitution: change the matching section impedance from 300Ω to 450Ω by recalculating the required length (31.0 ft rather than 39.5 ft)
- The doublet wire length (93 ft) is slightly more flexible — small changes of ±3 ft have modest impact on which bands show low SWR
The Transition Point — From Ladder Line to Coax
At the bottom of the matching section, the balanced ladder line must transition to unbalanced 50Ω coax. This transition requires a current choke (1:1 current balun) to prevent common-mode current from flowing on the coax shield. Without a choke at this transition:
- RF flows on the outside of the coax shield — the coax becomes a radiator
- SWR readings change when the coax is moved or repositioned
- RF appears in the shack causing interference with audio and computer equipment
- The antenna's radiation pattern is distorted by coax feedline radiation
- The balun must handle the full transmitter power on all covered bands
The correct component for this transition is a 1:1 current balun — not a voltage balun, not a 4:1 balun. The impedance at the bottom of the ZS6BKW matching section is approximately 50Ω on the primary bands (by design), so no impedance transformation is needed — only common-mode current suppression. An FT-240-31 wound with 8–10 turns of coax is the standard homebrew solution.
Balun and choke guide →| Band | Frequency | SWR at transition point | Tuner needed? | Notes |
|---|---|---|---|---|
| 80m | 3.5–4.0 MHz | 3–8:1 | Yes | Not a primary ZS6BKW band — tuner required; works with ladder line to balanced tuner |
| 40m | 7.0–7.3 MHz | 1.3–1.8:1 | No | Primary band — excellent SWR across entire 40m band |
| 30m | 10.1–10.15 MHz | 2–5:1 | Usually yes | WARC band — marginal; internal ATU may handle it |
| 20m | 14.0–14.35 MHz | 1.3–1.8:1 | No | Primary band — excellent SWR across entire 20m band |
| 17m | 18.068–18.168 MHz | 1.5–2.0:1 | No | Primary band — works without tuner on most radios |
| 15m | 21.0–21.45 MHz | 2–4:1 | Usually yes | Variable — some installations show below 2:1; others need ATU |
| 12m | 24.89–24.99 MHz | 1.5–2.0:1 | No | Primary band — good SWR, underutilized band |
| 10m | 28.0–29.7 MHz | 1.3–2.0:1 | No | Primary band — wide 10m band well covered |
SWR values measured at the coax side of the 1:1 current balun at the matching section bottom. Values vary with installation height, wire orientation, and surroundings. 15m behavior is the most variable — some installations show below 2:1, others need a tuner. The radio's built-in ATU handles 15m in most cases.
Complete materials for a ZS6BKW with 300Ω matching section

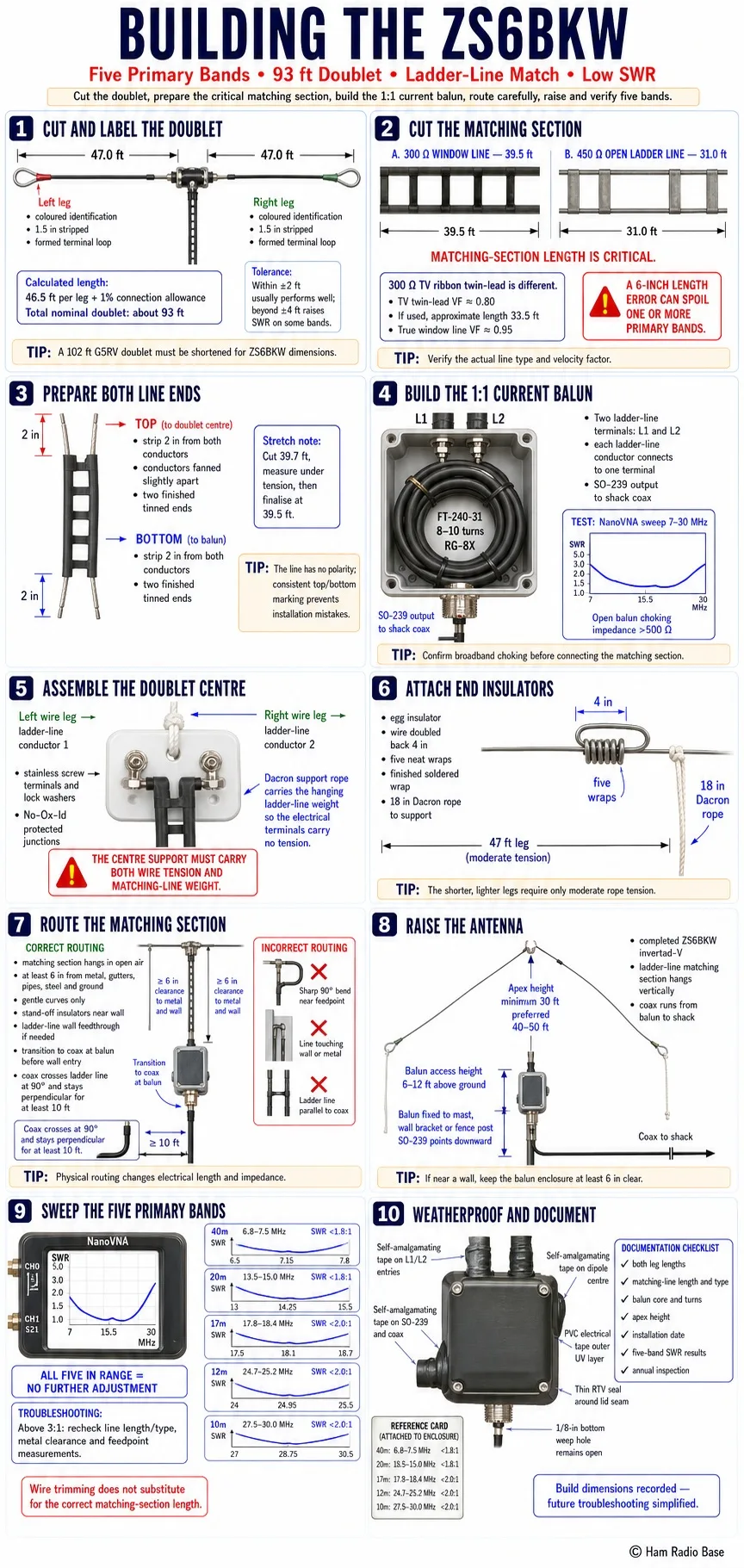

Building the ZS6BKW
The ZS6BKW build sequence: cut the doublet wire, cut and prepare the matching section, build the current balun, assemble the complete antenna, raise, and verify SWR on all five primary bands.
Cut and Label the Doublet Wire
Cut two equal wire legs at 47.0 feet each (46.5 ft calculated + 1% for connection allowance). Use a steel measuring tape on flat ground. The doublet wire length is slightly more flexible than the matching section length — within ±2 feet of the 46.5-foot specification, the antenna still performs well. Beyond ±4 feet, some primary bands begin to show higher SWR.
Label both ends of each leg with colored tape at the feedpoint end — this end connects to the matching section. Strip 1.5 inches of insulation and form a loop at each feedpoint end for the dipole center terminal connection.
Cut and Prepare the Matching Section
The matching section is the most critical dimension in the ZS6BKW. For 300Ω window ladder line: cut exactly 39.5 feet. For 450Ω open ladder line: cut exactly 31.0 feet. Use a steel tape and cut precisely — a 6-inch error in the matching section length can shift one or two primary bands from low-SWR to needing a tuner.
Prepare the Matching Section Ends
At the top end of the matching section (which will connect to the doublet center feedpoint): strip 2 inches of insulation from each conductor. Fan the two conductors apart slightly and tin each end. These will connect to the two wire legs at the dipole center.
At the bottom end (which will connect to the balun): strip 2 inches of insulation from each conductor. Tin both ends. These will connect to the two terminals of the current balun. Mark the top end with red tape and the bottom end with blue tape — the matching section has no inherent polarity, but consistent labeling helps during installation at height.
Build the 1:1 Current Balun
Wind 8–10 turns of the feedline coax (RG-8X or similar) through the FT-240-31 toroid. Mount the wound choke in the Hammond enclosure with the SO-239 coax output connector on one side and two wire terminals (for the ladder line conductors) on the opposite side. The two wire terminals connect directly to the bottom of the matching section — one conductor to each terminal. The SO-239 connects to the feedline coax that runs to the shack.
Verify the balun provides adequate choking impedance: with no connections to the matching section, connect the NanoVNA to the SO-239 and sweep 7–30 MHz. The impedance looking into the open balun should be high (above 500Ω) across the full sweep — confirming the choke is working.
Assemble the Doublet Center
At the dipole center feedpoint, connect: left wire leg → one matching section conductor; right wire leg → the other matching section conductor. The connection can be made at a commercial dipole center insulator or at a DIY polycarbonate center plate with stainless screw terminals.
The center must be mechanically strong — it supports the weight of the matching section plus the tension of both wire legs. Use lock washers and tighten all screws firmly. Apply No-Ox-Id to prevent corrosion at the wire-to-terminal junctions. The junction between the dipole center and the top of the matching section should be mechanically supported — a short length of Dacron rope from the center to the support rope prevents the wire connection from carrying tensile load.
Attach End Insulators
Thread each wire leg through an egg insulator at the far end and secure with the wrap-and-solder method: double back 4 inches, wrap 5 times, solder. Attach 18 inches of Dacron rope to each insulator. For the ZS6BKW's 46.5-foot legs, moderate rope tension is adequate — the wire is shorter and lighter than an 80m dipole, so support forces are smaller.
Plan the Matching Section Routing
The matching section must be routed carefully — its electrical length is critical to the antenna's performance and physical factors affect its electrical length. Key routing rules:
- Keep away from metal: the matching section must be at least 6 inches from any metal object (gutters, pipes, structural steel, ground) along its entire length. Metal near the ladder line alters its characteristic impedance and shifts the matching.
- No sharp bends: the matching section can have gentle curves but not sharp bends. A sharp bend at 90° changes the electrical length and can affect the matching.
- Minimize contact with building surfaces: the ladder line should run through the air rather than against walls. Use stand-off insulators (ceramic or polycarbonate) if the line must run near a wall surface.
- Entering the building: use a feedthrough insulator where the ladder line passes through the wall — not a standard coax feedthrough. The ladder line transitions to coax at the balun before entering the wall.
Raise the Antenna
Raise the doublet center to the apex height — targeting 30 feet minimum, 40–50 feet preferred. For an inverted-V configuration with the center at height and legs sloping down, the matching section hangs vertically from the center and the balun enclosure is at the bottom of the matching section at a convenient access height (6–12 feet above ground is ideal for maintenance access).
Secure the balun enclosure to a wall bracket, mast, or fence post at the bottom of the matching section. The balun should hang or mount with the coax output pointing downward — this prevents water from pooling in the SO-239 connector. Run the coax from the SO-239 to the shack.
Initial Five-Band SWR Sweep
Connect the NanoVNA at the shack end of the coax. Sweep each primary band in sequence. Record the SWR minimum and its frequency on each band:
- 40m (6.8–7.5 MHz): should show SWR below 1.8:1 across the 40m band
- 20m (13.5–15.0 MHz): should show SWR below 1.8:1 across the 20m band
- 17m (17.8–18.4 MHz): should show SWR below 2:1 across the 17m band
- 12m (24.7–25.2 MHz): should show SWR below 2:1 across the 12m band
- 10m (27.5–30.0 MHz): should show SWR below 2:1 across the 10m band
If all five primary bands show the expected SWR, the ZS6BKW is working correctly and no further adjustment is needed. The antenna does not need to be "tuned" in the traditional sense — the matching section length determines which bands show low SWR, and no wire trimming affects this.
Weatherproof All Connections and Document
Apply self-amalgamating tape to: the SO-239 connector and coax junction at the balun, both ladder line terminal entries into the balun enclosure, and the dipole center where the ladder line connects to the wire legs. Apply PVC electrical tape over the self-amalgamating tape as a UV protection layer on all outdoor connections.
Apply a thin bead of RTV silicone around the balun enclosure lid seam. Check that the weep hole (1/8" in the bottom of the enclosure) is open and not blocked. Apply dielectric grease to the SO-239 connector center pin before connecting the coax PL-259 — this prevents the common oxidation that occurs when an outdoor RF connector is left in contact with moisture for months.
Document the final installation: doublet wire lengths (both legs measured), matching section length and type, balun core and turns, apex height, installation date, and SWR on all five primary bands. Photograph the complete installation from several angles. Plan annual inspection of all outdoor connections and the matching section condition.
Fine-Tuning the Primary Bands
Unlike a resonant dipole where wire trimming adjusts resonance, the ZS6BKW's multi-band performance is primarily determined by the matching section length. If the initial SWR sweep shows one or two primary bands with higher SWR than expected, these options are available:
- Doublet length adjustment: trimming or extending the doublet wire has a modest effect on which exact frequencies show the lowest SWR within each covered band. Small adjustments (±1 foot per side) can shift the low-SWR regions slightly within the band.
- Check for metal proximity: metal within 6 inches of the matching section is the most common cause of unexpected SWR problems. Systematically check the full length of the matching section.
- Verify matching section length under tension: re-measure the matching section while it is hanging in the installed position — ladder line stretches slightly under its own weight and the gravitational load of the balun. If the installed length is shorter than the bench measurement, the low-SWR points will have shifted slightly upward in frequency.
- Accept the 15m variability: 15m is the most variable band in the ZS6BKW design — SWR ranges from below 2:1 (on some installations) to 3–4:1 (on others), depending on the installation height and surrounding environment. Use the radio's internal ATU for 15m if needed.
Operating on Non-Primary Bands
The ZS6BKW covers five primary bands without a tuner. For the remaining HF bands (80m, 30m, 15m, 12m in some installations), a tuner extends coverage:
- 80m: SWR is high (3–8:1) but the 93-foot doublet is long enough to be a useful antenna on 80m with a tuner. Use the radio's internal ATU or an external tuner. The matching section at 80m is not presenting an optimal impedance, but the ladder line's low loss even at high SWR means adequate efficiency.
- 30m: typically 2–5:1 SWR — often within the range of a radio's internal ATU. Worth trying without an external tuner first.
- 15m: installation-dependent; try without a tuner first, add ATU if needed.
- All-band operation: for operators who want coverage of every HF band including WARC bands, adding a balanced tuner (Z-match or commercial balanced tuner) between the matching section and the coax enables true all-band operation from the ZS6BKW wire system at the cost of adding the tuner to the station.
Why doesn't the ZS6BKW cover 80m without a tuner?
The ZS6BKW doublet wire (93 feet) is only about 74% of a half-wave at 80m (125 feet). At this length, the doublet is significantly shorter than resonance on 80m, presenting a capacitive and relatively low impedance at the center. The 39.5-foot matching section transforms this impedance to something close to 50Ω on five bands, but 80m is not among them — the math simply does not work out for 80m with this particular combination of lengths. Brian Austin specifically designed the ZS6BKW for the primary HF bands (40m through 10m) and the 80m limitation is a deliberate trade-off for better performance on the primary bands compared to the G5RV.
Can I use 450Ω ladder line instead of 300Ω window line?
Yes — 450Ω ladder line is a valid alternative, but you must use the correct matching section length for 450Ω line: 31.0 feet rather than 39.5 feet. The two lengths are not interchangeable — using 39.5 feet of 450Ω line produces the same result as 39.5 feet of 300Ω line with the wrong impedance, which is not the ZS6BKW. Either line type works equally well electrically — 450Ω line has slightly lower matched-line loss and is often available in longer continuous lengths than 300Ω window line.
Does the matching section need to hang straight down?
Straight down is ideal and produces the most predictable results, but modest deviations are acceptable. The matching section can have a slight angle (up to about 30° from vertical) without significantly affecting performance. What must be avoided is running the matching section horizontally for any significant distance, coiling it, or routing it near metal objects. Horizontal sections of matching line interact with the ground and nearby structures differently than vertical sections, and the electrical length calculation assumes a nearly vertical orientation in free air away from conductors.
My 40m SWR is fine but 20m SWR is high — what is wrong?
When one primary band shows good SWR and another shows high SWR, the most likely cause is an incorrect matching section length. The five primary bands are linked — they all depend on the same matching section transformation. If 40m is good and 20m is bad, the matching section is probably at the correct length for 40m but slightly wrong for 20m. Check the actual installed length of the matching section under tension — if it measures shorter than 39.5 feet, trim the doublet wire legs slightly shorter (1–2 inches per side) which shifts all the low-SWR bands slightly upward in frequency, potentially bringing 20m into better alignment.
Is the ZS6BKW better than an all-band doublet with a tuner?
Each has a different strength. The ZS6BKW is better for operators who want to avoid a tuner entirely on the five primary bands — quick band changes without any tuner interaction is a real operating convenience. The all-band doublet with a balanced tuner is better for operators who want coverage of every HF band including 80m and the WARC bands at maximum efficiency — the low-loss ladder line system handles any band with negligible feedline loss regardless of SWR. If you primarily work 40m through 10m and want a clean, tuner-free setup, the ZS6BKW is the right choice. If you want all-band coverage and don't mind a tuner, the all-band doublet is more flexible.
Can I build a ZS6BKW on an HOA-restricted property?
Yes — the ZS6BKW's 93-foot doublet and vertical matching section can be installed with a degree of stealth. The doublet wire can be run along a fence line or roofline using thin #26 AWG dark-colored wire that is nearly invisible. The matching section, which must hang somewhat openly in the air, is the most visible component — it can be routed against the house wall using stand-off insulators, keeping it close to the wall while maintaining the required 6-inch clearance. The balun enclosure is small and can be mounted inconspicuously. Many operators run successful ZS6BKW installations with components that are essentially invisible from street level.
