Build a 2m/70cm Mag-Mount Mobile Antenna
A magnetic-mount dual-band whip is the simplest way to get a real outside antenna on a vehicle without drilling a single hole — set it on the roof, run the coax through a door seal, and you have a usable 2m/70cm mobile setup in minutes. This build uses one plain quarter-wave whip cut for 2m, relying on a well-known quirk of amateur radio band planning — 70cm sits almost exactly on the third harmonic of 2m — to get workable dual-band performance from a single element with no traps, no coils, and no matching network.
Why One Whip Covers Two Bands
The 2m band centers around 146 MHz; the 70cm band centers around 435–440 MHz — almost exactly three times 146 MHz. A quarter-wave whip cut for 2m is therefore electrically three-quarters of a wavelength long at 70cm, which is an odd multiple of a quarter-wave and presents a moderate, reasonably matchable impedance at the feedpoint — not the clean, optimized resonance a dedicated 70cm design would give, but good enough for typical FM mobile and HT-adjacent use.
This is exactly the same principle used by many inexpensive commercial dual-band mag-mount antennas — there's no trap, no coil, no phasing network inside them. It's a single piece of wire that happens to work reasonably on both bands because of where the band plan puts them relative to each other.
Honest Performance Expectations
This design is a genuine compromise, and it's worth being upfront about it:
- 2m performance: excellent — this is a proper resonant quarter-wave on its design band, performing the same as any simple 2m mag-mount whip.
- 70cm performance: workable but not optimal — SWR is typically higher than on 2m (often 1.5:1–2.5:1 depending on the exact cut length and vehicle roof size), and the harmonic-mode radiation pattern is less clean than a dedicated 70cm quarter-wave. Fine for local FM repeater use; not the antenna to reach for if 70cm is your primary focus.
- A dedicated dual-band collinear (like this site's base-station collinear-2m-70cm build) uses independently-tuned sections for each band and outperforms this single-whip approach on both bands — the tradeoff for that improved performance is a taller, heavier, more complex antenna less suited to a simple mag mount.
The Mag Mount's Role as the Ground Plane
A magnetic mount base placed on a vehicle roof relies on the sheet metal beneath it to act as the counterpoise (ground plane) for the antenna, exactly like any quarter-wave mobile whip. The larger and flatter the metal surface under the mount, the more complete that ground plane is — roof-center placement on a full metal roof gives the best, most predictable pattern and SWR.
| 2m design frequency | Whip length (in) | Whip length (mm) | 70cm 3rd-harmonic frequency |
|---|---|---|---|
| 144.0 MHz (band bottom) | 19.50 in | 495 mm | 432.0 MHz |
| 146.0 MHz (recommended) | 19.23 in | 489 mm | 438.0 MHz |
| 146.520 MHz (national FM simplex) | 19.16 in | 487 mm | 439.6 MHz |
| 147.0 MHz | 19.10 in | 485 mm | 441.0 MHz |
| 148.0 MHz (band top) | 18.97 in | 482 mm | 444.0 MHz |
2m/70cm Mag-Mount Whip Calculator
Materials for a complete 2m/70cm mag-mount build

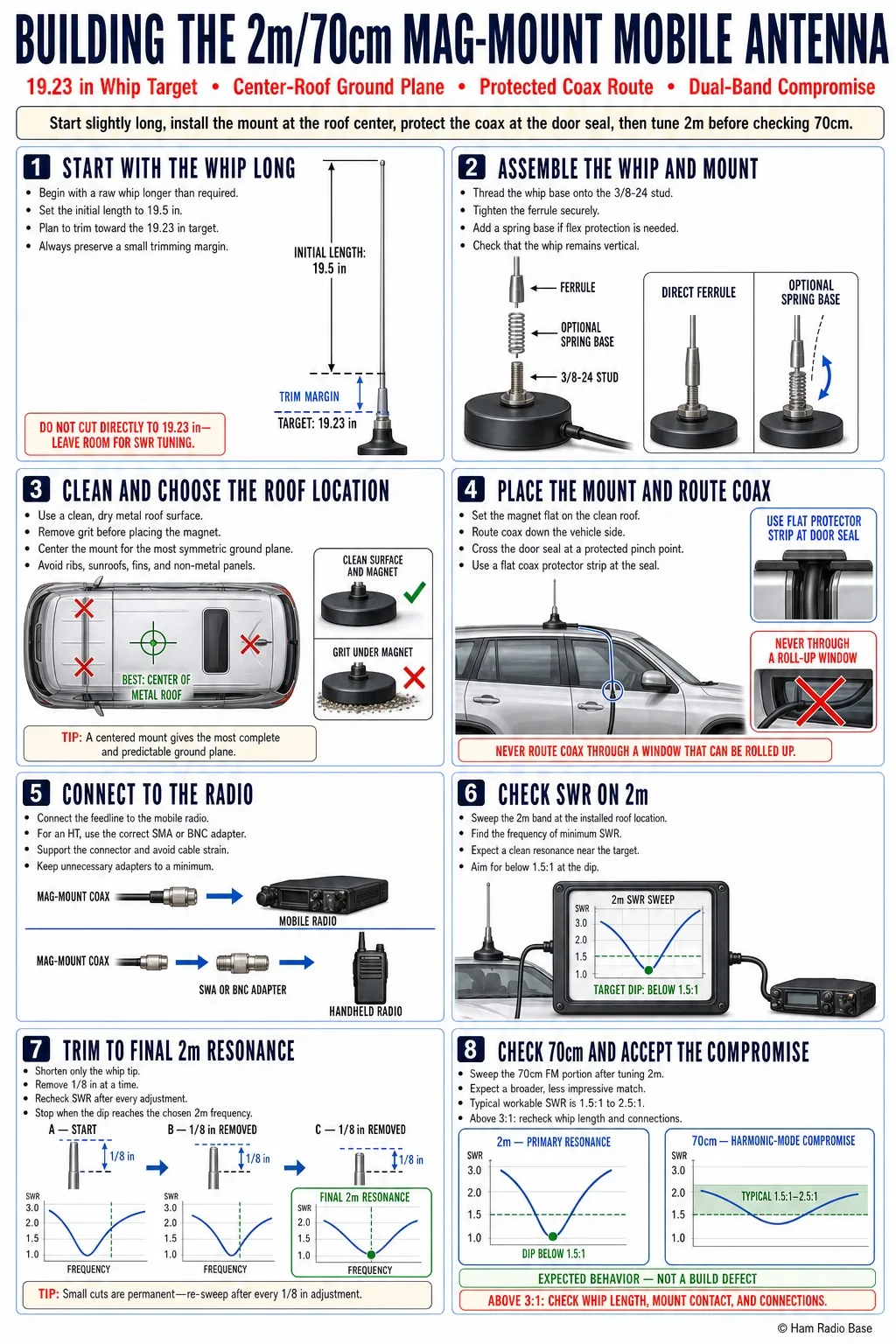

Building the 2m/70cm Mag-Mount Mobile Antenna
A short, straightforward build — most of the work is trimming the whip and routing the coax cleanly.
Trim the Whip to Length
Starting from a raw whip longer than needed, cut to 19.5 in and plan to trim down toward the 19.23 in target as you verify SWR — always leaving a small margin to trim further rather than cutting short.
Assemble the Whip and Mount
Thread the whip's base ferrule or spring onto the mag mount's 3/8-24 stud. A spring base adds a small amount of physical flex protection against branches and car washes, at a minor cost to mechanical stability at highway speed.
Clean and Choose the Roof Location
Wipe the vehicle roof clean of dirt and grit with a microfiber cloth at the intended mount spot — grit under the magnet scratches paint and reduces the magnetic grip. Center placement on the roof gives the most complete, symmetric ground plane and the most predictable omnidirectional pattern.
Place the Mount and Route the Coax
Set the mag mount in place, then route the coax down the side of the vehicle to a door opening. Use a flat coax protector strip across the door seal's pinch point to prevent the jacket from being crushed and shorting over repeated door cycles.
Connect to the Radio
Connect the coax to your mobile radio or, for HT use, to an SMA or BNC adapter matching your handheld's connector.
Trim to Final 2m Resonance
Trim the whip tip in small increments (1/8 in at a time) and re-check SWR after each cut until the dip lands on your chosen 2m frequency.
Check SWR on 70cm and Accept the Compromise
Sweep the 70cm band. Expect a workable but less impressive result than on 2m — typically 1.5:1 to 2.5:1 across the FM portion of the band. This is the expected behavior of the harmonic-mode design, not a build defect. If 70cm SWR is above 3:1, double-check the whip length against the table before assuming a fault.
| Symptom | Most likely cause | Diagnosis | Fix |
|---|---|---|---|
| High SWR on 2m even after trimming | Poor ground plane or coax fault | Check mount placement (roof center vs. edge) and inspect coax connectors | Reposition toward roof center; re-terminate or replace damaged coax |
| 70cm SWR unusually high (over 3:1) | Whip length off the 2m target, or mount on a small/non-metallic roof | Re-measure the whip against the length table | Re-trim toward the table value; note small vehicle roofs (compact cars, some SUVs) give a less complete ground plane on both bands |
| Mount doesn't hold well at highway speed | Weak magnet, dirty roof surface, or whip flexing excessively | Check magnet size and roof cleanliness | Clean the roof surface thoroughly; upgrade to a larger-diameter magnet mount |
| Coax intermittently loses connection | Damage at the door-seal pinch point | Flex the coax near the door seal while monitoring SWR/signal | Add or replace the flat door-seal protector strip; reroute away from the sharpest pinch point |
| Receive noise increases when engine is running | Ignition/alternator noise coupling into the mag mount ground plane | Compare noise floor with engine on vs. off | Verify the mount has a clean metal-to-metal contact; add ferrite chokes on the coax near the radio if needed |
Is this as good as a real dual-band antenna?
On 2m, yes — it's a proper quarter-wave. On 70cm, no — a purpose-built dual-band collinear or a dedicated 70cm whip will outperform this design's harmonic-mode compromise. This build is about simplicity and no-drill convenience, not maximum performance on both bands.
Why does 70cm work at all without any extra hardware?
Because the 70cm band (roughly 420-450 MHz US allocation, centered near 435-440 MHz) happens to sit almost exactly at 3 times the 2m band's frequency (roughly 144-148 MHz). A quarter-wave whip on 2m is therefore an odd harmonic length on 70cm, which is a workable — if not ideal — antenna length.
Will this scratch my vehicle's paint?
A clean magnet base on a clean, undamaged paint surface is generally safe for occasional and even regular use, but grit trapped under the magnet can cause fine scratches over time. Always wipe the mount location clean before placing the magnet, and remove and reposition periodically to avoid a consistent wear pattern in one spot.
Does roof size matter?
Yes — a larger, flatter metal roof gives a more complete ground plane and better performance on both bands. Small vehicles, sunroofs, and roofs with significant curvature or ribbing will show somewhat higher SWR and a less symmetric radiation pattern than a large flat sedan or van roof.
Can I use this with a handheld radio instead of a mobile rig?
Yes — connect the coax to an SMA or BNC adapter matching your HT's antenna connector. This gives dramatically better range than the HT's stock rubber duck antenna, especially on 70cm where the rubber duck is particularly inefficient.
Can I retrim this for a different part of the band later?
Yes, within reason — you can always trim shorter to raise the resonant frequency. If you need a lower frequency than your current trim allows, you'll need to start over with a longer whip blank.
