Build a Base-Loaded Mobile Whip (Manually-Tapped Coil)
This design fills the gap between this site's two other mobile HF antennas: the Hamstick-style whip (one fixed band per stick, no adjustment at all) and the motorized screwdriver antenna (continuous retuning from the driver's seat, at real cost and complexity). A base-loaded whip with a large, hand-tapped air-wound coil covers multiple HF bands from one physical antenna — you just have to step out of the vehicle and move the tap clip to change bands, the same way operators have done it for decades with classic "bug catcher"-style mobile coils.
Where This Fits Among This Site's Mobile Antennas
All three mobile HF designs on this site solve the same problem — a full-size quarter-wave is far too tall to mount on a vehicle, so the missing length has to be made up electrically with a loading coil — but they trade off differently between cost, complexity, and band flexibility:
- Hamstick-style whip (this site's other build): one stick, one band, fixed coil, tuned once by trimming the stinger. Cheapest and simplest, but you need a separate stick per band.
- Base-loaded whip with a tapped coil (this build): one large coil, one removable whip, multiple bands reachable by moving a tap clip to a different point on the coil winding by hand. More build effort than a Hamstick, but one antenna covers several bands.
- Screwdriver antenna (this site's other build): a motorized version of the same tapped-coil idea, retuned remotely and continuously from the operating position. Most capable and most convenient, at the highest cost and mechanical complexity.
If you want multi-band coverage but don't need to change bands while driving, this manually-tapped design gets you most of the screwdriver's flexibility for a fraction of the cost and without any motor to maintain.
The Loading Coil as a Physical Inductor
A large air-wound coil at the base of the whip supplies the inductance needed to electrically extend a short physical whip to a full quarter-wave at HF frequencies. Moving the tap point changes how many turns of the coil are actually in the circuit — fewer turns (tap near the bottom) means less inductance and a higher resonant frequency; more turns (tap near the top) means more inductance and a lower resonant frequency.
This is an approximation — actual resonance also depends on the coil's physical diameter, winding pitch, whip length above the tap, and the vehicle's ground-plane quality. Treat calculated tap positions as a starting point to sweep from, not a guaranteed exact setting.
Coil Placement: Base-Loaded vs. Center-Loaded
Placing the coil at the base of the whip (as in this design) rather than partway up the mast is simpler to build and mechanically stronger, but is somewhat less efficient than a center- or top-loaded design of the same overall height — the current distribution along a base-loaded whip has more of its length carrying lower current than a center-loaded design would. This is a well-known, well-documented tradeoff in mobile antenna design, and base loading remains popular because of its simplicity and durability, not because it's the theoretical efficiency optimum.
Why Tap Position Isn't Perfectly Predictable
Two identical coils on two different vehicles can need slightly different tap positions for the same band, because the vehicle body itself is part of the antenna's ground-plane system. Always treat published or calculated tap positions as a starting point and confirm final resonance with an SWR sweep on your own vehicle.
| Band | Approx. design frequency | Relative turns in circuit | Notes |
|---|---|---|---|
| 75m/80m | 3.9 MHz | Full coil (all turns) | Most demanding band for this design — expect a narrower usable bandwidth |
| 40m | 7.15 MHz | ~70% of turns | A common "sweet spot" band for base-loaded mobile designs |
| 20m | 14.15 MHz | ~35% of turns | Noticeably less coil needed than 40m |
| 17m | 18.1 MHz | ~28% of turns | |
| 15m | 21.2 MHz | ~22% of turns | |
| 12m | 24.9 MHz | ~18% of turns | |
| 10m | 28.4 MHz | ~12% of turns | Least loading needed — nearly a full-length whip above a small coil tap |
Base-Loaded Whip Coil Calculator
Materials for a complete base-loaded mobile HF whip

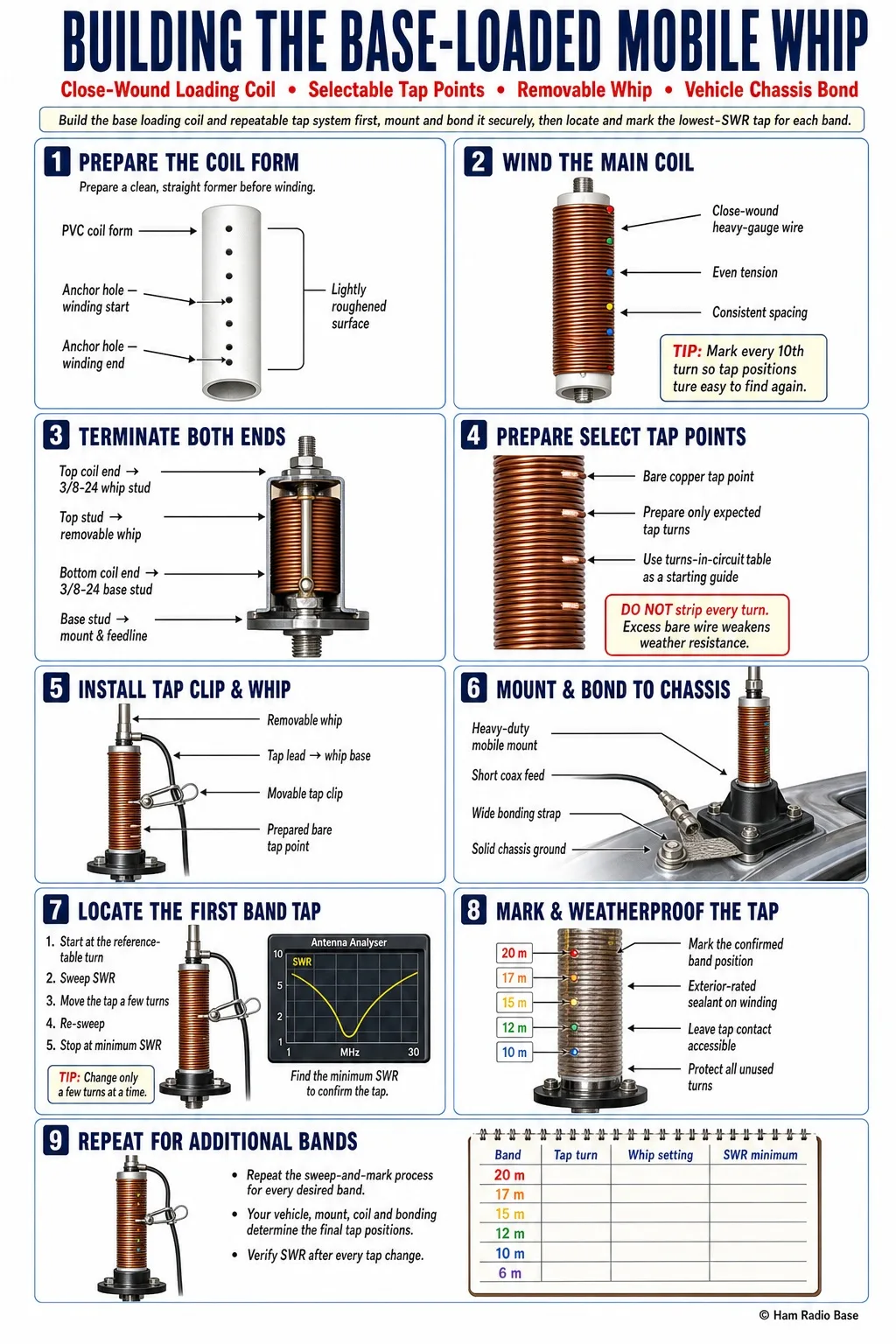

Building the Base-Loaded Mobile Whip
This build focuses on the coil and tap mechanism — the whip and mount hardware are the same style used on other mobile builds on this site.
Prepare the Coil Form
Cut the PVC pipe to length and drill small anchor holes near each end for the start and end of the winding. Sand the surface lightly if it's glossy, to help the winding grip.
Wind the Main Coil
Close-wind the heavy gauge wire along the full length of the form, anchoring the start through one of the drilled holes. Keep even tension and consistent spacing throughout — an uneven winding makes tap positions harder to reproduce later.
Terminate Both Ends
Solder the coil's bottom end to the 3/8-24 base stud (the connection to the mount and feedline) and the top end to the 3/8-24 stud that will hold the removable whip.
Prepare the Tap Points
At several turns spanning the coil's length, gently scrape a small strip of enamel insulation off the wire to expose bare copper for the tap clip to grip. Space these bare spots based on the turns-in-circuit reference table as your starting guide.
Install the Tap Clip and Whip
Attach the tap clip so it can slide along and grip the coil at any prepared bare spot, with a lead wire running from the clip to the base of the removable whip. Thread the whip into the top stud.
Mount to the Vehicle and Bond to Ground
Install the heavy-duty mount and run a bonding strap from the mount to a solid chassis ground point, exactly as with the screwdriver antenna build.
Locate the Tap Point for Your First Band
Starting from the turns-in-circuit reference table, place the tap clip at the estimated starting point for your target band and sweep SWR with the NanoVNA. Move the tap a few turns at a time toward the SWR minimum, re-sweeping after each move.
Mark and Weatherproof Each Tap Position
Once you've located a good tap position for a band, mark it clearly (a paint dot or small label) so you can return to it directly next time. Apply exterior-rated sealant over the rest of the winding, leaving marked tap points accessible.
Repeat for Additional Bands
Repeat the tap-locating process for each additional band you want marked positions for. Over a few sessions you'll build a personal reference of exact tap points for your specific vehicle and coil.
| Symptom | Most likely cause | Diagnosis | Fix |
|---|---|---|---|
| High SWR everywhere regardless of tap position | Poor vehicle bonding, or a coil winding fault | Check the ground bonding strap and inspect the coil for shorted or broken turns | Scrape to bare metal at the mount and re-bond; repair or rewind the coil section if damaged |
| Tap clip doesn't grip firmly, connection intermittent | Enamel not fully scraped at the tap point, or clip tension too light | Inspect the bare-copper contact area and clip spring tension | Re-scrape the tap point more thoroughly; replace or tighten the clip |
| Tap position that worked before now needs to move | Whip length changed, coil winding shifted, or a different vehicle | Re-verify whip is fully seated and coil turns haven't loosened | Re-sweep and re-mark the tap position; note that positions are vehicle-specific |
| Very narrow usable bandwidth on 75m/80m | Normal high-Q behavior for a short base-loaded antenna on the lowest bands | Confirm the SWR dip is centered on your actual operating frequency | Center the tap position on the specific segment of the band you use most |
| Coil winding degrading after a season of use | UV and weather exposure on unsealed sections | Inspect for cracked or missing enamel and corrosion at tap points | Re-seal exposed sections; clean corrosion from tap contact points |
How is this different from the screwdriver antenna on this site?
The screwdriver antenna uses a small motor to move the tap point (a roller contact on the coil) remotely and continuously while driving. This design uses a manually-repositioned clip — you have to stop and physically move it to change bands, but there's no motor, controller, or wiring harness to build or maintain.
How is this different from the Hamstick-style whip on this site?
A Hamstick-style whip has a fixed coil built into the fiberglass rod itself, tuned once per stick by trimming the stinger — one stick per band. This design uses one large adjustable coil and one whip that covers many bands by moving the tap, at the cost of needing to stop and adjust rather than swap sticks.
Can I mark multiple tap positions and switch quickly?
Yes — once you've located and marked good tap positions for your regularly-used bands, moving between them takes only a few seconds once you're stopped, since you're moving directly to a known mark rather than hunting for resonance again.
Why does the coil need to be so much bigger than a Hamstick's coil?
A single large coil here has to cover the full range from 75m/80m (needing nearly all the turns) down to 10m (needing only a small fraction), so it's sized for the most demanding low-band case, whereas each Hamstick's coil is sized for just its own single band.
Is this less efficient than a top- or center-loaded design?
Yes, modestly — base loading places the coil where antenna current is highest, which is measurably less efficient than a center- or top-loaded coil at the same overall height. Base loading remains popular because it's simpler and more mechanically robust to build and mount, not because it's the theoretical performance optimum.
Do I still need bonding straps and a good ground plane?
Yes, exactly as with every other mobile HF antenna on this site — the vehicle body is part of the antenna system, and poor bonding will show up as SWR problems no amount of tap adjustment can fix.
