Hamstick-Style Mobile HF Whip
A Hamstick-style whip is a fixed, single-band mobile antenna built around a fiberglass rod with a helically-wound loading section and a trimmable stainless stinger on top — no motor, no taps, just one antenna per band that you tune once by trimming the tip. Commercial sticks run $30-50 each; this build shows how to make your own from fiberglass rod stock, magnet wire, and a stinger blank. It's the simplest, cheapest way into mobile HF, and the natural complement to the screwdriver antenna build for anyone who wants a lightweight single-band stick for their most-used band instead of carrying the cost and complexity of a motorized coil.
Physical length vs. electrical length
A full-size quarter-wave on 40m is over 30 feet — nowhere near mountable on a vehicle. A Hamstick-style whip accepts a fixed length of just a few feet and makes up the rest with a loading section built into the fiberglass rod itself, sized once for the one band that stick is built for.
40m (7.15 MHz): 234 / 7.15 = 32.7 ft vs. ~6.5-7 ft of actual stick here
A helically-wound coil instead of a lumped inductor
Rather than a small discrete coil in one spot, most sticks in this class wind the loading wire directly onto (or inside) a meaningful length of the fiberglass rod, spreading the inductance over a section of the antenna instead of concentrating it at one point. This continuously-loaded winding behaves a bit differently from a small lumped coil and is part of why these designs hold up reasonably well for their size and simplicity.
Why trimming the stinger works
The stainless stinger above the coil section is your only tuning control on a fixed-coil design — no motor, no taps. Shortening it raises the resonant frequency; leaving it long keeps resonance lower. Because this antenna is short and the coil gives it a high Q, small trims move the resonant point by a surprising amount.
- Trim too much: resonance jumps above your target, and there's no way to add length back except splicing in a new stinger.
- Trim conservatively: cut a little, re-check SWR, repeat — always leave room to trim again.
One stick per band vs. a switched coil
A fixed-tuned stick has no moving parts to wear out or lose calibration, and per-band efficiency is often comparable to or slightly ahead of a motorized coil at that same setting, since there's no switch mechanism or roller contact adding loss. The tradeoff is coverage: a screwdriver antenna retunes to a new band from the driver's seat, while a Hamstick-style whip means physically swapping to a different stick.
| Band | Overall length (in) | Length (mm) | Notes |
|---|---|---|---|
| 75m/80m | 96-102 in | 2438-2591 mm | Coil section ~24-30 in; bulkiest and least efficient of this class, narrowest bandwidth |
| 40m | 78-84 in | 1981-2134 mm | Coil section ~18-22 in |
| 20m | 48-54 in | 1219-1372 mm | Coil section ~10-14 in |
| 17m | 46-50 in | 1168-1270 mm | Coil section ~9-12 in |
| 15m | 42-46 in | 1067-1168 mm | Coil section ~8-10 in |
| 12m | 40-44 in | 1016-1118 mm | Coil section ~6-8 in |
| 10m | 36-40 in | 914-1016 mm | Coil section ~4-6 in |
| 6m | 28-32 in | 711-813 mm | Coil section ~2-4 in; minimal loading needed |
Hamstick-Style Mobile HF Whip Dimension Calculator
Materials for Hamstick-Style Mobile HF Whip

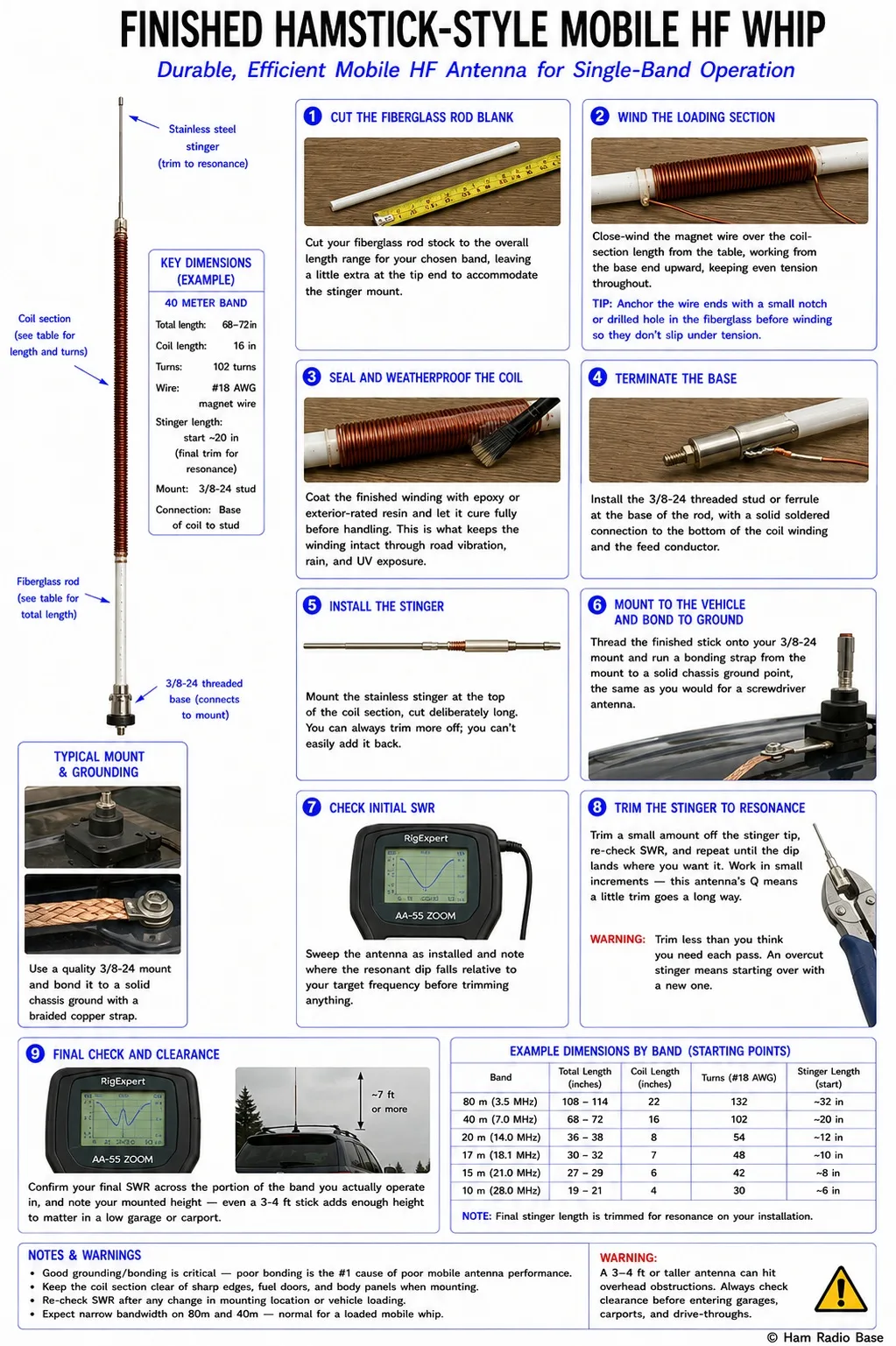

Building the Hamstick-Style Mobile HF Whip
Pick your band before you start — the coil section and rod length both scale with it. Everything below assumes you've already chosen a target band from the dimensions table.
Cut the fiberglass rod blank
Cut your fiberglass rod stock to the overall length range for your chosen band, leaving a little extra at the tip end to accommodate the stinger mount.
Wind the loading section
Close-wind the magnet wire over the coil-section length from the table, working from the base end upward, keeping even tension throughout.
Seal and weatherproof the coil
Coat the finished winding with epoxy or exterior-rated resin and let it cure fully before handling. This is what keeps the winding intact through road vibration, rain, and UV exposure.
Terminate the base
Install the 3/8-24 threaded stud or ferrule at the base of the rod, with a solid soldered connection to the bottom of the coil winding and the feed conductor.
Install the stinger
Mount the stainless stinger at the top of the coil section, cut deliberately long. You can always trim more off; you can't easily add it back.
Mount to the vehicle and bond to ground
Thread the finished stick onto your 3/8-24 mount and run a bonding strap from the mount to a solid chassis ground point, the same as you would for a screwdriver antenna.
Check initial SWR
Sweep the antenna as installed and note where the resonant dip falls relative to your target frequency before trimming anything.
Trim the stinger to resonance
Trim a small amount off the stinger tip, re-check SWR, and repeat until the dip lands where you want it. Work in small increments — this antenna's Q means a little trim goes a long way.
Final check and clearance
Confirm your final SWR across the portion of the band you actually operate in, and note your mounted height — even a 3-4 ft stick adds enough height to matter in a low garage or carport.
| Symptom | Most likely cause | Diagnosis | Fix |
|---|---|---|---|
| High SWR everywhere, trimming doesn't help | Poor vehicle bonding or ground path | Check for paint or corrosion breaking the metallic path from mount to body | Scrape to bare metal at the mount and add a bonding strap |
| Trimming the stinger doesn't move the SWR dip at all | Broken or loose connection between the coil and stinger | Check continuity from the coil winding through to the stinger base | Re-solder or re-crimp the stinger-to-coil connection |
| Resonance sits below your target and you've trimmed a lot already | Blank was built long for this band, or coil has more inductance than needed | Compare your as-built length against the dimensions table range | Keep trimming carefully in small steps; if you're out of stinger, start a new blank slightly shorter |
| Resonance was already above target with no trimming done | Blank was built short for this band | Compare your as-built length against the dimensions table range | Splice in a longer stinger, or rebuild with a longer initial rod |
| Very narrow usable bandwidth, especially on 75m/40m | Normal high-Q behavior for this antenna class on the lower bands | Confirm the dip is centered on your most-used frequency, not just somewhere in-band | Center the trim on the segment of the band you operate most |
| Coil coating cracked or wire exposed after time in service | UV and road vibration breaking down the sealant | Inspect the winding for cracked epoxy or bare wire | Clean, re-coat, or rebuild the coil section |
Why does trimming the stinger change resonance so much?
This antenna is short and high-Q, so small changes in electrical length move the resonant point by a lot more than they would on a longer, lower-Q antenna. That's why the build steps stress trimming conservatively.
Can I make one stick cover multiple bands?
Not with this fixed-coil design — each stick is built and trimmed for one band. If you want multi-band coverage from one antenna, that's what the screwdriver antenna build is for.
How much should I trim at a time?
Small amounts — a fraction of an inch at a pass on the higher bands, a bit more on the low bands where the coil is doing more work — followed by a fresh SWR check every time.
Do I need bonding straps for this like the screwdriver antenna?
Yes. Ground-plane quality matters for any mobile antenna, fixed-tuned or motorized, and poor bonding will show up as high SWR you can't trim your way out of.
Why is my 75m/40m stick so much bigger than my 10m stick?
Lower bands need much more loading to make up for the same fixed physical length being a smaller fraction of the wavelength, so the coil section grows accordingly — this is the same physics behind every loaded antenna in this guide series.
Can I use a magnetic mount with this?
Yes, a quality magnetic mount with a solid contact patch works fine for casual use, though a bolted mount with a direct bonding strap will generally out-perform it for serious operating.
