Build a 30m Half-Wave Dipole Antenna

30m is unlike any other band on this list — a narrow WARC allocation reserved exclusively for CW and data modes, with no phone permitted and a reduced power limit in the United States. That combination makes it one of the quietest, most enjoyable bands for CW ops and digital-mode enthusiasts, with excellent day-and-night propagation characteristics closer to 40m than to 20m. At just over 46 feet total length, this dipole is a straightforward build with one important regulatory wrinkle to understand before you key up.

46.2 ftTotal wire length
~2 hrsBuild time
$25–$45Typical build cost
10.100–10.150MHz coverage
⚠ Regulatory note: CW/data only, reduced power (US): In the United States, 30m is restricted to CW and data modes only — no phone (voice) operation is permitted anywhere in the band. Output power is also limited to 200 watts PEP, well below the 1500W limit that applies on most other HF bands. These rules exist because 30m is shared internationally with non-amateur services. Check your own country's band plan, as specifics vary outside the US.

Choose Your Target Frequency

30m spans 10.100 to 10.150 MHz — only 50 kHz wide, the narrowest HF band on this site. With no phone segment to plan around, the whole allocation is used for CW and data:

  • CW: typically worked from 10.100–10.130 MHz
  • Digital modes (FT8 at 10.136, PSK31 and RTTY nearby): cluster around 10.130–10.145 MHz
  • Best all-around compromise: 10.125 MHz — the exact band center

Because the band is only 50 kHz wide, a dipole cut for the center covers the entire allocation with very low SWR — there's essentially no compromise to weigh here.

Wire length formula: Total = 468 / f(MHz) Each leg = 234 / f(MHz) For 10.125 MHz: Total = 468 / 10.125 = 46.22 ft Each leg = 234 / 10.125 = 23.11 ft Cut each leg to: 23.8 ft (3% long)

Choose Your Configuration

At just over 46 feet total, a 30m dipole needs meaningfully more space than the higher HF bands — similar in scale to a 40m dipole, though somewhat shorter:

  • Flat (horizontal) — needs about 23.8 feet of clearance per side; full performance if the space is available.
  • Inverted-V — a 25–35 foot center mast handles this comfortably and is the most common installation choice.
  • Vertical dipole — a compact option on a single tall mast, favoring a low-angle DX pattern.
  • Sloper — a good option if you have one tall support (like an existing tower) but not enough width for a full horizontal span.

Because 200W is the ceiling on this band regardless of your amplifier's capability, don't over-invest in heavy-gauge feedline or high-power-rated components purely for 30m — the reduced legal power limit means standard RG-8X and modest hardware are entirely adequate.

30m Dipole Calculator

Everything you need to build a complete 30m dipole

📏#14 AWG stranded copper-clad steel wire, 50 ftCopper-clad steel resists stretching and sagging over time
🔩Dipole center (feedpoint insulator)Commercial SO-239 dipole center or DIY from PVC + hardware
🔘FT-240-31 toroid core, 1 pieceFor the 1:1 current choke — even at the reduced 200W limit, a choke is still worthwhile
🔌RG-8X coax, length to reach radioStandard RG-8X is more than adequate given the 200W power ceiling
🪝Egg insulators, 2 piecesCeramic or hard plastic, for the wire end supports
🪢UV-resistant Dacron rope, 40 ftFor center and end supports
🔧PL-259 coax connector, 1 pieceFor the coax-to-feedpoint connection
🛠️Self-amalgamating tape, 1 rollFor weatherproofing the feedpoint connection
🔩Stainless steel machine screws and nuts6-32 × ½" for feedpoint wire connections
🪛Solder (60/40 rosin core) and soldering iron25–40W iron is sufficient for this wire
📡NanoVNAFor SWR sweep and resonance verification before operating
📐Steel measuring tape, 25 ft minimumFor accurately marking leg lengths

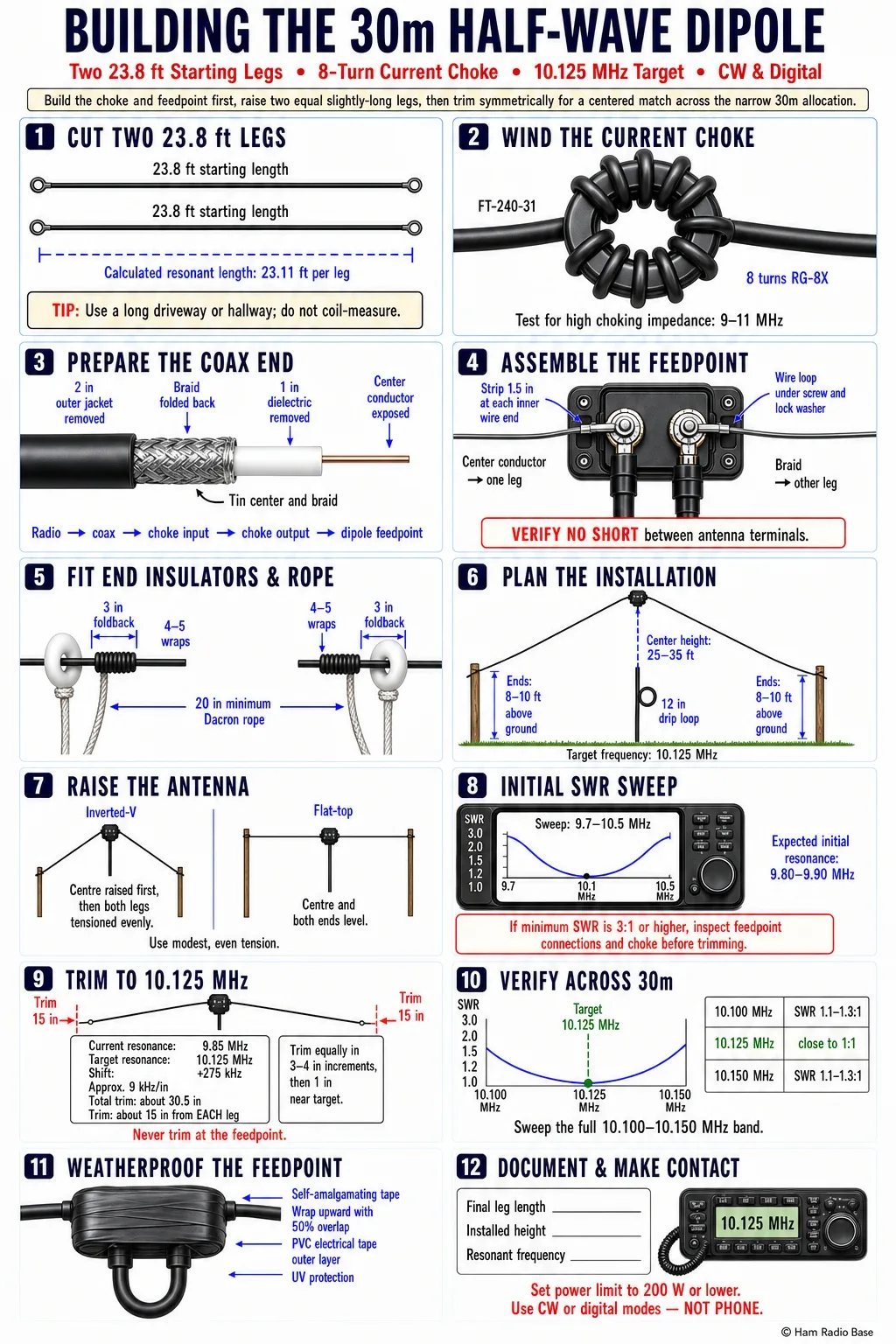

Finished 30m half-wave dipole antenna showing the center feedpoint with current choke, egg insulators at each wire end, and Dacron support rope

Building the 30m Half-Wave Dipole

Follow these steps in order for a properly tuned, weatherproofed 30m dipole.

1

Mark Out and Cut the Wire

Unroll the wire on a flat surface. Measure 23.8 feet from one end and mark with tape. Cut at this mark — this is your first leg, 3% longer than the calculated 23.11-foot resonant length. Cut a second identical 23.8-foot leg.

Tip: A wire this length is easiest to measure on a long driveway or hallway rather than trying to coil-measure it.
2

Wind the Current Choke

Wind 8 turns of RG-8X coax through the FT-240-31 toroid. Push the coax through the toroid hole, loop around the outside, and back through again for each turn.

Tip: Test the choke with the NanoVNA before installing, sweeping 9–11 MHz and checking for consistently high impedance.
3

Prepare the Coax End

Strip back 2 inches of outer jacket at the antenna end of the coax. Fold the braid back over the jacket without nicking strands. Strip 1 inch of dielectric to expose the center conductor. Tin both the center conductor and folded braid with solder.

Important: The coax connects to the choke output, not directly to the dipole center. Connection order: radio → coax → choke input → choke output → dipole feedpoint.
4

Assemble the Feedpoint

If using a commercial dipole center, follow its instructions. If fabricating your own, drill two pairs of holes for 6-32 screws — one per side connects to the coax, the second connects the antenna wire.

Strip 1.5 inches of insulation from each wire leg end, form a loop with round-nose pliers, and secure it under a screw and lock washer before soldering for electrical continuity.

5

Attach End Insulators and Support Rope

Thread each wire leg through an egg insulator at the far end. Double the wire back about 3 inches, wrap 4–5 times around the main wire, and solder the wrap. Attach at least 20 inches of Dacron rope to each insulator.

6

Plan the Installation Layout

Walk the site and confirm your support points. A center support of 25–35 feet gives a useful takeoff angle at 10.125 MHz. Wire ends only need to clear 8–10 feet above ground. Route the coax to the shack and leave a 12-inch drip loop just below the feedpoint.

7

Raise the Antenna

For an inverted-V, raise the center mast first with the feedpoint attached, then pull each leg out to its end anchor and secure with modest tension. For a flat dipole, raise the center and one end, then the second end, adjusting tension until level.

8

Initial SWR Sweep

Connect the NanoVNA at the radio end of the coax and sweep 9.7 to 10.5 MHz. With legs cut to 23.8 feet, expect resonance around 9.80–9.90 MHz — below the band due to the long legs.

If minimum SWR is 3:1 or higher: Check all feedpoint connections and confirm the choke is installed correctly before trimming — a high minimum SWR points to a wiring problem, not a length problem.
9

Trim to Target Frequency

Each 1 inch trimmed from both legs raises resonance by roughly 9 kHz on 30m.

Current resonance: 9.85 MHz Target resonance: 10.125 MHz Shift needed: +275 kHz Trim required: 275 / 9 kHz/in ≈ 30.5 inches Trim from each leg: ~15 inches (half the total)

Trim both legs equally in 3–4 inch increments and re-measure after each cut, switching to 1-inch increments as you approach the band.

10

Verify Across the Band

Once resonance is confirmed near 10.125 MHz, sweep the full 10.100–10.150 MHz range. This is a very narrow band, so a center-cut dipole shows low, nearly flat SWR from edge to edge:

  • SWR at 10.100 MHz: 1.1–1.3:1
  • SWR at 10.125 MHz: close to 1:1 (the resonance minimum)
  • SWR at 10.150 MHz: 1.1–1.3:1
11

Weatherproof the Feedpoint

Wrap self-amalgamating tape upward from below the feedpoint with 50% overlap, covering all connections and the coax entry. Apply a second layer of PVC electrical tape over it for UV protection.

12

Document and Make First Contact

Record the final leg lengths, installed height, and resonant frequency in your station log. Set your radio's power limit to 200W (or lower) before your first transmission, and confirm you're operating CW or a digital mode — not phone.

Why 30m Is CW/Data-Only

30m sits within a portion of spectrum shared internationally with fixed and mobile services outside amateur radio, which is why ITU Region 2 (including the US) restricts amateur use to narrowband CW and data modes rather than the wider bandwidth phone would require. This isn't a US-only quirk — most administrations worldwide apply similar restrictions on 30m, though the exact power limits vary by country.

The 200W Power Limit

In the US, 30m carries a hard 200W PEP output limit, regardless of license class — even Amateur Extra licensees who can run 1500W elsewhere are capped at 200W here. This is comfortably within reach of nearly every HF transceiver on the market without an amplifier, so in practice this limit rarely constrains typical stations, but it's important to know and respect.

30m US power/mode summary: Modes permitted: CW, RTTY, PSK, FT8, and other data — NO PHONE Maximum power: 200 watts PEP output (all license classes) Contests: none — WARC band convention applies here too

Propagation Similar to 40m

At just above 10 MHz, 30m behaves more like 40m than like the higher HF bands — it supports solid daytime regional contacts and can open for genuine DX at night, especially during the low-noise overnight hours. Many CW and digital operators consider 30m one of the most reliable "workhorse" bands for daily contacts, open in some useful capacity nearly around the clock.

Symptom Most likely cause Diagnosis Fix
SWR high (3:1+) across entire bandConnection or wiring errorInspect all feedpoint connectionsVerify center conductor and braid are on opposite dipole sides; check for open connections
SWR changes when touching the coaxCommon-mode current; no chokeIs the current choke installed?Install or improve the current choke; add snap-on ferrite near the feedpoint
Resonance below 10.100 MHzWire legs too longMeasure actual leg lengthsTrim both legs equally — 1 inch per side raises resonance ~9 kHz
Resonance above 10.150 MHzWire legs too shortMeasure actual leg lengthsSplice a short wire extension onto each leg end and re-tune
Radio won't let me select SSB/phone on this bandNot a fault — this is correct behaviorCheck your radio's band-plan lockout settingsOperate CW or a data mode instead; phone is not permitted on 30m
Amplifier output limited unexpectedly on this bandRadio or amp enforcing the 200W legal limitCheck transmitter power settings for the 30m band specificallyThis is expected and correct — 200W PEP is the legal maximum on 30m in the US

Can I operate SSB phone on 30m?

No — in the US and most other countries, 30m is restricted to CW and data modes only. This is a long-standing international allocation rule, not a site recommendation, so check your own country's regulations if operating outside the US.

Why is the power limit only 200W on 30m?

In the US, 30m is limited to 200W PEP for all license classes because the band is shared internationally with non-amateur fixed and mobile services. It's one of the few HF bands where even Amateur Extra operators can't run full legal power.

Is 30m worth building a dedicated dipole for?

Yes — 30m is a favorite among CW and digital-mode operators for its quiet, contest-free character and near-round-the-clock usability. A dedicated resonant dipole significantly outperforms feeding it as an afterthought off a multiband antenna.

Do I still need a current choke given the reduced power limit?

Yes — a current choke controls common-mode current and pattern distortion, which has nothing to do with power level. It's just as important at 200W as it would be at 1500W.

How does 30m propagation compare to 40m?

Very similar in character — solid daytime regional coverage with DX openings at night, particularly in the quieter overnight hours. 30m tends to have somewhat less atmospheric noise than 40m, which many CW operators appreciate.

Why doesn't 30m have contests either?

Like the other WARC bands (12m and 17m), 30m was set aside without contest activity when it was allocated in 1979 — a convention respected by essentially all major contest sponsors.
