Build a 60m Half-Wave Dipole Antenna
60m is the most unusual amateur HF allocation in the United States — not a continuous band at all, but five fixed, channelized frequencies shared with other services, restricted to upper sideband voice and specific narrowband digital modes, with power and antenna gain both capped by regulation. A dipole covering all five channels is a straightforward build at roughly 87 feet total length, but this is one band where understanding the rules matters just as much as understanding the antenna.
Understand the 5 Channels
Unlike every other band on this site, there's no "choose your target frequency within a range" decision on 60m — you operate on one of five fixed channel center frequencies:
- Channel 1: 5330.5 kHz
- Channel 2: 5346.5 kHz
- Channel 3: 5357.0 kHz (most commonly used, roughly central)
- Channel 4: 5371.5 kHz
- Channel 5: 5403.5 kHz
These are suppressed-carrier center frequencies for USB operation — your radio's USB dial frequency for each channel is typically set 1.5 kHz below the published center frequency, per FCC convention. Many modern rigs have these channels preloaded as memory presets.
Why Cut for Channel 3
The five channels span only 73 kHz from lowest to highest (5330.5 to 5403.5 kHz) — narrow enough that a dipole cut for Channel 3 (5357.0 kHz, roughly central among the five) shows acceptable SWR across all five channels without retuning. This is the same "cut for the practical center" logic used on the narrow WARC bands, just applied to five discrete points instead of a continuous range.
- Channels 1–2 (5330.5–5346.5 kHz): slightly below design center, modest SWR rise
- Channel 3 (5357.0 kHz): design center, lowest SWR
- Channels 4–5 (5371.5–5403.5 kHz): above design center, Channel 5 shows the most SWR rise given its distance from center
Size and Support Requirements
At 87 feet total, a 60m dipole is one of the larger antennas on this site — comparable to an 80m dipole in scale, though noticeably shorter:
- Flat (horizontal) — needs about 45 feet of clearance per side; the best-performing option if you have the space.
- Inverted-V — a 35–50 foot center mast lets the antenna fit in a more modest footprint; the most practical choice for most yards.
- Sloper — a good fit if you have one tall support (tower or tall tree) but not enough width for a full horizontal span.
Because power is capped at 100W ERP relative to a dipole regardless of your actual antenna gain, there's no benefit to over-building this antenna for high power — standard RG-8X and modest hardware are entirely adequate.
60m Dipole Calculator
Everything you need to build a complete 60m dipole

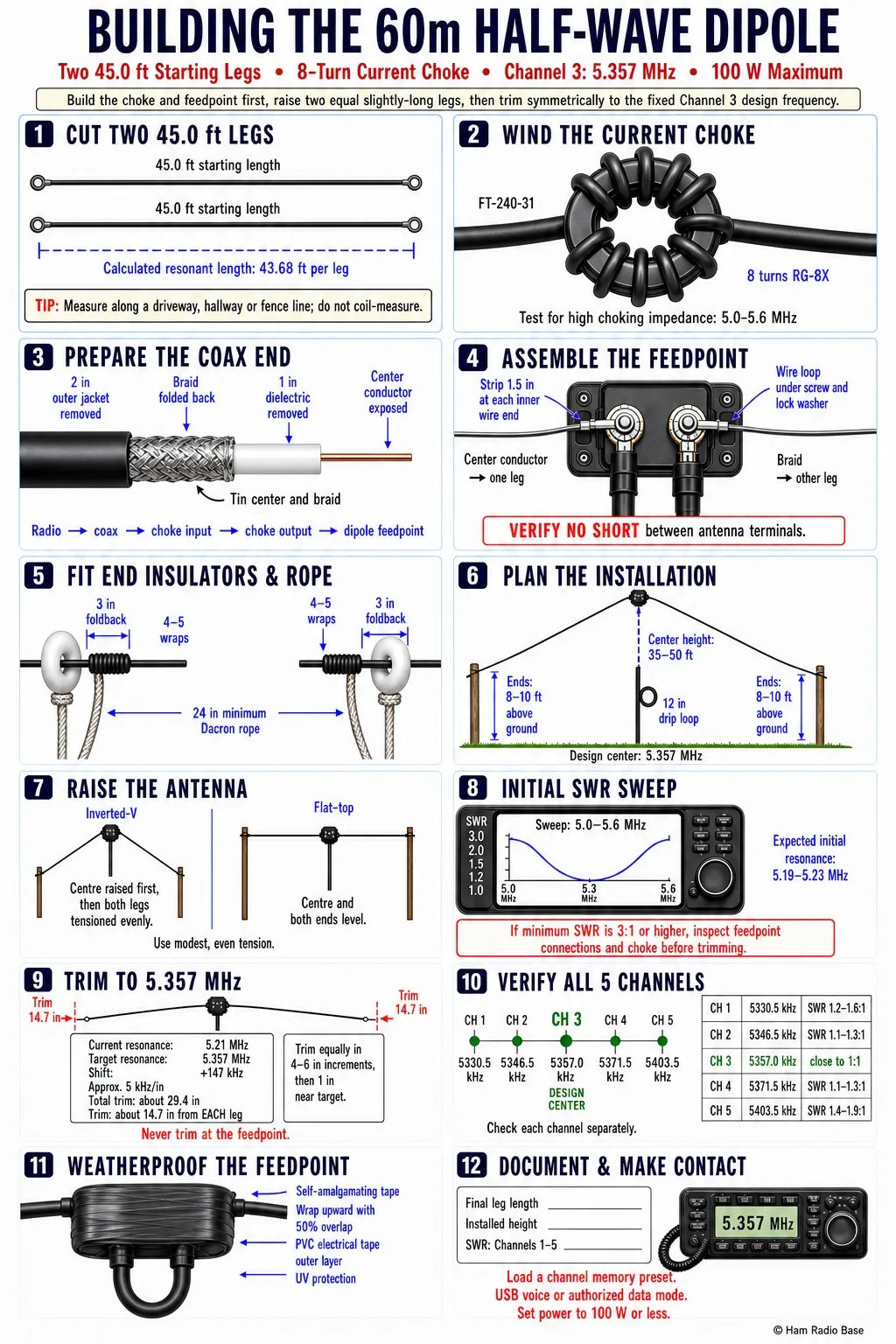

Building the 60m Half-Wave Dipole
Follow these steps in order. Because the design targets Channel 3 rather than a tunable range, the trimming step aims at a fixed frequency rather than a segment.
Mark Out and Cut the Wire
Unroll the wire on a flat surface. Measure 45.0 feet from one end and mark with tape. Cut at this mark — this is your first leg, 3% longer than the calculated 43.68-foot resonant length. Cut a second identical 45.0-foot leg.
Wind the Current Choke
Wind 8 turns of RG-8X coax through the FT-240-31 toroid. Push the coax through the toroid hole, loop around the outside, and back through again for each turn.
Prepare the Coax End
Strip back 2 inches of outer jacket at the antenna end of the coax. Fold the braid back over the jacket without nicking strands. Strip 1 inch of dielectric to expose the center conductor. Tin both the center conductor and folded braid with solder.
Assemble the Feedpoint
If using a commercial dipole center, follow its instructions. If fabricating your own, drill two pairs of holes for 6-32 screws — one per side connects to the coax, the second connects the antenna wire.
Strip 1.5 inches of insulation from each wire leg end, form a loop with round-nose pliers, and secure it under a screw and lock washer before soldering for electrical continuity.
Attach End Insulators and Support Rope
Thread each wire leg through an egg insulator at the far end. Double the wire back about 3 inches, wrap 4–5 times around the main wire, and solder the wrap. Attach at least 24 inches of Dacron rope to each insulator.
Plan the Installation Layout
Walk the site and confirm your support points. A center support of 35–50 feet gives a useful takeoff angle around 5.357 MHz. Wire ends only need to clear 8–10 feet above ground. Route the coax to the shack and leave a 12-inch drip loop just below the feedpoint.
Raise the Antenna
For an inverted-V, raise the center mast first with the feedpoint attached, then pull each leg out to its end anchor and secure with modest tension. For a flat dipole, raise the center and one end, then the second end, adjusting tension until level.
Initial SWR Sweep
Connect the NanoVNA at the radio end of the coax and sweep 5.0 to 5.6 MHz. With legs cut to 45.0 feet, expect resonance around 5.19–5.23 MHz — below the target due to the long legs.
Trim to Target Frequency
Each 1 inch trimmed from both legs raises resonance by roughly 5 kHz on 60m.
Trim both legs equally in 4–6 inch increments and re-measure after each cut, switching to 1-inch increments as you approach 5.357 MHz.
Verify SWR at All 5 Channels
Once resonance is confirmed near 5.357 MHz, check SWR specifically at each of the 5 channel frequencies rather than sweeping a continuous range:
- Channel 1 (5330.5 kHz): 1.2–1.6:1
- Channel 2 (5346.5 kHz): 1.1–1.3:1
- Channel 3 (5357.0 kHz): close to 1:1 (the design center)
- Channel 4 (5371.5 kHz): 1.1–1.3:1
- Channel 5 (5403.5 kHz): 1.4–1.9:1 (expected — this channel sits farthest from center)
Weatherproof the Feedpoint
Wrap self-amalgamating tape upward from below the feedpoint with 50% overlap, covering all connections and the coax entry. Apply a second layer of PVC electrical tape over it for UV protection.
Document and Make First Contact
Record the final leg lengths, installed height, and SWR at each of the 5 channels in your station log. Load a channel memory preset on your radio, confirm you're set for USB voice (or an authorized data mode) at 100W or less, and make your first contact.
Why 60m Is Channelized
60m was opened to US amateurs in 2003 as a secondary allocation shared with federal and other licensed users on specific frequencies, rather than as an exclusive amateur band. That shared-use history is why hams are restricted to 5 discrete channels instead of a tunable range — coordination with the primary users happens at the channel level, not across an open band.
The 100W ERP Rule Relative to a Dipole
US rules limit 60m to 100 watts PEP effective radiated power relative to a half-wave dipole. In practice, this means if your antenna has gain over a dipole toward your transmission direction, you must reduce transmitter power to compensate — a plain resonant dipole like this build, with no gain over itself, can simply run up to 100W PEP directly without any adjustment calculation.
Propagation — A Regional/NVIS Workhorse
At just above 5.3 MHz, 60m behaves similarly to 80m: reliable regional daytime coverage out to a few hundred miles, useful nighttime skip for longer contacts, and a natural fit for NVIS (Near Vertical Incidence Skywave) operation at low antenna heights. It's popular for emergency communications nets precisely because of this predictable regional coverage.
| Symptom | Most likely cause | Diagnosis | Fix |
|---|---|---|---|
| SWR high (3:1+) at all 5 channels | Connection or wiring error | Inspect all feedpoint connections | Verify center conductor and braid are on opposite dipole sides; check for open connections |
| SWR changes when touching the coax | Common-mode current; no choke | Is the current choke installed? | Install or improve the current choke; add snap-on ferrite near the feedpoint |
| Resonance well below 5.33 MHz | Wire legs too long | Measure actual leg lengths | Trim both legs equally — 1 inch per side raises resonance ~5 kHz |
| Resonance well above 5.40 MHz | Wire legs too short | Measure actual leg lengths | Splice a short wire extension onto each leg end and re-tune |
| SWR notably worse on Channel 5 than the others | Normal — Channel 5 is farthest from the design center | Compare Channel 5's SWR against the others | Not a fault — use a tuner on Channel 5 if SWR there exceeds your radio's comfort threshold |
| Radio won't transmit on 60m frequencies at all | Radio not configured with channelized US 60m memories | Check radio's regional/band-plan settings | Manually program the 5 channel frequencies as memories per your radio's manual |
Can I just tune anywhere in the 60m range like other bands?
No — US amateurs are restricted to 5 specific channel frequencies on 60m, not a continuous tunable range. This reflects the band's shared-use history with other licensed services.
What modes are permitted on 60m?
Upper sideband (USB) voice, plus specific FCC-authorized digital modes on certain channels. Lower sideband and most other modes are not permitted. Always check current FCC rules, as specifics have been updated over time.
How does the 100W ERP rule actually work in practice?
If your antenna has no gain over a reference half-wave dipole in the direction of transmission — true of the dipole in this guide — you can run up to 100W PEP directly. If you use a gain antenna (like a Yagi) instead, you must calculate and reduce your transmitter power so the effective radiated power doesn't exceed the 100W-relative-to-dipole limit.
Why cut the dipole for Channel 3 instead of Channel 1 or 5?
Channel 3 (5357.0 kHz) sits roughly central among the five channels, so a dipole cut here shows the most balanced SWR performance across all five. Cutting for either end channel would push the opposite end further out of tune.
Is 60m good for emergency communications?
Yes — 60m's reliable regional daytime and nighttime coverage make it popular for emergency and traffic nets, and it's specifically designated in some interoperability plans for cross-band coordination with other licensed services during emergencies.
Do I need a current choke on this antenna?
Yes — common-mode current control matters on every band regardless of channelization. A 7–8 turn FT-240-31 choke at the feedpoint is standard practice here as elsewhere.
