Common-Mode Choke Placement Guide
A common-mode choke only blocks current at the exact point it's installed — it does nothing about current induced further down the line. That single fact is why the same choke, built identically, can fix a problem at one location and do almost nothing at another. This guide covers the three places a choke actually gets installed (feedpoint, mid-line, and shack entry), what each one catches and misses, and how to work out which location — or combination — actually matches your symptom, rather than just building a choke and hoping.
A choke only blocks current where it sits
Common-mode current isn't induced at one fixed point and then left alone — it can build up anywhere the coax runs close to the antenna's own field, near a tower or mast, near other conductors, or wherever the antenna's own asymmetry couples energy onto the shield. A choke placed at any single point blocks current AT that point, forcing whatever current is trying to flow past it to either stop there or find another path. It does nothing to prevent current from being induced on the section of line beyond it. That's the core fact behind every placement decision in this guide: where you put the choke determines which portion of the problem it actually solves.
The three placement options
- Feedpoint: installed right at the antenna, before the coax has traveled any distance at all. Stops common-mode current at its main source — see the 1:1 Current Balun / Choke guide for the full build. This is the single most effective location for most wire antennas because it addresses the cause rather than a downstream symptom.
- Mid-line: installed partway along a feedline run, typically where the coax passes close to a tower, mast, other antennas, or re-enters a region where it picks up additional induced current. A special-case fix for a specific, identifiable coupling point rather than a default first choice.
- Shack entry: installed where the coax enters the building — see the Line Isolator (Shack-Entry Choke) guide for the shack-entry-specific build. Catches whatever current is still present by the time the line reaches the operating position, regardless of where it was picked up.
Why two chokes solve more cases than one
A feedpoint choke and a shack-entry choke aren't redundant with each other — they cover the two ends of the same line, and current induced anywhere in between (a mid-line coupling point you haven't identified, or current that partially gets past an imperfect feedpoint choke) still reaches the shack-entry choke and gets caught there. This "defense in depth" pairing is why persistent common-mode problems are often solved by adding a second choke rather than endlessly tweaking the first one.
Symptom-to-location mapping
The specific way a common-mode problem shows up is a useful clue to where it's being picked up, though it isn't a guarantee — treat this as a starting hypothesis to test, not a certainty. RF directly in the microphone, keyboard, or other shack equipment points most strongly toward needing a shack-entry choke, since that's the current actually reaching the operating position. SWR that shifts noticeably when you touch or reroute the coax near the antenna, or a radiation pattern that doesn't match modeling, points more toward a feedpoint problem. A symptom that correlates with the season, weather, or physical movement of a specific section of feedline (brushing against a tower, flexing near a support) suggests a mid-line coupling point worth investigating directly.
| Location | What It Catches | What It Misses | Best For |
|---|---|---|---|
| Feedpoint | Common-mode current induced right at the antenna, before it travels down the line | Current picked up further down the feedline, past the choke | The primary fix on nearly every coax-fed wire antenna |
| Mid-line | Current induced at a specific identified coupling point along the run | Current induced anywhere else on the line, before or after that point | A confirmed, specific coupling point (e.g. coax passing close to a tower leg) |
| Shack entry | Whatever common-mode current is still present by the time the line reaches the building, from any source | Pattern distortion and near-antenna symptoms that already happened before the current reached this point | Protecting shack equipment and as a second line of defense behind a feedpoint choke |
What you need to figure out where your problem is coming from
Three choke placement points along a typical feedline run: feedpoint, mid-line, and shack entry.

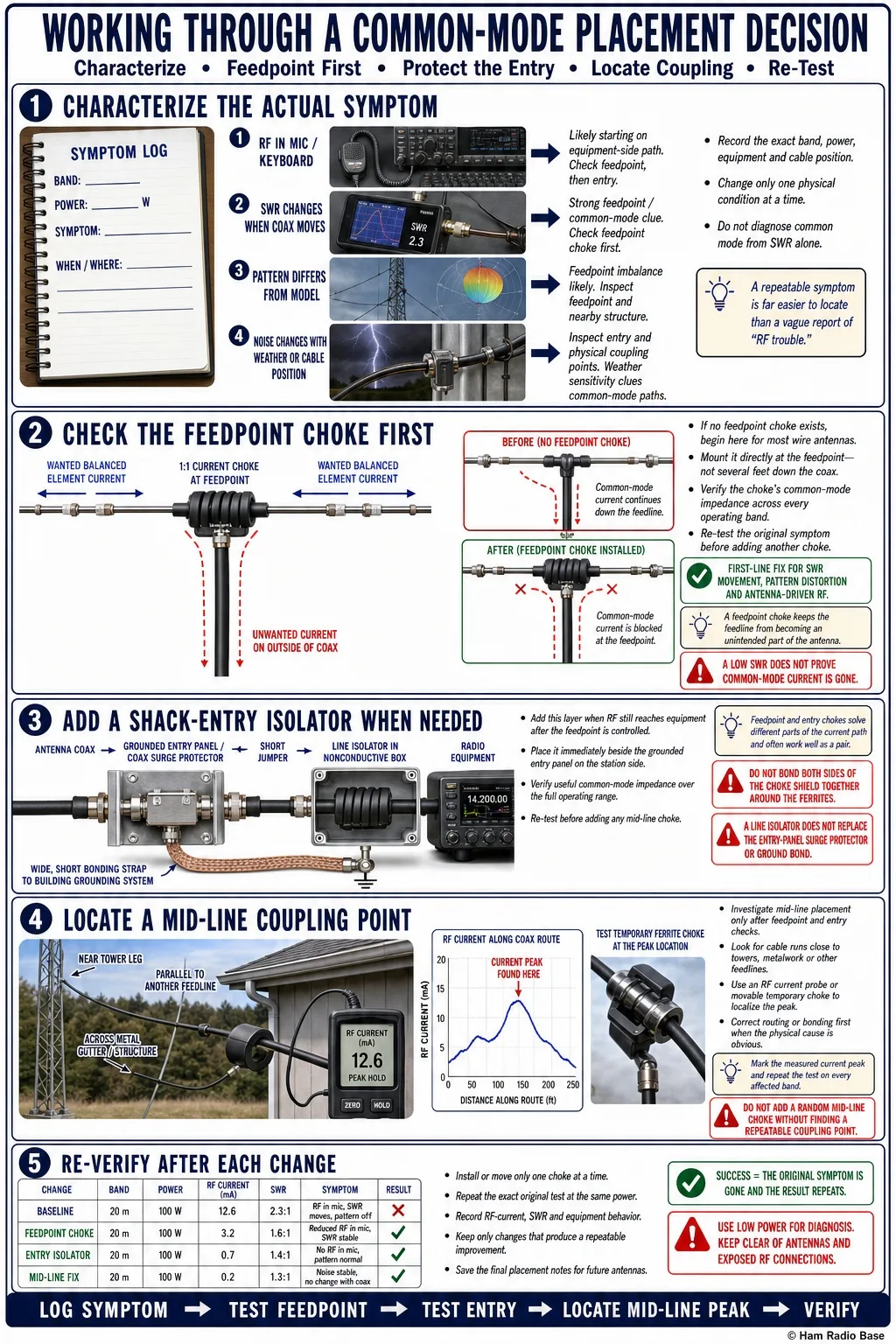

Working Through a Common-Mode Placement Decision
Work through this sequence before building anything — it's faster than building a choke, installing it, and discovering it was in the wrong spot.
Characterize the actual symptom
Write down exactly what's happening: RF in the mic or keyboard, SWR that shifts when the coax is touched or moved, a radiation pattern that doesn't match what modeling predicts, or noise/interference correlated with weather or a specific physical spot on the line. This determines which location is the most likely starting point, per the symptom-to-location guidance above.
Check for an existing feedpoint choke first
If the antenna doesn't already have a feedpoint choke, start there regardless of the specific symptom — it's the single most effective location for most wire antennas and resolves the majority of common-mode complaints on its own. See the 1:1 Current Balun / Choke guide for the build.
Add a shack-entry line isolator if symptoms point to the equipment side
If a feedpoint choke is already in place (or the symptom is specifically RF reaching shack equipment) and the problem persists, add a line isolator at the building entry — see the Line Isolator (Shack-Entry Choke) guide. This defense-in-depth pairing resolves the large majority of remaining cases.
Investigate a mid-line coupling point only if the first two don't fully resolve it
If symptoms persist after both a feedpoint choke and a shack-entry isolator are in place, look for a specific physical coupling point along the run — coax passing close to a tower leg, running parallel to another antenna's feedline, or crossing near a large metal structure. Use a clamp-on RF current probe or a temporary choke you can slide along the line to localize where common-mode current is actually highest.
Re-verify after each addition
Test the actual symptom after installing each choke rather than installing all three preemptively and assuming success — this tells you which location actually mattered for your specific installation, which is valuable if you ever need to replicate the fix on another antenna or diagnose a new problem later.
| Symptom | Most likely cause | Diagnosis | Fix |
|---|---|---|---|
| Installed a choke but the symptom is completely unchanged | Choke placed at the wrong location for that specific symptom | Re-check the symptom-to-location guidance — pattern/SWR-touch symptoms need feedpoint attention, equipment-side RF needs shack-entry attention | Move or add a choke at the location matching the actual symptom rather than the one already tried |
| Symptom improved but didn't fully go away after one choke | Current is being induced at more than one point along the line | Compare symptom severity before and after the first choke — partial improvement suggests a second contributing location | Add the second choke in the feedpoint/shack-entry pairing before investigating a mid-line cause |
| Symptom correlates with weather, ice, or ground moisture | A marginal or borderline coupling point whose effective impedance shifts with ground conditions | Note whether the correlation lines up with rain, snow melt, or seasonal ground conductivity changes | This usually points to a station-grounding or counterpoise issue rather than choke placement alone — address the ground system alongside choke placement |
| Multiple antennas at the station, only one shows the problem | That antenna's coax route differs from the others (closer to the tower, longer run, different feedpoint balance) | Compare the physical routing of the affected antenna's coax against the unaffected ones | Treat that antenna's line individually — a feedpoint choke tuned to its specific bands, plus its own shack-entry isolator |
| Can't identify a specific mid-line coupling point even after testing | The actual cause is at the feedpoint or shack entry, not mid-line at all | Confirm both feedpoint and shack-entry chokes are correctly sized and installed before continuing to search mid-line | Re-verify the existing chokes' common-mode impedance with a NanoVNA rather than assuming a mid-line cause by default |
Do I need a choke at both the feedpoint and the shack entry?
For most installations, yes — the two together form a defense-in-depth pairing that resolves the large majority of common-mode problems. A feedpoint choke alone is the single most effective location, but a shack-entry isolator as a second layer catches whatever the first one doesn't, which matters especially on multiband antennas with varying feedpoint impedance.
Can too many chokes cause a problem?
Not electrically — extra common-mode chokes don't interact badly with each other or with the wanted differential signal. The practical downside is just unnecessary cost and build time if a location genuinely isn't contributing to your symptom, which is why the diagnostic approach in this guide (confirm the actual location before building) is worth the extra few minutes.
How do I find the exact coupling point without expensive test gear?
A NanoVNA measuring common-mode impedance at a few candidate points along the line, or a simple clamp-on RF current indicator moved along the run while transmitting at low power, both work without needing lab-grade equipment. Even without any test gear, correlating the symptom with the physical route (does the coax pass close to the tower, another antenna, or a large metal object) narrows down likely candidates significantly.
Does choke placement matter for receive noise, or just transmit common-mode current?
The same principle helps with received noise pickup as well — a common-mode choke blocks unwanted current flowing on the shield in either direction, so a choke that reduces RF-in-the-shack on transmit often also reduces noise pickup on receive, since both are forms of common-mode current riding the coax shield.
