Choosing the Right RF Connector
PL-259, BNC, and N-type each solve a different combination of frequency range, power handling, weatherproofing, and coupling security — there's no single "best" connector, only the right one for a specific application. This guide compares all three head to head and walks through the decision so you land on the right connector before you start stripping cable, with links to the full installation guide for whichever type fits your project.
Impedance control matters more as frequency rises
PL-259/SO-239 has no controlled dielectric through the connector body, so it introduces a small impedance discontinuity that's negligible at HF (where the physical connector is tiny compared to a wavelength) but grows more significant at VHF and especially UHF. BNC and N-type are both genuinely impedance-controlled connectors that stay clean well beyond HF — BNC into the UHF range and low microwave, N-type further still. If your application lives entirely at HF, this factor barely matters; if it touches VHF/UHF or higher, it's often the deciding factor.
Coupling type: threaded vs. bayonet
- Threaded (PL-259, N-type): more resistant to vibration and sustained mechanical strain, but slower to connect and disconnect — better suited to permanent or semi-permanent connections.
- Bayonet (BNC): connects and disconnects in under a second with a quarter turn, but is less secure under sustained vibration or cable weight — better suited to equipment that gets connected and disconnected often.
Weatherproofing and outdoor durability
All three connector types can be adequately weatherproofed with self-amalgamating tape or heat-shrink at the mated joint, but they don't start from the same baseline. N-type's threaded coupling and (on many designs) built-in compression gasket give it the best inherent resistance to water intrusion and mechanical loosening over years outdoors. PL-259 and BNC both depend more heavily on the additional weatherproofing wrap being done well and maintained over time, since neither has N-type's structural advantages at the connector itself.
Cost and ease of assembly
PL-259 is the cheapest and simplest to assemble with basic tools (a soldering iron), which is a large part of why it remains the ham radio default at HF. BNC crimp connectors need a specific crimp tool but are otherwise quick once you have it. N-type costs more and has the most individual parts to assemble correctly, reflecting its role as the connector chosen when reliability matters more than cost or assembly speed.
| Connector | Coupling Type | Frequency Range | Best For |
|---|---|---|---|
| PL-259 / SO-239 | Bayonet-style threaded coupling ring | HF (not impedance-controlled — avoid above roughly 150-300 MHz) | HF base stations, amplifier connections, general ham gear |
| BNC | Quarter-turn bayonet | HF through UHF and low microwave | Test equipment, handhelds, short/frequently-connected runs |
| N-type | Threaded | HF through microwave | Permanent outdoor feedlines, tower and repeater installations |
| SMA (reference only, no build guide in this series) | Threaded, miniature | HF through microwave | Handheld radios, compact test equipment, small antennas |
What you need to compare and choose for your own project
Side by side: PL-259, BNC, and N-type connectors, showing the size and coupling differences between them.

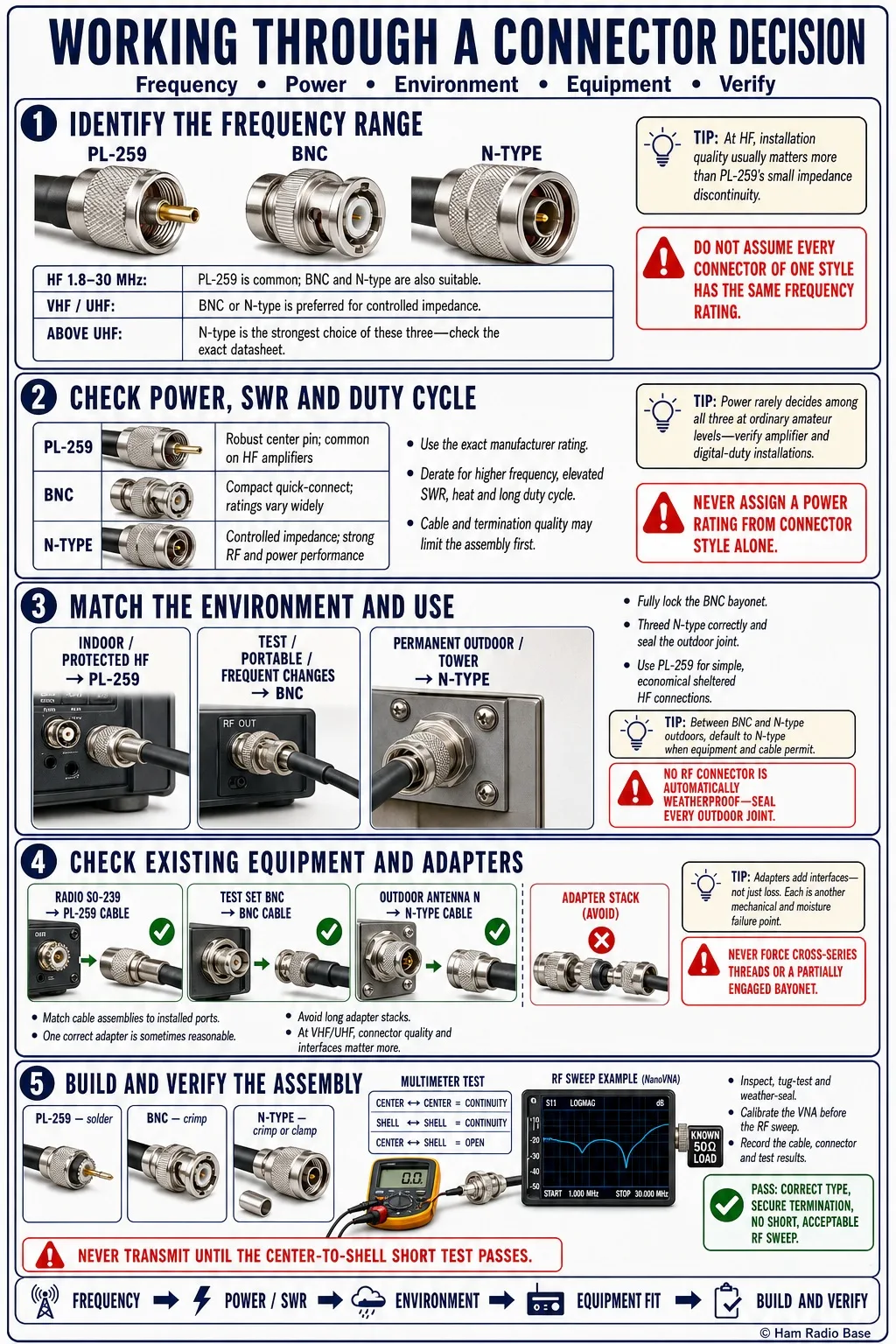

Working Through a Connector Decision
Work through this sequence before buying connectors or stripping any cable — the right choice depends on your application, not on which connector happens to be cheapest or most familiar.
Identify the frequency range of the application
HF-only work (160m-10m) can use any of the three types without a meaningful performance penalty, which is why PL-259 remains the default there. Anything touching VHF, UHF, or higher should use BNC or N-type instead, where the impedance-control advantage becomes real rather than theoretical.
Check the power level
PL-259's large center pin handles substantial power well, which is part of why it remains common on amplifier connections at HF. BNC and N-type both handle typical ham power levels fine as well; power handling is rarely the deciding factor between these three at normal amateur power levels.
Consider the environment and connection frequency
A permanent outdoor connection (tower feedline, antenna feedpoint) benefits most from N-type's threaded coupling and superior weatherproofing baseline. A connection that gets made and broken often (test equipment, a portable setup) benefits most from BNC's fast bayonet lock. An indoor or well-protected HF connection that's rarely disturbed is a reasonable fit for PL-259's simplicity and cost.
Check what's already on your equipment
Matching new cable assemblies to the connectors already on your radios, tuners, and antennas reduces the number of adapters in the signal path — each adapter adds a small amount of loss and one more potential point of failure, so minimizing adapter chains is worth factoring into the decision even when a different connector type would otherwise be marginally preferable.
Build and verify
Once you've settled on a type, follow the matching installation guide — PL-259/SO-239, BNC, or N-type — and verify the finished connector with a multimeter and a NanoVNA before relying on it.
| Symptom | Most likely cause | Diagnosis | Fix |
|---|---|---|---|
| Elevated SWR or measurable loss appears only on VHF/UHF bands, not HF | PL-259 connectors used on a feedline that also carries VHF/UHF traffic | Check whether any PL-259 connectors exist in the signal path for the affected bands | Replace with BNC or N-type connectors for that specific run, per the frequency guidance above |
| Tower or outdoor feedline connector fails within a year or two | A bayonet-coupled connector (PL-259 or BNC) was used where a threaded N-type would have handled vibration and strain better | Inspect the failed connector for signs of loosening, corrosion, or mechanical wear at the coupling | Replace with N-type for that specific outdoor/permanent run going forward |
| Noticeable signal loss with no obvious single cause | Multiple adapters stacked in the signal path, each adding a small amount of loss | Trace the full signal path and count adapters between the radio and the antenna | Rebuild the cable run with connectors matched directly to the equipment on each end, minimizing adapter count |
| Wrong connector purchased for a specific cable size | Didn't check cable compatibility before ordering — this applies within BNC and N-type product lines especially, which are sized per cable diameter | Compare the connector's specified cable compatibility against the actual cable on hand | Return or set aside the mismatched connector and order the correct size — see each type's own installation guide for compatibility tables |
| Uncertain which connector type is already on a piece of used or unlabeled equipment | No documentation available for a surplus or hand-me-down item | Compare the connector's size and coupling mechanism (threaded vs. bayonet, overall diameter) against the comparison table above | Use calipers to measure and cross-reference against connector datasheets if precise identification is needed before ordering a mating cable |
Can I just use PL-259 for everything to keep it simple?
You can at HF without a real performance penalty, but it's a poor choice anywhere the system touches VHF/UHF or above, and its bayonet coupling ring isn't as secure as N-type's threaded coupling for a permanent outdoor run. "Simple" is a fine reason to default to PL-259 at HF, but it stops being the right reason once frequency or outdoor durability requirements change.
Why does my equipment use different connectors on different ports?
Manufacturers pick connectors based on each port's typical use — SMA or BNC on a handheld or test instrument prioritizing compact size and fast connection, N-type on a repeater or commercial-grade antenna port prioritizing outdoor durability, PL-259 on HF radios and amplifiers following ham radio convention. This mixed inventory is normal, not a design inconsistency.
Do adapters between connector types hurt performance?
A single well-made adapter adds only a small, usually negligible amount of loss. The real cost shows up when adapters stack up — several in a row for convenience — which is why matching connectors directly to equipment where practical is worth the extra planning, especially on any run where every dB matters.
What should I standardize on for a home station?
A reasonable practical default: PL-259 for HF-only radio and amplifier connections, N-type for any permanent outdoor feedline run, and BNC (or SMA, where equipment dictates) for test gear and handhelds. Standardizing within each category reduces the adapter count across the station without forcing one connector type into a role it isn't well suited for.
