N-Connector Installation

N-type is the connector of choice for permanent outdoor runs — a threaded, weather-resistant coupling with genuine impedance control well into the microwave range, at the cost of being larger, pricier, and more fiddly to assemble than BNC or PL-259. This guide covers the clamp/compression-style N connector most commonly used on LMR-400 and RG-213 feedline, the assembly order that matters most, and the weatherproofing details that make N-type worth the extra effort at a tower base or antenna feedpoint.

HF-MicrowaveUsable Frequency Range
ThreadedCoupling Type
LMR-400 / RG-213Common Cable Sizes
Best Weatherproofingof the Three Types

Why N-type is the outdoor/permanent-install standard

N-type is a true impedance-controlled connector, like BNC, but built larger and with a threaded coupling instead of a bayonet lock. That threaded coupling resists vibration, wind-induced cable flex, and the sustained pull of a long feedline's own weight far better than a bayonet connector does over months or years outdoors — exactly the conditions a tower-mounted antenna feedline or repeater site connection has to survive. Combined with genuine impedance control that stays clean well into the microwave range, this is why N-type shows up as the standard on commercial and repeater-grade installations even though it costs more and takes longer to assemble than the alternatives.

Clamp/compression vs. crimp vs. solder construction

  • Clamp/compression: the most common style for field-terminated large coax like LMR-400 — a compression nut and gland squeeze down around the braid and jacket, often without needing a dedicated crimp tool, and typically include a weatherproofing gasket built into the design.
  • Crimp: similar in principle to a crimp BNC, using a dedicated crimp tool and correctly sized dies — common on RG-213 and similar braided coax.
  • Solder: the fussiest of the three given the connector's larger size and thermal mass, and less commonly used for field installs today.

This guide covers the clamp/compression style, since it's the most common choice for the LMR-400-class cable N-connectors are most often paired with, and needs the least specialized tooling to do well.

Built-in weatherproofing advantage

Many N-connector designs include an O-ring or gasket at the cable entry as part of the compression mechanism itself, giving a meaningfully better baseline seal against water intrusion than a BNC or PL-259 straight out of the bag. This doesn't eliminate the need for additional weatherproofing (self-amalgamating tape over the mated connector pair is still standard practice at an outdoor connection), but it does mean the connector itself is less likely to be the weak point if that additional wrap is ever damaged or incomplete.

Size and cost tradeoff

N-type connectors are physically larger and generally cost more than an equivalent PL-259 or BNC, and the clamp/compression assembly process has more individual parts to keep track of and assemble in the correct order. For a short indoor jumper or bench test lead, that extra size and cost usually isn't worth it — BNC or PL-259 (see the Choosing the Right RF Connector guide) covers those cases better. For anything permanent and outdoor-exposed, the tradeoff runs the other way.

Construction Type Tooling Needed Typical Cable Notes
Clamp / compressionWrenches (often included or standard sizes), no crimp toolLMR-400, LMR-600, similar low-loss foam-dielectric cableMost common field-terminated style; often includes a built-in weatherproofing gasket
CrimpCrimp tool with N-specific diesRG-213, RG-8, similar braided coaxConsistent results once you have the right tool; same principle as crimp BNC
SolderHigh-wattage soldering ironRG-213, RG-8Fussiest option given the connector's size; less common for field installs today

Materials for a clamp/compression N connector

🔌N-type clamp/compression connector, sized for your cable (e.g. LMR-400)Confirm the connector's specified cable compatibility before buying — N connectors are sized per cable diameter, not universal
🔧Two wrenches sized to the connector's nut and gland (often included with the connector)Used to tighten the compression assembly without twisting the cable itself
🔪Coax stripping tool matched to your cable diameterLow-loss foam-dielectric cable like LMR-400 needs a stripper set specifically for that cable, not a generic RG-58-style tool
✂️Flush cuttersFor trimming braid and center conductor cleanly
🎗️Self-amalgamating tapeFor wrapping the mated connector pair even with a built-in gasket — standard practice at any outdoor RF connection
📟Digital multimeterFor a continuity/short check after assembly
📻NanoVNAFor confirming return loss through the finished connector before it goes up on a tower or feedpoint

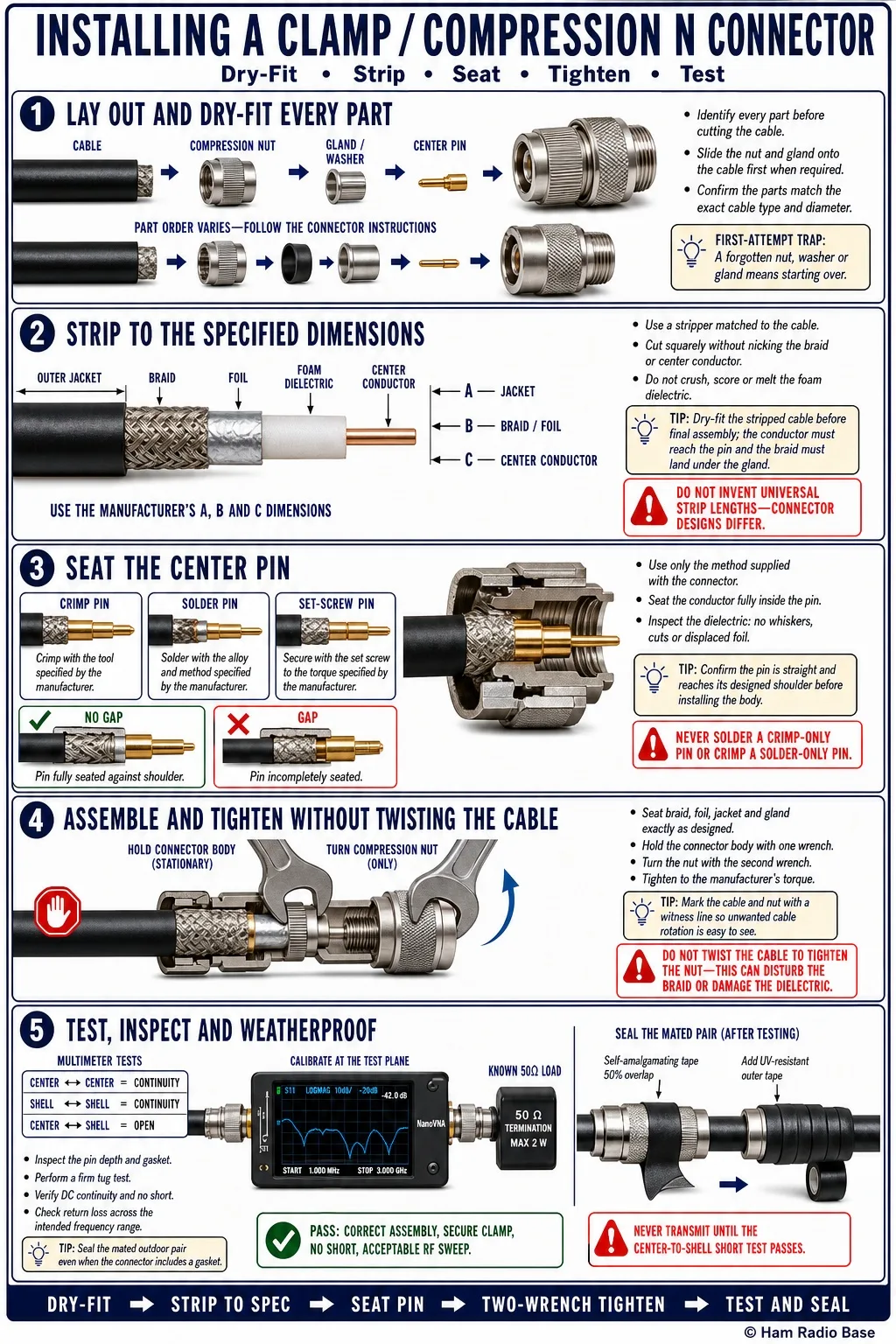

Clamp-type N connector partially assembled on LMR-400 coax showing the compression nut, gland, and center pin before final tightening

A clamp-type N connector on LMR-400 coax, with the compression nut and gland visible before final assembly.

Installing a Clamp/Compression N Connector

Dry-fit the full stack of parts in order before stripping the cable — clamp N connectors have more individual pieces than a PL-259 or BNC, and getting the order wrong is the most common first-attempt mistake.

1

Lay out and dry-fit all connector parts in order

Before cutting anything, lay out the compression nut, gland/washer, and connector body in the order they'll go onto the cable, and slide the nut and gland onto the cable first if your specific connector design calls for it — check the connector's included instructions, since exact part order varies somewhat between manufacturers.

Same category of mistake as a PL-259's coupling ring: a clamp N connector has more parts than a PL-259, and forgetting to slide one onto the cable before the body is attached means starting over.
2

Strip the cable to the connector's specified dimensions

Strip the jacket, fold or trim the braid, and expose the center conductor to the exact lengths specified in the connector's instructions — low-loss cable like LMR-400 has a foam dielectric that's easy to damage with an overly aggressive strip, so use a stripper tool matched to that cable rather than a generic one.

Tip: Dry-fit the stripped cable end into the connector body before final assembly to confirm the center conductor reaches the pin fully and the braid lands where the gland/clamp mechanism expects it.
3

Seat the center pin

Fit the center pin over the exposed center conductor per the connector's design (some clamp N connectors use a crimp pin, others a solder or set-screw pin) and confirm it's fully seated with no visible gap before proceeding.

4

Assemble and tighten the compression mechanism

Bring the connector body, gland, and cable together so the braid and jacket seat correctly against the compression gland, then tighten the nut with two wrenches — one holding the connector body steady, the other turning the nut — so the cable itself doesn't twist during tightening.

Don't twist the cable to tighten the nut: holding the connector body with a second wrench prevents the compression gland from twisting against the cable jacket, which can loosen the braid's seating or damage the dielectric underneath.
5

Test and weatherproof

Check continuity and confirm no short with a multimeter, then verify return loss with a NanoVNA before the connector goes into permanent service. At an outdoor connection, wrap the mated connector pair with self-amalgamating tape even if the connector has a built-in gasket — this is standard defense-in-depth practice, not a sign the connector itself is inadequate.

Symptom Most likely cause Diagnosis Fix
A compression part is missing after the connector is already assembledForgot to slide the nut or gland onto the cable in the correct order before final assemblyCompare your assembled connector against the manufacturer's exploded diagramDisassemble and start over with all parts dry-fit in the correct order first
Connector feels loose or the cable can be pulled slightly from the connector bodyCompression nut wasn't tightened enough, or the cable twisted during tightening and the braid isn't seated evenlyCheck the nut's tightness against the manufacturer's torque or turns specification if providedRe-tighten using two wrenches to prevent cable twist, or disassemble and redo if the braid has visibly shifted
Water intrusion or corrosion found at the connector despite a built-in gasketGasket wasn't seated correctly during assembly, or no additional weatherproofing tape was added over the mated pairInspect the gasket's seating and check whether self-amalgamating tape was applied at the mated connectionRe-seat or replace the gasket, and always add self-amalgamating tape over the mated pair for outdoor installations
Center pin shows no continuityCenter conductor wasn't fully seated in the pin, or was damaged during strippingInspect the pin tip for a visible, intact center conductorRe-strip carefully with a properly sized tool for your cable and reassemble
Dielectric appears crushed or deformed near the strip pointStripping tool too aggressive for the cable's foam dielectric, or excessive force used during strippingInspect the exposed dielectric for visible deformation compared to the cable's undamaged sectionsRe-strip further back past the damaged section using a stripper tool matched to your specific cable type

Why use N-type instead of PL-259 for a tower feedline?

N-type's threaded coupling resists vibration and cable-weight strain far better than a PL-259's friction-fit coupling ring over years outdoors, and its genuine impedance control keeps performance clean even if the antenna system extends into VHF/UHF use. For a permanent outdoor run, especially one that won't be disconnected often, N-type's extra assembly effort pays off in reliability.

Do I still need to weatherproof an N connector if it has a built-in gasket?

Yes — the built-in gasket is a real advantage over BNC or PL-259, but self-amalgamating tape over the mated connector pair remains standard practice for any outdoor RF connection. Treat the gasket as a strong first line of defense, not a substitute for the usual weatherproofing wrap.

Can I use a crimp N connector on LMR-400?

Some crimp N connectors are made for LMR-400, but clamp/compression is the more common and more forgiving style for that cable's foam dielectric construction, since the compression method doesn't require crushing the cable with a crimp die. Check your specific connector's cable compatibility before assuming either style works.

Is N-type overkill for a short indoor jumper?

Usually, yes — the extra size, cost, and assembly complexity aren't worth it for a short run that isn't exposed to weather or sustained mechanical strain. BNC or PL-259 (see the Choosing the Right RF Connector guide) are better fits for that use case.
