PL-259 / SO-239 Connector Installation
The PL-259 (plug) and SO-239 (chassis-mount jack) are the de facto standard connectors on HF ham gear — cheap, rugged, and simple enough to solder in the field, but with a well-earned reputation for cold joints and forgotten parts on a first attempt. This guide covers fitting a solder-type PL-259 to RG-8/RG-213-size coax, using a reducer for thinner cable, and the specific mistakes that cause most first-time PL-259 failures.
Why this connector dominates HF ham gear
The PL-259/SO-239 pair (part of the "UHF connector" family, a naming holdover from decades ago that has nothing to do with actual UHF suitability) became the ham radio default because it's inexpensive, mechanically rugged, easy to solder in the field without special tooling, and handles substantial power thanks to its comparatively large center pin. Nearly every HF radio, amplifier, and antenna tuner still ships with SO-239 jacks for exactly these reasons, which is why this connector remains worth knowing how to install well even with newer alternatives available.
The real limitation: it isn't an impedance-controlled connector
Unlike BNC or N-type connectors, the PL-259/SO-239 design has no consistent dielectric filling the gap between the plug and jack shells, which means its characteristic impedance isn't held to 50Ω through the connector body the way a true RF connector's is. At HF, the physical size of that discontinuity is tiny compared to the signal's wavelength, so the effect is negligible. As frequency rises into VHF and especially UHF, the same physical discontinuity becomes a much larger fraction of a wavelength and starts to matter — this is why PL-259 is the right choice at HF but a poor one for VHF/UHF work, where BNC or N-type connectors are the better choice. See the Choosing the Right RF Connector guide for the full frequency-range comparison across connector types.
Reducers for smaller cable
- No reducer needed: RG-8, RG-213, and similarly sized coax fit a standard PL-259 body directly.
- UG-176 reducer: steps a PL-259 down to fit RG-8X and similar mid-size coax.
- UG-175 reducer: steps a PL-259 down to fit RG-58 and similarly thin coax.
Using the wrong reducer (or skipping a needed one) is a common source of a loose, unreliable center pin connection — match the reducer to your actual cable size before starting, not after the first attempt doesn't sit right.
Solder-type vs. crimp/compression PL-259
The traditional solder-on PL-259 remains the most common and cheapest version, and is what this guide covers in detail. Crimp and compression versions exist and can give more consistent results with less skill dependency, but require a specific crimp tool sized for that connector line and aren't universally interchangeable between brands the way solder-type parts are — if you already own the right crimp tool for a specific product line, it's a reasonable alternative, but isn't assumed here.
| Cable Type | Reducer Needed | Typical Use | Notes |
|---|---|---|---|
| RG-213 / RG-8 | None | Base station feedlines, amplifier jumpers | Native fit for a standard PL-259 body |
| RG-8X | UG-176 | Lighter-duty feedlines, mobile installs | Thinner center conductor needs the reducer's smaller collar |
| RG-58 | UG-175 | Short jumpers, patch cables, QRP use | Smallest common cable size still fitted to a PL-259 |
Materials for a solder-type PL-259
A completed PL-259 on RG-213 coax, with the center pin soldered and the braid connected through the shell's solder holes.
Installing a PL-259

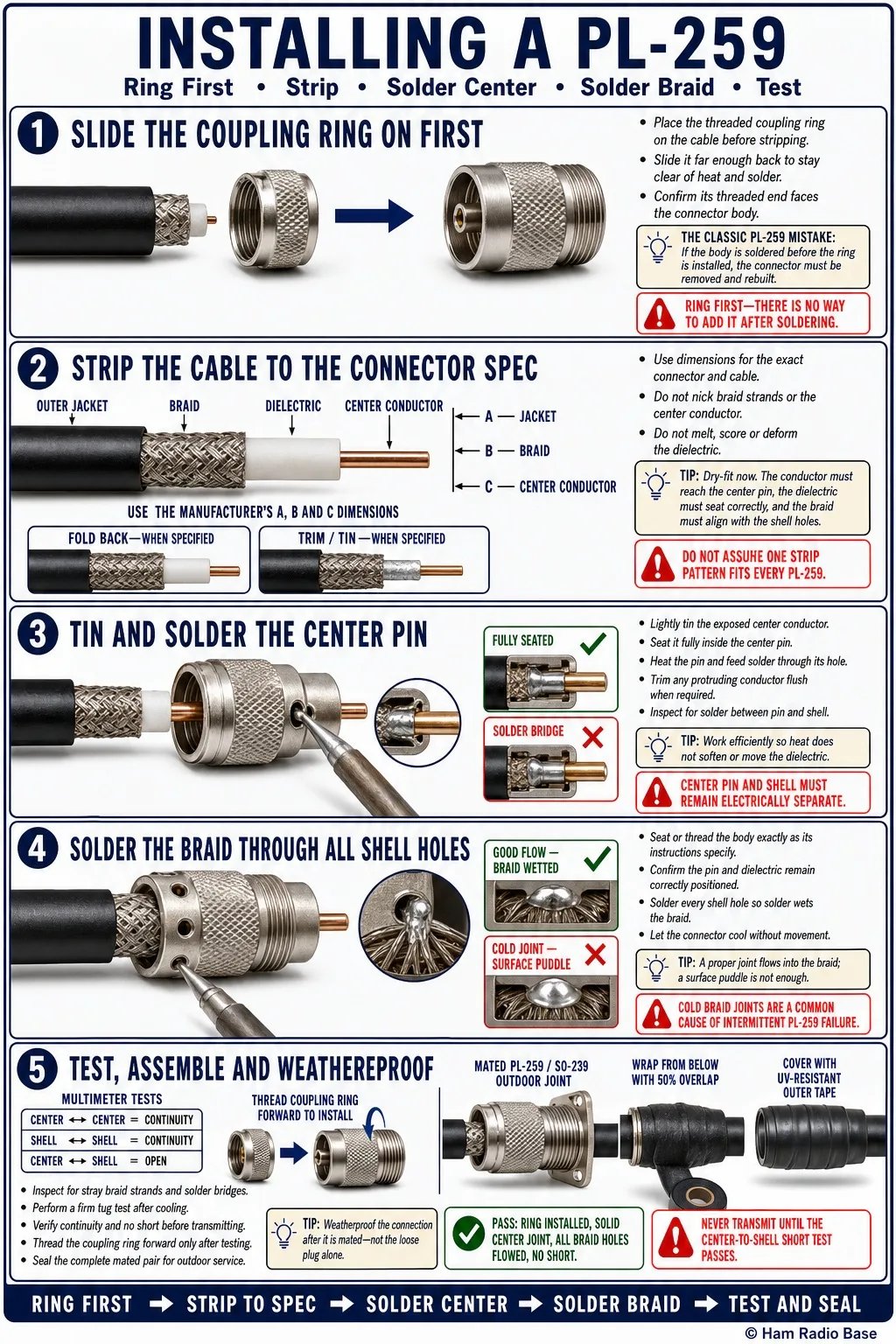

Read all five steps before starting — step 1 exists specifically because it's the single most common mistake on a first attempt.
Slide the coupling ring onto the cable first
Before doing anything else, slide the PL-259's coupling ring (the threaded shell) onto the coax, well back from the end. This has to go on before the connector body is soldered in place — there is no way to add it afterward without desoldering everything.
Strip the cable to length
Strip the outer jacket back to expose enough braid to fold back over the connector body, trim the braid to the length specified for your specific connector (check the package insert, since exact dimensions vary slightly by manufacturer), then strip the dielectric to expose the center conductor for the pin.
Tin and solder the center pin
Tin the exposed center conductor, slide the center pin over it, and solder through the pin's small hole so solder flows and bonds the conductor inside — don't just rely on a press-fit. Trim any excess center conductor flush with the tip of the pin if it protrudes, and check for solder bridging between the pin and the surrounding shell, which would short the connector.
Solder the braid through the shell holes
Thread the connector body over the assembly so the pin seats correctly and the folded-back braid lies against the shell's four solder holes, then solder through each hole so the braid bonds to the shell, not just touches it. This is the step most prone to cold joints — use enough heat to get the solder to flow into and around the braid strands at each hole, not just puddle on the surface.
Test, thread the coupling ring, and weatherproof
Check continuity center-pin-to-center-pin and confirm no continuity (no short) between the center pin and the shell with a multimeter before putting the connector into service. Thread the coupling ring forward over the finished connector body, and if this connection is going outdoors, wrap it with self-amalgamating tape or heat-shrink to keep water out of the joint.
| Symptom | Most likely cause | Diagnosis | Fix |
|---|---|---|---|
| Coupling ring is missing after the connector is fully soldered | Forgot to slide the ring onto the cable before soldering (the classic PL-259 mistake) | Check the cable behind the connector for the ring — if it isn't there, it was never installed | Cut the connector off and start over with the ring on the cable first; there's no way to add it after the fact |
| Intermittent connection or SWR that changes when the cable is flexed | Cold solder joint at one or more braid holes | Inspect each of the four shell holes for a dull, grainy, or incomplete solder fill rather than a smooth, shiny flow | Reheat and re-flow each questionable joint with adequate heat, adding fresh solder if needed |
| Multimeter shows a short between the center pin and the shell | Solder bridged from the center pin to the surrounding connector body, or a stray strand of braid touching the center pin | Visually inspect the pin-to-shell gap for bridging solder or a loose strand | Clean out the bridge with a hobby knife or desoldering braid, and re-verify with the multimeter before use |
| Center pin is loose or the cable pulls out under light tension | Wrong or missing reducer for the cable size, or the center conductor wasn't fully seated before soldering | Compare your cable size against the reducer reference table above | Redo the connector with the correct reducer, and dry-fit before soldering next time |
| SWR is fine when new but rises after months outdoors | Water intrusion into an unsealed connector, causing corrosion at the braid or center pin | Disassemble or inspect the joint for green/blue corrosion (copper oxidation) or visible moisture | Clean and re-solder as needed, then properly weatherproof with self-amalgamating tape or heat-shrink this time |
Can I use PL-259 connectors for VHF/UHF work?
They'll physically work and pass signal, but the connector's lack of controlled impedance introduces a small mismatch that matters more as frequency rises. For 2m/70cm and above, a BNC or N-type connector is the better choice — see the Choosing the Right RF Connector guide for the full comparison.
Do I really need a reducer for RG-8X or RG-58?
Yes — without the correct reducer, the smaller cable's center conductor and dielectric won't seat properly in a PL-259 sized for RG-8/RG-213, leading to a loose or unreliable center pin connection. Match the reducer to your cable size from the table above before starting.
Should I use solder-type or crimp PL-259 connectors?
Solder-type is the traditional, most widely available, and cheapest option, and is what this guide covers. Crimp and compression versions can be more consistent if you already have the specific crimp tool for that product line, but aren't a drop-in requirement — either type works well when assembled correctly.
Can a PL-259 handle high power?
Yes — its comparatively large center pin gives it decent power handling, which is part of why it remains common on amplifier connections at HF. Power handling issues with PL-259 connectors are almost always a build-quality problem (a cold joint or a loose pin), not an inherent limitation of the connector itself at HF.
