Sloper Antenna
A sloper takes an ordinary half-wave dipole and hangs it at an angle from near the top of a tower or tall mast down to a low anchor point, instead of stretching it flat and level. That change in geometry is the whole antenna: the asymmetric height profile pulls the radiation pattern's peak toward the down-slope direction and lowers the takeoff angle on that side, which is exactly what low-band DXers on 80m and 40m are after. This guide builds the "full sloper" — a standard insulated half-wave dipole fed near the top of your support — and explains the tower-dependent "half-sloper" variant as an advanced option.
Same wire, different geometry, different pattern
Electrically, a full sloper is just a half-wave dipole — same resonant length formula as any other. What changes is that one point of the antenna sits much higher than the rest, instead of both ends being roughly level. That height asymmetry breaks the symmetric radiation pattern of a level dipole and skews it toward the low end of the slope, along with pulling the peak radiation angle lower — both effects that favor DX on the down-slope side.
Sloper (same length, angled): skewed pattern favoring the down-slope direction, lower takeoff angle that side
Full sloper vs. half-sloper
This guide builds the full sloper: a complete, insulated half-wave dipole fed on a standoff arm near the tower top, electrically independent of the tower itself. The half-sloper is a different, more advanced design — a single quarter-wave wire fed directly at a grounded metal tower, using the tower itself as the missing quarter-wave counterpoise. Half-slopers can work very well, but performance depends heavily on the tower's own resonant behavior, which varies station to station.
- Full sloper (this guide): standard dipole, standoff-fed, predictable behavior independent of the tower.
- Half-sloper (advanced): quarter-wave wire, tower-dependent, requires empirical tuning against your specific tower.
Why low bands specifically
The lower radiation angle a sloper provides matters most on 80m and 40m, where a plain horizontal dipole at a typical amateur mast height often radiates its peak energy too high for good DX and favors short-skip domestic contacts instead. A sloper's angled geometry helps push more of that energy out at a lower, DX-friendlier angle on the favored side, which is why the design became popular with low-band DX operators, including well-known low-band writers like Bill Orr, W6SAI.
What a sloper doesn't do
A sloper isn't a beam — there's no true forward gain over a dipole in the free-space sense, and the improvement on the favored side comes with a real tradeoff of reduced performance toward the high end of the slope. It's a directional reshaping of an ordinary dipole's pattern, not a gain antenna, and should be evaluated against that expectation.
Installation options
- Tower-fed full sloper: the most common install — standoff arm near the top of an existing tower, wire sloping down to a yard anchor point.
- Tall mast-fed full sloper: works the same way from a sufficiently tall guyed mast when a tower isn't available, though overall performance scales with how much height the support actually offers.
- Multiple slopers for multiple directions: some stations run two or more slopers off the same tower at different compass headings, switched at the shack, to cover more than one DX direction without physically re-anchoring the wire.
| Band | Design freq (MHz) | Total wire length | Notes |
|---|---|---|---|
| 80m | 3.75 | ~124.8 ft (38.0 m) | Standard half-wave length; most common sloper band |
| 40m | 7.15 | ~65.5 ft (19.9 m) | Second most common sloper band |
| Slope angle | — | 30-45° from vertical | Steeper slope increases the directional effect; shallower is closer to a level dipole |
| Feed height (top) | — | As high as the support allows | Performance scales with how much of the tower/mast height the antenna actually uses |
Sloper Antenna Dimension Calculator
Materials for Sloper Antenna

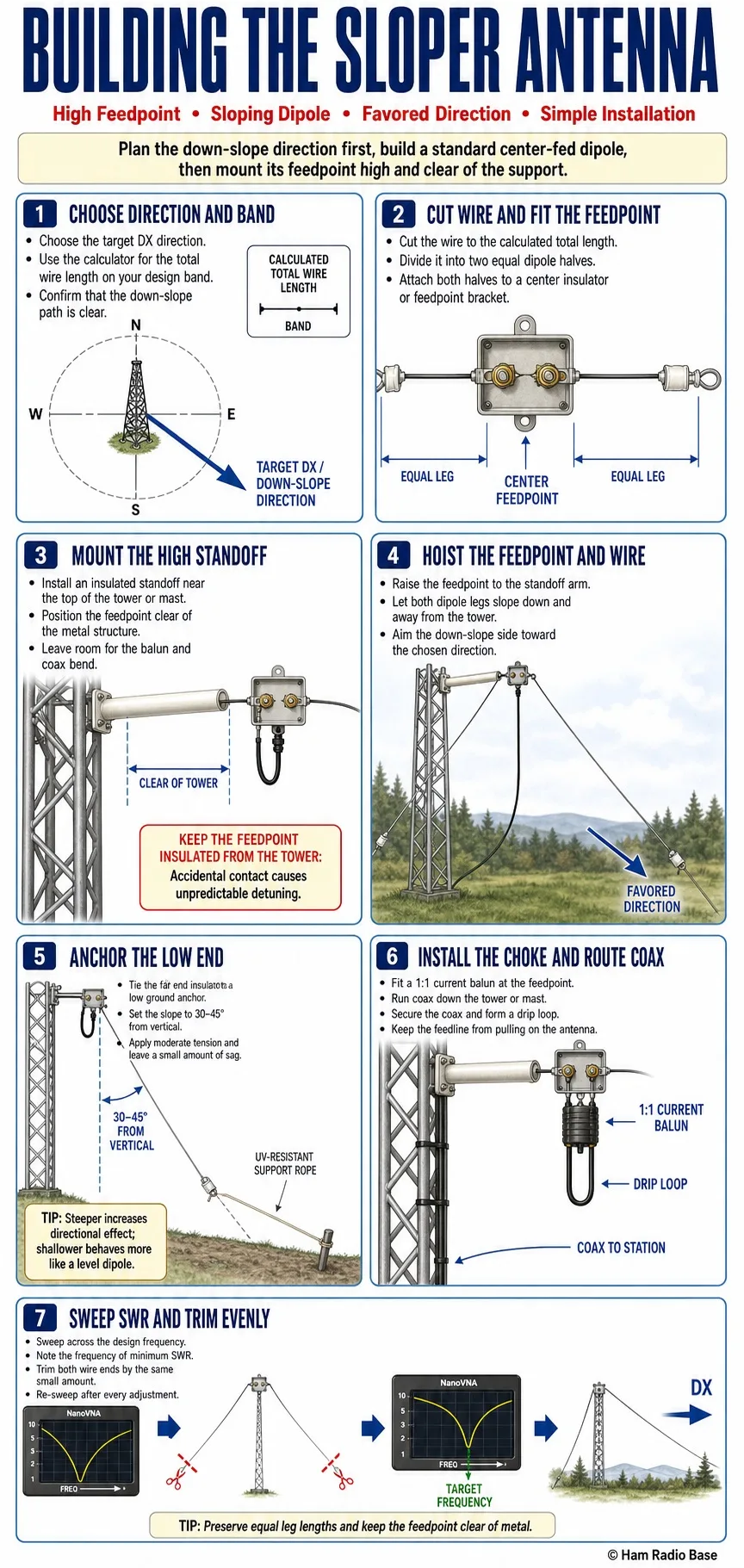

Building the Sloper Antenna
This build is a standard dipole build with two differences: the feedpoint mounts near the top of a tall support, and only one end is anchored low — plan your down-slope direction before you start.
Choose your target DX direction and design band
Decide which direction you want the sloper's favored side to point, and use the calculator above to get the total wire length for your band.
Cut the wire and install the center feedpoint
Cut the wire to length and attach both halves to a center insulator/feedpoint bracket, same as a standard dipole build.
Mount the standoff arm near the top of the tower/mast
Install an insulated standoff arm as high as practical on your support, positioned so the feedpoint sits clear of the tower structure itself.
Hoist the feedpoint and let the wire slope down
Raise the feedpoint to the standoff arm, allowing both dipole legs to slope down and away from the tower toward your chosen direction.
Anchor the low end
Tie off the far end insulator to a low ground anchor, keeping the slope angle in the 30-45° range from vertical.
Install the choke balun and route coax
Install a 1:1 current balun at the feedpoint and run coax down the tower/mast to your station, securing it along the structure.
Sweep and trim
Sweep SWR at your design frequency and trim both wire ends evenly to bring the resonant dip to your target frequency.
| Symptom | Most likely cause | Diagnosis | Fix |
|---|---|---|---|
| No noticeable directional benefit | Shallow slope angle, or the feedpoint isn't meaningfully higher than the low end | Check the actual slope angle and feed height against the 30-45° target | Increase the slope angle or raise the feedpoint; a shallow slope behaves close to a level dipole, which is expected |
| SWR is affected by nearby tower structure | Standoff arm isn't actually holding the feedpoint clear of the tower or guy wires | Check for proximity or contact between the feedpoint/wire and the tower | Reposition the standoff arm for real clearance from the tower and its guys |
| Performance seems inconsistent with expectations | Comparing against an idealized gain figure rather than a real dipole baseline | Compare results against a level dipole at the same feed height, in the favored direction | Not a fault — this is a directional reshaping of a dipole pattern, not a gain antenna |
Is a sloper better than a plain dipole?
In the favored down-slope direction, generally yes for DX due to the lower radiation angle — but it trades away performance in the opposite direction, unlike a symmetric dipole.
Do I need a tower to build this?
You need some tall support — a tower is common, but a sufficiently tall guyed mast works for the full sloper in this guide, which doesn't rely on the tower electrically.
What's the difference from a half-sloper?
This full sloper is a complete, standoff-fed dipole independent of the tower. A half-sloper is a shorter quarter-wave wire fed directly at a grounded metal tower, using the tower itself as the counterpoise — a more advanced, tower-dependent variant.
What slope angle should I use?
30-45 degrees from vertical is the commonly used range — steeper increases the directional effect, shallower behaves more like a level dipole.
Can I use this on bands other than 80m/40m?
Yes, the same geometry works on any band, though the low-angle DX benefit is most valuable on the lower bands where a level dipole's takeoff angle tends to run higher than ideal.
Can I run more than one sloper off the same support?
Yes — stations often run several slopers at different headings off one tower, switched at the shack, to cover more than one favored DX direction.
