Build a Tactical/Military-Surplus-Style Whip
This design belongs in the same batch as this site's other low-visibility antennas, but for a different reason — it's not about hiding an antenna from an HOA, it's about a rugged, quick-deploy whip that looks unremarkable rather than like dedicated ham gear, styled after the sectioned, matte-finish whips used with military-surplus manpack radios. Built around a ground-spike counterpoise instead of buried or strung radials, it sets up and tears down in minutes for backpack, go-bag, and vehicle-external portable use. This guide covers the complete build from element and loading-coil sizing through the ground spike counterpoise and tuning.
A Different Kind of "Low Profile"
Every other design in this HOA/stealth batch is about making an antenna invisible at a fixed home installation. This one solves a different problem: a field antenna that doesn't look like a shiny commercial ham product when set up in a public or shared space — a park, a trailhead, a vehicle pulled off a road — because it's styled after the sectioned, subdued-finish whips issued with mil-surplus manpack radios. The tradeoff for that low profile and rapid setup is the same one every loaded whip makes: less efficient than a full-size element of the same band.
The Ground Spike Counterpoise
Instead of a buried radial field or a large above-ground radial spread, this design pairs the whip with a handful of short counterpoise wires laid out from a single ground spike driven into the earth at the operating site — the same rapid-deployment logic used by manpack field antennas, trading some efficiency for a setup that takes minutes rather than an afternoon.
- Ground spike: a simple metal stake driven a foot or so into the ground, providing the counterpoise's electrical return point.
- Counterpoise wires: 4-8 short radial wires (a fraction of the main element's length is fine) laid out on the ground surface from the spike in different directions.
- Efficiency tradeoff: this ground system is meaningfully less effective than a permanent buried radial field, consistent with the whole design's priority on speed and portability over maximum performance.
Sectioned Construction for Transport
A telescoping or joint-sectioned fiberglass-over-wire whip collapses to a fraction of its extended length for backpack carry, the same general construction style as many commercial tactical antennas. Matte black or olive drab finish and simple, unshiny hardware keep the visual profile low without any attempt at literal concealment.
Base-Loading Coil Sizing
Given the short practical whip length for backpack transport, most HF use of this design relies on a base-loading coil, using the same transmission-line-stub approximation as this site's other loaded mobile whips.
| Band | Full quarter-wave reference (ft) | Whip above coil (ft) | Notes |
|---|---|---|---|
| 40m (7.15 MHz) | 32.7 ft | 8 ft | Heaviest loading required — narrowest bandwidth of this table |
| 20m (14.15 MHz) | 16.5 ft | 8 ft | A common, practical band for this design |
| 17m (18.1 MHz) | 12.9 ft | 8 ft | |
| 15m (21.2 MHz) | 11.0 ft | 8 ft | Approaching a nearly full-size whip at this length |
Tactical Whip Coil Calculator
Materials for a complete tactical whip build
Building the Tactical Whip

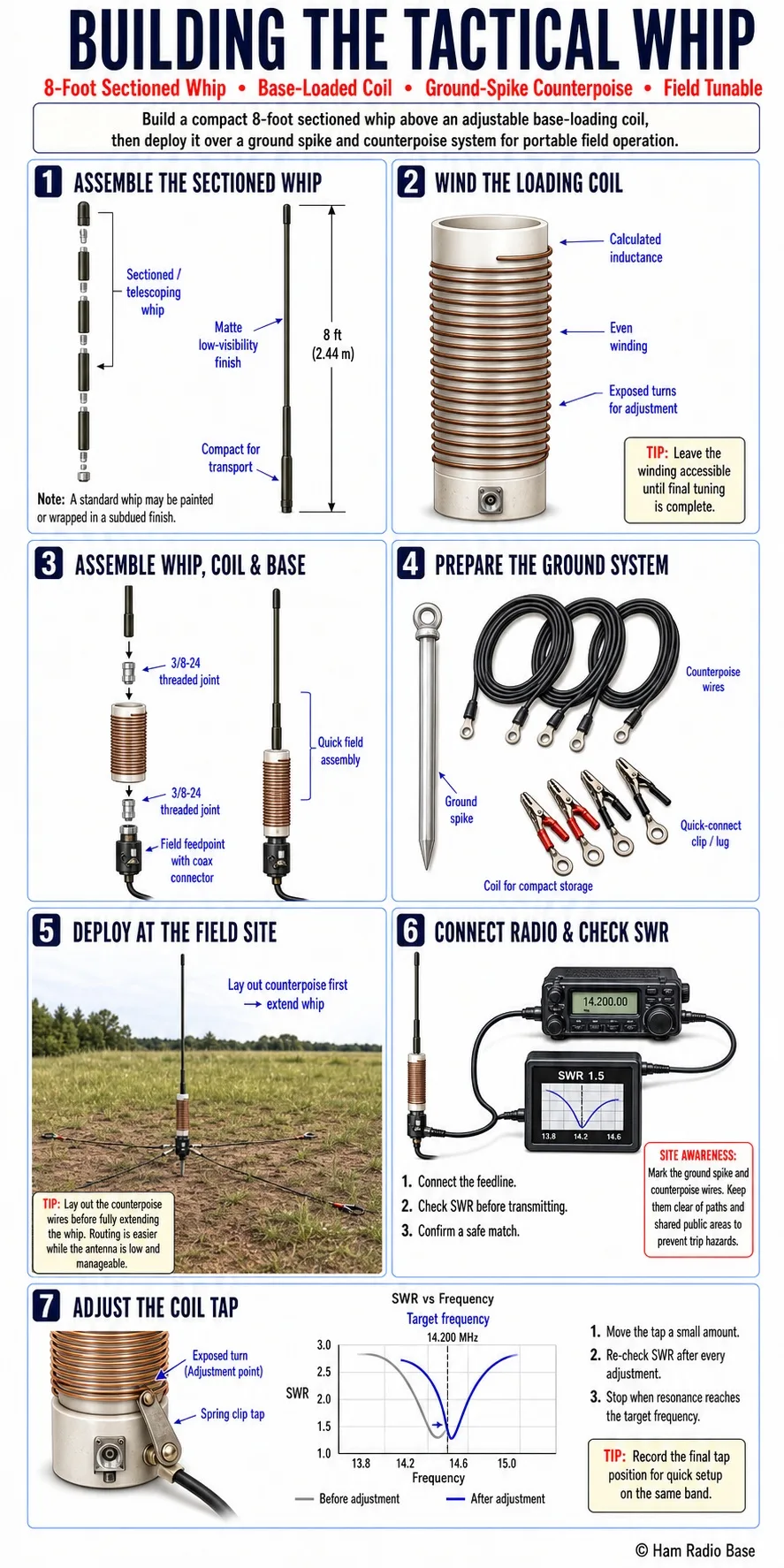

This build creates an 8-foot sectioned whip over a base-loading coil, deployed with a ground spike counterpoise.
Source or Assemble the Sectioned Whip
Source a sectioned or telescoping fiberglass-over-wire whip in a matte, low-visibility finish, or paint/wrap a standard whip to match if a subdued finish isn't available off the shelf.
Wind the Loading Coil
Wind the loading coil on the PVC or fiberglass form to the inductance estimated by the calculator, leaving turns exposed for fine adjustment.
Assemble Whip, Coil, and Base
Connect the whip, loading coil, and base feedpoint connector with 3/8-24 threaded joints for a quick field assembly and disassembly.
Prepare the Ground Spike and Counterpoise Wires
Terminate one end of each counterpoise wire with an alligator clip or lug for quick-connect to the ground spike, coiling the wires for compact storage.
Deploy at the Field Site
Drive the ground spike into the earth, connect and lay out the counterpoise wires in different directions, and mount the assembled whip to the spike or a nearby support.
Connect the Radio and Check SWR
Connect your portable radio and check SWR with the NanoVNA before transmitting.
Adjust the Coil Tap for Resonance
If your coil has an adjustable tap, move it to bring resonance onto your target frequency, re-checking SWR after each adjustment, the same process as this site's other loaded mobile whips.
| Symptom | Most likely cause | Diagnosis | Fix |
|---|---|---|---|
| High SWR everywhere | Poor ground spike contact, or a wiring fault | Check spike depth and soil contact, and continuity through the whip/coil/base assembly | Drive the spike deeper or into more conductive soil; re-check all connections |
| Weak signal reports despite acceptable SWR | Normal expected reduction from the compact ground system | Compare against a home station with a full radial system on the same band | Not necessarily a fault — this is the accepted tradeoff for rapid field deployment |
| Resonance won't settle on the target frequency | Coil tap position or turns count off from what's needed for this whip length | Compare current tap position against the calculator's estimate | Adjust the tap in small steps, re-checking SWR after each move |
| Sections loosen or whip sags in wind | Worn telescoping joints, or insufficient guying at the deployed height | Check joint tightness and consider added support in windy conditions | Tighten or replace worn sections; add a light guy line if needed |
| Counterpoise wires tangle or take too long to deploy | Wires not pre-coiled or clearly separated for quick layout | Time your setup and identify where the delay occurs | Store each wire on its own small winder or reel for faster deployment |
Is this actually a stealth antenna like the others in this batch?
Not in the same sense — the other three designs in this batch are built to be invisible at a fixed home installation. This one is about a rugged, fast-deploying, unremarkable-looking whip for field and portable use, where the goal is not drawing attention rather than being literally hidden.
How does the ground spike counterpoise compare to buried radials?
It's meaningfully less efficient than a proper buried or extensive radial system, the tradeoff made deliberately in exchange for a setup that takes minutes instead of an afternoon of trenching.
Can I use this on VHF instead of HF?
Yes — for 2m or 70cm, skip the loading coil entirely and use a simple full-length quarter-wave whip section instead, following the same short quarter-wave dimensions as this site's VHF ground plane designs.
What finish should I use for a low visual profile?
Matte black, olive drab, or coyote-tan finishes on the whip sections and hardware keep the antenna from standing out or reflecting light, consistent with the general mil-surplus styling this design is based on.
How many counterpoise wires do I actually need?
4 wires is a reasonable minimum for a workable match; 8 improves efficiency further while still deploying quickly. This is the same "more radials generally help" principle as any other vertical, just applied at a much smaller, faster-deploying scale.
Can I make the whip fully self-supporting without a separate mount?
A ground spike with the whip threaded directly on top is self-supporting in calm conditions; add a light guy line or two in windy conditions to prevent excessive sway or tipping.
