Coil-and-Capacitor Trap Construction
An antenna trap is a parallel LC circuit spliced into an antenna wire at a calculated point, and a coil-and-capacitor trap builds that circuit from a discrete air-wound coil and a discrete high-Q capacitor — the classic, highest-efficiency way to build one. At its resonant frequency the trap presents a very high impedance and electrically disconnects the outer wire, letting one physical antenna cover multiple bands from a single feedpoint. This guide covers how a trap actually works, coil and capacitor selection, a worked resonance example, a calculator, and troubleshooting.
Why one wire can't naturally cover several bands
A resonant wire antenna is only the right electrical length on the band it was cut for — feed it on a different band and the length is wrong, the feedpoint impedance is far from 50Ω, and SWR climbs. A trap solves this by making part of the wire disappear electrically on the higher bands while staying part of the circuit on the lower ones, so a single wire can present the correct length on several bands from one feedpoint.
How the parallel LC circuit does the disconnecting
A coil and a capacitor wired in parallel form a circuit whose impedance depends heavily on frequency. Below resonance the coil dominates and the trap looks mostly inductive; above resonance the capacitor dominates and it looks mostly capacitive; but exactly at resonance, the two reactances cancel and the parallel combination's impedance rises to a very high value — ideally close to an open circuit. Placed at the calculated point along a dipole or vertical wire, a trap tuned to resonate at or above a higher band effectively removes everything beyond it from the circuit on that band, while at a lower band, where the trap's impedance is much lower, it acts mostly like a small loading inductor and the full wire (including the section beyond the trap) still participates.
Trap Q, loss, and where the trade-off comes from
No real coil or capacitor is lossless — both have some resistance, and the ratio of a trap's reactance to that resistance is its Q (quality factor). A higher-Q trap wastes less power as heat and presents a cleaner, higher impedance at resonance. Coil-and-capacitor traps built with heavy-gauge air-wound coils and high-Q silver mica or NPO ceramic capacitors routinely reach a Q in the 150-300 range, which is why this construction method remains the standard choice when maximum efficiency matters more than build simplicity.
Capacitor voltage — the real design constraint
The capacitor in a resonant trap sees far more RF voltage than a casual glance at the antenna's power level would suggest, because the trap's own Q multiplies the voltage that would otherwise appear across a simple resistive load. Undersizing this voltage rating is the single most common cause of trap failure at anything beyond QRP power.
| Method | Construction | Typical Q | Best For |
|---|---|---|---|
| Coil-and-Capacitor Trap | Discrete air-wound coil plus a separate high-Q capacitor (silver mica or NPO ceramic), wired in parallel and potted | 150-300 | Maximum efficiency on high-power, competition-grade, or DX-focused multiband dipoles and verticals |
| Coax-Wound Trap | A single coiled length of coax cable; the cable's own distributed capacitance forms C, the coil forms L | 50-100 | Faster, simpler, inherently weatherproof builds where a small efficiency trade-off is acceptable — see the Coax-Wound Trap Construction guide |
Trap LC Value Calculator
Materials for one coil-and-capacitor trap

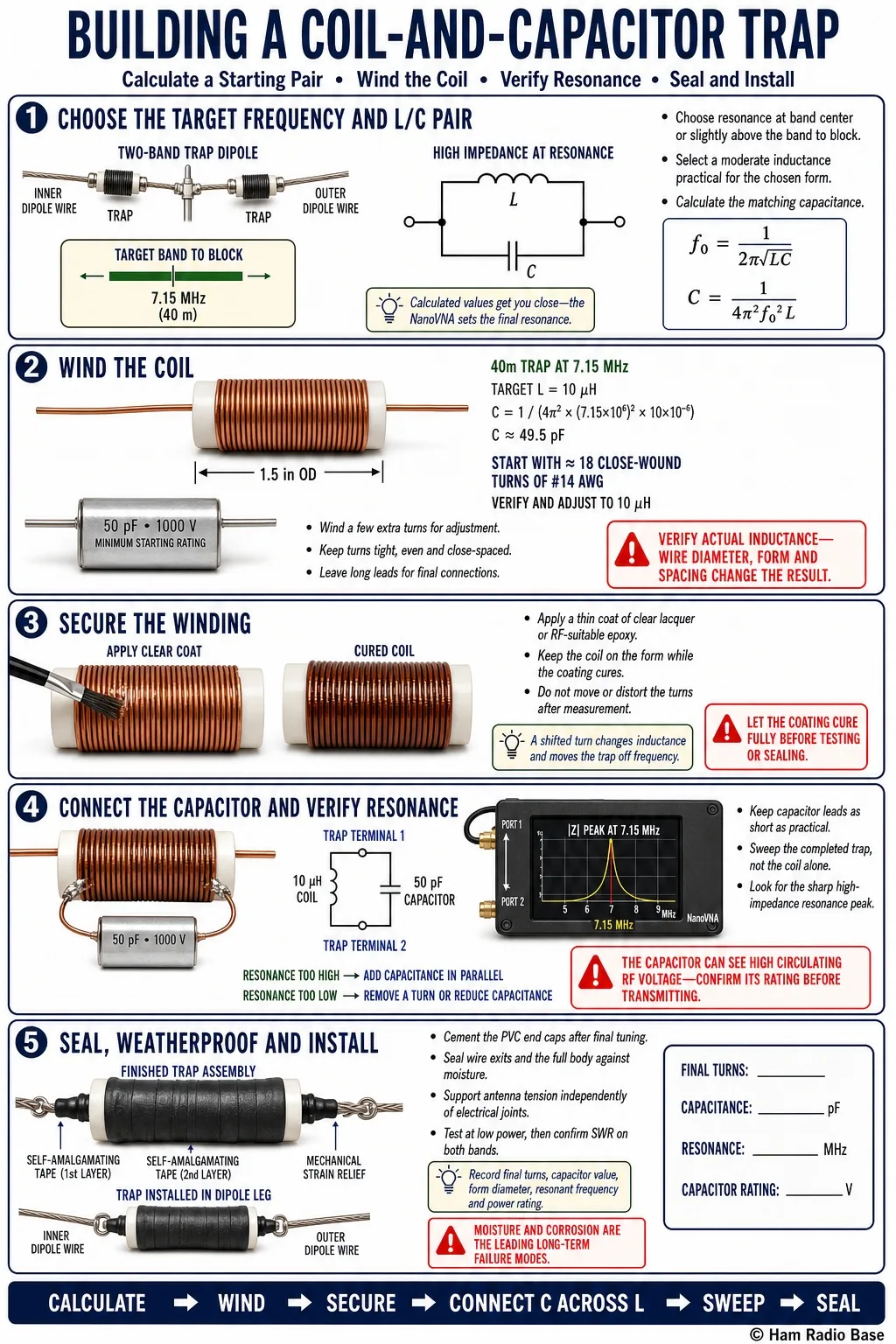

A coil-and-capacitor trap on its PVC form, with the wound coil and silver mica capacitor visible before the end cap is sealed.
Building a Coil-and-Capacitor Trap
Build to verified resonance, not to calculated dimensions alone — the formula gets you close, the NanoVNA gets you exact.
Choose the target frequency and calculate L and C
Pick a trap resonant frequency at or slightly above the top of the band you want the trap to block (band center is also a valid, commonly used choice, and gives a slightly more symmetrical SWR curve within that band). Use the calculator above to find a workable inductance/capacitance pair, favoring a moderate inductance that's practical to wind on your chosen form.
Wind the coil
Wind close-spaced turns of #14 AWG enameled wire on the pipe form, leaving several inches of lead wire free on each end for connections. Start with a few extra turns beyond the calculated count — it's easier to remove turns than add them.
Secure the winding
Apply a thin coat of clear lacquer or epoxy over the winding while it's still on the form, and let it cure fully before handling. This locks the turns at their wound spacing — a shifted turn after the fact changes the inductance and moves the trap off its verified resonance.
Connect the capacitor and verify resonance
Wire the capacitor directly across the coil's two leads with the shortest practical connections, then sweep the trap alone with a NanoVNA (most builders check this with the trap connected between two short wire stubs, watching for the sharp high-impedance peak at resonance). If resonance is too high, add capacitance in parallel; if too low, remove a turn from the coil or reduce capacitance slightly.
Seal and weatherproof
Press the end caps on with PVC cement, then wrap the entire trap body and wire exit points with two overlapping layers of self-amalgamating tape. Moisture is the leading long-term failure mode for any coil-and-capacitor trap — thorough sealing now is far less work than rebuilding a corroded trap in two years.
| Symptom | Most likely cause | Diagnosis | Fix |
|---|---|---|---|
| Measured trap resonance is off from the calculated target | Actual coil inductance differs from the calculated value due to winding spacing, form diameter tolerance, or lead length | Sweep the trap alone with a NanoVNA and compare the resonance peak to the target frequency | Add or remove turns to raise or lower resonance, or adjust capacitance slightly for finer trim |
| The band the trap should block still shows the outer wire's effect on SWR | Trap resonance is set too low, so it isn't presenting a high enough impedance at the intended blocking frequency | Re-verify the trap's own resonance in isolation before blaming the full antenna assembly | Raise trap resonance by reducing capacitance or removing a turn from the coil |
| Capacitor shows heat, discoloration, or arcing under power | Voltage rating too low for the actual power level and SWR conditions seen during use | Recalculate expected RF voltage from your actual power and the trap's Q, then compare to the capacitor's rated working voltage | Replace with a higher-voltage-rated silver mica or NPO capacitor, and reduce power until the replacement is installed |
| SWR is fine when dry, degrades noticeably when wet | Moisture has entered the trap enclosure and is affecting the capacitor or coil | Inspect end caps and tape seams for cracks, gaps, or visible water intrusion | Disassemble, dry out and inspect components for corrosion, replace as needed, and reseal more thoroughly |
| Trap resonance drifts a small amount between seasons | Normal thermal expansion/contraction of the coil form and winding | Compare the drift magnitude (typically 20-30 kHz) against your band's usable bandwidth | Usually no action needed; if the drift pushes SWR unacceptably high, design the trap slightly toward the conservative side of the band edge next time |
Should I resonate the trap at the band edge or band center?
Resonating at or slightly above the upper edge of the band the trap needs to block typically gives the widest usable bandwidth on that band. Some builders instead target band center, which gives a slightly more symmetrical SWR curve within the band — both are established, valid approaches, and the right choice often comes down to which part of the band you operate most.
How much power can a coil-and-capacitor trap handle?
With properly rated silver mica capacitors (1000V+ for 100W-class operation) and #14 AWG or heavier coil wire, this construction method comfortably handles 100W continuously. Higher power, including legal-limit operation, is achievable but requires vacuum variable or higher-voltage doorknob capacitors rated well above the calculated RF voltage — see the voltage formula in the theory section above before assuming a capacitor on hand is adequate.
Why does my trap's Q matter if the antenna still tunes to a low SWR?
SWR only tells you the impedance is matched, not how much power is actually being radiated versus lost as heat in the trap. A low-Q trap can still produce an acceptable SWR while quietly wasting a meaningful fraction of your transmit power — building with high-Q components (heavy coil wire, low-loss capacitors) keeps that loss small even though a NanoVNA's SWR reading alone wouldn't reveal the difference.
Can I substitute a different capacitor type if I don't have silver mica on hand?
NPO (C0G) ceramic capacitors are a solid alternative with similarly low loss and good stability. Avoid general-purpose ceramic types (Z5U, Y5V) and electrolytic or tantalum capacitors entirely — their loss and voltage behavior are unsuitable for a resonant RF circuit carrying real transmit power.
Is a coax-wound trap ever a better choice than this method?
Yes, when build simplicity and inherent weatherproofing matter more than squeezing out the last bit of efficiency — a coax-wound trap trades some Q for a design that's faster to build and naturally more resistant to moisture since the cable's own jacket already seals both conductors. See the Coax-Wound Trap Construction guide for that approach.
