L-Network Antenna Tuner
An L-network antenna tuner takes the same two-component idea behind fixed L-network matching and makes both parts adjustable — a roller or tapped inductor and a variable capacitor, joined by a switch that lets the same pair of parts match feedpoints both above and below your line impedance. It's the simplest tuner topology to build and understand, at the cost of only handling one clean match per setting. This guide covers how the switchable configuration works, a worked component-value example, a calculator, and troubleshooting for a homebrew L-network tuner box.
How this differs from a fixed L-network
The L-Network Matching guide covers the general technique — a fixed inductor and capacitor, sized once for one antenna at one frequency, usually mounted right at the feedpoint. This page covers turning that same idea into an adjustable tuner box: a roller inductor or switched-tap coil in place of the fixed coil, and a panel-mount variable capacitor in place of the fixed one, so a single box can be retuned by hand for different bands or different antennas from the operating position. The underlying transform math is identical — what changes is that the values are dialed in on the bench instead of calculated once and hardwired.
Why a single L-network needs a Hi-Z/Lo-Z switch
A fixed L-network is built with the shunt element on whichever side happens to be the higher-resistance port for that one antenna. An adjustable tuner has to cover both cases — an antenna presenting more than the line impedance (a high-impedance random wire or an off-resonance dipole) and one presenting less (a shortened or loaded vertical). Since the shunt element must always sit on the higher-Z port for the math to work, a tuner needs a switch that physically moves the capacitor's connection point from the antenna side to the coax side (or vice versa) depending on which port is actually higher. Without that switch, the same two components could only ever solve half of the impedances a station might present.
Roller inductor vs. tapped/switched coil
- Roller inductor: a helically wound coil with a traveling contact wiper, giving continuously variable inductance across its full range. Smooth to tune and the standard choice in commercial manual tuners, but more expensive and mechanically more involved to homebrew than a tapped coil.
- Tapped/switched coil: a fixed coil with several soldered tap points brought out to a rotary switch, giving inductance in discrete steps rather than a smooth sweep. Cheaper and simpler to build, and close enough in practice — the variable capacitor provides the fine adjustment between coarse inductance steps.
What an L-network tuner can't do as well as a T or Pi
A single L-network still has only one combination of L and C that produces a clean match for a given impedance pair at a given frequency — there's no alternate setting to fall back on if the antenna also carries significant reactance, unlike a three-element network with extra degrees of freedom. It also can't be adjusted to trade matching range for bandwidth the way a T-network's virtual resistance can. For an antenna that's already close to resonance and presents a mostly resistive load, that's not a real limitation; for a multiband random wire with large, swinging reactance, a T-network tuner or Pi-network tuner is usually a better fit.
| Parameter | Typical Range | Notes |
|---|---|---|
| Inductor range (roller or tapped, 80m-10m coverage) | 0.5-25 µH | Wider range needed to cover 160m; narrow it down if the tuner only needs to serve one or two bands |
| Capacitor range | 15-500 pF | A single air variable with this range covers most single-antenna HF matching needs |
| Capacitor voltage rating | 1500V+ spacing for 100W, more for higher power or high-SWR tuning | Voltage stress rises sharply while sweeping through a bad match, not just at the final setting |
| Hi-Z/Lo-Z switch | Single-pole double-throw, rated for RF voltage present | Selects which port the shunt capacitor connects to |
L-Network Tuner Setting Calculator
Materials for a homebrew L-network tuner box
A homebrew L-network tuner with a roller inductor, variable capacitor, and Hi-Z/Lo-Z selector switch on the front panel.

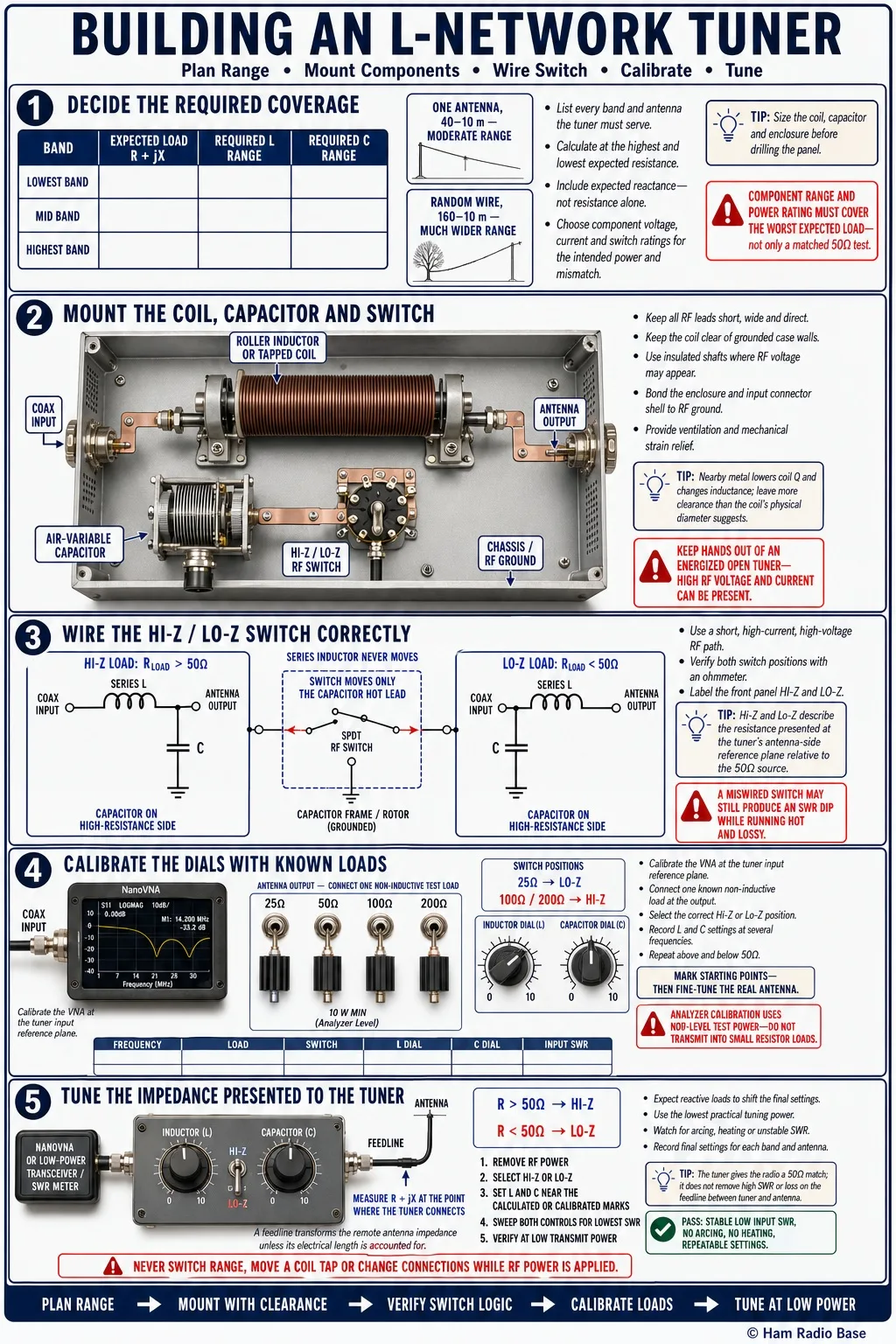

Building an L-Network Tuner
Size the inductor and capacitor ranges to the bands you actually use before you start drilling the enclosure — retrofitting a wider range later usually means a bigger coil form than the box has room for.
Decide your coverage range
List the bands and antennas this tuner needs to serve, and use the calculator above at the highest and lowest resistance you expect on each band to find the L and C extremes you need to cover. A tuner built for one dipole on 40m-10m needs far less inductance range than one meant to load a random wire from 160m through 10m.
Mount the inductor, capacitor, and switch
Lay out the enclosure with the roller inductor or tapped coil, the variable capacitor, and the Hi-Z/Lo-Z switch, keeping the leads between them as short as practical — stray lead inductance shifts your calibration away from any reference values you calculate. Mount the coil with clearance from the metal case walls; a coil too close to grounded metal loses Q and detunes as you turn the dial.
Wire the Hi-Z/Lo-Z switch
Wire the switch so one position connects the shunt capacitor's grounded plate side to the antenna terminal (Hi-Z, for antenna resistance above your line impedance) and the other connects it to the coax terminal (Lo-Z, for antenna resistance below your line impedance). The series inductor stays in the same physical position between the two terminals regardless of switch state — only the capacitor's connection point moves.
Calibrate the dials
With the tuner built, connect known non-inductive resistive dummy loads (or use a NanoVNA directly across the antenna terminal) at several values above and below your line impedance, and record the inductor and capacitor dial positions that produce a clean match at several frequencies. Mark these reference points on the panel — a calibrated dial turns "try random settings" into "start near the marked spot and fine-tune," which matters most in the field or during a contest.
Tune the actual antenna
Measure the real feedpoint resistance with a NanoVNA, choose the Hi-Z or Lo-Z switch position based on whether that resistance is above or below your line impedance, set the inductor and capacitor near the calculator's predicted values or your calibrated dial marks, and sweep both controls for the lowest SWR. If the antenna carries significant reactance, expect the true minimum to land a bit off from the pure-resistance prediction — that's expected, not a sign of a build error.
| Symptom | Most likely cause | Diagnosis | Fix |
|---|---|---|---|
| No combination of L and C brings SWR down on one antenna | Wrong Hi-Z/Lo-Z switch position for that antenna's actual resistance | Measure the feedpoint resistance with a NanoVNA and compare it to your line impedance | Flip the switch to the position matching whether the antenna resistance is above (Hi-Z) or below (Lo-Z) your line impedance |
| A match is found but the tuner or coax runs noticeably warm | Antenna carries significant reactance the single L-network wasn't designed to absorb, forcing a high-loss compromise setting | Re-check the antenna's reactance at the operating frequency, not just resistance | Resonate the antenna itself first (trim length or adjust a loading element) so the tuner only has to transform resistance |
| Dial calibration marks no longer line up with a clean match | Coil position shifted, a turn loosened, or the enclosure lid/panel was changed after calibration | Open the case and check for a physically shifted coil or loose tap connection | Re-secure the coil and re-calibrate the dial marks with known dummy loads |
| Capacitor arcs or shows scorch marks during tuning | Voltage rating too low for the RF voltage present while sweeping through a high-SWR condition, especially in the Hi-Z position on a high-resistance antenna | Estimate peak RF voltage from your power level and the SWR seen while tuning | Replace with a wider-spaced (higher voltage) capacitor and reduce power during the initial tuning sweep |
| Tuner matches fine at low power but arcs or shifts at full power | Component heating changes values slightly under sustained RF current, or a marginal voltage rating is being exceeded only at higher drive levels | Compare SWR at low power (a few watts) versus full power on the same setting | Upgrade to higher-current-rated inductor wire and a higher-voltage capacitor if the shift is consistent and repeatable |
How is this different from the L-Network Matching guide?
The L-Network Matching guide covers the general technique with fixed components sized once for one antenna — usually mounted at the feedpoint and left alone. This guide covers building an adjustable tuner box with a roller or tapped inductor and a variable capacitor, meant to be retuned by hand for different bands or antennas, typically operated from the shack.
How do I know which switch position to use?
Compare your antenna's measured resistance to your line impedance. If the antenna resistance is higher, use the Hi-Z position (shunt capacitor on the antenna side). If it's lower, use Lo-Z (shunt capacitor on the coax side). The calculator above states the correct position for your entered values.
Can this tuner handle a highly reactive load like a random wire?
Not as gracefully as a T-network or Pi-network tuner. A single L-network has only one clean solution per resistance pair and doesn't have spare degrees of freedom to absorb large reactance the way a three-element network does. If your antenna swings through large reactance values across bands, see the T-Network Tuner guide instead.
Why does my dial calibration drift over time?
Roller inductor wipers wear and coil turns can loosen slightly with vibration or thermal cycling, both of which shift the inductance at a given dial position. Periodic re-calibration against known dummy loads keeps the marked reference points accurate.
Do I need a roller inductor, or is a tapped coil good enough?
A tapped coil with a rotary switch is a perfectly workable and much cheaper alternative — the variable capacitor provides fine adjustment between the coil's coarse steps. A roller inductor gives smoother, more continuous tuning, which matters more if you're chasing a very sharp SWR minimum, but it isn't a requirement for a functional tuner.
