Pi-Network Antenna Tuner
A Pi-network tuner — two shunt variable capacitors flanking a series roller inductor — is the low-pass counterpart to the T-network, the same "three adjustable elements" flexibility but with a filter shape that attenuates harmonics instead of passing them. It's the topology behind most tube amplifier output tanks and remains a strong choice for any high-power tuner build where a clean transmitted spectrum matters as much as the match itself. This guide covers the virtual-resistance design method, a fully worked component-value example, a calculator, and Pi-specific troubleshooting.
Shunt capacitors, series inductor — the mirror image of a T-network
Where a T-network places its capacitors in series with the signal path and its inductor in shunt, a Pi-network flips the arrangement: both capacitors sit in shunt (parallel, to ground) at the input and output, and the inductor runs in series between them. The result looks like the Greek letter Pi in schematic form, and the shunt-C/series-L layout is a low-pass filter shape — it attenuates harmonics on the way to the antenna rather than passing them, which is exactly the behavior wanted between a transmitter and an antenna.
The virtual-resistance design method
A Pi-network can be treated as two L-networks sharing the same series inductor, meeting at a virtual resistance node. Because the shunt capacitors sit directly at the real source and load terminals, the virtual resistance must be chosen LOWER than both the source and load resistances — the opposite rule from a T-network. A lower virtual resistance relative to the terminations gives a higher-Q, narrower, lossier network; a virtual resistance just below the smaller termination gives a lower-Q, broader, lower-loss network.
Why Pi-networks are the classic tube amplifier tank
- Harmonic suppression: the built-in low-pass response reduces the need for a separate output filter, which matters most at high power where harmonic energy can be substantial.
- High plate impedance matching: tube amplifiers present a high output impedance (often 1000-3000Ω) that needs transforming down to 50Ω, and a Pi-network handles a large impedance ratio in one stage more gracefully than most alternatives.
- Component stress is concentrated at the high-Z port: the shunt capacitor on the high-impedance side (C1 in a plate tank) sees the highest RF voltage, which is why tank capacitors on that side are built with wide plate spacing.
Tradeoffs versus a T-network
A Pi-network's low-pass response and clean harmonic behavior come at some cost in flexibility: for a very wide impedance ratio combined with significant antenna reactance (typical of an unpredictable random wire across many bands), a T-network's series-capacitor layout often finds a usable match more easily. For a station built around one well-characterized high-power amplifier or antenna system, the Pi-network's harmonic performance usually outweighs that difference. See the T-Network Antenna Tuner guide for the comparison in the other direction.
| Topology | Adjustable Elements | Filter Response | Best For |
|---|---|---|---|
| L-Network | 2 (1 coil + 1 cap, plus a Hi-Z/Lo-Z switch) | Low-pass | One antenna with a mostly resistive, single-value feedpoint |
| T-Network | 3 (2 caps + 1 coil) | High-pass | Random wire, long wire, and multiband antennas with wide, unpredictable impedance swings |
| Pi-Network | 3 (2 caps + 1 coil) | Low-pass | High-power builds and tube amplifier tanks where harmonic suppression matters most |
| Z-Match | 2-3 (tank cap, antenna cap, link/tap coupling) | Bandpass (resonant tank) | QRP and portable operation, natural DC/common-mode isolation |
Pi-Network Component Value Calculator
Materials for a homebrew Pi-network tuner box
A homebrew Pi-network tuner with two shunt variable capacitors and a series roller inductor.

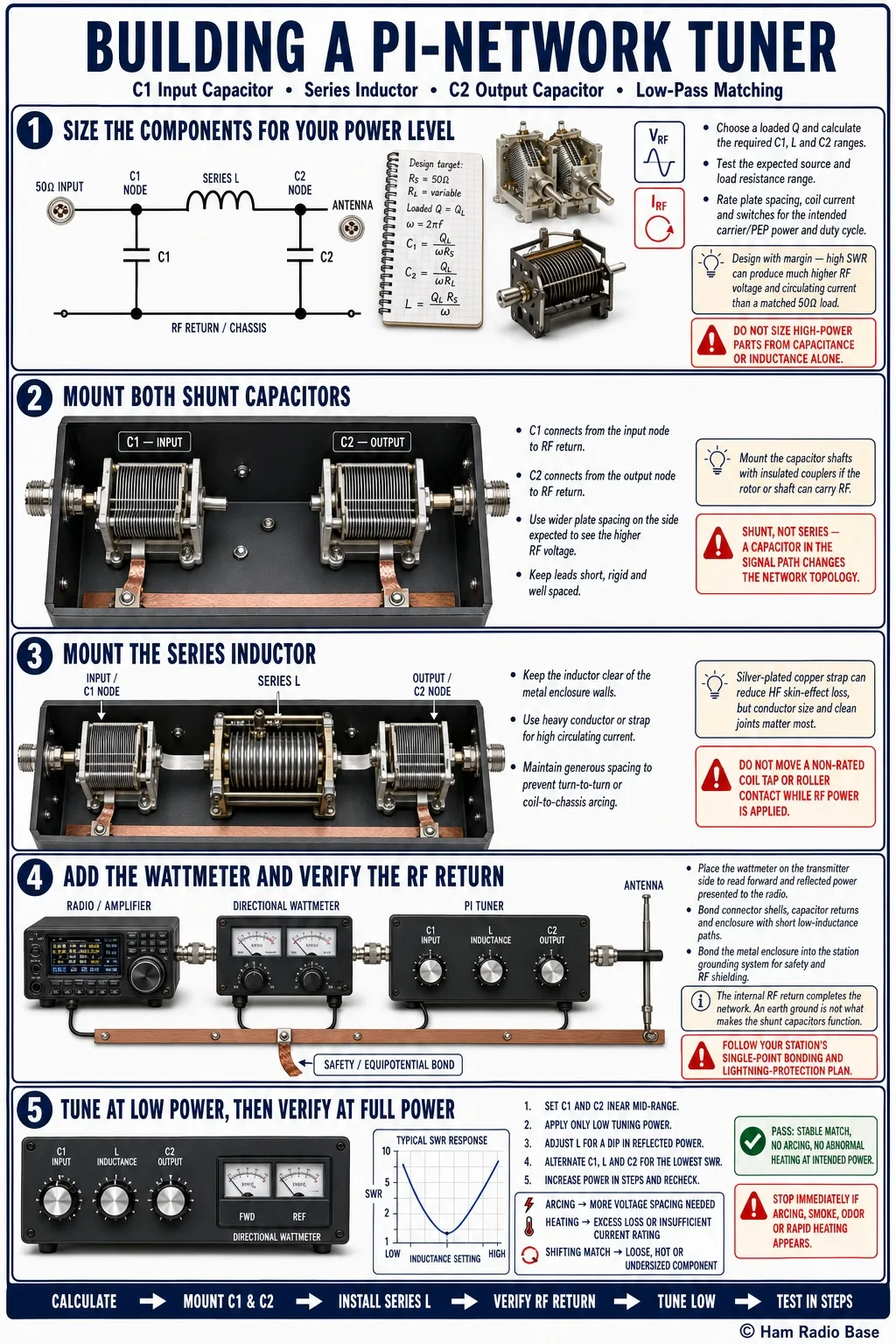

Building a Pi-Network Tuner
Component voltage and current ratings matter more here than on a low-power L-network — size them to your actual intended output power, not just to "whatever's on hand."
Size the components for your power level
Use the calculator above at your expected source and load resistances to find the capacitance and inductance range needed, trying a few virtual resistance values in the allowed range. Then check plate spacing and current ratings against your actual operating power — a Pi-network built for a 100W QRP-plus station needs noticeably lighter-duty parts than one built for a legal-limit amplifier.
Mount both shunt capacitors
Mount C1 (input side) and C2 (output side) so each connects from its respective signal terminal to the chassis ground — these are shunt elements, wired in parallel with the signal path, not in series with it. Give the high-Z-side capacitor the wider plate spacing, since it sees the greater RF voltage.
Mount the series inductor
Connect the roller inductor between the two capacitor nodes, in series with the signal path. Use heavy-gauge wire or strap for the coil if operating at high power — inductor heating from resistive losses becomes a real limiting factor well before most builders expect it.
Add the wattmeter and verify grounding
Install a directional wattmeter ahead of the network and confirm the enclosure is solidly bonded to station ground — a Pi-network's shunt capacitors depend on a low-impedance ground reference to function correctly, more so than a T-network's series-capacitor layout does.
Tune at low power, then verify at full power
Start both capacitors near mid-range, sweep the inductor for the first sign of a dip at reduced power, then fine-tune all three for minimum SWR. Once matched, bring the power up to your intended operating level in steps, watching for arcing, unusual heating, or a shifting match — any of those at higher power points to a component that's undersized for the job.
| Symptom | Most likely cause | Diagnosis | Fix |
|---|---|---|---|
| Match holds at low power but SWR shifts or components arc at full power | Capacitor voltage rating or inductor current rating undersized for the actual operating power | Check plate spacing and wire gauge against your power level, especially the high-Z-side capacitor | Upgrade to wider-spaced capacitors and heavier-gauge inductor wire or strap |
| Harmonics still present despite the network's low-pass design | A capacitor wired in series instead of shunt (accidentally built a T-network layout), or a component failed/shorted | Verify each capacitor's wiring against the schematic and check for a shorted or open component | Correct the wiring to true shunt-C/series-L, or replace the failed part |
| Can't reach a match on a very high-impedance random wire | Pi-network's practical range doesn't extend as far as a T-network's for extreme impedance ratios | Compare the antenna's measured resistance against the network's design range | Use a T-network tuner for that specific antenna, or add a fixed transformer ahead of the Pi-network to bring the impedance into range |
| Network runs warm even at moderate power | Inductor Q too low from thin wire, tight winding, or a lossy core, or an overly high circulating current from a low virtual resistance choice | Check coil construction and compare against a higher virtual resistance setting in the design | Rewind with heavier wire and wider spacing, or design toward a virtual resistance closer to the smaller termination for lower Q |
| Match is unstable or drifts as power increases | Poor chassis grounding, letting the shunt capacitors' reference point shift under RF current | Check the bond between the enclosure and station ground for a solid, low-impedance connection | Add a heavier, shorter ground strap directly to the enclosure near the capacitor grounds |
Pi-network or T-network — which should I build?
Choose a Pi-network for high-power builds or whenever harmonic suppression matters most, since its low-pass response attenuates harmonics that a T-network's high-pass response would pass. Choose a T-network for wider impedance ratios and less predictable feedpoints, such as random wire and multiband antennas.
Why are Pi-networks used in tube amplifier tanks?
Tube amplifiers present a high plate impedance that needs transforming down to 50Ω, and the Pi-network handles a large impedance ratio in a single stage while also suppressing harmonics — both properties matter directly at the output of a high-power transmitting device.
Can a Pi-network tuner match a balanced antenna?
Not directly — like the T-network, a Pi-network's output is unbalanced. Add a 1:1 current balun at the output terminals (see the 1:1 Current Balun guide) before feeding open-wire line or a balanced dipole.
How does component power handling scale with plate spacing?
Wider capacitor plate spacing raises the voltage a capacitor can withstand before arcing, which is the limiting factor at high power more often than current handling. As a rough guideline, capacitors intended for legal-limit power need substantially wider spacing than those adequate for a 100W station — check the specific capacitor's rated working voltage against your expected peak RF voltage rather than relying on power level alone.
