T-Network Antenna Tuner
A T-network tuner — two variable capacitors flanking a roller inductor in a series-shunt-series arrangement — is the most common topology in manual antenna tuners, and for good reason: three adjustable elements give it enough flexibility to match almost any impedance a random wire, long wire, or multiband antenna can present, reactance included. This guide covers how the network's virtual-resistance design method works, a fully worked component-value example, a calculator, and the specific troubleshooting quirks T-networks are known for.
Why three elements instead of two
An L-network has exactly one solution for a given resistance pair, which means it needs to know in advance whether the antenna is above or below the line impedance and struggles if the antenna also carries meaningful reactance. A T-network's extra capacitor removes that constraint: with three independently adjustable elements, the network has enough freedom to present a clean match across a very wide range of resistance and reactance combinations without needing to be told in advance which side is higher. That flexibility is exactly why T-networks dominate general-purpose manual tuners built for random wire, long wire, and multiband antennas whose feedpoint impedance can swing wildly from band to band.
The virtual-resistance design method
A T-network (series C1, shunt L, series C2) can be treated as two L-networks sharing the same shunt inductor, meeting at an imaginary "virtual resistance" node. Because the inductor sits at the shared midpoint rather than at either real terminal, the virtual resistance must be chosen HIGHER than both the source and load resistances — the opposite rule from a Pi-network. A higher virtual resistance relative to the terminations gives a higher-Q, narrower-bandwidth, lossier match; a virtual resistance just above the larger termination gives a lower-Q, broader, lower-loss match.
The tradeoff: harmonics and multiple "false" matches
- High-pass response: series-C, shunt-L is a high-pass filter shape, which means a T-network passes harmonics more readily than a Pi-network's low-pass shape. Many stations run a separate low-pass filter after a T-tuner, especially on bands prone to harmonic-related interference complaints.
- More than one SWR dip: because three elements can reach a low-SWR reading through more than one combination of settings, it's possible to find a "match" at a high-Q, high-circulating-current setting that reads fine on an SWR meter but runs the tuner and coax noticeably hot. The lowest-loss dip is usually the one found with the capacitors closer to mid-range rather than near either extreme.
Feeding a balanced antenna through a T-network
A T-network's coax-side port is inherently unbalanced (single-ended to ground), so feeding a balanced antenna like an open-wire-fed dipole through one requires a balun or an unun between the network's output and the balanced feedline — see the 1:1 Current Balun guide. Skipping the balun on a balanced antenna is a common cause of RF-in-the-shack complaints that show up even when the SWR reading looks perfectly fine.
| Topology | Adjustable Elements | Filter Response | Best For |
|---|---|---|---|
| L-Network | 2 (1 coil + 1 cap, plus a Hi-Z/Lo-Z switch) | Low-pass | One antenna with a mostly resistive, single-value feedpoint |
| T-Network | 3 (2 caps + 1 coil) | High-pass | Random wire, long wire, and multiband antennas with wide, unpredictable impedance swings |
| Pi-Network | 3 (2 caps + 1 coil) | Low-pass | High-power builds and tube amplifier tanks where harmonic suppression matters most |
| Z-Match | 2-3 (tank cap, antenna cap, link/tap coupling) | Bandpass (resonant tank) | QRP and portable operation, natural DC/common-mode isolation |
T-Network Component Value Calculator
Materials for a homebrew T-network tuner box
A homebrew T-network tuner with two variable capacitor dials flanking a central roller inductor.

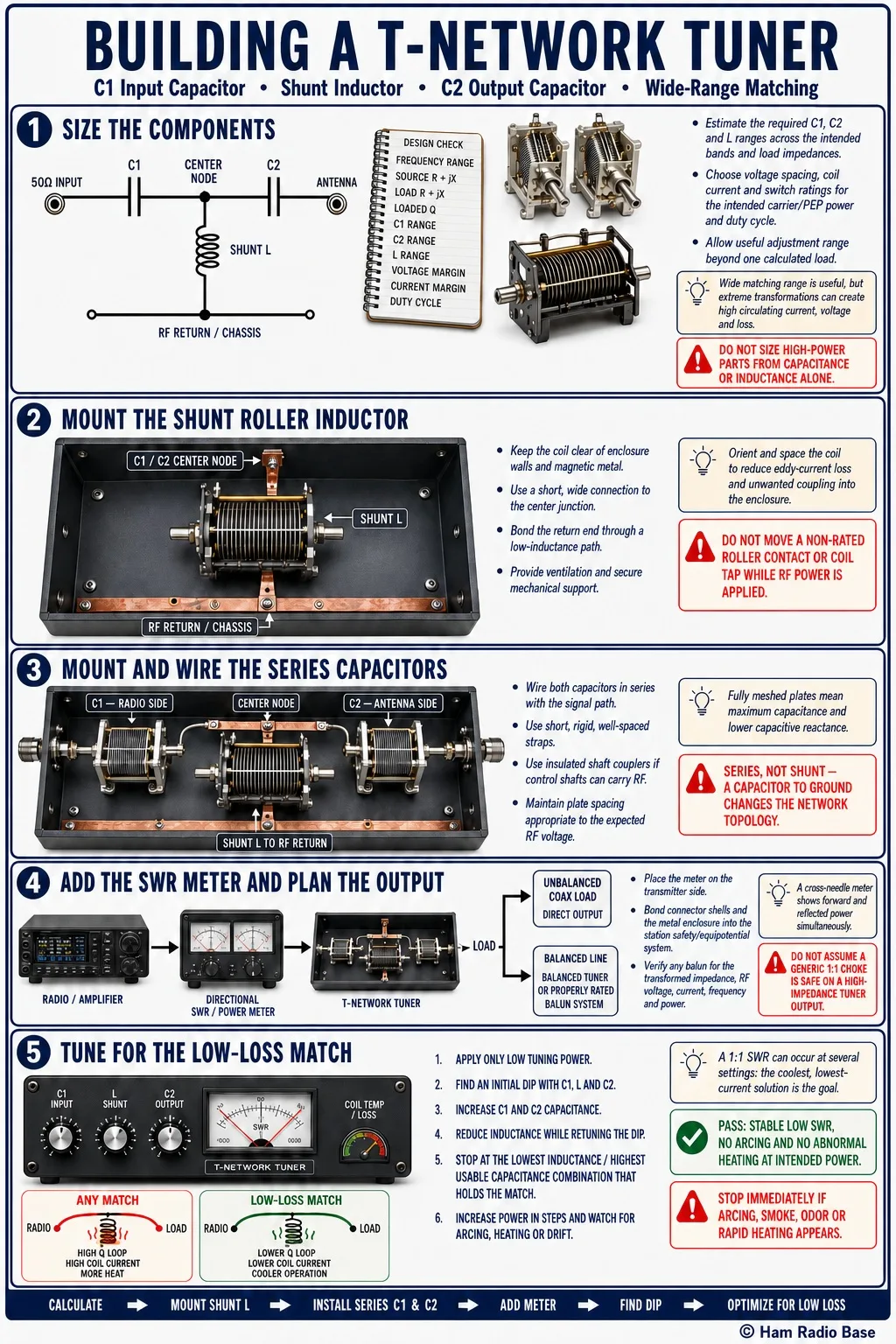

Building a T-Network Tuner
A T-network's flexibility means you can usually find A match — the build and tuning goal is finding the low-loss one, not just any dip on the meter.
Size the components
Use the calculator above at your typical antenna resistance and frequency range, trying a few virtual resistance values, to see the rough capacitance and inductance range you need. Most general-purpose HF T-network tuners land in the 15-300 pF range per capacitor and a few µH to around 25 µH of inductance to cover 160m through 10m.
Mount the roller inductor centrally
Place the roller inductor between the two capacitors with equal, short lead runs to each. Keep the coil clear of the enclosure walls and any metal shielding between the two capacitor sections, since the coil's field needs room to avoid coupling losses into the case.
Mount and wire the capacitors
Mount C1 on the radio/coax side and C2 on the antenna side, both wired in series with the signal path (not shunt) — this is the detail that most often gets crossed up with Pi-network wiring, where the capacitors are shunt elements instead. Use short, direct leads and adequate plate spacing for your power level.
Add the SWR meter and balun
Wire an in-line SWR/power meter ahead of the tuner's input so you can watch the match while adjusting three controls at once. If the tuner will feed a balanced line or a balanced antenna, add a 1:1 current balun at the output terminals.
Tune for the low-loss dip, not just any dip
Start with both capacitors near mid-range and sweep the inductor for the first sign of a dip, then alternate small adjustments of C1, L, and C2 to deepen it. If you find a match with either capacitor very close to minimum or maximum, keep searching — a dip found near mid-range settings on all three controls is almost always the lower-Q, lower-loss solution. Confirm at low power first, then verify the match holds and the tuner stays cool at your intended operating power.
| Symptom | Most likely cause | Diagnosis | Fix |
|---|---|---|---|
| SWR reads low but the tuner, coax, or radio runs hot at moderate power | Found a high-Q, high-circulating-current "false" match instead of the low-loss solution | Note the capacitor positions — settings near either extreme usually indicate the lossy solution | Re-tune toward the dip found with both capacitors closer to mid-range |
| Can't find any dip at all on a particular band | Inductor range doesn't extend far enough for that band's typical antenna reactance | Compare the coil's minimum and maximum inductance against what the calculator predicts is needed at that frequency | Rewind or replace the coil with a wider inductance range, or add a switched fixed inductor in series for the lowest bands |
| Capacitor arcs, especially C1 on the input side | Voltage rating too low for the RF voltage present during a high-Q tuning sweep | Estimate peak voltage from power level and SWR seen while tuning through the sweep, not just at the final setting | Use a wider-spaced (higher voltage) capacitor and reduce power while initially finding the dip |
| RF in the shack even with a clean SWR match on a balanced antenna | Missing or failed balun between the tuner's unbalanced output and the balanced feedline | Check for a current balun at the tuner's antenna terminals | Add or replace with a properly rated 1:1 current balun — see the Balun & Choke Guide |
| Strong harmonic reports from other operators despite good SWR | T-network's high-pass response passes harmonics that a low-pass network would attenuate | Check transmitter harmonic output with a spectrum analyzer or ask for a signal report on a harmonic frequency | Add a low-pass filter between the transmitter and the tuner, or switch to a Pi-network tuner for that station |
Why does my T-network find a match that still runs hot?
Three adjustable elements mean more than one combination of settings can produce a low SWR reading, but not all of them have equally low loss. The high-Q solutions — usually found with a capacitor near its extreme — circulate much more current through the inductor and generate more heat for the same power level. Look for the dip that occurs with both capacitors closer to mid-range.
T-network or Pi-network — which should I build?
A T-network generally covers a wider impedance range and is the more forgiving choice for random wire and multiband antennas with unpredictable feedpoints. A Pi-network's low-pass response gives better harmonic suppression, which matters more for high-power builds or stations with harmonic interference concerns. See the Pi-Network Antenna Tuner guide for the comparison in more depth.
Can a T-network tuner feed a balanced antenna directly?
Not without a balun. The tuner's own output is unbalanced (single-ended to ground); add a 1:1 current balun at the output terminals before connecting open-wire line or a balanced dipole feed.
Do I need a low-pass filter after a T-network tuner?
Not always, but it's worth considering for high-power stations or if you've received harmonic-related interference reports. The T-network's series-C, shunt-L layout is inherently high-pass and doesn't attenuate harmonics the way a Pi-network's low-pass layout does.
