Build a 60 Meter Vertical Antenna
The 60m quarter-wave vertical brings this family's reliable low-angle performance to the US's unusual 5-channel allocation. At roughly 44 feet tall — closer in scale to the 40m vertical than to any of the shorter builds on this site — it's a three-section telescoping build. Like the 60m dipole, this antenna is governed by channelized frequencies, USB-only operation, and a power/gain-relative-to-dipole rule rather than a simple tunable range. This guide covers the complete build from element sizing through radial installation, feedpoint assembly, and final tuning across all 5 channels.
Quarter-Wave Vertical Fundamentals on the 5 Channels
As with the 60m dipole, Channel 3 is the practical design center — a vertical cut here shows the most balanced SWR across all 5 channels.
60m vs 40m Vertical — Key Differences
- Element is slightly shorter: 43.68 ft vs 40m's 32.7 ft — actually longer than 40m, closer in scale to a scaled-down 80m vertical, requiring the same three-section telescoping approach as the taller builds in this family.
- Channelized, not tunable: unlike every other vertical on this site, there's no "choose your target frequency" decision — you operate on one of 5 fixed channels.
- USB voice plus limited data modes: not the full mode set available on most other HF bands.
- Power/gain rule: 100W PEP ERP relative to a dipole, requiring awareness of your antenna's gain (see callout above).
- Regional/NVIS behavior similar to 80m: reliable daytime and nighttime regional coverage, popular for emergency communications nets.
Radiation Pattern and Regional/DX Performance
As on 80m, the vertical favors longer-distance and DX-style contacts, while a low dipole favors NVIS-style regional coverage — many stations that operate 60m for emergency nets prefer the low dipole/NVIS approach specifically for its regional reach, while this vertical suits stations chasing longer contacts on the band.
Element Construction Options
- Three-section telescoping aluminum: a 1.25-inch OD lower section (15 ft), 1.0-inch OD middle section (15 ft), and 0.75-inch OD upper section (15 ft), overlapped 6 inches at each joint, gives the working length. Self-supporting in moderate wind with a solid base mount.
- Fiberglass fishing pole with wire: a 13-meter (43-foot) telescoping fishing pole with #14 AWG copper wire taped along the outside — a lighter-weight alternative to aluminum tubing at this height.
- Wire on a rope or existing support: a wire hanging from a tall tree branch or tower leg, pulled taut with a weight at the bottom — requires an existing support at least 44 feet tall.
| Channel | Frequency | Element length (ft) | Element length (m) | Notes |
|---|---|---|---|---|
| Channel 1 | 5330.5 kHz | 43.90 ft | 13.38 m | Lowest of the 5 channels |
| Channel 2 | 5346.5 kHz | 43.77 ft | 13.34 m | |
| Channel 3 | 5357.0 kHz | 43.68 ft | 13.32 m | Recommended design center — most commonly used |
| Channel 4 | 5371.5 kHz | 43.56 ft | 13.28 m | |
| Channel 5 | 5403.5 kHz | 43.30 ft | 13.20 m | Highest of the 5 channels — most SWR rise from a Channel 3 cut |
Vertical 60m Calculator
Materials for a ground-mounted 60m quarter-wave vertical with 16-radial ground plane
What the NanoVNA Will Show
Ground-Mount and ERP Considerations
- 4 elevated radials: a viable alternative at 43.68 ft height each, though on-ground radials are more common given this antenna's typical fixed-station use.
- Power/gain awareness: because a vertical with a good radial system has modest gain over a plain dipole, confirm your effective radiated power stays within the 100W ERP limit — this may mean running slightly under 100W transmitter output depending on your specific system's measured or estimated gain.
- Wind load: a 45-foot three-section aluminum element carries significant wind load — use a solid base mount with guy wires in exposed locations.

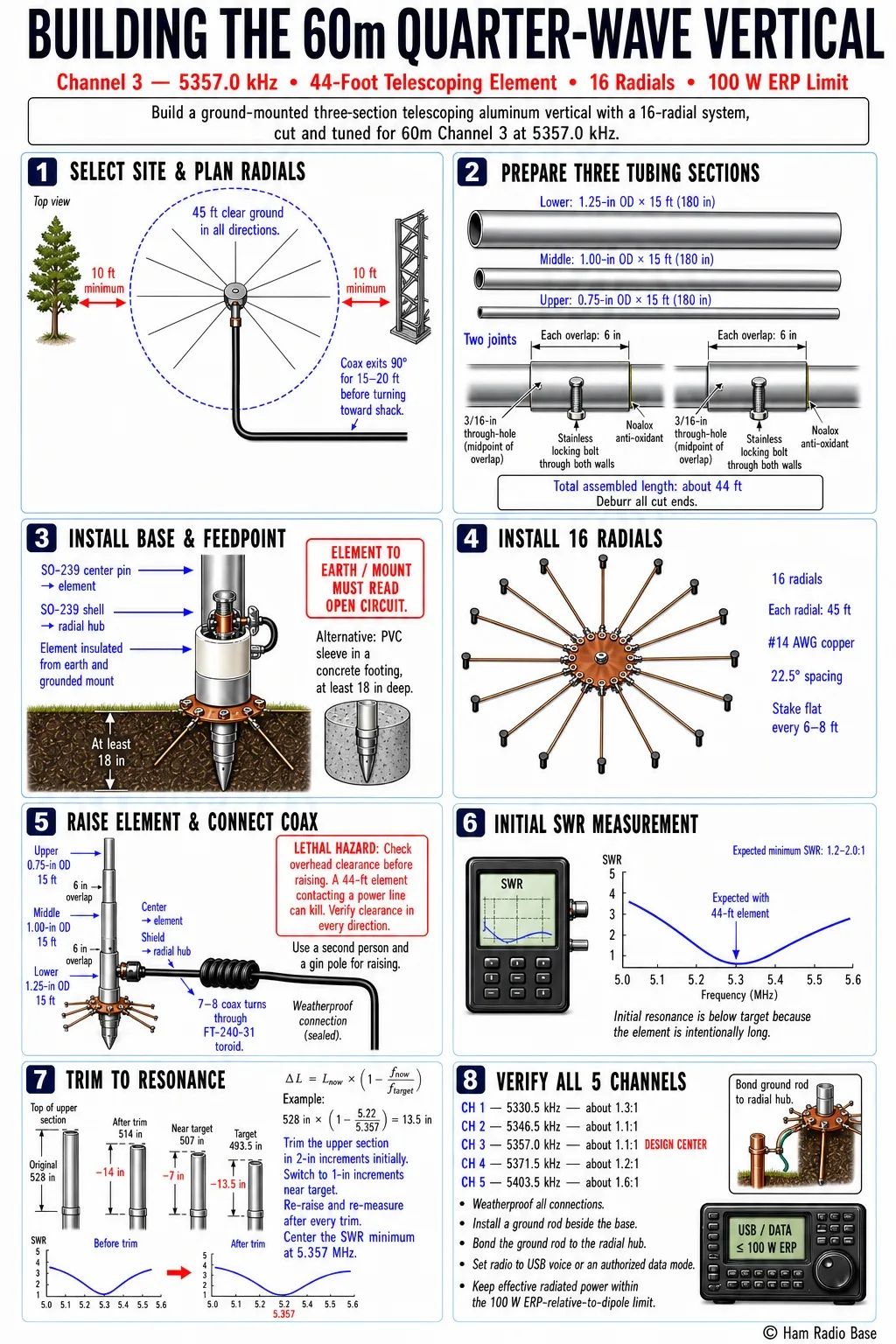

Building the 60m Quarter-Wave Vertical
This guide builds a ground-mounted three-section telescoping aluminum vertical with a 16-radial on-ground system, cut for Channel 3 (5357.0 kHz).
Select the Site and Plan Radial Layout
Choose a site with at least 45 feet of clear ground in all directions. Keep the element clear of metal structures within 10 feet, and route the coax to exit the feedpoint at 90° for the first 15–20 feet.
Cut and Prepare the Aluminum Tubing Sections
Cut all three aluminum sections to length and deburr all cut ends.
Drill a 3/16-inch hole through both walls at each joint overlap midpoint for a locking bolt, and apply Noalox anti-oxidant compound before assembly.
Install the Base Mount and Feedpoint Assembly
Install a solid base mount — a commercial ground spike mount or a PVC sleeve set in a concrete footing at least 18 inches deep. Mount the SO-239 with the center pin to the element and shell to the radial hub.
Install the Radial Hub and Run 16 Radials
Cut 16 radials of #14 AWG copper at 45 feet each, bolt them to the hub at 22.5° intervals, and stake flat to the ground every 6–8 feet.
Raise the Element and Connect Coax
Assemble the three telescoping sections, slide the element into the base mount, and secure it — a second person and a gin pole are recommended at this height. Connect the coax, install a current choke (7–8 turns of coax through an FT-240-31 toroid), and weatherproof the connection.
Initial SWR Measurement
Sweep 5.0–5.6 MHz with the NanoVNA.
Trim to Resonance
Verify SWR at All 5 Channels and Document
Weatherproof all connections and install a ground rod bonded to the radial hub. Confirm your radio is set for USB voice (or an authorized data mode) and that your effective radiated power stays within the 100W ERP-relative-to-dipole limit.
4 Elevated Radials as an Alternative
Where ground space is limited, 4 elevated radials at 43.68 ft each perform nearly as well as a full on-ground system.
Emergency Communications Use
Like the 60m dipole, this vertical's regional daytime and nighttime coverage make it useful for emergency and traffic nets — though many net operations specifically favor a low NVIS-style dipole for maximum regional coverage rather than a low-angle vertical. Consider your primary use case (DX-style contacts vs. regional net participation) when choosing between this vertical and a low 60m dipole.
| Symptom | Most likely cause | Diagnosis | Fix |
|---|---|---|---|
| No SWR dip visible across 5.0–5.6 MHz | Feedpoint connection fault or coax polarity reversed | Check DC resistance from coax center to shield | Verify center pin to element, shield to radial hub |
| SWR minimum broad or high | Too few radials | Count radial connections at the hub | Add radials toward 16 |
| Resonance well below Channel 1 | Element too long | Measure element length | Trim from the top section |
| Resonance well above Channel 5 | Element too short | Measure element length | Splice a short extension onto the tip |
| Telescoping joints loosen in wind | Hose clamps insufficient for this element's wind load | Check joint tightness after windy periods | Add guy wires; re-tighten clamps and verify locking bolts are installed |
| Uncertain whether ERP compliance is met | Vertical's gain over a dipole not accounted for | Estimate system gain relative to a reference dipole | Reduce transmitter power modestly to stay within the 100W ERP limit; consult current FCC guidance |
Why is this vertical taller than the 40m one?
60m's lower frequency (around 5.35 MHz vs 40m's 7.15 MHz) requires a longer quarter-wave element — 43.68 ft vs 32.7 ft — even though 60m is a "higher" band number in casual usage, its actual frequency is lower.
Do I need to reduce power on a vertical here?
Possibly a small amount — a vertical with a good radial system has modest gain over a plain dipole, and the 100W limit is relative to dipole ERP. A plain 60m dipole needs no adjustment; this vertical may need a slight reduction depending on your specific system.
Should I use a vertical or a low dipole for 60m emergency nets?
A low NVIS-style dipole is generally preferred for regional net coverage due to its high-angle radiation. This vertical suits operators more focused on longer-distance contacts on the band.
Why cut for Channel 3 instead of another channel?
Channel 3 (5357.0 kHz) sits roughly central among the five channels, giving the most balanced SWR performance across all of them.
How many radials do I need?
More is better, with the biggest gains in the first 8 — 16 is a solid target given this element's height and typical fixed-station installation.
What modes can I use on this antenna?
Upper sideband voice plus certain FCC-authorized digital modes on specific channels — the same rules that apply to the 60m dipole on this site.
