Variable Capacitor Selection for Magnetic Loops
The tuning capacitor is the single most demanding component in a magnetic loop antenna — a small loop's very high Q and very low radiation resistance mean the capacitor sees RF voltages in the thousands of volts even at modest power, while the loop's extremely narrow bandwidth means that same capacitor has to be adjustable with far finer resolution than an ordinary tuner capacitor. This guide covers why the voltage stress is so severe, how to size the capacitance range for your loop and target band, a calculator, and what to look for in a drive mechanism.
Why the voltage stress is so extreme
A small transmitting loop behaves electrically like a series-resonant circuit: loop inductance in series with a very low total resistance (radiation resistance plus conductor loss, often well under an ohm), tuned to resonance by the capacitor. At resonance, the loop's high Q multiplies the RF voltage across the capacitor far beyond what the antenna's actual radiated power alone would suggest — the same property that makes small loops narrowband and efficient also concentrates enormous circulating voltage right at the tuning capacitor. This is the entire reason variable capacitor selection is its own topic for magnetic loops in a way it isn't for most other matching devices in this series.
Sizing the capacitance range for your loop
Unlike a lumped matching network, a loop's own inductance is fixed by its physical size once built, so the capacitor has to supply whatever capacitance resonates that inductance across your target frequency range. A single-band loop needs only a small capacitance span (often just a few pF, since the required value barely changes across a few hundred kHz), while a loop meant to retune across multiple HF bands needs a much wider range — use the calculator below with your loop's measured inductance to find both ends of what you need.
Type selection at a glance
- Split-stator air variable: the most common choice for homebrew loops — two ganged sections on one shaft let the capacitor be wired symmetrically across the loop gap, keeping the loop electrically balanced rather than grounding one side of the tuning element.
- Butterfly capacitor: a rotor shape that avoids a long wiping contact path, keeping series inductance and contact loss low across the full rotation — a strong option for high-Q tank use specifically because of that low-loss rotor contact.
- Vacuum variable: highest voltage and power handling in the smallest size, at significantly higher cost — see the Split-Stator vs Butterfly vs Air Variable comparison for the full type-by-type breakdown that applies across all uses, not just loops.
Why hand-tuning a loop capacitor is impractical
A small loop's bandwidth is often just tens of kHz even on a low band, meaning the capacitor's rotation needed to sweep an entire band can be a fraction of a degree of shaft rotation. Reaching up to hand-tune a panel-mounted knob is slow and imprecise at that resolution, and worse, a hand or body near the loop changes its effective capacitance through simple proximity (body capacitance), detuning the antenna the moment you get close enough to adjust it. Nearly every practical loop build uses a remote, motor-driven capacitor (a geared DC motor or stepper, controlled from the operating position) specifically to solve both problems at once.
| Power Level | Approx. Voltage Needed | Recommended Type | Notes |
|---|---|---|---|
| Receive-only / experimenter | Under 500V | Small air variable or homebrew trombone-style | No transmit voltage stress; still benefits from fine resolution for a sharp receive peak |
| QRP (5-10W) | 1.5-3kV | Air variable with generous plate spacing, or homebrew trombone capacitor | Don't assume low power means low voltage — loop Q dominates, not transmit power alone |
| Low power (50-100W) | 4-6kV | Split-stator air variable, wide plate spacing, or vacuum variable | The most common target range for homebrew HF loops |
| High power (400W+) | 8kV+ | Vacuum variable | Air variables at this voltage become large and expensive; vacuum types stay compact |
Magnetic Loop Capacitance Range Calculator
What you need to choose and verify a loop tuning capacitor
A split-stator air variable capacitor mounted at a magnetic loop's tuning gap, with a weatherproofed motor drive for remote tuning.

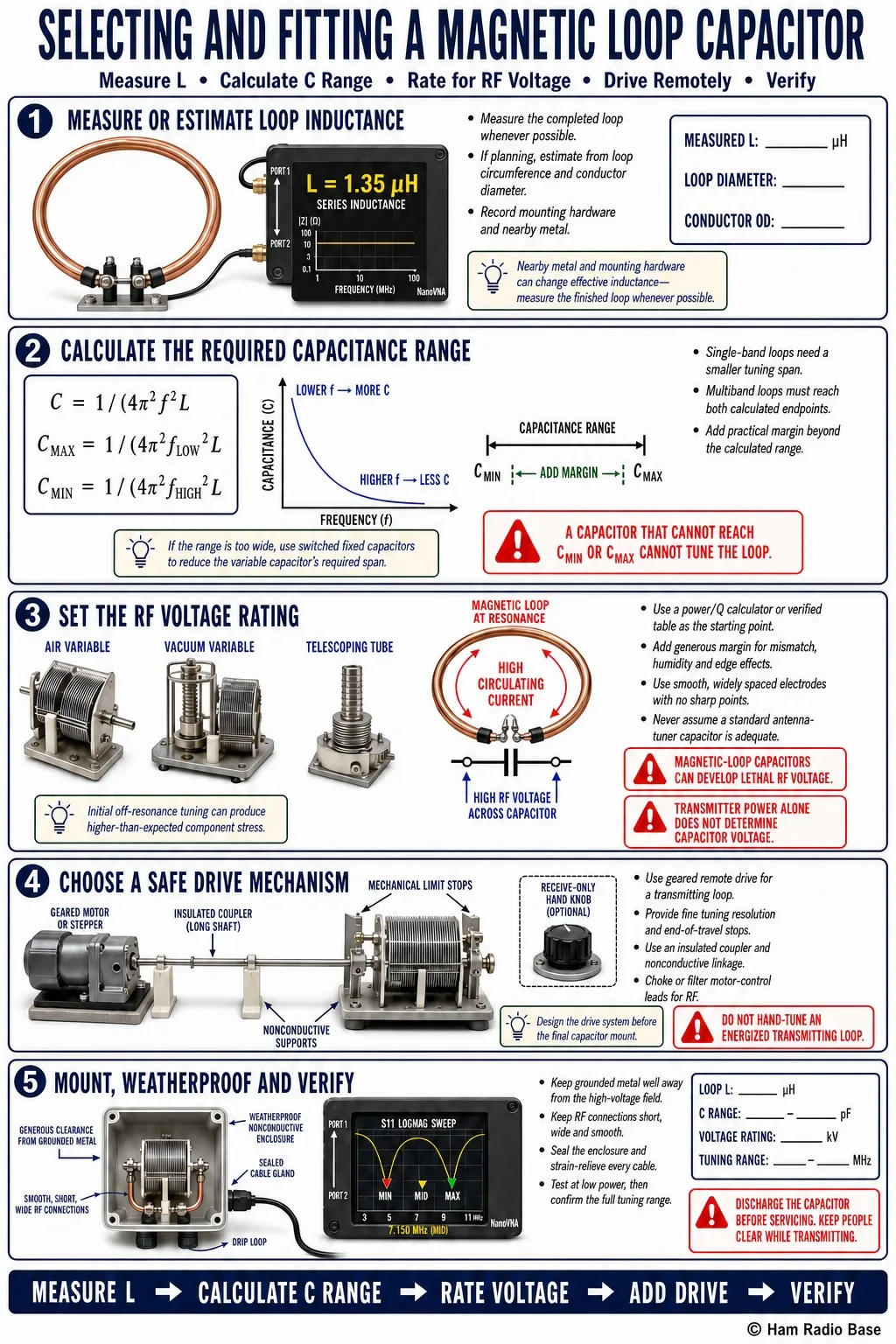

Selecting and Fitting a Magnetic Loop Capacitor
Get the voltage rating and capacitance range right before worrying about anything else — a capacitor that arcs or can't reach resonance makes every other build decision irrelevant.
Measure or estimate your loop's inductance
If the loop is already built, measure its inductance directly with an LC meter or NanoVNA. If you're still planning the loop, use a published inductance estimate for your loop's circumference and conductor diameter as a starting point — either way, this value drives the capacitance range calculation.
Calculate the required capacitance range
Use the calculator above with your loop inductance and target frequency range. A single-band loop needs only a small span; a loop meant to retune across several bands needs a capacitor whose minimum and maximum both fall within the calculated range — plan for some margin beyond the strict calculated numbers, since real loop inductance varies somewhat with nearby objects and mounting.
Set the voltage rating from your power level
Use the power-level table above as a starting point, then add margin — real loop Q varies with conductor size and finish, and voltage during initial tuning (before you're exactly at resonance) can spike well above the matched-condition estimate. Under-rating this component is the most common and most damaging mistake in homebrew loop builds.
Choose a drive mechanism
For anything beyond a tabletop receive-only or fixed-frequency experimental loop, plan on a geared motor drive from the start rather than adding one later — retrofitting a drive onto a capacitor mounted for hand-tuning is more work than designing it in from the beginning.
Mount, weatherproof, and verify
Mount the capacitor with adequate clearance from grounded metal (which detunes the loop and can risk arcing to the enclosure), weatherproof the assembly if it's outdoors, and sweep the full tuning range with a NanoVNA to confirm the achieved capacitance and resonance points match the calculated targets.
| Symptom | Most likely cause | Diagnosis | Fix |
|---|---|---|---|
| Capacitor arcs or shows scorch/burn marks | Voltage rating too low for the loop's actual Q and power level | Recalculate expected voltage using the formula above with a realistic Q for your loop's construction quality | Replace with a wider-spaced air variable or a vacuum variable rated with real margin above the calculated voltage |
| Can't reach resonance at one end of the intended band | Capacitance range doesn't extend far enough, or measured loop inductance differs from the design assumption | Re-measure actual loop inductance and compare the capacitor's true minimum/maximum against the calculator's output | Add a switched fixed capacitor to shift the range, or fit a capacitor with wider range |
| Tuning is extremely twitchy — tiny motor movements cause large frequency jumps | Drive mechanism lacks sufficient gear reduction for the loop's narrow bandwidth | Compare the capacitor's degrees-of-rotation-per-pF against the bandwidth calculated for your loop | Add further gear reduction or switch to a finer-pitch drive mechanism (worm gear or higher steps-per-revolution stepper) |
| Resonant frequency shifts when a hand or body approaches the loop | Body capacitance detuning — a normal effect of small loop antennas, not a capacitor defect | Confirm the shift happens specifically with proximity, not with any electrical change | Operate the loop exclusively via remote/motor drive from a safe distance rather than trying to hand-tune it directly |
| Air variable capacitor plates show corrosion or oxidation over time | Outdoor exposure without adequate weatherproofing | Inspect plates for visible discoloration or pitting, and check whether SWR/resonance has drifted from original readings | Improve the enclosure's weatherproofing, or switch to a sealed vacuum variable for permanent outdoor installations |
Why does my loop capacitor need such a high voltage rating even at low power?
A small loop's high Q multiplies the RF voltage across the tuning capacitor far beyond what the transmit power alone would suggest — the formula and worked example above show over 1.3 kV at just 10W for a typical loop. This is a property of the loop's resonant behavior, not something you can avoid by simply running less power.
How do I find my loop's inductance?
Measure it directly with an LC meter or a NanoVNA if the loop is already built. If you're still in the design stage, published inductance estimates for a loop's circumference and conductor diameter give a reasonable starting figure — expect the real value to be measured and confirmed once built, since real-world factors shift it somewhat from any formula-only estimate.
Can I use a "normal" panel variable capacitor from an antenna tuner?
Usually not safely, even at the same power level — a tuner network's Q is far lower than a small loop's, so the voltage a tuner capacitor is designed to handle is often much less than what the same power level produces inside a loop. Check the actual voltage rating against the worked-example math above rather than assuming a tuner-rated part is adequate.
Do I really need a motor drive, or can I hand-tune the capacitor?
For anything beyond a fixed-frequency or receive-only setup, a motor drive is close to mandatory in practice — a loop's bandwidth is often narrow enough that hand-tuning is both imprecise and disrupted by your own body's proximity to the loop. Nearly every practical transmitting loop design uses remote motor tuning for exactly this reason.
