DIY / Homebrew Variable Capacitor Construction
A commercial high-voltage variable capacitor suited to a magnetic loop can cost as much as the rest of the antenna combined — but the two most common homebrew designs, a telescoping coaxial tube capacitor and a meshed parallel-plate capacitor, are both buildable from inexpensive materials with basic tools. This guide covers both constructions, the physics behind each, a fully worked sizing example for the telescoping-tube type, and how to calibrate a capacitor that has no manufacturer datasheet.
Why build your own
A commercial split-stator or vacuum variable capacitor rated for the several kilovolts a magnetic loop needs (see the Variable Capacitor Selection for Magnetic Loops guide) often costs $75-300 or more, and is one of the harder components to source surplus. A homebrew telescoping tube capacitor achieves comparable or better voltage handling from a few dollars of copper or brass tubing, which is why it's one of the most common capacitor solutions in published homebrew loop designs — not a compromise, but a genuinely competitive option.
Telescoping coaxial tube capacitor
Two concentric tubes of slightly different diameter, one sliding inside the other, form a cylindrical capacitor whose value depends on the overlap length and the ratio of the two diameters. Because the air gap between the tubes is easy to make wide relative to the tiny plate spacing of a meshed-plate design, this construction achieves excellent voltage handling for its size and cost — the main design tradeoff is overlap length versus tube diameter, not plate spacing versus voltage the way a conventional variable capacitor works.
Meshed parallel-plate capacitor
The traditional variable capacitor structure: a set of fixed stator plates and a set of rotor plates on a shaft, meshing more or less deeply as the shaft turns. This design is more involved to homebrew well — plates need to be flat, evenly spaced, and precisely aligned to avoid shorting or uneven capacitance across rotation — and its voltage handling is limited by how far apart you can practically space the plates while still getting useful capacitance. It's a better match for lower-voltage builds, such as a homebrew capacitor for an L-network or T-network antenna tuner, than for magnetic loop duty.
Choosing between the two
- Telescoping tube: best for high-voltage, moderate-range needs — magnetic loop tuning capacitors, and any application where voltage handling matters more than a very wide capacitance range.
- Meshed parallel-plate: best for lower-voltage, wider-range needs — general tuner-network capacitors where the circuit's own Q keeps voltage stress modest, and a wider single-part capacitance span is more useful than extreme voltage headroom.
| Aspect | Telescoping Tube | Meshed Parallel-Plate |
|---|---|---|
| Construction difficulty | Low — mainly sourcing well-matched telescoping tube sizes | Moderate to high — precise plate flatness and alignment required |
| Voltage handling | Excellent — easy to use a wide air gap between tubes | Limited by practical plate spacing |
| Typical achievable range | A few pF to a few hundred pF, depending on tube size and travel | Tens to a few hundred pF, depending on plate count and size |
| Motion type | Linear (sliding) | Rotary |
| Best for | Magnetic loop tuning capacitors, other high-voltage resonant tanks | Lower-voltage antenna tuner networks (L, T, Pi) |
Materials for either DIY capacitor type

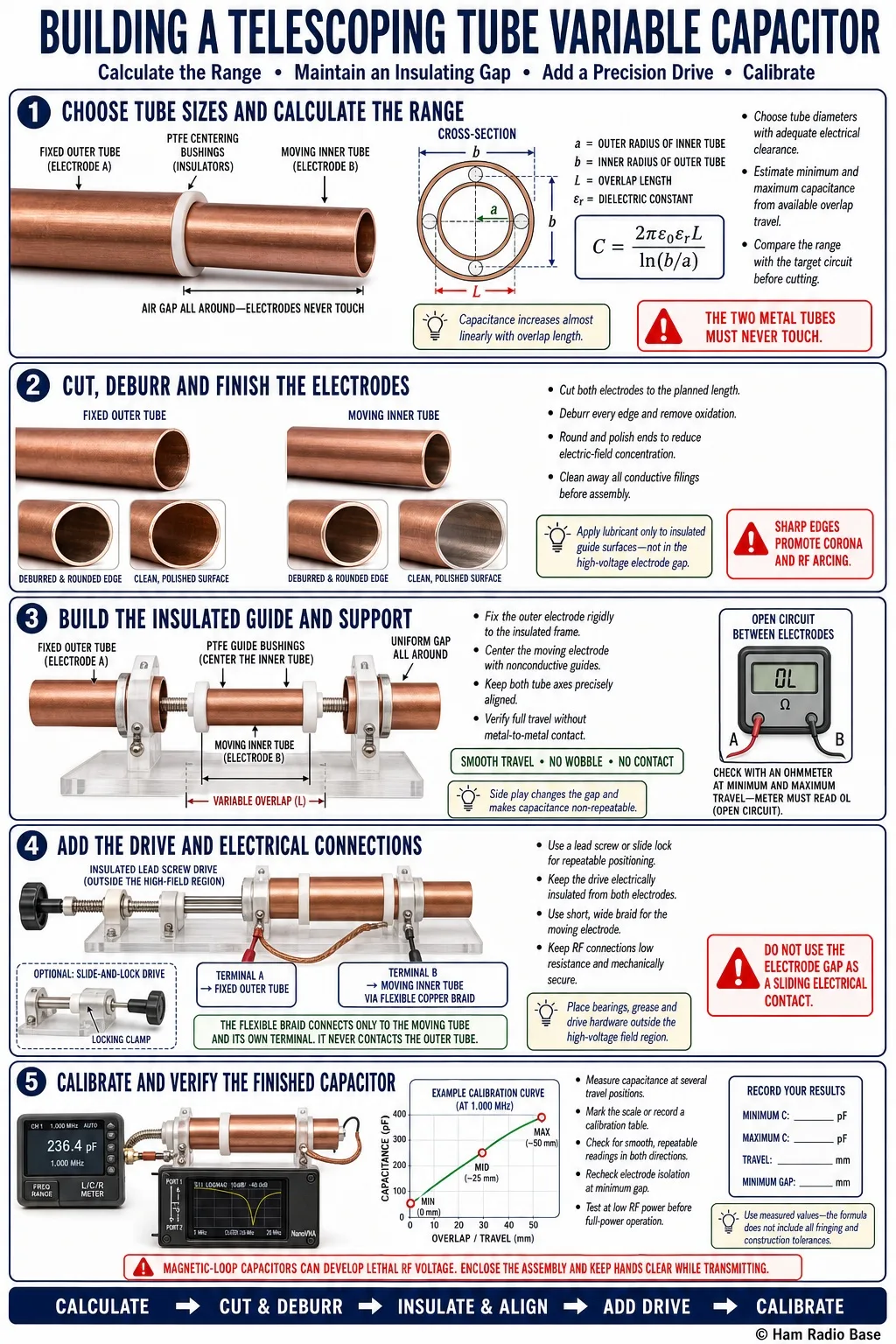

A homebrew telescoping tube variable capacitor built from two sizes of copper pipe on an insulated guide rail.
Building a Telescoping Tube Variable Capacitor
This sequence covers the telescoping tube type, the more broadly useful of the two designs for high-voltage duty — adapt steps 1-2 using the meshed-plate comparison above if building that type instead.
Choose tube sizes and calculate expected range
Source two telescoping tube sizes with a snug sliding fit — common copper pipe nominal sizes often telescope well together. Use the formula above with your tube diameters and available travel length to estimate the capacitance range before cutting anything, and compare it against what your target circuit actually needs (see the magnetic loop capacitor selection guide if this is for a loop).
Cut tubing and clean surfaces
Cut both tubes to length with clean, square ends, and polish or lightly sand the mating surfaces to remove oxidation — a clean sliding contact improves both electrical performance and mechanical smoothness. Deburr all cut edges so they don't scratch or bind during sliding.
Build the insulated guide and support structure
Mount the outer tube fixed to an insulated PVC or acrylic support, and fit the inner tube with a guide that lets it slide freely in and out along the same axis without wobbling — any side-to-side play changes the effective gap unevenly and makes the capacitance non-repeatable at a given position.
Add the drive mechanism and electrical connections
Fit a lead screw, rack-and-pinion, or simple slide-and-lock mechanism to control the overlap distance precisely and repeatably, and connect flexible braid or a wiping contact to each tube so the connection stays reliable through the full range of travel.
Calibrate against known reference points
Since a homebrew capacitor has no datasheet, measure actual capacitance at several travel positions with an LC meter or NanoVNA, and mark or log those reference points directly rather than trusting the formula alone for the finished build — real-world capacitance will differ somewhat from the calculated value due to fringing effects and tube tolerances.
| Symptom | Most likely cause | Diagnosis | Fix |
|---|---|---|---|
| Measured capacitance is significantly off from the calculated value | Actual tube diameters differ from nominal catalog sizes, or fringing effects at the tube ends aren't captured by the simple formula | Measure actual tube inner/outer diameters with calipers rather than trusting nominal pipe sizing | Recalculate with measured dimensions, and rely on direct calibration against an LC meter or NanoVNA for the final build rather than the formula alone |
| Capacitance changes erratically at a fixed travel position | Inner tube has side-to-side play, letting the gap shift unevenly | Check for wobble in the guide/support structure while holding the inner tube at a fixed position | Tighten or rebuild the guide so the inner tube travels only along its intended axis with minimal play |
| Arcing or a hissing sound during transmit | Air gap between tubes too small for the actual RF voltage present | Compare tube diameter ratio and expected voltage against the target application's requirements | Rebuild with a larger diameter ratio between the two tubes to widen the effective air gap |
| Electrical connection to the sliding tube is intermittent | Corroded or loose wiping contact/braid connection | Check continuity through the full range of travel while flexing the connection slightly | Clean contact surfaces and replace worn braid; consider a spring-loaded wiper for more consistent contact pressure |
| Mechanical binding or stiff, uneven motion | Tube fit too tight, misalignment, or debris/oxidation on the sliding surfaces | Remove the inner tube and inspect both mating surfaces for scoring, debris, or corrosion | Clean and lightly polish both surfaces, and confirm the guide structure holds true alignment along the sliding axis |
Is a homebrew capacitor really as good as a commercial vacuum variable?
For voltage handling relative to cost, a well-built telescoping tube capacitor is genuinely competitive — the physical air gap achievable between tubes rivals or exceeds what a similarly priced air variable offers. A vacuum variable still wins on compactness and current handling at very high power, but for most homebrew loop and tuner projects, the tube capacitor is a legitimate, widely used alternative rather than a compromise.
What tube sizes should I use?
Any pair with a snug telescoping fit works — common copper pipe nominal sizes (such as 7/8" and 1") are popular because they're inexpensive and widely available, but the exact sizes matter less than getting a diameter ratio and travel length that produce the capacitance range your project actually needs, per the formula above.
Do I need a special contact for good RF connection between the tubes?
A simple flexible braid or spring-loaded wiper connected to the inner (sliding) tube is usually sufficient — the outer tube can be soldered or clamped directly since it doesn't move. The key requirement is a low-resistance connection that stays reliable through the full range of travel, not anything exotic.
Can I use PVC pipe instead of metal tube?
Not for the capacitor plates themselves — the capacitance comes from two conductive (metal) tubes separated by an air gap, and PVC is an insulator, not a conductor. PVC or acrylic is exactly right for the guide/support structure that holds and aligns the metal tubes, just not as a substitute for the tubes themselves.
