Split-Stator vs Butterfly vs Air Variable — Comparison
"Variable capacitor" covers several genuinely different mechanical structures, not just different sizes of the same part — split-stator, butterfly, single-section air variable, vacuum variable, and compression trimmer each solve a different circuit problem. Picking the wrong structural type causes real issues (an unbalanced tank, excess contact loss in a high-Q circuit, or a part that simply can't take the voltage) that no amount of otherwise-careful sizing will fix. This guide compares the five types you're most likely to encounter across this series' tuner, loop, and matching-network builds.
What differentiates the structural types
Every variable capacitor in this comparison uses the same basic mechanism — a moving rotor and a fixed stator, or two moving tube/plate elements, changing overlap or spacing to vary capacitance. What differs between types is the rotor/stator geometry (single section vs. split into two ganged sections), the shape of that geometry (standard wedge vs. butterfly), and the dielectric (air vs. vacuum vs. a compressed solid dielectric). Each of those differences maps to a specific circuit need, which is why "get a variable capacitor" is rarely specific enough guidance on its own.
Split-stator — for balanced circuits
A split-stator capacitor gangs two separate capacitor sections on one shaft so both sections track together from a single control, while remaining electrically isolated from each other. This matters wherever a circuit needs a symmetric capacitance split across two points referenced to a common center — a balanced tank in a push-pull amplifier, or a magnetic loop's tuning gap wired to keep the loop electrically balanced rather than grounding one side. Using two separate, unganged capacitors instead works electrically but is far harder to keep in tracking sync as you tune, and using a single-section capacitor across a circuit designed for a balanced split defeats the point of the balance entirely.
Butterfly — for high-Q tank circuits
A standard rotor capacitor's contact wipes across a brush or bearing as it rotates through nearly its full range, adding a variable length of current path (and therefore variable series inductance and resistance) depending on rotor position. A butterfly capacitor's rotor is shaped so capacitance is at its extremes at both ends of a shorter rotation and minimum in the middle, keeping the current path — and the resulting series inductance and contact loss — low and more consistent across the tuning range. This matters most in genuinely high-Q resonant tanks, such as a magnetic loop's tuning capacitor or a Z-match tank, where even small added series loss measurably degrades efficiency.
Dielectric choice — air, vacuum, and compression trimmer
- Air variable: the standard choice across most of this series — good voltage handling for its size, easy to inspect and repair, widely available new and surplus.
- Vacuum variable: a vacuum dielectric between plates sealed in a glass or ceramic envelope, giving far higher voltage and power handling in a much smaller package than an equivalent air variable — at significantly higher cost, and with a real failure mode if the vacuum seal degrades (see troubleshooting below).
- Compression trimmer / mica: a small-range capacitor tuned by compressing a solid dielectric between plates, used for fine trimming in low-power circuits rather than as a primary tuning element — not a substitute for any of the main types above in a tuner or loop application.
| Type | Construction | Voltage/Power Handling | Best For |
|---|---|---|---|
| Single-section air variable | One rotor, one stator, air dielectric | Moderate, scales with plate spacing | General tuner networks (L, T, Pi) where balance isn't required |
| Split-stator air variable | Two ganged, tracking sections on one shaft, air dielectric | Moderate per section, same scaling as single-section | Balanced tank circuits, magnetic loop tuning gaps, push-pull amplifier tanks |
| Butterfly | Shaped rotor giving max capacitance at both rotation extremes | Comparable to an equivalent air variable, with lower series loss | High-Q resonant tanks — magnetic loops, Z-match tank circuits |
| Vacuum variable | Sealed vacuum dielectric between plates in a glass/ceramic envelope | Highest of this group, smallest size for the rating | High-power loops and tuners where size and voltage headroom both matter |
| Compression trimmer / mica | Solid dielectric compressed between plates, small adjustment range | Low, not intended for primary tuning duty | Fine trimming in low-power circuits, not a primary tuning element |
What you need to identify and choose between types
Side by side: a split-stator air variable, a butterfly capacitor, and a sealed vacuum variable.

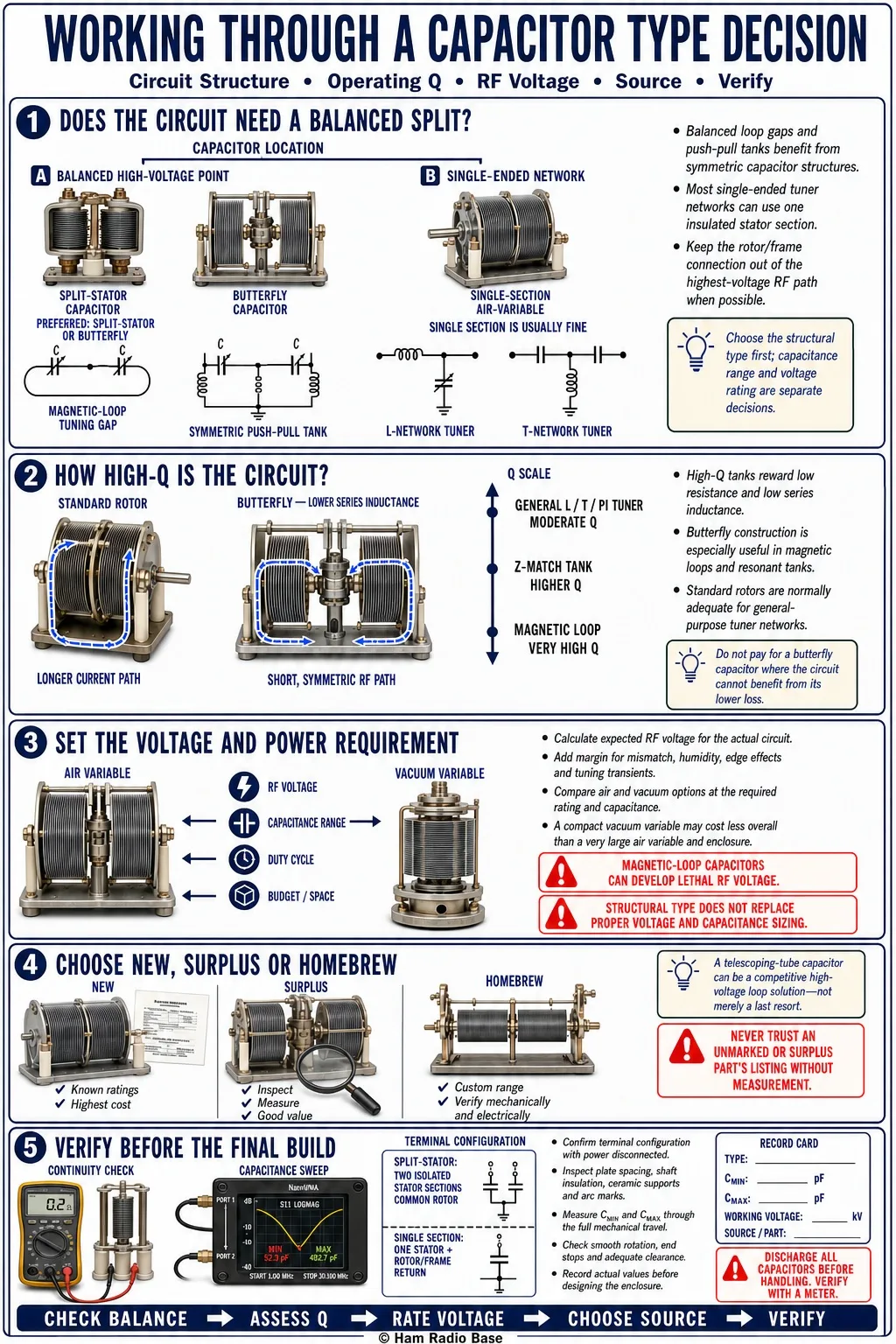

Working Through a Capacitor Type Decision
Work through this sequence before shopping for or building a capacitor — the structural type is a decision to make first, separate from the voltage/capacitance sizing covered in the other guides in this sub-category.
Determine whether your circuit needs a balanced split
Check whether the capacitor sits across a balanced point in your circuit — a magnetic loop's tuning gap, or a symmetric push-pull tank. If so, a split-stator part is the correct structural choice regardless of the other factors below; if the circuit is single-ended (most tuner networks), a single-section part is fine.
Assess how high-Q the circuit actually is
A magnetic loop tank or a Z-match resonant tank benefits measurably from a butterfly rotor's lower series loss. A general-purpose L, T, or Pi tuner network runs at low enough Q that a standard rotor's slightly higher series inductance rarely matters in practice — don't pay a premium for a butterfly part where it won't make an audible difference.
Set the voltage/power requirement
Calculate or look up the expected RF voltage for your specific application (see the magnetic loop capacitor selection guide for loop-specific voltage math) and compare against air variable vs. vacuum variable options at that rating and your budget.
Decide between new, surplus, and homebrew
Surplus vacuum and split-stator capacitors turn up regularly at reasonable prices and are usually a good value if you can verify their condition. If budget or sourcing is a constraint, especially for high-voltage loop use, consider the DIY telescoping tube capacitor as a genuinely competitive alternative rather than a last resort.
Verify before committing to the final build
For a surplus or unmarked part, confirm section configuration (split-stator vs. single) with a continuity check, and measure actual capacitance range with a NanoVNA rather than trusting a seller's listing alone — mislabeled and relabeled surplus parts do turn up in the secondary market.
| Symptom | Most likely cause | Diagnosis | Fix |
|---|---|---|---|
| Balanced circuit stays noticeably asymmetric no matter how the capacitor is adjusted | A single-section capacitor was used where a split-stator part was needed | Check continuity between the two circuit sides through the capacitor — a single-section part shows a common connection where a split-stator part shows isolated sections | Replace with a genuine split-stator capacitor wired symmetrically across the balanced point |
| High-Q tank circuit shows more loss/heating than expected at one part of its rotation | Standard rotor's wiping contact path length varies with position, adding inconsistent series loss | Compare loss/heating at different rotor positions for the same resonant frequency (achieved via different tap or coil settings) | Switch to a butterfly-type capacitor for that specific high-Q application |
| Vacuum variable makes a hissing or crackling sound, or shows visibly reduced range | Vacuum seal has degraded, allowing air into the envelope | A healthy vacuum variable operates silently; hissing/crackling under RF strongly suggests seal failure | Replace the part — a vacuum variable with a compromised seal cannot be reliably repaired and is a safety and performance risk to keep in service |
| Split-stator sections drift out of tracking sync over time | Mechanical wear in the ganging mechanism or shaft coupling | Compare each section's capacitance at the same shaft position against its original factory tracking spec, if available | Inspect and tighten the ganging hardware; replace the part if wear has progressed enough to affect balance meaningfully |
| Compression trimmer used as the primary tuning element won't cover the needed range | Compression trimmers are designed for small-range fine adjustment, not primary tuning duty | Compare the trimmer's rated range against the actual range the circuit needs to cover | Use an appropriately sized air variable, split-stator, or vacuum variable as the primary element, reserving the trimmer (if used at all) for fine adjustment only |
What's the difference between split-stator and just using two separate capacitors?
A split-stator capacitor's two sections are mechanically ganged on one shaft, so they track together automatically from a single control. Two separate capacitors can achieve the same electrical result but require independent adjustment to keep them matched, which is far more difficult to do accurately while tuning than turning one shared shaft.
Why do high-Q tanks prefer butterfly capacitors?
A standard rotor's wiping contact path length changes with rotor position, adding variable series inductance and resistance across the tuning range. A butterfly rotor's shape keeps that current path short and more consistent throughout rotation, which measurably matters in genuinely high-Q circuits like magnetic loops and Z-match tanks, where even small added series loss is a real efficiency cost.
When is a vacuum variable worth the extra cost?
When the voltage or power requirement would otherwise demand an air variable large and expensive enough that the vacuum variable's higher unit cost is offset by its smaller size and simpler mounting — this crossover point typically shows up at higher power levels and voltage ratings, such as full legal-limit amplifier tanks or high-power magnetic loops.
Can I substitute a split-stator capacitor for a single-section one in a normal circuit?
Yes, in most cases — simply use one of the two sections and leave the other unconnected, or tie the two sections in parallel for roughly double the capacitance of one section. It's not the most cost-efficient choice if you don't need the balanced-split function, but it isn't harmful to the circuit either.
