Build a Flagpole Vertical (Stealth)
A flagpole vertical hides a genuine full quarter-wave HF vertical element inside a hollow fiberglass flagpole — the flag flies normally overhead, the halyard and cleat work exactly as they would on any decorative flagpole, and there's nothing about the pole's outward appearance to suggest an antenna is inside. This is one of the most reliable stealth designs available, precisely because you have full control over the actual radiating element — the pole is purely a non-conductive disguise, not part of the antenna's electrical circuit. This guide covers the complete build from element sizing through the hidden feedpoint and buried radial system.
Why This Design Is So Reliable
Unlike concealment techniques that rely on an existing conductive structure (like a gutter), the flagpole vertical works by hiding a completely ordinary, fully controllable quarter-wave vertical element inside a non-conductive fiberglass shell. Fiberglass is essentially transparent to RF, so the element radiates through the pole wall exactly as it would in open air — you get full-size vertical performance with complete stealth, none of the electrical unpredictability that comes with trying to use an existing structure as the antenna itself.
Fiberglass Is Mandatory — Aluminum Will Not Work
A standard aluminum flagpole is itself a conductor, and would completely shield, detune, and short out an element mounted inside it. This design requires a genuinely non-conductive flagpole — fiberglass poles are widely available from flagpole retailers specifically because they're popular for exactly this reason (as well as for lightning safety and non-corrosion), so sourcing one isn't unusual or suspicious.
Matching Element Height to Pole Height
Residential decorative flagpoles commonly run 15-25 feet — comfortably enough for a full-size 17m, 15m, 12m, or 10m quarter-wave element, and workable for 20m with a pole toward the taller end of that range. For 40m and lower, you'll either need an unusually tall fiberglass pole or a loaded/shortened element (the same base-loading coil technique used in this site's other verticals) to fit the available height.
- Full-size element: simplest, most efficient option — pick a band whose quarter-wave length fits comfortably inside your pole with a few feet of clearance at the top.
- Base-loaded element: for lower bands where a full quarter-wave won't fit, a loading coil at the base shortens the required physical length at some efficiency cost, the same tradeoff described on this site's base-loaded vertical designs.
The Radial System — Buried, Not Hidden Above Ground
A quarter-wave vertical needs a radial ground system to perform well, exactly as with any other vertical on this site — the stealth advantage here is that radials buried a few inches under the lawn are completely invisible once the grass grows back over the installation trenches, unlike an above-ground radial system that would need its own concealment plan.
| Band | Element length (ft) | Minimum recommended pole height | Notes |
|---|---|---|---|
| 20m (14.15 MHz) | 16.5 ft | 20 ft | A common decorative flagpole height, leaves a few feet of clearance at the top |
| 17m (18.1 MHz) | 12.9 ft | 16 ft | |
| 15m (21.2 MHz) | 11.0 ft | 15 ft | |
| 12m (24.9 MHz) | 9.4 ft | 13 ft | |
| 10m (28.4 MHz) | 8.2 ft | 12 ft | Fits even a modest-height decorative flagpole |
Flagpole Vertical Calculator
Materials for a complete flagpole vertical build

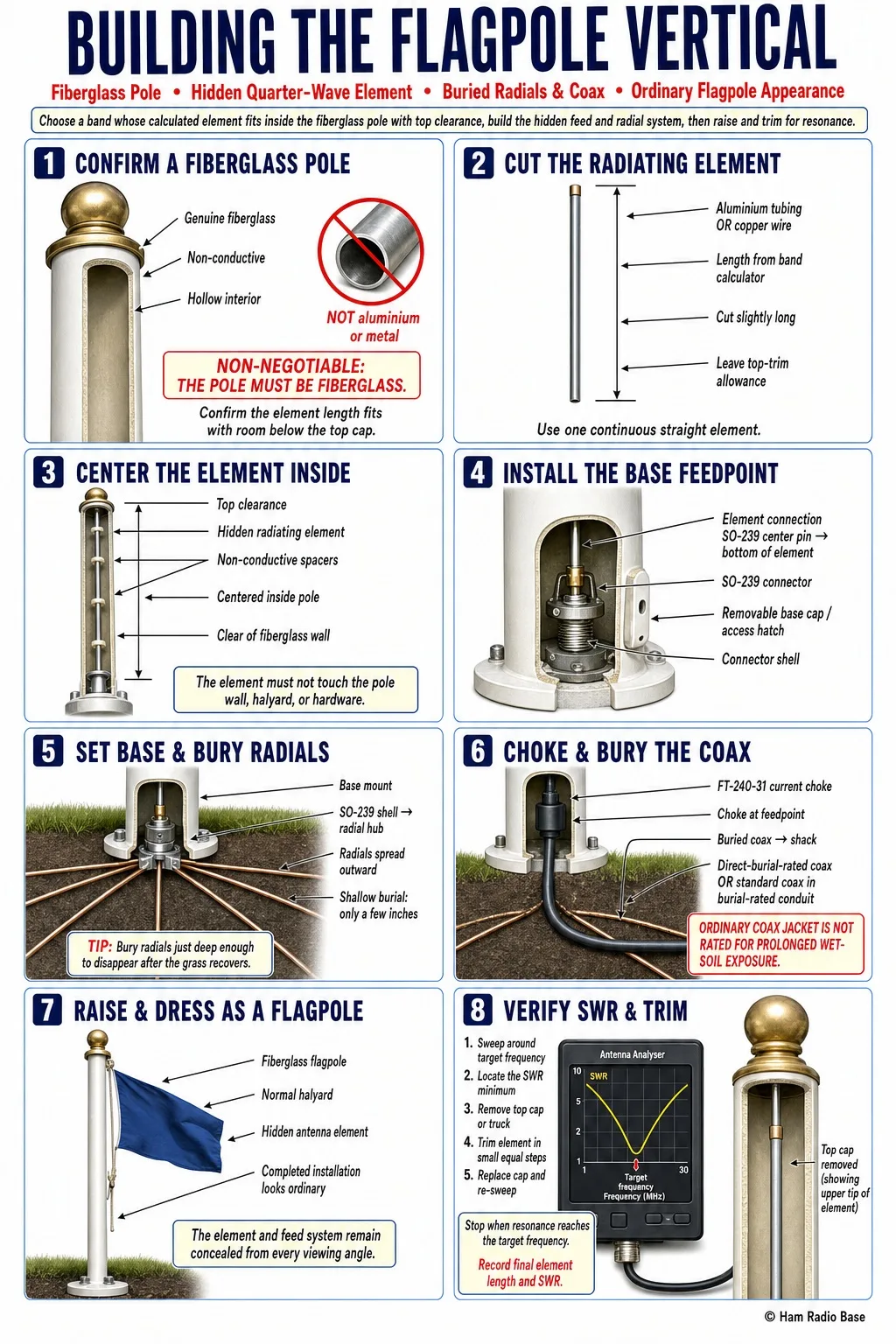

Building the Flagpole Vertical
Choose a band whose element length comfortably fits your fiberglass pole with room to spare at the top before starting.
Confirm Your Flagpole Is Fiberglass
Verify your flagpole is genuinely non-conductive fiberglass, not aluminum or another metal — this is the single non-negotiable requirement for this design to work at all.
Cut the Element
Cut the aluminum tubing or copper wire element to the length from the calculator, slightly long for final trimming.
Mount the Element Inside the Pole
Insert the element into the hollow flagpole, using non-conductive spacers to keep it centered and clear of the fiberglass wall along its length.
Install the Feedpoint at the Base
Mount the SO-239 connector inside the pole's base, accessible through the removable base cap or a small hatch, with the center pin connected to the bottom of the element.
Install the Base and Bury the Radial System
Set the flagpole's base mount, connect the radial hub to the SO-239 shell, and dig shallow trenches to bury the radials outward from the base.
Install the Current Choke and Bury the Coax
Install the FT-240-31 current choke at the feedpoint, then bury the coax run alongside the radial trenches to your shack entry point.
Raise the Flagpole and Attach a Flag
Install the pole in its base mount and attach a flag to the halyard as you normally would — the completed installation should look exactly like an ordinary decorative flagpole from any viewing angle.
Verify SWR and Trim
Sweep with the NanoVNA and trim the element (accessible by removing the pole's top cap or truck) to bring resonance onto your target frequency.
| Symptom | Most likely cause | Diagnosis | Fix |
|---|---|---|---|
| No SWR dip found anywhere | Feedpoint connection fault, or element shorted to a hardware component inside the pole | Check continuity from the SO-239 to the element and confirm no accidental metal contact inside the pole | Re-solder feedpoint connections; re-check spacer placement along the element |
| Antenna barely works despite correct wiring | Flagpole is actually conductive (aluminum or metal-cored fiberglass composite) | Test the pole material with a multimeter for continuity along its length | Confirm you have genuinely non-conductive fiberglass; some composite poles include a metal core — verify before building |
| Resonance off from the target frequency | Element length doesn't match the calculated value | Measure the actual element length | Trim from the top (if too long) or splice an extension (if too short) |
| SWR degrades gradually over time | Buried coax or radial connections corroding underground | Dig up and inspect buried connections for corrosion | Use burial-rated coax and weatherproof all buried connections with proper sealant |
| Weak signal reports despite good SWR | Inadequate radial system | Count installed radials against the recommended 8-16 | Add more buried radials — the same efficiency principle as any other ground-mounted vertical |
Can I use my existing aluminum flagpole for this?
No — an aluminum (or any conductive metal) flagpole will shield and short out an element mounted inside it. This design specifically requires a genuinely non-conductive fiberglass pole.
Will this affect how the flag flies or how I raise/lower it?
No — the halyard, cleat, and pulley all work exactly as they would on any ordinary flagpole. The antenna element and its wiring are entirely separate from the flag-flying hardware.
Can I cover multiple bands with one flagpole vertical?
Yes, using the same trap or loading-coil techniques covered in this site's multiband trapped vertical guide, adapted to fit inside the pole — more complex to build than a single-band element, but a workable option if your pole height allows it.
How tall a flagpole do I need for 40m or 80m?
A full-size 40m element (32.7 ft) exceeds most residential decorative flagpole heights, and 80m (65.5 ft) is well beyond what's practical. For these bands, a base-loaded/shortened element — the same coil technique used in this site's other loaded verticals — is the realistic option inside a normal-height pole.
Do I really need buried radials, or can I skip them?
A quarter-wave vertical needs a ground return system to perform well regardless of how it's disguised — skipping radials significantly reduces efficiency, the same tradeoff as any other vertical on this site without an adequate ground system.
Is this legal under a typical HOA flagpole allowance?
Many HOAs and some state laws specifically protect a homeowner's right to fly a flag on a flagpole, separate from any antenna restrictions that might otherwise apply — check your own local rules and covenant language, since this varies by location and isn't something this guide can confirm for your specific situation.
