Build a Window Screen Antenna
A Window Screen Antenna uses ordinary conductive window screen mesh, cut into two dipole panels and mounted in a frame that looks exactly like a normal window screen from any reasonable viewing distance. It's a genuinely broadband design too — the wide, flat conductor of each screen panel gives noticeably more SWR bandwidth than an equivalent thin-wire dipole, a real side benefit rather than just a stealth trick. This guide covers the complete build from panel dimensions through feedpoint assembly and tuning.
A Flat-Panel Dipole, Not a Thin Wire
Each dipole leg is a rectangular panel of conductive screen mesh rather than a thin wire — electrically, this is the same broadband principle behind "fat" or "cage" dipoles: a wider conductor presents a lower characteristic impedance and spreads the antenna's reactance change more gradually across frequency, giving noticeably better SWR bandwidth than an equivalent thin-wire dipole of the same resonant length.
Screen Material Choice: Copper/Bronze vs. Aluminum
Ordinary hardware-store window screen comes in a few common materials, and the choice affects how you'll make electrical connections:
- Copper or bronze screen: solders directly with ordinary rosin-core solder and a reasonably powerful iron — the easiest material to work with electrically, though usually pricier and less commonly stocked than aluminum or fiberglass screen.
- Aluminum screen: the most common, cheapest option, but aluminum does not solder with standard equipment — use crimped ring lugs, conductive epoxy, or mechanically clamped connections instead.
- Fiberglass or vinyl-coated screen: not conductive at all — not usable for this build. Confirm your screen material is metallic before starting.
Panel Width and Frame Sizing
Panel width (the dimension perpendicular to the antenna's length) isn't critical to resonance — anywhere from 4 to 8 inches wide works well and simply needs to fit your available window screen frame. Wider panels push the broadband benefit a bit further; narrower panels behave closer to a conventional thin-wire dipole.
Feedpoint at the Center Gap
The two panels mount with a small gap between them at the center of the frame — this gap is the feedpoint, where the coax center conductor connects to one panel and the shield connects to the other. Keep the gap as narrow as your construction method allows (typically 1/2 to 1 inch) without risking the two panels touching.
| Band | Each panel length (ft) | Total frame span (ft) | Notes |
|---|---|---|---|
| 20m (14.15 MHz) | 16.5 ft | ~33 ft | Needs a very large frame — more practical split across multiple windows or as a loop instead |
| 15m (21.2 MHz) | 11.0 ft | ~22 ft | |
| 10m (28.4 MHz) | 8.2 ft | ~16.5 ft | Fits within a single large picture window's dimensions on some homes |
| 6m (50.1 MHz) | 4.7 ft | ~9.3 ft | The most practical single-window size for this design |
Window Screen Antenna Calculator
Materials for a complete window screen dipole build

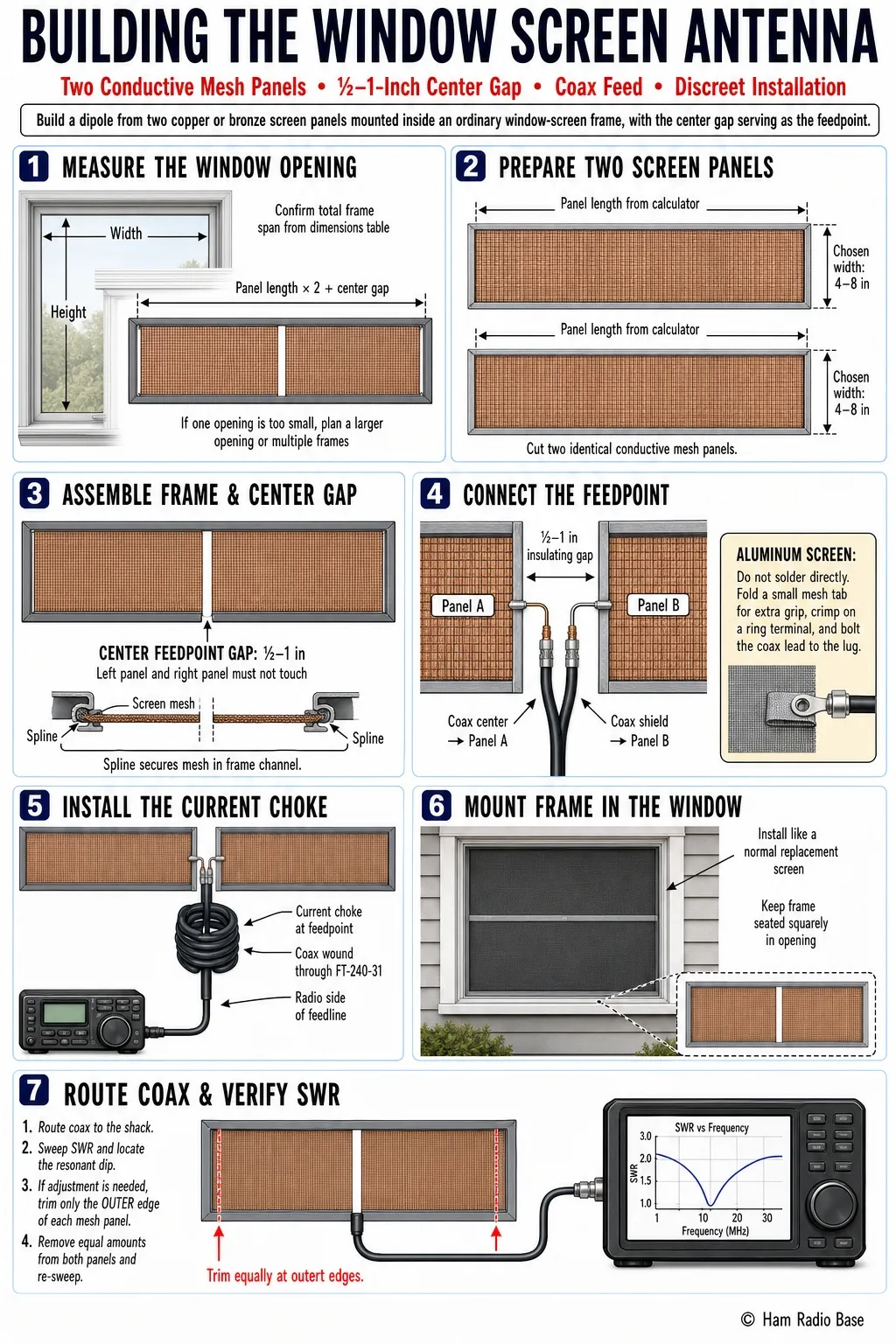

Building the Window Screen Antenna
This build assumes copper or bronze screen for direct soldering — see the tip in step 4 if using aluminum screen instead.
Measure Your Window Opening
Measure your target window frame and confirm it can accommodate the total frame span from the dimensions table for your chosen band, or plan to split the design across a larger opening or multiple frames.
Cut Two Screen Panels
Cut two rectangular panels of conductive screen mesh, each at the panel length from the calculator, with your chosen width (4-8 inches).
Assemble the Frame with a Center Gap
Install both panels into your window screen frame using standard spline-and-roller technique, leaving a small gap (1/2 to 1 inch) between the two panels at the frame's center — this gap is the feedpoint.
Connect the Feedpoint
Connect the coax center conductor to one panel and the shield to the other, at the center gap.
Install the Current Choke
Wind the coax through the FT-240-31 toroid at the feedpoint, the same choke practice used on this site's other dipole builds.
Mount the Frame in the Window Opening
Install the completed screen frame in its window opening exactly as you would a normal replacement screen — from any reasonable distance it should be indistinguishable from an ordinary window screen.
Route Coax and Verify SWR
Route the coax to your shack and sweep with the NanoVNA. Trim panel length (cutting from the outer edge of each panel) if resonance needs adjustment.
| Symptom | Most likely cause | Diagnosis | Fix |
|---|---|---|---|
| SWR high everywhere | Feedpoint connection fault, especially common with aluminum screen crimps | Check continuity from the coax to each panel | Re-crimp or re-solder the feedpoint connections |
| Two panels accidentally touching at the center gap | Gap too narrow, or screen material sagging over time | Inspect the center gap for contact | Widen the gap slightly; add a small non-conductive spacer if needed |
| Resonance off from the target frequency | Panel length doesn't match the calculated value | Measure the actual installed panel length | Trim from the outer edge of each panel equally |
| Screen sags or distorts in the frame over time | Insufficient spline tension during installation | Check spline tightness against a normal screen installation | Re-install with proper spline tension, same technique as any window screen repair |
| Aluminum screen crimp connection works loose | Vibration or thermal cycling loosening the crimp over time | Check crimp tightness periodically | Re-crimp with a proper crimping tool; consider conductive epoxy as a backup for aluminum connections |
Does the screen mesh lose significant performance compared to solid wire?
Not meaningfully — at HF wavelengths, ordinary window screen's mesh openings are tiny compared to the wavelength, so the screen behaves essentially like a solid conductive sheet. The wider panel shape actually helps bandwidth rather than hurting it.
Can I use regular aluminum screen from the hardware store?
Yes, it's the most common and cheapest option — you just need to use crimped ring lugs or conductive epoxy for connections instead of soldering, since aluminum doesn't solder with standard equipment.
Will this really be invisible?
From typical viewing distances, yes — a properly installed screen frame with this antenna inside looks like any other window screen. Up close or under close inspection, the center feedpoint gap and connection hardware would be visible if someone looked carefully.
Can I make this a loop instead of a dipole?
Yes — a full-wave loop cut as a continuous ribbon of screen material around the frame's perimeter is a workable variant, following the same full-wave loop perimeter formula used elsewhere on this site, with a single feedpoint gap instead of two separate panels.
What if my window screen material is fiberglass or vinyl-coated?
Those materials aren't conductive and won't work for this build — confirm your screen material is metal (aluminum, copper, or bronze) before starting, or purchase conductive screen material specifically for this project.
Do I still need a current choke on this antenna?
Yes, exactly as with any other dipole on this site — a choke at the feedpoint prevents common-mode current on the coax from distorting the pattern and affecting SWR readings.
