Gutter-Mounted Stealth Antenna
The reliable way to hide an HF wire antenna along your roofline is to run your own insulated wire just inside or behind the gutter and fascia — using the gutter system purely as visual concealment, not as part of the antenna's electrical circuit. This guide covers that approach in full, and is equally honest about the tempting shortcut of feeding the gutter itself: it's a well-known idea among stealth builders, and a genuinely unreliable one, for reasons explained below before you commit to a design.
The Reliable Approach: Your Own Wire, Concealed
Run an ordinary insulated antenna wire — an end-fed half-wave, a random wire with a 9:1 unun, or a compact doublet, all already covered elsewhere on this site — just inside the gutter trough, behind the fascia board, or clipped along the underside of the roof edge where it's hard to see from the ground. The wire does all the actual radiating; the gutter and roofline simply hide it from view. This gives you full, predictable control over the antenna's electrical length and performance, exactly as if it were strung in the open.
Why Feeding the Gutter Itself Is a Bad Idea
It's tempting to just clamp a feedline directly to the gutter and use the whole run as the antenna — no separate wire to hide at all. Experienced stealth-antenna builders generally advise against this, for reasons that are easy to verify once you think through how a real gutter system is built:
- Unpredictable continuity: gutter sections are joined with slip connectors, sealant, and screws, not soldered joints — electrical continuity along the run is inconsistent and can change with corrosion, paint, or a loose section over time.
- Grounded downspouts: most gutter systems are bonded to grounded downspouts and sometimes to the house's electrical grounding system, meaning your "antenna" may be partially or fully shorted to ground in ways you can't easily control or predict.
- Unknown, unmanageable length: you can't trim a gutter to resonance the way you trim wire — the length is fixed by the house, and rarely matches a useful electrical length for your target band.
- RFI risk: driving RF current into a structure that's bonded to the house's plumbing, grounding, or downspout system risks coupling RF into places you don't want it — home electronics, cable TV lines, or neighboring structures.
None of this means it's impossible to get the gutter-fed approach working at all — some builders report a usable match with enough experimentation — but the result is unpredictable, site-specific, and not something this guide can respons ibly hand you a formula for. The wire-concealed-by-the-gutter approach above gives the same visual stealth with none of these downsides.
Choosing Your Concealed Wire Antenna Type
- End-fed half-wave (49:1 unun): fed from one end, the far end can simply terminate at a distant gutter corner or downspout location — no need for a center feedpoint partway along the roofline.
- Random wire with 9:1 unun: even more flexible on exact length, forgiving of whatever run length your specific roofline allows.
- Compact doublet: if you can route two wire runs (e.g., along two adjoining roof edges) back to a common feedpoint, a fed-in-the-middle doublet with ladder line to a tuner is also a workable concealed option.
Keeping the Wire Electrically Isolated from the Gutter
Whichever antenna type you choose, keep the wire itself from touching the metal gutter or any grounded downspout or flashing along its run — use small plastic standoffs or simply route the wire with enough clearance inside the trough or behind the fascia to avoid contact. A wire that occasionally touches the gutter will show erratic, hard-to-diagnose SWR behavior that changes with weather and gutter movement.
| Band | Wire length (ft) | Notes |
|---|---|---|
| 40m (7.15 MHz) | 65.5 ft | Needs a long roofline run or multiple sides of the house |
| 20m (14.15 MHz) | 33.1 ft | Fits along one long roofline on most homes |
| 17m (18.1 MHz) | 25.9 ft | |
| 15m (21.2 MHz) | 22.1 ft | |
| 10m (28.4 MHz) | 16.5 ft | Fits easily along a single roof section |
Concealed Wire Length Calculator
Materials for a gutter-concealed wire antenna

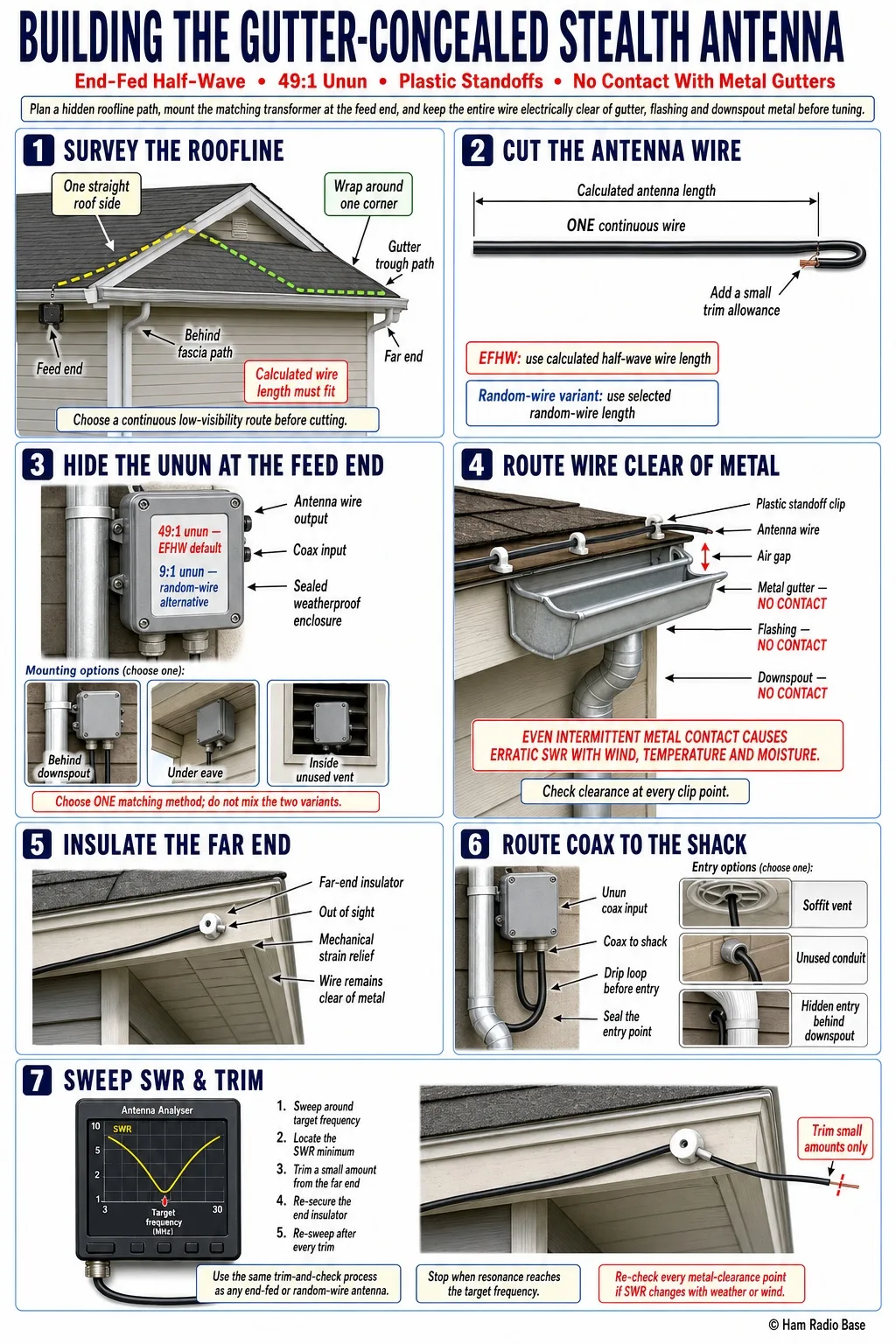

Building the Gutter-Concealed Stealth Antenna
This build assumes an end-fed half-wave with a 49:1 unun — substitute a 9:1 unun and random-wire length if you prefer that variant.
Survey Your Roofline
Walk your roofline and identify a run (one side, or wrapping a corner) long enough for your calculated wire length, checking for a hidden path along the gutter trough or behind the fascia board.
Cut the Wire
Cut the wire to your calculated length plus a small trim allowance.
Mount the Unun at the Feed End
Install the unun in a small weatherproof enclosure at the near end of your run, mounted somewhere already inconspicuous — behind a downspout, tucked under an eave, or inside an unused vent.
Run the Wire Along the Concealed Path
Route the wire along your chosen path using plastic standoff clips, keeping it clear of contact with the metal gutter, flashing, or any grounded downspout along the entire run.
Terminate the Far End
Attach a small end insulator at the far end of the run, secured out of sight.
Route Coax to the Shack
Run the coax from the unun enclosure to your operating position through an existing low-visibility entry point — a soffit vent, an unused conduit, or a small drilled hole behind a downspout.
Verify SWR and Trim
Sweep with the NanoVNA and trim the wire length as needed to bring resonance onto your target frequency, the same trimming process as any other end-fed or random wire build on this site.
| Symptom | Most likely cause | Diagnosis | Fix |
|---|---|---|---|
| SWR erratic, changes with weather or wind | Wire making intermittent contact with the gutter or flashing | Inspect every standoff clip point for clearance | Add or adjust standoffs to maintain consistent separation from all metal |
| SWR high everywhere, no resonance found | Unun wiring fault, or the wire is shorted somewhere along its run | Check continuity from the unun to the far end insulator | Re-solder unun connections; inspect the full run for accidental shorts |
| Resonance off from the target frequency | Wire length doesn't match the calculated value for your chosen band | Measure the actual installed wire length | Trim (if too long) or extend with a spliced section (if too short) |
| Noticeable RFI in nearby home electronics | Common-mode current on the coax, or unwanted coupling into house wiring near the run | Check for RF on the coax shield near the radio; note which specific devices are affected | Add a current choke at the feedpoint; reroute the wire farther from house wiring runs if coupling persists |
| Antenna performs noticeably worse than an equivalent antenna in the open | Normal expected reduction from proximity to roofing material, gutters, and the house structure | Compare signal reports against a known reference on the same band | Some performance reduction is an accepted tradeoff for concealment; not generally a fixable fault |
Can I really just feed the gutter directly instead of hiding a separate wire?
You can try, and some builders have gotten a usable match this way, but it's inherently unpredictable — gutter sections have inconsistent continuity, are often bonded to grounded downspouts, and can't be trimmed to a known electrical length. This guide's wire-concealed-by-the-gutter approach gives the same visual stealth with a fully predictable, controllable antenna.
Will this antenna perform as well as the same wire strung in the open?
Expect somewhat reduced performance compared to a fully clear installation — proximity to the roof, gutters, and house structure all detune and absorb some signal compared to an antenna in open air. It's a reasonable and common tradeoff for HOA or covenant-restricted situations, not a free equivalent to an open wire antenna.
Do I need to worry about lightning with a gutter-area antenna?
Yes — treat this installation with the same lightning-protection discipline as any outdoor wire antenna: a disconnect point at the shack entry, and don't rely on the gutter system itself (which may or may not be well-grounded) as your antenna's safety ground.
What's the least visible place to route the coax indoors?
An existing soffit vent, an unused dryer vent, or a small hole drilled behind a downspout where it's already visually busy with existing hardware all work well — the goal is a path that doesn't introduce a new, obviously out-of-place opening.
Can I use this same concealment technique with a doublet instead of an end-fed?
Yes — if your roofline allows routing two wire runs back to a common center feedpoint (for example, wrapping two adjoining sides of the house), a center-fed doublet with ladder line to a tuner works exactly the same way, concealed the same way.
How do I explain this to my HOA if asked?
This design is specifically intended to not be visible from normal viewing distances — most successful concealed installations simply don't come up in conversation. If your covenant has specific antenna restrictions, review them and any applicable local/state reasonable-accommodation rules before installing, rather than relying on concealment alone.
