Build a 2-Meter Copper Cactus Antenna
The Copper Cactus is a two-element copper pipe collinear antenna — two half-wave radiating sections stacked vertically and phased by a half-wave copper pipe phasing coil between them. Where the J-pole and Slim Jim provide a modest 2 dBd gain advantage, the Copper Cactus delivers genuine collinear gain of 4–5 dBd through in-phase stacking — performance that competes with commercial 5/8-wave collinears at a fraction of the cost. The distinctive coiled section between the two pipe elements gives the antenna its cactus-like silhouette and provides the critical λ/2 phase inversion needed to make both elements radiate in phase toward the horizon. This guide builds a 2m Copper Cactus from standard 1/2-inch copper plumbing pipe for a permanent outdoor installation.
Collinear Stacking and Phase
The Copper Cactus produces gain by stacking two half-wave radiating elements vertically, with their fields adding constructively at the horizon. The key challenge in any collinear design is ensuring the two elements radiate in phase — without phase correction, stacked elements cancel rather than add:
Copper Pipe Phasing Coil Design
The phasing coil is the defining element of the Copper Cactus. Unlike the coax choke in the Flower Pot, this coil is made from the same copper pipe as the radiating elements — it is a continuous conductor wound into a coil at the midpoint of the antenna:
Element Sections and Overall Structure
The Copper Cactus consists of three main sections from bottom to top:
Why Not Just Use a Commercial Collinear?
The Copper Cactus is worth building over buying a commercial alternative for several reasons specific to this design:
- Cost: a Diamond X50 or Comet GP-3 commercial collinear runs $80–130. The Copper Cactus material cost is under $35. The performance difference (commercial wins by approximately 1 dBd at most) rarely justifies the cost difference for a station not engaged in serious contesting.
- Learning: building a phased collinear teaches the fundamentals of antenna phasing, velocity factor, and the relationship between physical and electrical length in a way that buying a commercial antenna never does.
- Repairability: every component is copper plumbing pipe from any hardware store. If a section is damaged, it can be replaced in an afternoon with $3 worth of copper pipe — unlike a commercial antenna with proprietary internal elements.
- When to buy commercial instead: if you want guaranteed high gain (5+ dBd), weatherproofed factory-sealed construction, and do not want to spend time building and tuning — buy a Diamond X50. It will outperform a homebrew Copper Cactus by 1–2 dBd and require no tuning.
| Section | Length / Size | Material | Notes |
|---|---|---|---|
| Lower radiating element | 38.4 in (975 mm) | 1/2-inch OD copper pipe | Half-wave at 146 MHz; starting cut 40 inches, trim to resonance |
| Phasing coil | 38.4 in pipe coiled to 4.5 turns | 1/4-inch OD soft copper tube | 2.75-inch coil diameter; 3.5-inch axial height; hand-windable |
| Upper radiating element | 38.4 in (975 mm) | 1/2-inch OD copper pipe | Same length as lower element; starting cut 40 inches |
| Coil-to-element adapters | 1/2-inch to 1/4-inch reducers | Copper reducing couplings | 2 pieces — connect 1/2-inch pipe elements to 1/4-inch coil ends |
| Base cap (bottom) | 1/2-inch end cap | Copper | Seals bottom of lower element |
| Top cap | 1/2-inch end cap | Copper | Seals top of upper element |
| Feedpoint SO-239 | Drilled into lower element | SO-239 chassis connector | At 1.5–2 in above base — same tap-and-tune as J-pole |
| Total antenna height | ~80 inches (6.7 ft) active | — | Plus base mounting hardware; complete installation ~8 ft |
Vhf Coppercactus Calculator
Materials for a 2m Copper Cactus two-element collinear

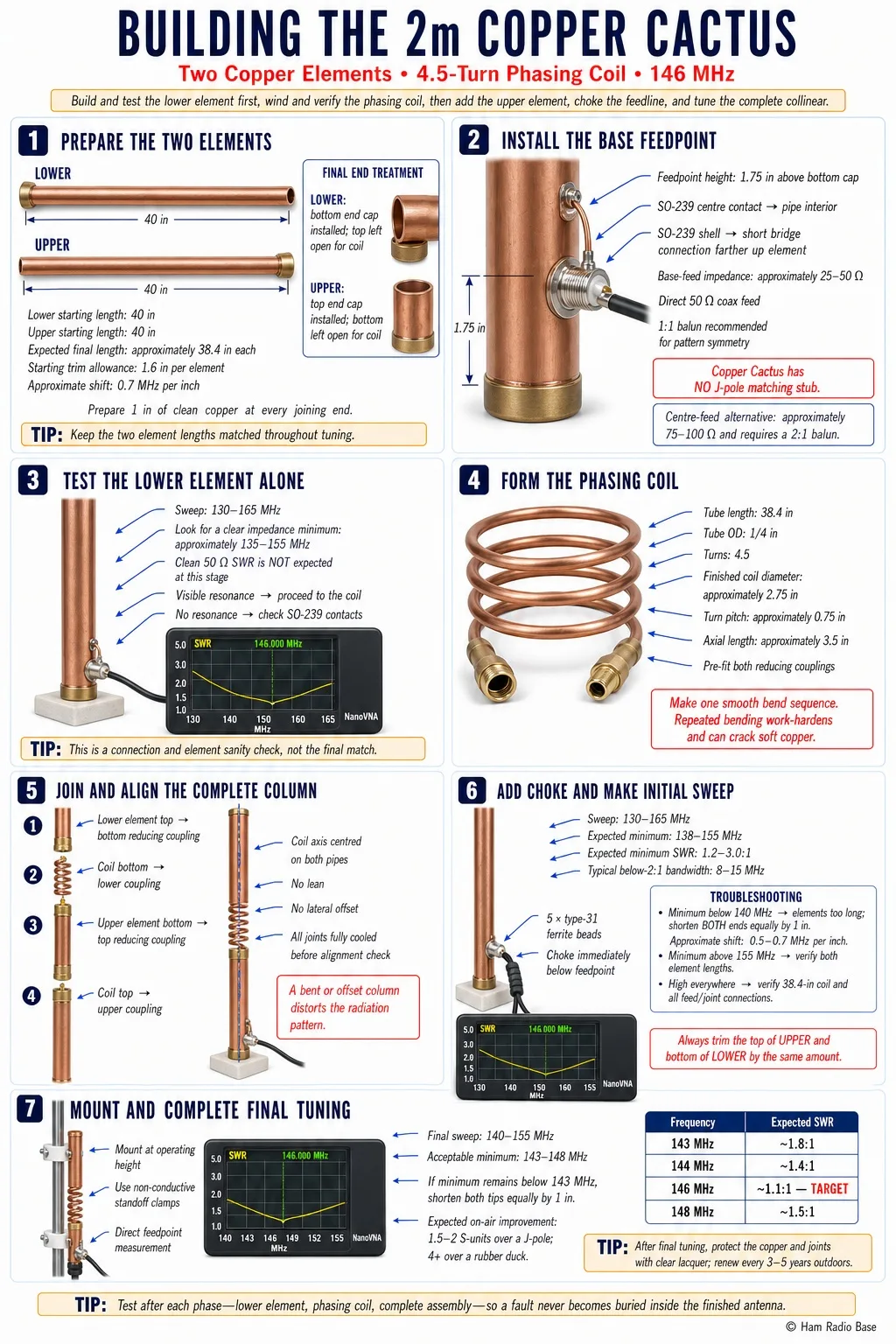

Building the 2m Copper Cactus
This build is more involved than the single-element J-pole — two elements, a hand-wound phasing coil, and more soldering joints. Work through the build in three phases: build and test the lower element alone first, wind and verify the phasing coil, then add the upper element and verify the complete collinear. Testing at each stage prevents having to disassemble a completed antenna to diagnose a problem.
Cut and Prepare Both Radiating Elements
Cut two lengths of 1/2-inch copper pipe from the 7-foot section, each 40 inches long (starting length — final trim comes after the phasing coil is installed). Clean and de-burr both cut ends.
Install the Feedpoint SO-239 on the Lower Element
Install the SO-239 feedpoint connector on the lower radiating element exactly as described in the J-pole build guide — drilled into the pipe wall approximately 1.75 inches above the bottom end cap, with the center pin contacting the pipe interior and a bridge wire running from the SO-239 shell to a connection point further up the element:
Test the Lower Element Alone
Before winding the phasing coil, verify the lower element resonance using the NanoVNA. This confirms the element length is correct before committing to the more complex multi-element build:
Wind the Phasing Coil from Soft Copper Tube
The phasing coil is the most hands-on step in the build. Wind 38.4 inches of 1/4-inch OD soft copper refrigeration tubing into a 4.5-turn coil at 2.75-inch diameter:
Solder the Complete Assembly Together
Assemble and solder the complete antenna in one session. The order is important — solder the lower element connection to the coil first, then the upper element to the coil top:
Install a Feedline Choke and Initial SWR Test
Thread 5 type-31 ferrite beads onto the feedline coax immediately below the SO-239. This choke prevents common-mode current on the feedline from distorting the collinear pattern. Connect the NanoVNA and sweep 130–165 MHz with the antenna held vertically at arm's length:
Mount at Operating Height and Final Tuning
Mount the antenna on its permanent mast at operating height. Connect the NanoVNA at the feedpoint. Sweep 140–155 MHz for the final SWR reading:
| Symptom | Most likely cause | Diagnosis | Fix |
|---|---|---|---|
| SWR high everywhere — no usable dip | Phasing coil wrong length; or SO-239 connection fault | Measure coil physical length — should represent 38.4 inches of tube; check SO-239 center pin | Rewind coil to correct 38.4-inch tube length; re-solder SO-239 center pin contact |
| SWR minimum present but only modest gain on air | Phasing coil too short or too long — elements not in phase | Correct SWR alone does not guarantee correct phasing; compare signal to a known J-pole | Rewind coil to exactly 38.4 inches; verify both reducing couplings seat fully on coil ends |
| Antenna leans or is not straight | Solder joints set while assembly was misaligned | Sight along the antenna from below — should appear as straight line | Reheat the misaligned joint with torch; straighten while solder is liquid; hold until solid |
| SWR varies dramatically when feedline is moved | Ferrite choke missing or inadequate | Move feedline while watching SWR — variation confirms common-mode current | Add 5 type-31 beads or snap-on ferrite on feedline immediately below SO-239 |
| Performance degrades after winter — SWR rises | Solder joint cracked from thermal expansion, or water ingress | Inspect all solder joints at the reducing couplings — look for gaps or cracks | Reflow suspect solder joints with torch; re-weatherproof any cracked joints |
| SWR minimum at correct frequency but minimum above 2.5:1 | Feedpoint impedance mismatch; coil length slightly off | Try adding a 1:1 balun at the SO-239; if SWR improves, impedance mismatch | Install 1:1 current balun at feedpoint; alternatively adjust tap position up or down 0.25 inch |
How much better is the Copper Cactus than the J-pole in practice?
Mathematically the Copper Cactus provides approximately 2–3 dBd more gain than the J-pole — the difference between ~2 dBd (J-pole) and ~4–5 dBd (Copper Cactus). In practical on-air terms this means signals that are borderline readable through the J-pole are solid copy through the Copper Cactus, and stations you could work at 100 miles on the J-pole extend to 140–150 miles on the Copper Cactus under the same conditions. For APRS, the larger coverage footprint from the lower angle of radiation makes a significant difference in how many packets are received from distant stations. The gain improvement is real and meaningful for any fixed station where repeater range or APRS coverage is a priority.
Can I add a third element for even more gain?
Yes — a three-element copper collinear (three half-wave radiators separated by two phasing coils) theoretically produces approximately 6–7 dBd of gain. The additional element and second phasing coil follow the same design as the first — another 38.4-inch radiating section above a second 38.4-inch phasing coil at the top of the existing assembly. However, a three-element collinear is approximately 10 feet tall and requires careful alignment to keep all three elements coaxial. The gain improvement from two elements (5 dBd) to three elements (7 dBd) is approximately 2 dBd — meaningful but not dramatic. Most operators building a three-element collinear find that a commercial antenna at that height and complexity level is competitive on cost and guaranteed to work correctly without tuning.
Does the phasing coil get hot during transmit?
At normal amateur power levels (up to 100W) the phasing coil carries relatively little resistive current — it is primarily a reactive (inductance-based) section and dissipates very little power. At 100W continuous the coil may warm slightly to the touch — perhaps a few degrees above ambient — but it does not get hot in any meaningful sense. At legal limit power (1500W), the coil carries more current and may warm to 40–50°C (104–122°F) under continuous carrier operation, which is within the normal safe operating range for copper and soft solder. The coil is not a power-limiting component for normal amateur operation.
Can the phasing coil be made from 1/2-inch plumbing pipe instead of refrigeration tube?
Technically yes, but it requires either specialized pipe-bending equipment or an approximation using multiple short pipe sections and elbows. Bending 1/2-inch copper plumbing pipe into a tight 2.75-inch coil without collapsing the pipe wall requires a pipe bender with the correct radius die — available at plumbing rental supply shops. An alternative approximation uses four 90° elbows and short straight sections to form a square-spiral "coil" that approximates the same electrical length as a true helix. The square approximation works acceptably but is less elegant and introduces small impedance discontinuities at each corner. The 1/4-inch soft refrigeration tube approach used in this guide produces a neater, electrically cleaner result for significantly less effort.
How does the Copper Cactus compare to a Diamond X50 commercial collinear?
The Diamond X50 specifies 6.0 dBd gain on 2m and costs approximately $100. A well-built Copper Cactus produces approximately 4–5 dBd on 2m and costs approximately $32. The X50's higher gain (1–2 dBd more) comes from its longer antenna structure and more elaborate internal phasing network — it is a three-element collinear with better-optimized radiation angle than a two-element design. In on-air comparisons, the X50 shows signals approximately 1–2 S-units stronger than the Copper Cactus. Whether that 1–2 dBd difference justifies $68 additional cost is a personal decision — for a serious APRS iGate, repeater linking site, or contest station it probably does; for a general-purpose home VHF station the Copper Cactus performs admirably.
Do I need to weatherproof the coil?
The copper refrigeration tube coil itself is naturally weather-resistant — copper handles outdoor exposure well. The soldered joints at the reducing couplings (where the coil meets the 1/2-inch pipe elements) are the vulnerable points. Water wicking into a soft-soldered joint and freezing in winter can crack the joint over time. Apply a generous bead of RTV silicone sealant around each reducing coupling joint after all soldering is complete and the assembly has cooled. This seals water out of the joint and provides some mechanical stress relief. The RTV can be applied neatly with a finger and blends with the copper appearance once it cures to a dark gray. Reapply every 3–5 years or when cracking is observed.
