Delta Match
A delta match feeds a full-length, unbroken-at-center driven element by fanning two wires out from the feedline to two symmetric tap points spaced wider than the feedline itself — a physical taper in conductor spacing that transforms impedance with no capacitors, no rods, and no lossy components at all. It's the oldest of the Yagi matching methods and still the mechanically simplest at high power. This guide covers the theory, starting dimensions, and troubleshooting.
Why fan the wires out at all
A full-length, resonant driven element's own feedpoint impedance changes as you move away from its exact center, the same underlying effect a gamma or T-match rod exploits — except here, instead of adding a separate parallel rod, the feedline itself connects directly to two points on the element spread symmetrically around center. Because those two tap points are farther apart than a low-impedance feedline's own conductor spacing, the two legs connecting them have to fan outward from the feedline toward the element — hence "delta," for the triangular shape this creates.
How the taper transforms impedance
The fanned legs form a short section of gradually widening two-wire transmission line. A two-wire line's characteristic impedance rises as the spacing between the conductors increases relative to their diameter, so the taper itself steps the line's impedance up from what the feedline presents toward what the wider-spaced element tap points need — no capacitor or rod required, just wire geometry.
Why delta match is less common today
The fanned legs sit close to the driven element and couple with it more than a gamma rod or hairpin does, which makes delta match more sensitive to small changes in leg spacing and angle than the other methods — a real practical downside when you're trying to converge on a clean SWR dip. It has mostly been superseded by gamma, T, and hairpin matches for new builds, which offer more predictable, more independently adjustable tuning.
Where delta match still makes sense
No capacitors means no voltage-rating concerns or weatherproofed capacitor housings to fail — a genuine advantage at very high power or in harsh environments where minimizing failure-prone parts matters more than tuning convenience. It also keeps the driven element at full, unbroken length with no insulated gap or grounding requirement of its own, which appeals to some builders for mechanical simplicity on larger HF arrays.
- Best fit: high power, minimal-parts builds, and situations where avoiding capacitors specifically is a priority.
- Tradeoff: more sensitive, more fiddly tuning than gamma, T, or hairpin match.
| Method | Driven Element Feed | Components Needed | Best For |
|---|---|---|---|
| Gamma Match | Single-ended, element grounded at center | 1 rod + 1 series capacitor | HF/VHF monobanders wanting a DC-grounded driven element |
| Hairpin (Beta) Match | Balanced, insulated center gap | 1 shorted stub, no capacitor | High power and VHF/UHF builds wanting a low-loss, capacitor-free match |
| T-Match | Balanced, insulated center gap | 2 rods + 2 series capacitors (symmetric) | Gamma-style tuning flexibility on a balanced element |
| Delta Match | Balanced, full-length element | 2 fanned wire legs, no capacitors | Simple, no-lossy-component match at high power |
| Omega Match | Single-ended, element grounded at center | 1 rod + 2 capacitors (series + shunt) | Extra tuning range when a simple gamma can't reach a clean 50Ω |
Materials for a delta match assembly
A delta match assembly on a Yagi driven element, with the two fanned wire legs widening from the feedline to symmetric tap points.

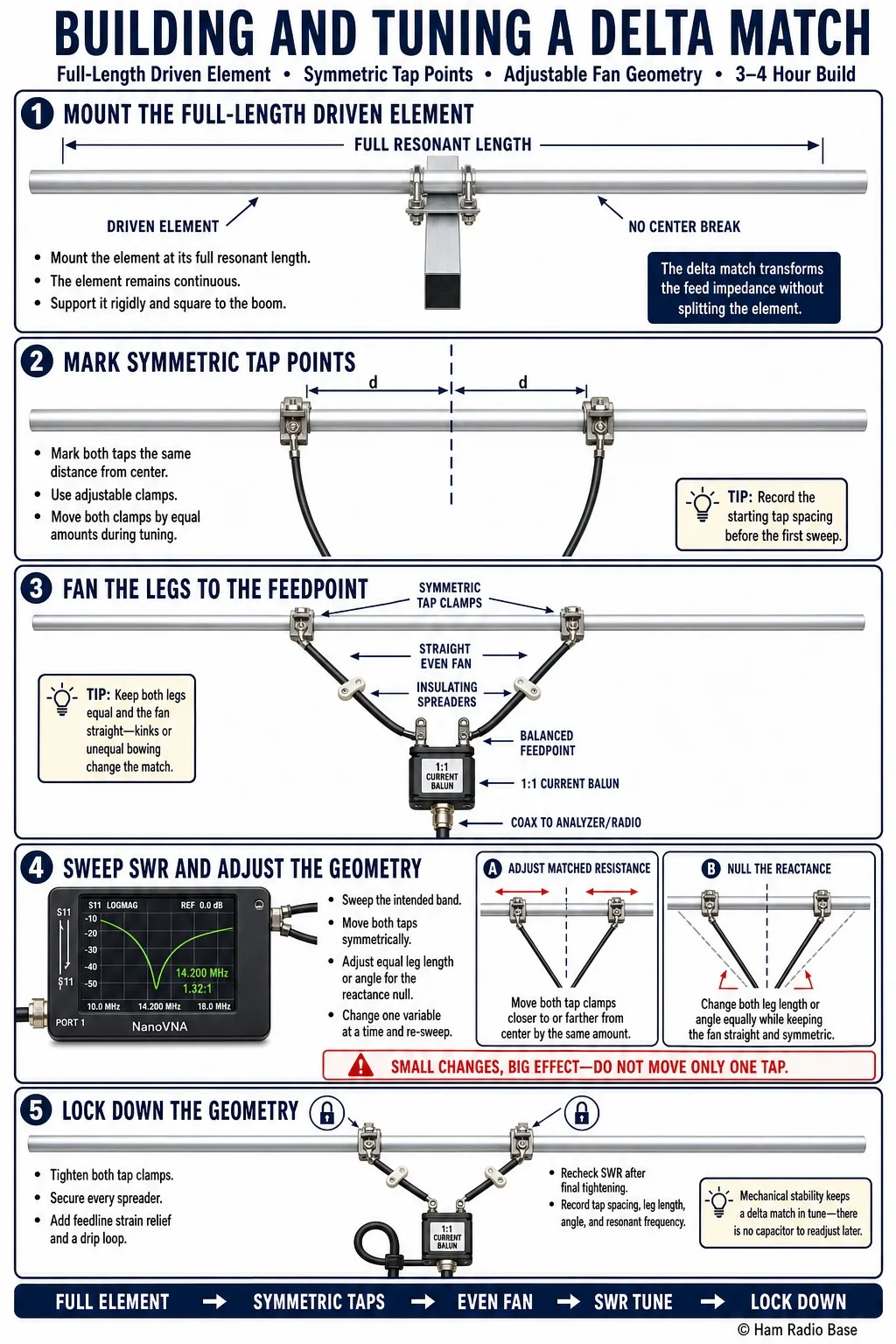

Building and Tuning a Delta Match
Budget 3-4 hours — delta match tuning is the most sensitive to small geometry changes of the five methods, so patience matters more here than on gamma or hairpin.
Mount the full-length driven element
Unlike gamma or hairpin match, the driven element stays at full resonant length with no center gap or grounding requirement of its own — mount it the same way any full-length element would be mounted.
Mark symmetric tap points and attach the legs
Mark two tap points symmetric about the element's center at your calculated starting spacing, and attach one delta leg to each with adjustable clamps or connectors so position can be fine-tuned later.
Fan the legs to the feedline connection point
Route both legs down to the feedline (or balun input) connection point, fanning outward from the narrow feedline spacing to the wider element tap spacing. Support the legs with insulating spreaders so wind doesn't collapse the taper's geometry.
Sweep SWR and adjust tap point spacing
Sweep SWR with a NanoVNA. Move both tap points symmetrically closer to or farther from center to adjust the matched resistance, and adjust leg length/angle to shift the reactance null. Expect more back-and-forth between these two adjustments than with gamma or hairpin match.
Lock down the geometry
Once SWR is acceptable, secure every clamp and spreader so the taper's shape can't shift in wind — since there's no capacitor to re-tune after the fact, mechanical stability is the only thing keeping a delta match in tune long-term.
| Symptom | Most likely cause | Diagnosis | Fix |
|---|---|---|---|
| SWR is highly sensitive and hard to pin down | This is inherent to delta match's close coupling with the driven element, made worse by an uneven or bowed leg taper | Inspect leg geometry for straightness and symmetry before assuming a dimension error | Add or reposition spreaders to hold a clean, even taper shape, then re-sweep one adjustment at a time |
| SWR shifts noticeably in wind | Legs flexing and changing spacing/angle under load, since there's no rigid rod holding geometry the way gamma or hairpin does | Compare SWR readings on calm vs. windy days | Add additional insulating spreaders along the leg length, or switch to stiffer rod stock instead of flexible wire |
| SWR won't dip low enough anywhere in the adjustment range | Tap point spacing or leg length starting values are too far from what this specific element and feedline combination needs | Try a wider range of tap point spacing than the rule-of-thumb starting point, since delta match's practical range varies more by installation than gamma match's does | Systematically sweep tap spacing across a broader range, re-testing SWR at each, before concluding the method won't work for this element |
| RF-in-the-shack symptoms despite good SWR | Missing or undersized balun where coax connects to the balanced delta feedpoint | Confirm a properly sized 1:1 current balun is present at the coax transition | Install or upsize the balun per the 1:1 Current Balun / Choke guide |
| Nearby metal (mast, other elements) seems to detune the match | The fanned legs' close coupling to the element makes them more sensitive to nearby conductors than a gamma rod or hairpin | Compare SWR readings with the antenna at final mounting height/orientation versus on a test bench near other equipment | Do final tuning at or very near the actual installed position and orientation, not on a bench, since delta match transfers less cleanly between test and field setups than the other methods |
Why doesn't delta match need a capacitor like gamma or T-match?
The impedance transformation comes purely from the physical taper in conductor spacing between the feedline and the wider element tap points — a transmission-line geometry effect, not a reactance-cancellation effect the way a gamma rod's capacitor works, so there's no reactance left over that needs a component to cancel.
Is delta match harder to tune than gamma or hairpin?
In practice, yes — its closer coupling to the driven element makes it more sensitive to small geometry changes, and without a capacitor to fine-tune electrically, all adjustment has to happen mechanically. Most builders find gamma, T, or hairpin match converges to a good SWR faster.
Do I need a balun with delta match?
Yes, if feeding with coax — delta match presents a balanced feedpoint the same way T-match and hairpin match do, so a 1:1 current balun is needed to interface properly with unbalanced coax and to suppress common-mode current.
Why would I choose delta match over the other four methods today?
Mainly when avoiding capacitors specifically matters — very high power installations, harsh weather environments, or a preference for minimizing parts that can fail. For most typical builds, gamma, hairpin, or T-match offer more predictable tuning for similar or less overall effort.
Can delta match be used on antennas other than Yagis?
Yes — delta match originated as a general full-length-dipole matching method before Yagi-specific matches became common, and it still sees use on large HF dipole and loop arrays where a simple, capacitor-free feed transition from open-wire line is wanted.
