Gamma Match for Yagi Antennas
A gamma match feeds a Yagi's driven element without cutting a gap in it — the element stays a single continuous rod, DC-grounded to the boom, while a shorter parallel rod and a series capacitor pick off a matched 50Ω impedance from an offset point along the element. It is the most widely used Yagi feed method on HF monobanders precisely because of that grounded, lightning-friendlier construction. This guide covers how the gamma match actually transforms impedance, starting dimensions, comparison to the other four Yagi matching methods, and troubleshooting.
Why feed off-center at all
A Yagi's driven element, once you add a reflector and directors, typically presents a feedpoint impedance well under 50Ω at its exact center — often in the 15-30Ω range depending on element spacing and count. Rather than accepting that mismatch or splitting the element to insert a matching network at the center, a gamma match keeps the element solid and picks off the feed connection at a point further from center, where the current distribution along the element makes the effective impedance higher — closer to what a 50Ω system needs.
How the rod and capacitor complete the match
The gamma rod runs parallel to the driven element, connected to it at the offset tap point, with the coax center conductor connected to the rod's free end near the element's center. The rod is close enough to the driven element to be tightly coupled to it, which combined with the offset tap forms an autotransformer-like step-up in impedance. That coupling also adds inductive reactance in series with the newly transformed resistance — the gamma capacitor, wired in series between the coax center conductor and the rod, cancels that inductive reactance, leaving a purely resistive 50Ω at the feedpoint once properly tuned.
Why gamma match stays so popular
Because the driven element remains one continuous, unbroken rod bonded to the boom, a gamma-matched Yagi has a natural DC path to ground through the mast and tower — a real practical advantage for static and near-lightning-strike protection compared to an insulated split-element feed. It is also mechanically simple: one rod, one capacitor, no balanced feedline or balun strictly required (though a common-mode choke at the feedline is still good practice, since the gamma's inherently asymmetric tap still couples some common-mode current onto the coax shield).
Where gamma match falls short
The series capacitor has to handle real RF voltage, which becomes the weak point at high power — a poorly rated or corroded gamma capacitor is one of the most common Yagi feed failures reported in the field. The match is also inherently single-ended (asymmetric), which introduces a small amount of pattern skew and common-mode coupling that a balanced method like a T-match or hairpin avoids. See the comparison table below for how it stacks up against the other four methods.
- Best fit: HF and VHF monobanders where a grounded driven element and mechanical simplicity matter more than perfect electrical balance.
- Weak point: the series capacitor's voltage rating and weatherproofing at legal-limit power.
| Method | Driven Element Feed | Components Needed | Best For |
|---|---|---|---|
| Gamma Match | Single-ended, element grounded at center | 1 rod + 1 series capacitor | HF/VHF monobanders wanting a DC-grounded driven element |
| Hairpin (Beta) Match | Balanced, insulated center gap | 1 shorted stub, no capacitor | High power and VHF/UHF builds wanting a low-loss, capacitor-free match |
| T-Match | Balanced, insulated center gap | 2 rods + 2 series capacitors (symmetric) | Gamma-style tuning flexibility on a balanced element |
| Delta Match | Balanced, full-length element | 2 fanned wire legs, no capacitors | Simple, no-lossy-component match at high power |
| Omega Match | Single-ended, element grounded at center | 1 rod + 2 capacitors (series + shunt) | Extra tuning range when a simple gamma can't reach a clean 50Ω |
Materials for a gamma match assembly

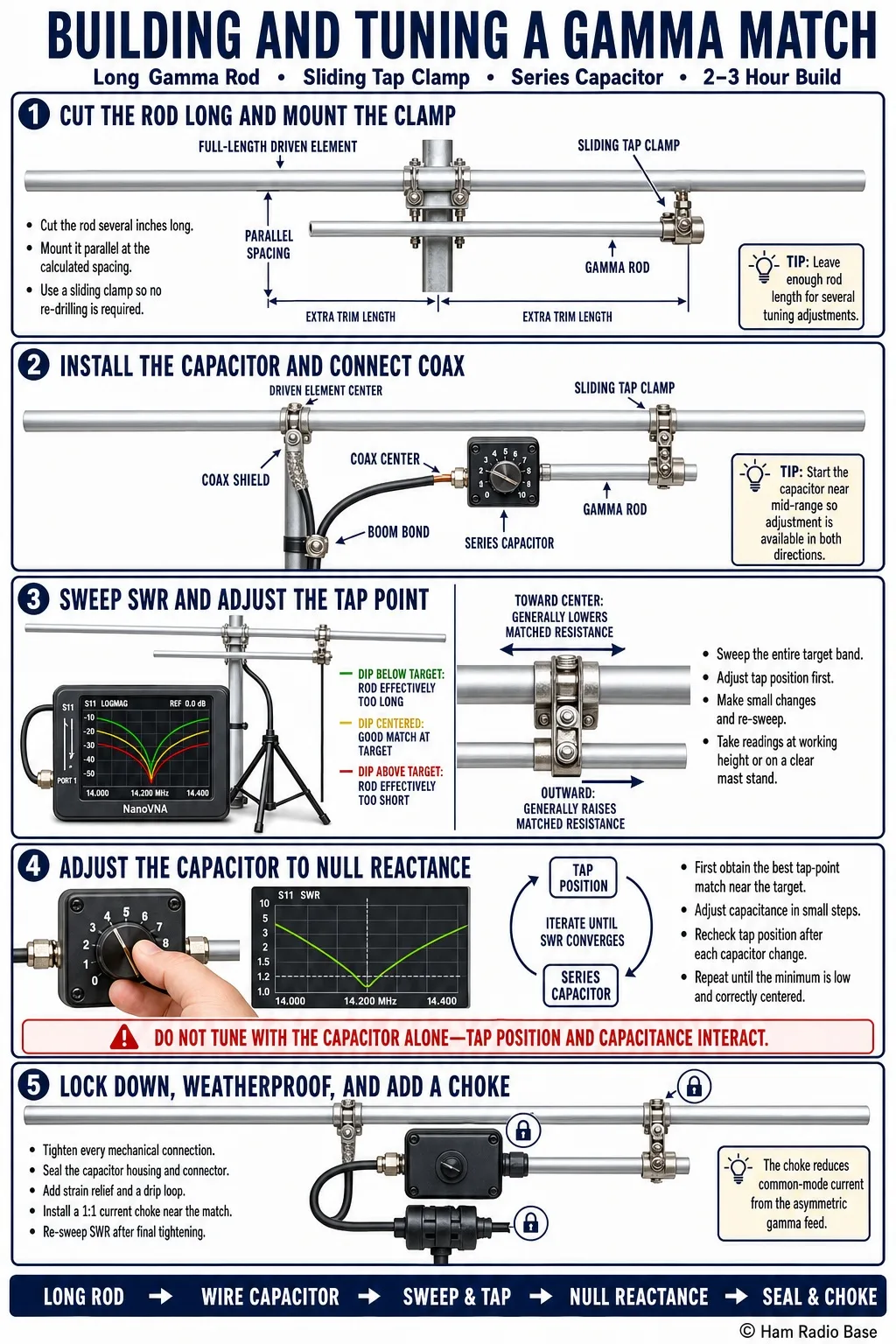

A gamma match assembly on a Yagi driven element, with the gamma rod, sliding tap clamp, and weatherproof series capacitor housing visible near the boom.
Building and Tuning a Gamma Match
Budget 2-3 hours including tuning time — gamma match tuning is iterative, not a one-shot cut. Do this with the Yagi at working height or on a mast stand well clear of ground and nearby metal for accurate readings.
Cut the gamma rod long and mount the sliding clamp
Cut the rod several inches longer than your starting-point estimate so you have room to shorten it during tuning. Mount it parallel to the driven element at the calculated spacing, with a sliding clamp at the element end so the tap point can be adjusted without re-drilling anything.
Install the capacitor and connect coax
Wire the gamma capacitor in series between the coax center conductor and the free end of the gamma rod. Connect the coax shield to the driven element at its electrical center, the same point that bonds to the boom.
Sweep SWR and identify which adjustment to make
Sweep SWR across your target band with a NanoVNA. If the SWR dip sits below your design frequency, the rod is effectively too long (electrically); if it sits above, the rod is effectively too short. Adjust the tap point position first — sliding the clamp toward the element's center generally lowers the matched resistance, moving it outward raises it.
Trim the capacitor to null out remaining reactance
Once the tap point gives you the lowest achievable SWR at approximately the right frequency, adjust the capacitor in small steps to pull the SWR minimum down further. Tap point and capacitor interact, so expect to go back and forth between steps 3 and 4 a few times before converging.
Lock down, weatherproof, and add a choke
Once SWR is acceptable across the band, tighten every mechanical connection (vibration and wind loosen gamma clamps over time) and seal the capacitor housing against moisture. Add a 1:1 current choke at the feedline near the gamma match to reduce common-mode current the asymmetric feed tends to induce.
| Symptom | Most likely cause | Diagnosis | Fix |
|---|---|---|---|
| SWR won't dip below about 2:1 no matter how the capacitor is adjusted | Tap point is far from the range that can be matched with the capacitor's available reactance | Try the tap point at multiple positions across its full adjustment range while resweeping SWR at each | Move the tap point closer to center (reduces matched R) or further out (increases it) until the capacitor can null the remaining reactance |
| SWR dip is sharp but centered on the wrong frequency | Gamma rod length is off from what the current tap point and capacitor setting actually need | Compare the SWR dip frequency to your design frequency — dip low means rod is electrically long, dip high means electrically short | Trim the rod shorter if the dip is below target, or move the tap point outward if you're out of rod to trim |
| Arcing or visible damage at the capacitor under power | Capacitor voltage rating too low for actual RF voltage at that SWR and power level | Check the capacitor's rated working voltage against your power level and the SWR seen during tuning, not just the matched condition | Replace with a higher-voltage-rated capacitor, and confirm the housing is properly sealed against moisture, which lowers the effective breakdown voltage |
| SWR is fine on the bench but drifts after the antenna is mounted | Mechanical flex or a loosened clamp changing rod spacing or tap position under wind load | Physically inspect and re-tighten every gamma match connection after initial mounting, then re-sweep | Use lock washers or thread-locking compound on the clamp hardware, and re-check after the first few windy days |
| RF-in-the-shack symptoms despite a good SWR reading | Gamma match's inherently asymmetric feed is inducing common-mode current on the coax shield | Clip on a known-good 1:1 choke temporarily at the feedline; if symptoms improve, common-mode current was the cause | Add a permanent 1:1 current choke at the feedline near the gamma match |
Why is the driven element grounded to the boom with a gamma match?
Because the gamma match feeds the element off-center rather than at a cut center gap, the element itself stays a single continuous rod that can be electrically bonded to the boom — giving the array a natural DC path to ground, which is a real practical advantage for static buildup and near-strike protection compared to an insulated split-element feed.
Do I need a balun with a gamma match?
Not strictly for the impedance transformation itself — a gamma match is inherently a single-ended, unbalanced feed. A 1:1 current choke is still recommended at the feedline, since the asymmetric tap couples some common-mode current onto the coax shield even when the SWR match itself is good.
My gamma capacitor keeps arcing — is a bigger capacitor the fix?
Usually the fix is a higher voltage rating, not a different capacitance value. Confirm the capacitance value itself is correct (the SWR dip is near your target frequency) before assuming the capacitor size is wrong, then replace with a unit rated for comfortably more RF voltage than your power level and any SWR excursions during tuning would produce.
How is gamma different from omega match?
Omega match is a gamma match with a second capacitor added in shunt (parallel) across the feedpoint, giving an extra degree of tuning freedom. It's more parts and more complexity for cases where a simple series-capacitor gamma can't quite reach a clean 50Ω — most builds don't need the extra capacitor. See the Omega Match guide for details.
Can I use a gamma match on a multiband Yagi?
Gamma match tuning is inherently narrowband — a single rod length, spacing, and capacitor setting are optimized for one design frequency. Multiband Yagi designs that need matching on several widely separated bands typically use a different matching approach per band, or a broader-coverage single-band gamma tuned to the center of one band's usable range.
