Hairpin (Beta) Match
A hairpin match feeds a Yagi's driven element at an ordinary insulated center gap, then uses a shorted parallel-rod stub across that feedpoint — no capacitor — to both cancel the capacitive reactance left by intentionally shortening the element and step the resulting low resistance up to 50Ω. Without a lossy, voltage-limited capacitor in the signal path, it is a common choice for high-power and VHF/UHF Yagis. This guide covers the underlying transmission-line math, a hairpin length calculator, and full troubleshooting.
Why the element is cut shorter than resonance
A Yagi driven element sitting in front of a reflector and behind directors already presents a feedpoint resistance well under 50Ω at its own resonant length — often 15-30Ω. Cutting the element a further 3-5% shorter than resonant pushes the feedpoint impedance to include capacitive reactance as well, which sounds like it makes the mismatch worse, but it sets up exactly the condition a simple shunt inductor can fix in one step: cancel the reactance and raise the resistance at the same time.
How the hairpin does both jobs with one component
The hairpin is a shorted two-wire transmission line stub — two parallel rods, joined at the far end, connected directly across the (still center-gap-fed) driven element. A shorted stub shorter than a quarter-wavelength behaves as a pure inductor, and choosing its length correctly makes it act as the exact shunt inductive reactance needed to cancel the shortened element's capacitive reactance while transforming the resulting parallel resistance up to 50Ω — the same math a shunt-L matching network uses, just built as a length of transmission line instead of a wound inductor.
Why no capacitor is a real advantage
A gamma or T-match's series capacitor has to handle real RF voltage and is a common point of arcing, detuning from moisture, or outright failure at high power. The hairpin has no such component — it is solid rod or heavy wire, rated for whatever current it can mechanically carry, with none of a capacitor's voltage-breakdown concerns. This is a major reason hairpin match is the default choice on many commercial and homebrew high-power HF monobanders and on the great majority of VHF/UHF Yagi designs, where the physically small hairpin length is also easy to fabricate precisely.
What you need to know before cutting the hairpin
Unlike gamma match's rule-of-thumb-then-trim approach, the hairpin's required length depends directly on the driven element's actual resistance and reactance at your chosen shortened length — values you get from a NanoVNA sweep of the bare driven element (with the hairpin not yet connected) or from antenna modeling software. Measure or model first, then use the calculator below to size the hairpin, rather than guessing a length and hoping.
- Best fit: high-power HF monobanders and most VHF/UHF Yagis, where a capacitor-free match and small physical size matter.
- Requirement: an insulated center-gap feed on the driven element — unlike gamma match, the element itself is not bonded to the boom by default.
| Method | Driven Element Feed | Components Needed | Best For |
|---|---|---|---|
| Gamma Match | Single-ended, element grounded at center | 1 rod + 1 series capacitor | HF/VHF monobanders wanting a DC-grounded driven element |
| Hairpin (Beta) Match | Balanced, insulated center gap | 1 shorted stub, no capacitor | High power and VHF/UHF builds wanting a low-loss, capacitor-free match |
| T-Match | Balanced, insulated center gap | 2 rods + 2 series capacitors (symmetric) | Gamma-style tuning flexibility on a balanced element |
| Delta Match | Balanced, full-length element | 2 fanned wire legs, no capacitors | Simple, no-lossy-component match at high power |
| Omega Match | Single-ended, element grounded at center | 1 rod + 2 capacitors (series + shunt) | Extra tuning range when a simple gamma can't reach a clean 50Ω |
Hairpin Match Length Calculator
Materials for a hairpin match assembly
A hairpin match assembly across a Yagi driven element's insulated center gap, with the shorted parallel-rod stub and coax connector visible.

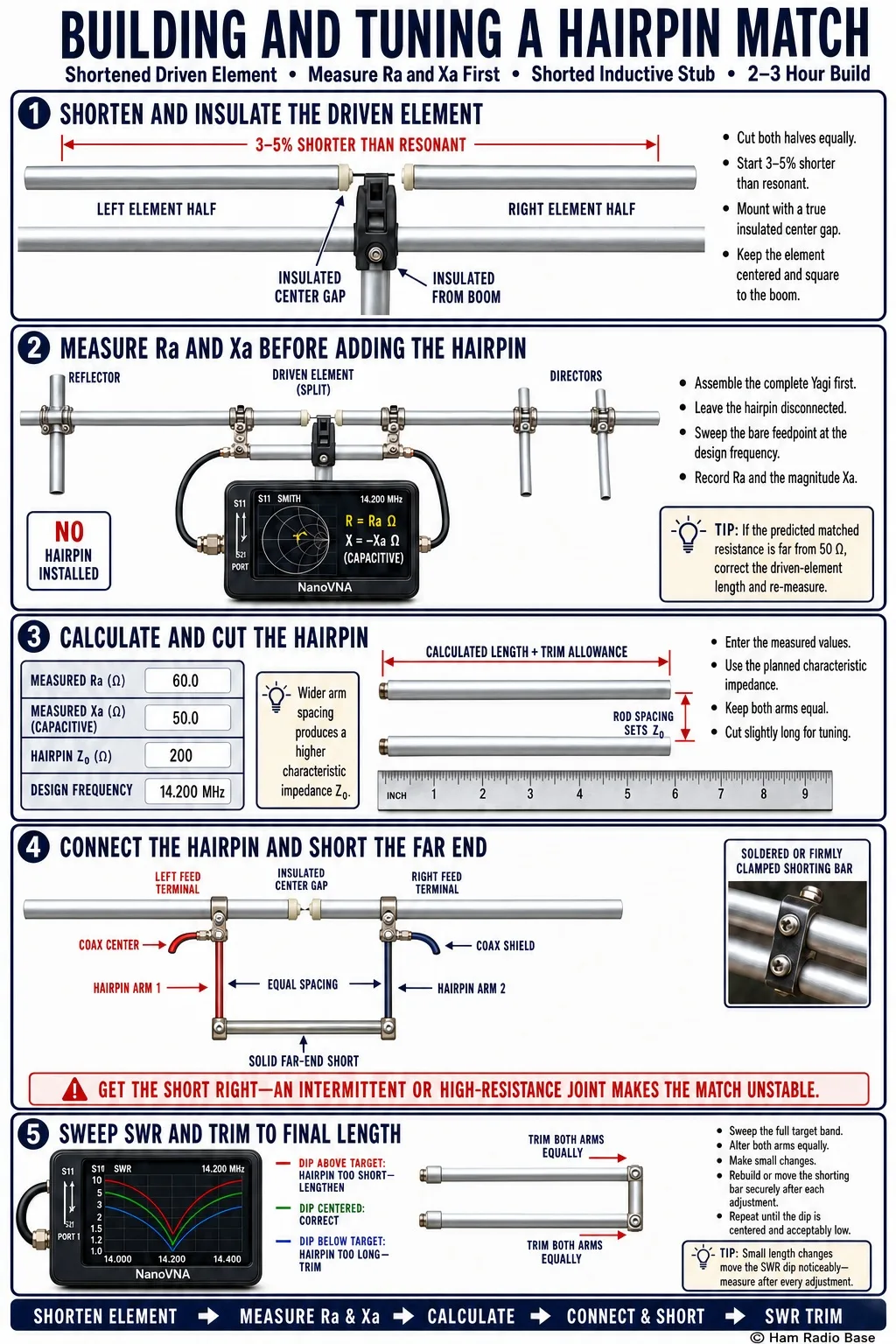

Building and Tuning a Hairpin Match
Budget 2-3 hours including measurement and tuning time. The order matters here — measure before you cut, unlike a gamma match's trim-as-you-go approach.
Cut the driven element 3-5% shorter than resonant and mount it insulated
Cut the driven element to a length roughly 3-5% shorter than its resonant length at your design frequency, and mount it with an insulated center gap the same way a normal dipole-fed element would be mounted.
Measure Ra and Xa at the feedpoint before adding the hairpin
With the Yagi fully assembled (reflector and directors in place, since they affect the driven element's impedance) but no hairpin connected yet, sweep the bare feedpoint with a NanoVNA at your design frequency and record the resistance (Ra) and capacitive reactance magnitude (Xa).
Calculate and cut the hairpin
Enter your measured Ra, Xa, your hairpin's planned characteristic impedance (a wider rod spacing gives a higher Z0), and your design frequency into the calculator above. Cut both hairpin arms a bit longer than the calculated length so you can trim down during final tuning.
Connect the hairpin and short the far end
Connect both hairpin arms directly across the driven element's feedpoint terminals, with the coax connector at the same point. Join the far ends of the two arms together with a solid, low-resistance short — this connection carries real circulating current and a poor joint here will show up as an unstable or shallow SWR dip.
Sweep SWR and trim to final length
Sweep SWR with a NanoVNA. If the dip sits above your design frequency, the hairpin is electrically too short (lengthen it); if below, it's too long (trim it). Small changes in hairpin length move the SWR dip noticeably, so trim in small steps.
| Symptom | Most likely cause | Diagnosis | Fix |
|---|---|---|---|
| SWR won't come close to 1:1 no matter how much the hairpin is trimmed | The driven element's own shortened-length resistance and reactance don't combine to land near 50Ω, so no hairpin length can fully fix it | Use the calculator's resulting-resistance output with your measured Ra/Xa — if it's far from your target, the element length is the problem, not the hairpin | Adjust the driven element's shortened length (slightly more or less than the starting 3-5%) and re-measure Ra/Xa before re-cutting the hairpin |
| SWR dip is shallow and broad rather than sharp | Poor connection at the hairpin's shorted far end, adding resistance where the design assumes a clean short | Check the shorting joint for corrosion, looseness, or a cold solder connection | Re-make the joint with a solid solder or clamped connection |
| SWR dip is at the wrong frequency | Hairpin length doesn't match the calculated value, or the Z0 assumption (rod spacing) was off from what was actually built | Compare the dip frequency to design frequency — dip low means hairpin is electrically long, dip high means electrically short | Trim the hairpin shorter if the dip is below target; if you're already at minimum practical length, the actual Z0 may differ from the calculator input — remeasure rod spacing |
| Hairpin arms flex or move in wind, and SWR shifts with them | Rod or wire too thin/flexible for the span, changing effective spacing (and therefore Z0) under wind load | Observe whether SWR correlates with wind conditions or physical nudging of the hairpin | Use stiffer rod stock or add a rigid spacer partway along the hairpin's length to fix the spacing mechanically |
| RF-in-the-shack symptoms despite a good SWR reading | No common-mode choke at the feedline — the hairpin match itself does not provide common-mode isolation | Clip on a known-good 1:1 choke temporarily at the feedline; if symptoms improve, common-mode current was the cause | Add a permanent 1:1 current choke at the feedline near the driven element |
Why does the hairpin match need no capacitor?
Because a shorted transmission line stub shorter than a quarter-wavelength is naturally inductive — the same electrical function a capacitor-cancelled gamma rod's reactance would otherwise need help with, except here the geometry alone provides the correct inductive reactance to cancel the shortened element's capacitance, and also completes the resistance step-up, in one part.
Do I need to model the antenna, or can I just measure the real thing?
Measuring the real, fully assembled Yagi (with reflector and directors in place, driven element shortened, but hairpin not yet connected) with a NanoVNA is the most reliable source for Ra and Xa — antenna modeling software works too if you trust your model's accuracy, but a physical measurement accounts for your actual materials and construction tolerances.
Does the hairpin need to be grounded to the boom?
Not by default — unlike a gamma match, the driven element has an insulated center gap. Some builders bond the hairpin's shorted end to the boom for a DC ground path, which is electrically harmless (that point is already at RF ground in a properly tuned hairpin) and adds a lightning/static bleed path if desired.
What determines the hairpin's characteristic impedance?
The spacing between the two parallel rods and their diameter, the same way any two-wire transmission line's Z0 is set — wider spacing relative to rod diameter gives a higher Z0. Most practical ham hairpin builds land in the 200-350Ω range; if you know your exact rod spacing and diameter you can calculate Z0 precisely, otherwise 300Ω is a reasonable starting assumption for the calculator above.
Can I use a hairpin match on an HF monobander, or is it VHF/UHF-only?
It works at any frequency — the physical hairpin is simply longer at lower frequencies. It's especially popular at VHF/UHF because the resulting hairpin length is conveniently small, but full-size HF monobanders (10m through 40m and beyond) use hairpin matches routinely, particularly at high power where avoiding a gamma capacitor's voltage limitations matters most.
