An omega match is a gamma match with one more part: a second capacitor wired in shunt (parallel) across the feedpoint, alongside the usual gamma rod and series capacitor. That second capacitor gives you two independent tuning knobs instead of one, useful when a plain gamma match's tap point and series capacitor alone can't quite reach a clean 50Ω. This guide covers when the extra complexity earns its keep, starting dimensions, and troubleshooting.
What gamma match's single capacitor can and can't do
A plain gamma match has exactly two adjustable variables at build time: the tap point position (which primarily sets the transformed resistance) and the series capacitor (which cancels the reactance the rod coupling introduces). For most Yagi driven elements this is enough range to reach a clean 50Ω. But mechanical constraints — a tap point range limited by element length, or a capacitor whose available range doesn't quite reach what a particular array's impedance needs — can leave a gamma match unable to fully null the match no matter how the two variables are combined.
How the shunt capacitor adds the missing range
Adding a second capacitor in shunt (parallel) directly across the feedpoint — between the coax shield/ground connection and the coax center conductor, right where they meet the gamma rod's series capacitor — gives the circuit a second, independent reactance to adjust. Where the series capacitor primarily trims reactance at a nearly fixed resistance (set by the tap point), the shunt capacitor lets you pull the effective resistance seen at the feedpoint closer to 50Ω independently, widening the overall range the match can reach for a given tap point position.
Why most builds don't need it
The extra capacitor means an extra weatherproofed, voltage-rated component in the signal path — another potential arc point, another housing that can leak, and a tuning process with one more interacting variable to juggle. For the majority of single Yagi driven elements, a plain gamma match's tap point and series capacitor already have enough range, making the omega match's added complexity unnecessary overhead. See the Gamma Match guide first — if a straightforward gamma build reaches an acceptable SWR, there's no need to add the shunt capacitor.
When the extra range actually helps
Omega match earns its complexity specifically when a gamma match's normal adjustment range genuinely falls short — unusual driven element impedances from tight element spacing or stacking configurations, mechanical limits that cap how far the tap point can travel, or a capacitor value range that doesn't quite reach what the array needs. It's a specialty tool for closing a gap gamma match can't close alone, not a general upgrade.
- Best fit: gamma match builds that can't reach a clean SWR despite trying the full tap point and capacitor range.
- Not needed: if a plain gamma match already gets you there.
| Method | Driven Element Feed | Components Needed | Best For |
|---|---|---|---|
| Gamma Match | Single-ended, element grounded at center | 1 rod + 1 series capacitor | HF/VHF monobanders wanting a DC-grounded driven element |
| Hairpin (Beta) Match | Balanced, insulated center gap | 1 shorted stub, no capacitor | High power and VHF/UHF builds wanting a low-loss, capacitor-free match |
| T-Match | Balanced, insulated center gap | 2 rods + 2 series capacitors (symmetric) | Gamma-style tuning flexibility on a balanced element |
| Delta Match | Balanced, full-length element | 2 fanned wire legs, no capacitors | Simple, no-lossy-component match at high power |
| Omega Match | Single-ended, element grounded at center | 1 rod + 2 capacitors (series + shunt) | Extra tuning range when a simple gamma can't reach a clean 50Ω |
Materials for an omega match assembly

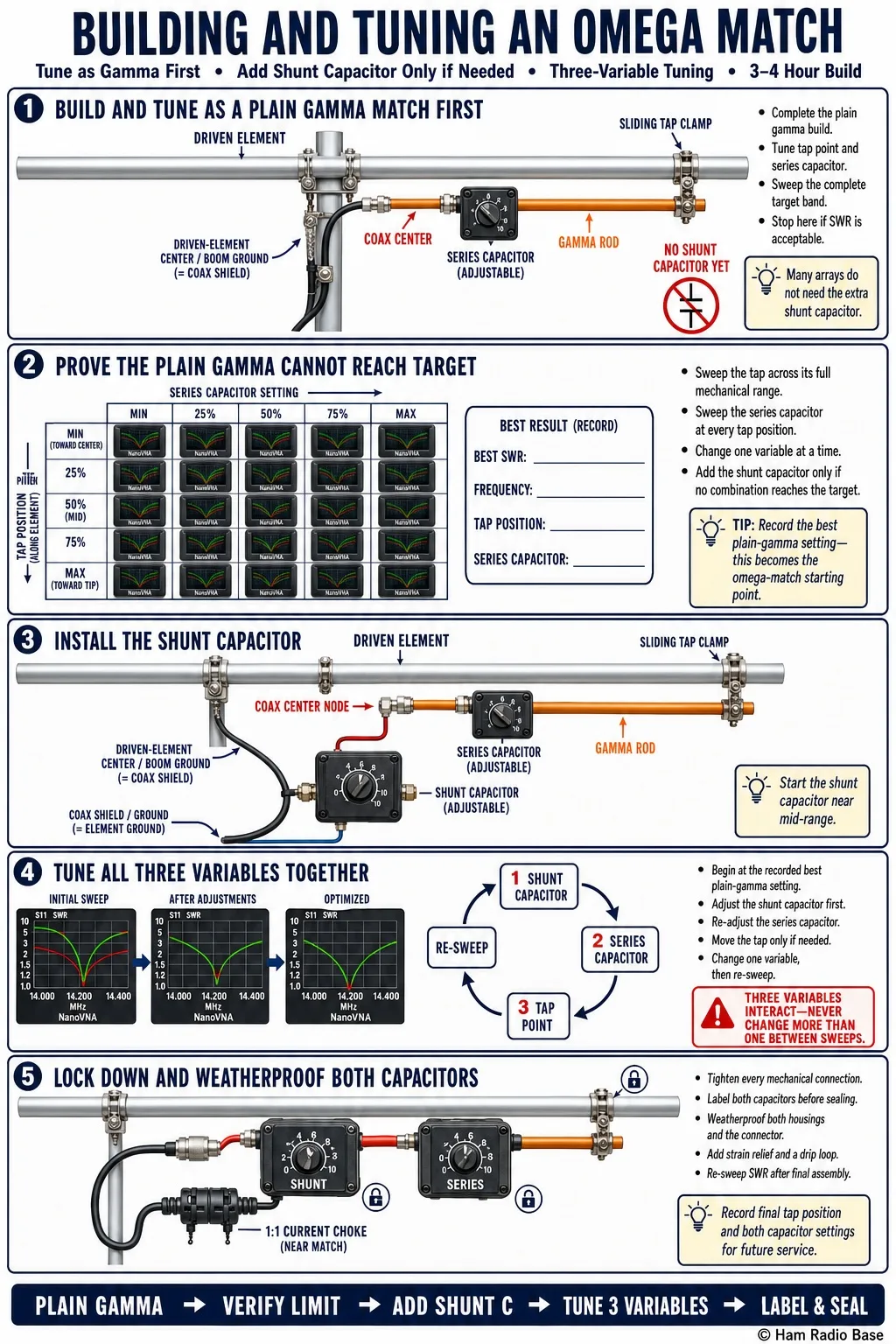

An omega match assembly on a Yagi driven element: the standard gamma rod and series capacitor, plus an additional shunt capacitor across the feedpoint.
Building and Tuning an Omega Match
Budget 3-4 hours. Build and tune it as a plain gamma match first — only wire in the shunt capacitor if that alone doesn't reach an acceptable SWR.
Build and tune as a plain gamma match first
Follow the Gamma Match guide's build and tuning steps completely, without the shunt capacitor installed. Many arrays reach an acceptable SWR this way, making the shunt capacitor unnecessary.
Tune all three variables together
Sweep SWR while adjusting the shunt capacitor first from your best plain-gamma starting point, then re-adjust the series capacitor, then the tap point if needed, cycling through all three until SWR converges. This takes longer than plain gamma match tuning — expect more iterations.
| Symptom | Most likely cause | Diagnosis | Fix |
|---|---|---|---|
| Tuning feels like chasing your tail — SWR never converges | Adjusting more than one of the three variables (tap point, series cap, shunt cap) between SWR sweeps | Review your tuning process — are you changing one thing and re-sweeping, or several things at once? | Return to your documented plain-gamma starting point and adjust strictly one variable at a time, re-sweeping after each change |
| SWR is no better with the shunt capacitor than without it | The plain gamma match's tap point and series capacitor combination wasn't actually at its own best setting before the shunt capacitor was added | Temporarily remove the shunt capacitor and re-verify the plain gamma match is at its true best achievable SWR | Re-optimize the plain gamma variables first, then reintroduce the shunt capacitor from that improved baseline |
| One capacitor arcs while the other doesn't | Uneven voltage distribution between the series and shunt capacitors depending on their settings | Check both capacitors' voltage ratings against the RF voltage each is actually seeing at your power level | Upgrade the arcing capacitor's voltage rating; both capacitors don't necessarily see equal voltage even at the same power level |
| Can't tell which capacitor is series and which is shunt after time outdoors | No labeling was applied during construction | Trace wiring back to the rod (series) versus directly across the feedpoint terminals (shunt) | Label both housings clearly once identified, to save time on future maintenance |
| RF-in-the-shack symptoms despite good SWR | Same asymmetric-feed common-mode coupling a plain gamma match has — the shunt capacitor doesn't change this | Clip on a known-good 1:1 choke temporarily at the feedline; if symptoms improve, common-mode current was the cause | Add a permanent 1:1 current choke at the feedline near the omega match |
Should I just build an omega match instead of a gamma match from the start?
No — start with a plain gamma match. Most driven elements match cleanly with just a tap point and series capacitor, and the shunt capacitor only adds complexity, weatherproofing points, and tuning difficulty without benefit if it isn't actually needed.
How do I know if I actually need the shunt capacitor?
Only after confirming a plain gamma match's tap point and series capacitor, swept across their full practical ranges, genuinely cannot reach an acceptable SWR. If gamma match alone gets you there, omega match's extra capacitor isn't needed.
Where exactly does the shunt capacitor connect?
Directly across the feedpoint terminals — between the coax center conductor connection and the coax shield/ground connection — in parallel with the rest of the gamma circuit, not in series with the rod the way the series capacitor is.
Is omega match harder to tune than gamma match?
Yes, noticeably — three interacting variables (tap point, series capacitor, shunt capacitor) instead of two means more iterations to converge, and it's easier to lose track of what's helping versus hurting if you change more than one variable between SWR sweeps.
Does omega match need a balun like T-match or delta match?
No — like plain gamma match, omega match is a single-ended feed with the element grounded at center, not a balanced feedpoint. A 1:1 current choke at the feedline is still good practice for common-mode suppression, the same as with a plain gamma match.
