T-Match
A T-match is a gamma match built twice, symmetrically — two rods and two capacitors, one on each side of the driven element's insulated center gap, giving the same offset-tap impedance step-up as a gamma match but on a genuinely balanced feed. That symmetry avoids the pattern skew and common-mode coupling a single-sided gamma match introduces, at the cost of double the hardware and the need for a balun to interface with coax. This guide covers the theory, starting dimensions, and troubleshooting.
Why double the gamma match instead of using it as-is
A single gamma rod on one side of the driven element works electrically, but it is inherently asymmetric — current flows differently on the gamma-rod side than the plain side of the element, which skews the radiation pattern slightly and couples common-mode current onto the feedline more than a balanced feed does. Mirroring the gamma rod on both sides of an insulated center gap, with matching capacitors on each, restores symmetry: both halves of the driven element see the same tap geometry, and the feed becomes genuinely balanced.
How the two rods and capacitors work together
Each rod is connected to its own side of the driven element at a symmetric offset from center, exactly like a gamma rod, and each has its own series capacitor. The two capacitors' far ends connect to the two conductors of a balanced feedline (or to the two output terminals of a balun feeding coax). Both rod-and-capacitor pairs are tuned together — since the geometry is symmetric, they should end up needing very similar (ideally identical) settings.
The balun requirement
Because a T-match presents a genuinely balanced feedpoint, connecting unbalanced coax directly (the way a single-sided gamma sometimes is) introduces the same balanced-to-unbalanced mismatch a fed dipole would have without a balun. A 1:1 current balun at the T-match's balanced terminals is standard practice — see the 1:1 Current Balun / Choke guide — both to properly interface with coax and to suppress common-mode current on the feedline.
When T-match is worth the extra hardware
The main payoff versus a single gamma match is pattern symmetry and lower common-mode coupling — worthwhile on arrays where pattern precision matters (contest and DX arrays, stacked Yagis) or where minimizing RF-in-the-shack risk is a priority. The tradeoff is real: twice the rods, twice the capacitors, twice the tuning work, and two more weatherproofing points that can fail. For a typical single Yagi where "good enough" symmetry is fine, plain gamma match remains the simpler choice.
- Best fit: arrays and installations where feed symmetry and lower common-mode coupling justify the extra parts count.
- Requires: an insulated center-gap driven element and a balun at the balanced terminals.
| Method | Driven Element Feed | Components Needed | Best For |
|---|---|---|---|
| Gamma Match | Single-ended, element grounded at center | 1 rod + 1 series capacitor | HF/VHF monobanders wanting a DC-grounded driven element |
| Hairpin (Beta) Match | Balanced, insulated center gap | 1 shorted stub, no capacitor | High power and VHF/UHF builds wanting a low-loss, capacitor-free match |
| T-Match | Balanced, insulated center gap | 2 rods + 2 series capacitors (symmetric) | Gamma-style tuning flexibility on a balanced element |
| Delta Match | Balanced, full-length element | 2 fanned wire legs, no capacitors | Simple, no-lossy-component match at high power |
| Omega Match | Single-ended, element grounded at center | 1 rod + 2 capacitors (series + shunt) | Extra tuning range when a simple gamma can't reach a clean 50Ω |
Materials for a T-match assembly

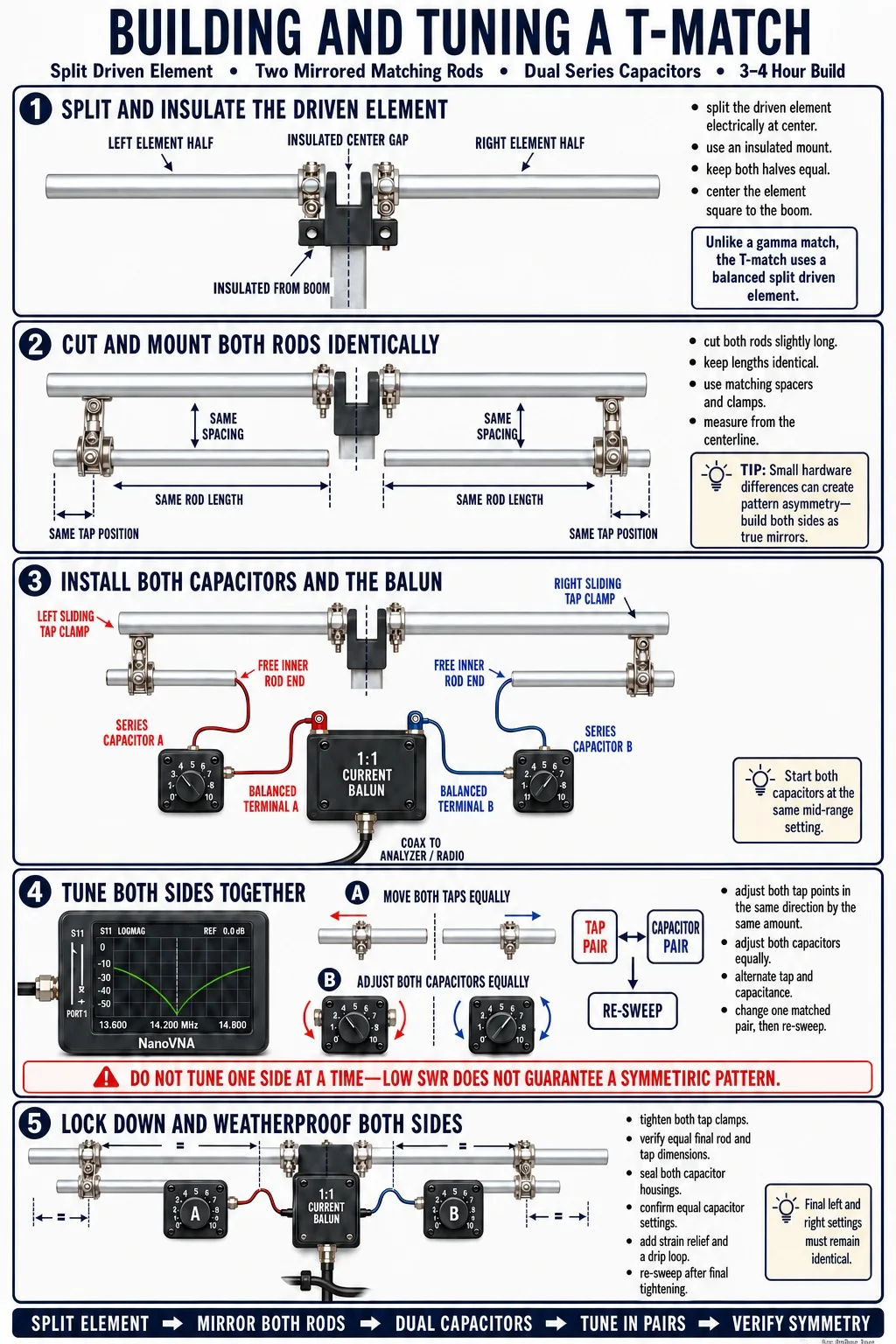

A T-match assembly across a Yagi driven element's insulated center gap, with two symmetric matching rods and capacitor housings.
Building and Tuning a T-Match
Budget 3-4 hours — twice the hardware of a gamma match means twice the tuning work, and both sides need to move together for the symmetry to actually pay off.
Mount the driven element with an insulated center gap
Unlike a gamma match's continuous element, the T-match's driven element must be electrically split at center with an insulated mount, since both matching rods tap symmetric points on either side of that gap.
Cut and mount both rods identically
Cut both rods to the same starting length, longer than your calculated estimate for later trimming, and mount them at matching spacing and initial tap position on each side of the element.
Install both capacitors and the balun
Wire one capacitor in series between each rod's free end and its corresponding balanced terminal. Connect the balanced terminals to a 1:1 current balun, and connect the balun's coax side to your feedline.
Tune both sides together
Sweep SWR with a NanoVNA at the coax input. Adjust both tap points by the same amount in the same direction, then both capacitors by the same amount, alternating between tap point and capacitor adjustment the same way a single gamma match is tuned — but mirrored on both sides simultaneously.
Lock down and weatherproof both sides
Once SWR is acceptable, tighten every mechanical connection on both rods and seal both capacitor housings. Check that both sides received the same final adjustment — a mismatch here at completion means the earlier tuning process drifted asymmetric.
| Symptom | Most likely cause | Diagnosis | Fix |
|---|---|---|---|
| SWR is good but the radiation pattern seems skewed | The two sides were tuned to noticeably different final settings, reintroducing asymmetry | Physically compare tap point position and capacitor setting on both sides | Re-tune both sides to matching settings rather than accepting whatever combination happened to null the SWR |
| One side's capacitor arcs while the other doesn't | Uneven current split between the two rods, often from a spacing or tap point mismatch between sides | Check both rods' spacing and tap position against each other for symmetry | Correct the mechanical mismatch so both sides carry equal current, and confirm both capacitors share the same voltage rating |
| SWR won't dip below about 2:1 | Same as gamma match — tap points are outside the range the capacitors can null | Sweep SWR while adjusting both tap points together across their range | Move both tap points together toward or away from center until the capacitors can complete the match |
| RF-in-the-shack symptoms despite good SWR | Missing or undersized balun at the balanced terminals | Confirm a properly sized 1:1 current balun is installed between the T-match terminals and the coax | Install or upsize the balun per the 1:1 Current Balun / Choke guide |
| SWR drifts differently on each side after time outdoors | One capacitor housing developed a moisture leak while the other didn't | Inspect both housings for water ingress or corrosion | Reseal or replace the affected housing, and consider more robust weatherproofing on both sides going forward |
Is a T-match just two gamma matches?
Electrically, yes — each side works exactly like a single gamma match's rod-and-capacitor pair, mirrored on the opposite side of an insulated center gap. The benefit is symmetry: both halves of the driven element see matching tap geometry instead of one side being loaded differently than the other.
Why do I need a balun with a T-match but not always with a gamma match?
A T-match presents a genuinely balanced feedpoint (two symmetric terminals), so connecting unbalanced coax directly introduces the same balanced-to-unbalanced problem a center-fed dipole has without a balun. A single-sided gamma match is already asymmetric, so it doesn't have this specific balanced/unbalanced mismatch, though a common-mode choke is still good practice there too.
Is T-match worth the extra parts over a plain gamma match?
For a single Yagi where "good enough" pattern symmetry is acceptable, usually not — plain gamma match is simpler to build and tune. T-match earns its extra complexity on arrays where pattern precision matters, such as stacked or phased Yagi systems, or where minimizing common-mode coupling is a priority.
Can the two sides use different capacitor values?
They shouldn't need to if the mechanical construction (rod length, spacing, tap point) is genuinely symmetric — needing significantly different capacitor values on each side is usually a sign of a construction asymmetry that should be corrected mechanically, not compensated for electrically.
How does T-match compare to hairpin match for a balanced feed?
Both feed a balanced, insulated center gap, but hairpin match needs no capacitors (avoiding their voltage-rating and weatherproofing concerns) while T-match offers gamma-style independent tap point and capacitor tuning, which some builders find more intuitive to adjust. See the Hairpin (Beta) Match guide for the capacitor-free alternative.
